Which factory carbon audit standards apply to CO2 compression projects?

Factory carbon audit standards for CO2 compression projects: compare ISO 14064, ISO 50001, verification rules, metering, and lifecycle reporting requirements.
Time : Sep 10, 2026

CO2 compression projects do not sit under one universal “factory carbon audit” standard. The applicable framework is usually a combination of organizational greenhouse-gas accounting, energy-management evidence, independent verification requirements, and any jurisdiction-specific monitoring rules that govern the source facility, transport network, or storage site. The correct combination depends on the audit claim being made: a facility emissions inventory, a verified reduction claim, the carbon intensity of a captured CO2 stream, or compliance reporting for a regulated installation.

For most projects, the core starting point is an organizational inventory prepared under ISO 14064-1 or the GHG Protocol Corporate Standard. These frameworks establish the boundary of the reporting entity, classify direct and indirect emissions, and require transparent treatment of data sources, calculation methods, exclusions, and base-year changes. They do not prescribe compressor design or prove that a carbon capture and storage chain has delivered permanent abatement. Their role is to create a defensible facility-level account into which compression energy, venting, refrigerant losses, fuel use, and imported electricity can be placed consistently.

Start with the claim, then select the standard set

A compressor train may reduce emissions associated with a vented process stream, while simultaneously increasing electricity consumption enough to alter the site inventory materially. That is why an audit should first define the intended statement. “The factory has lower emissions” and “the CO2 sent for storage has a verified low carbon intensity” are different claims with different boundaries and evidence needs.

Audit purpose Most relevant framework What it establishes
Annual facility greenhouse-gas inventory ISO 14064-1 or GHG Protocol Corporate Standard Organizational boundary, Scope 1, Scope 2, selected Scope 3 categories, and inventory controls.
Independent assurance of an emissions statement ISO 14064-3, supported by an accredited verification process where required Whether the reported statement is materially correct against defined criteria.
Energy performance of compression assets ISO 50001 and ISO 50006 principles for energy performance indicators and baselines Whether power consumption is measured, normalized, and compared on a meaningful basis.
Product or service carbon footprint ISO 14067, where a product-footprint claim is being made Lifecycle greenhouse-gas accounting for a defined product system rather than the whole organization.
Regulated emissions or CO2 storage reporting Applicable national, regional, permit, or emissions-trading monitoring rules Legally prescribed meters, sampling, reporting intervals, calculation factors, and verification methods.

ISO 14001 is also relevant when the facility operates an environmental management system. It supports documented control of significant environmental aspects, corrective actions, competence, and retained records. It is not, by itself, a carbon-accounting or carbon-verification standard. Treating ISO 14001 certification as proof of a quantified emissions reduction is a frequent overstatement.

Where CO2 compression changes the inventory

Compression often moves a project from a relatively simple capture claim to an energy and mass-balance problem. The compressor does not create carbon dioxide, but its electricity demand can create indirect emissions under Scope 2, or upstream emissions under a lifecycle calculation. If the train uses gas-driven turbines, engines, start-up heaters, or thermal-oil systems, those combustion emissions fall within Scope 1. The audit needs to distinguish these sources rather than report all compression-related emissions under a single “parasitic load” line.

The useful functional unit for operating assessment is commonly a mass of CO2 compressed through a stated pressure range, with a declared inlet composition and delivery condition. A value such as kilowatt-hours per tonne of CO2 is informative only when it is tied to suction pressure, discharge pressure, inlet temperature, throughput, compressor configuration, recycle operation, and gas composition. Comparing two specific-energy figures without those operating conditions can produce an incorrect conclusion. A multistage train handling dry, dense-phase-ready CO2 will not behave like a lower-pressure system processing a wet stream with variable non-condensable gases.

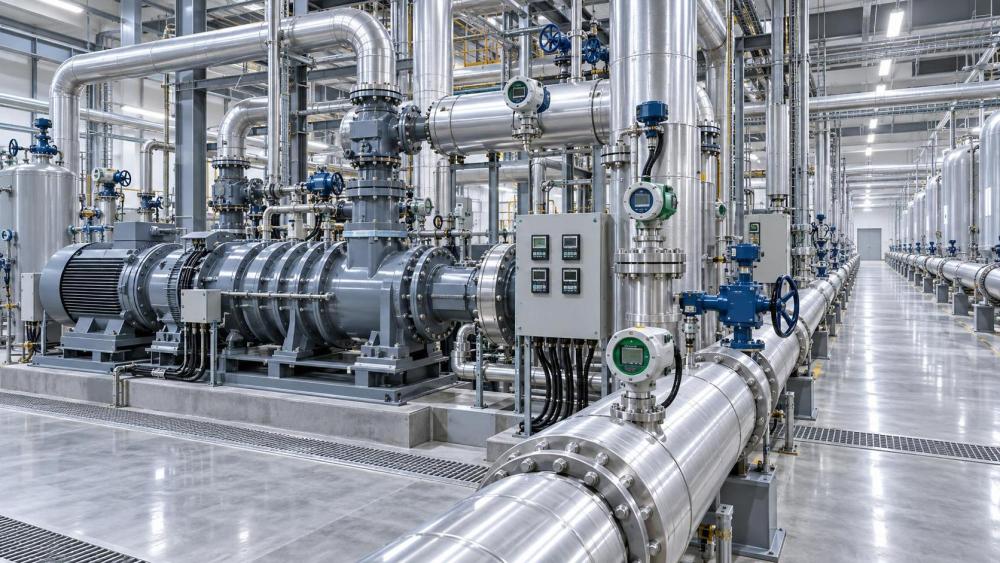

Which factory carbon audit standards apply to CO2 compression projects?

Electricity allocation needs similar care. A dedicated compressor feeder allows direct metering. Shared switchgear, common cooling water systems, instrument-air packages, and dehydration units require a documented allocation method. A fixed allocation based on nameplate capacity may be convenient, but it is weak where loads change with flow, ambient temperature, or anti-surge operation. Submetering the main motor, intercooler fans, condensate handling, dehydration, and auxiliary pumps usually produces a more traceable audit trail.

Meter boundaries should match the reporting boundary. Measuring power only at the motor terminals misses variable-frequency-drive losses, transformer losses, and upstream auxiliaries if the stated metric is “compression system electricity.” Measuring at the incoming feeder may include unrelated loads. Either boundary is acceptable when defined consistently, but changing it between reporting periods without recalculating the baseline makes performance movement difficult to interpret.

Mass balance is as important as electricity data

A carbon audit for a compression project should reconcile CO2 captured, conditioned, compressed, exported, received downstream, returned through recycle lines, vented, drained, and stored or utilized. The physical CO2 balance and the greenhouse-gas inventory are related but not identical. A facility can show a low energy intensity while losing material through seals, blowdown events, off-spec diversion, or a persistent vent. Conversely, a temporary increase in electricity intensity may be justified by a change in feed composition or a period of low throughput, provided the underlying evidence is retained.

CO2 flow measurement deserves the same scrutiny as electricity measurement. Density changes sharply across portions of the compression and phase-conditioning process. Meter selection, pressure and temperature compensation, calibration intervals, straight-run installation conditions, pulse totalization, and time synchronization with the site historian all affect reconciliation. A mass-flow total taken upstream of dehydration is not automatically comparable with custody-transfer mass downstream if water and contaminants have been removed.

Impurities also affect the audit boundary. Oxygen, nitrogen, hydrogen, methane, sulfur compounds, water, and other constituents influence compressibility, corrosion exposure, dehydration duty, and whether the stream meets pipeline or storage specifications. The carbon accounting question is not merely whether the stream is described as “CO2.” It is whether the reported tonne represents total stream mass, dry CO2 mass, or carbon dioxide equivalent after a compositional analysis. The basis should be declared in the calculation procedure and kept aligned with commercial transfer records.

Leakage, venting, and abnormal operations

Routine seals and maintenance vents are often small relative to annual compressed volume, yet they can undermine a reduction claim when ignored entirely. The audit boundary should cover planned depressurization, compressor seal vents, purge gas discharge, sampling losses, relief-valve lifting, off-spec diversion, cold-start behavior, and emergency shutdowns. A single episodic vent does not necessarily invalidate the project accounting, but it must be captured in the reporting period and classified correctly.

Leaks require more than a maintenance work order. Evidence may include gas-detection records, repair dates, pressure-decay tests, engineering estimates, vent flow records, or reconciled inventory variance. The selected method should match the significance and measurability of the source. Assigning a generic leakage factor to every connection can be acceptable for an immaterial estimate within a broader inventory methodology, but it is not a substitute for measured data where a permit, crediting method, or verified claim requires direct quantification.

Verification standards and evidence quality

ISO 14064-3 provides the structure for validating or verifying greenhouse-gas statements. For a CO2 compression project, verification planning should identify the claimed assertion, reporting period, organizational and operational boundaries, materiality threshold, intended users of the statement, data controls, and applicable criteria. The verification body assesses whether the evidence supports the claim; it does not determine which commercial narrative the facility should adopt.

Evidence is strongest when the engineering records and carbon records trace to the same equipment and timestamps. Typical source material includes process flow diagrams, piping and instrumentation diagrams, meter registers, calibration certificates, historian exports, electricity invoices, grid emission-factor sources, compressor operating logs, maintenance records, vent registers, gas chromatograph results, custody-transfer tickets, and downstream receipt confirmations. A calculation workbook without preserved source data is vulnerable even if its formulas are correct.

Version control matters where plant modifications occur. Replacing an impeller, adding an intercooler, changing a dehydration package, rerouting a recycle line, or switching electricity supply arrangements may alter the emissions result. The audit file should show the effective date of the change, affected meter tags, revised process boundary, and treatment of the baseline. Otherwise, a genuine efficiency improvement can be confused with a boundary change, or an unfavorable shift can be hidden by combining unlike operating periods.

Energy management standards provide the operating discipline

ISO 50001 is useful when compression electricity is a major site load because it requires a managed approach to significant energy uses, measurement planning, operational control, and continual review. It does not assign a carbon factor to electricity or replace an ISO 14064 inventory. Its value lies in making the energy figure auditable at asset level.

ISO 50006 principles are particularly helpful for defining an energy performance indicator and energy baseline. For a compressor, throughput alone is often an incomplete normalization variable. Suction pressure, discharge pressure, inlet gas temperature, ambient conditions affecting cooling, molecular composition, and online availability can all influence load. The baseline model should use only variables that are measured reliably and materially explain energy use. Adding poorly controlled variables to make the model appear sophisticated creates a result that cannot be reproduced during assurance.

Anti-surge control deserves separate treatment. High recycle flow may raise power consumption even when exported CO2 falls. This can result from unstable feed conditions, an oversized machine at turndown, valve behavior, restrictive downstream conditions, or a control-tuning issue. An audit that reports only monthly electricity and exported tonnes can identify the symptom but not its cause. Trend data for recycle valve position, flow, pressure ratio, motor load, and downtime should be retained where performance claims rely on compressor efficiency.

Lifecycle boundaries require a separate decision

Facility accounting under ISO 14064-1 commonly reports the compressor’s direct fuel use and purchased electricity. A lifecycle claim may require additional stages: upstream generation and transport of electricity or fuel, manufacture and replacement of solvents or desiccants, transport of captured CO2, injection energy, and treatment of non-condensable gases. ISO 14067 can structure a product carbon footprint when there is a defined product system and intended footprint claim, while ISO 14040 and ISO 14044 provide broader life-cycle assessment principles and requirements.

These approaches should not be mixed casually. If a site reports Scope 2 electricity emissions using a location-based grid factor, then adds upstream fuel-cycle emissions from a separate lifecycle database without declaring the change in method, the result is neither a clean organizational inventory nor a clearly bounded product footprint. The audit report should state whether the result is operational emissions, lifecycle emissions, or a combined project balance with each component shown separately.

For geological storage projects, chain-of-custody evidence becomes increasingly important after compression. The facility may have reliable data for CO2 sent to pipeline, ship, or injection infrastructure but no direct proof of final storage. A claim about permanently stored CO2 requires evidence appropriate to the downstream arrangement and applicable storage monitoring rules. The compression facility should not equate exported mass with permanently stored mass unless the contractual and monitoring boundary supports that treatment.

Regional rules can override the preferred reporting method

Where the installation falls within an emissions-trading scheme, industrial emissions permit, tax regime, or regulated CCUS framework, the governing monitoring and reporting rules may specify calculation methods, approved emission factors, laboratory requirements, uncertainty thresholds, meter calibration, data substitution procedures, and external verification. Those legal criteria take precedence for the regulated submission. ISO and GHG Protocol methods can still be used for internal management or voluntary disclosure, but their outputs should be reconciled rather than assumed to be interchangeable.

The same applies to contractual specifications. Pipeline operators and storage operators may impose CO2 quality limits, metering protocols, pressure ranges, or custody-transfer rules that affect both the mass balance and the assurance evidence. A carbon audit prepared before these interfaces are defined often requires rework because its assumed measurement point is not the commercially recognized transfer point.

Set the audit architecture before commissioning

The most reliable approach is to establish the reporting boundary, claim language, meter map, data owners, calculation methodology, calibration regime, and exception process during detailed engineering. Retrofitting this architecture after start-up commonly exposes missing feeder meters, incomplete vent logs, incompatible historian tags, or no retained basis for electricity allocation.

A concise audit protocol should state the CO2 mass basis, emissions scopes included, treatment of imported electricity, source of emission factors, handling of renewable electricity claims where applicable, routine and non-routine vent treatment, downstream transfer point, data-quality hierarchy, recalculation triggers, and verification criteria. It should also identify which figures are measured, calculated, estimated, or supplied by a downstream party.

For CO2 compression projects, the applicable standards are therefore layered rather than singular: ISO 14064-1 or the GHG Protocol for the facility inventory; ISO 14064-3 for assurance; ISO 50001 and sound energy-performance methods for compression power; ISO 14067 or life-cycle assessment standards only when the claim requires a product or lifecycle boundary; and mandatory regional rules wherever they apply. The audit becomes credible when those frameworks are connected to the actual compressor train, metering arrangement, operating envelope, and CO2 custody boundary.
