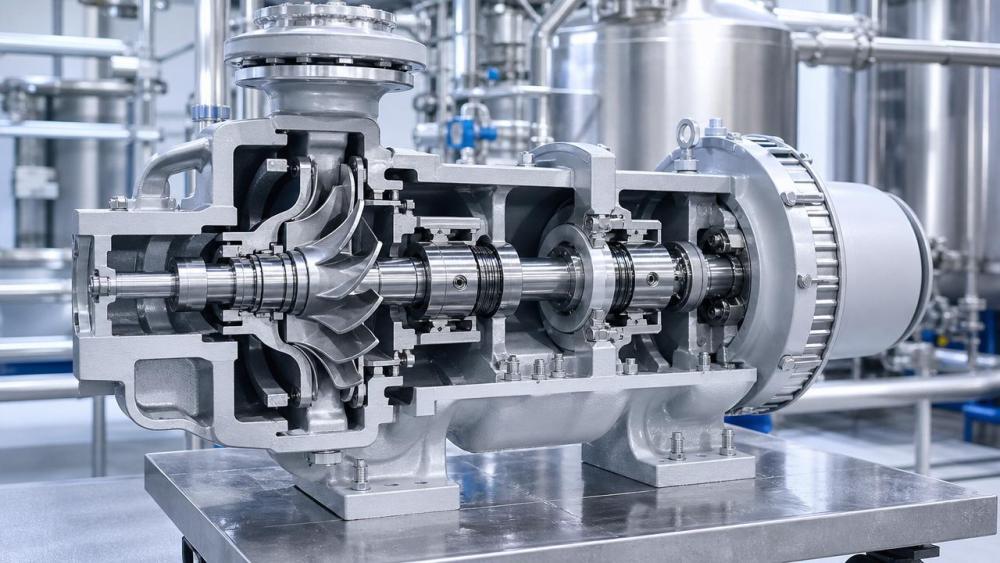

Machine Parts for Cryogenic Pumps: Failure Points to Inspect

In cryogenic hydrogen service, even minor wear in machine parts can escalate into seal leakage, cavitation, thermal contraction issues, or unplanned pump shutdowns. For after-sales maintenance teams, knowing where failure typically begins is essential to protecting uptime, safety, and asset integrity. This guide highlights the critical components of cryogenic pumps that require routine inspection, helping technicians identify early warning signs, prioritize maintenance actions, and support reliable operation in demanding low-temperature hydrogen logistics systems.

Why Cryogenic Pump Machine Parts Fail Earlier Than Expected

Cryogenic pumps operate where ordinary rotating equipment logic is not enough. Liquid hydrogen introduces extreme low temperature, low viscosity, rapid vapor formation, and strict leak-control expectations.

For maintenance teams, the challenge is not only replacing machine parts. The real task is identifying which component is degrading before it affects safety or throughput.

Thermal contraction changes clearances, startup cycles stress seals, and insufficient cooldown can generate vapor pockets. These conditions make small mechanical defects grow quickly.

The most common failure drivers

• Thermal shock from aggressive cooldown or warm-up cycles, causing distortion in precision machine parts and sealing interfaces.
• Cavitation or vapor locking caused by low net positive suction head, poor priming, or unstable transfer conditions.
• Material mismatch, where different coefficients of thermal expansion disturb bearing, shaft, and impeller clearances.
• Hydrogen leakage through worn dynamic seals, damaged static gaskets, or improperly compressed sealing surfaces.
• Contamination from ice, particulates, or process debris entering sensitive machine parts during maintenance or transfer operations.

G-HEI evaluates cryogenic liquid hydrogen logistics through material integrity, international safety frameworks, and operational reliability. This approach helps teams move from reactive repair to condition-led inspection.

Critical Machine Parts to Inspect During Scheduled Maintenance

A maintenance plan should rank machine parts by consequence, not only by replacement frequency. A low-cost seal can trigger high-cost downtime if leakage reaches a safety threshold.

The following table summarizes the main inspection points for cryogenic pump machine parts used in liquid hydrogen transfer, storage, and loading systems.

The table should be used as a triage tool. If a pump shows abnormal vibration and leakage together, prioritize rotating machine parts before replacing only the seal.

Shafts and couplings: small misalignment, large consequence

Shaft-related machine parts deserve close attention after transport, baseplate work, or repeated thermal cycling. Misalignment can appear only after cooldown, not during ambient checks.

Inspect runout, keyway condition, coupling element wear, and any fretting marks. A polished band may indicate movement under load, not normal contact.

Impellers and inducers: where cavitation leaves evidence

Impellers and inducers are machine parts that reveal suction-side problems. Look for pitting near leading edges, uneven erosion, or deformation from foreign object contact.

When damage repeats after replacement, review tank pressure, line cooldown, valve opening sequence, and suction piping insulation before blaming the component supplier.

How to Link Failure Symptoms to the Right Machine Parts

After-sales maintenance teams often face pressure to restore service quickly. Symptom-based diagnosis prevents unnecessary replacement and protects limited spare-part budgets.

Use the following comparison to connect field observations with likely cryogenic pump machine parts and recommended verification steps.

This symptom map reduces guesswork. It also supports clearer communication with procurement teams when urgent machine parts must be sourced under shutdown pressure.

Red flags that justify immediate isolation

• Any confirmed hydrogen leak near rotating machine parts, electrical interfaces, or enclosed spaces should trigger site procedures immediately.
• Sharp vibration growth during ramp-up may indicate bearing distress, rotor contact, or a clearance problem after thermal contraction.
• Repeated seal replacement without root-cause review suggests shaft sleeve scoring, pressure instability, or installation damage.
• Visible frost patterns outside expected zones can indicate insulation weakness, leakage, or abnormal cold transfer paths.

Inspection Workflow for After-Sales Maintenance Teams

A practical workflow keeps technicians safe and helps managers justify decisions. It also creates traceable evidence for warranty review, procurement, and compliance audits.

The inspection sequence below is suitable for many cryogenic hydrogen pump services, but site procedures and manufacturer documentation should always remain primary references.

1. Confirm safe isolation, purge status, temperature condition, and permit requirements before touching any machine parts or connected piping.
2. Review operating history, including starts, cooldown deviations, trips, vibration trends, and any recent maintenance interventions.
3. Inspect external machine parts first, including coupling guards, seal areas, fasteners, instrumentation ports, and frost patterns.
4. Disassemble only after evidence is recorded, marking orientation and protecting precision surfaces from moisture and contamination.
5. Measure wear, clearances, and surface condition against manufacturer limits or site-approved engineering criteria.
6. Classify each part as reusable, repairable, replaceable, or needing engineering review before the pump is returned to service.

Documentation that improves future troubleshooting

Photographs, torque records, measured clearances, and removed-part labels are not paperwork burdens. They are the basis for faster next-cycle diagnosis.

For strategic hydrogen infrastructure, G-HEI encourages maintenance records that connect machine parts condition with operating envelope, safety barriers, and asset-criticality ranking.

Procurement Decisions: When to Repair, Replace, or Upgrade Machine Parts

Budget limits often push teams toward repair. However, cryogenic hydrogen service can make short-term savings expensive when compatibility or traceability is weak.

Before ordering machine parts, compare technical risk, lead time, documentation needs, and operational consequence. The lowest purchase price is rarely the full cost.

For critical liquid hydrogen assets, upgrade decisions should involve maintenance, process, safety, and procurement stakeholders. Machine parts affect more than mechanical availability.

Procurement checklist for cryogenic pump parts

• Confirm the service medium, pressure range, temperature range, duty cycle, and allowable leakage philosophy before approving substitutes.
• Request material data relevant to cryogenic toughness, hydrogen compatibility, and dimensional stability at operating temperature.
• Check whether seals, gaskets, bearings, and wear rings require matched sets rather than isolated item replacement.
• Review delivery time against planned outage dates, including inspection, documentation, and receiving quality checks.
• Avoid unverified machine parts with unclear storage history, especially elastomeric or polymer-based sealing components.

Standards, Compliance, and Material Integrity Considerations

Cryogenic hydrogen pumps sit inside a wider infrastructure chain. Maintenance decisions may affect refueling systems, transfer lines, storage vessels, and emergency isolation philosophy.

G-HEI benchmarks hydrogen infrastructure against frameworks such as ISO 19880, ASME B31.12, and SAE J2601 where relevant to system safety and interoperability.

What compliance means for machine parts

Compliance is not a label attached at the end. It begins with selecting machine parts that suit hydrogen exposure, cryogenic temperature, pressure cycling, and maintenance access.

• Metallic components should be reviewed for cryogenic toughness, fatigue behavior, and compatibility with hydrogen service conditions.
• Non-metallic sealing materials need careful evaluation for compression behavior, permeability, embrittlement, and installation sensitivity.
• Documentation should connect received machine parts with purchase orders, certificates, inspection reports, and installed equipment records.
• Any design deviation should be assessed by competent engineering personnel before installation on safety-critical hydrogen assets.

For after-sales teams, strong documentation protects decisions made under time pressure. It also helps leadership understand why specific machine parts require qualified sourcing.

Common Misconceptions That Increase Pump Downtime

Many failures repeat because the visible damaged component is treated as the root cause. In cryogenic systems, evidence often points to a wider operating condition.

Misconception 1: A new seal always solves leakage

Seal leakage may start from shaft sleeve scoring, excessive vibration, incorrect preload, pressure instability, or thermal distortion. Replace related machine parts only after inspection.

Misconception 2: Ambient alignment is enough

A pump that aligns well at ambient temperature may shift under cryogenic contraction. Compare warm and cold behavior when repeated bearing or seal failures occur.

Misconception 3: Generic spare parts reduce maintenance cost

Generic machine parts can create risk if material traceability, dimensional accuracy, or low-temperature suitability is uncertain. Savings disappear quickly after one unplanned shutdown.

FAQ for Maintenance Teams Handling Cryogenic Pump Machine Parts

The following questions reflect common field decisions when maintenance teams inspect, replace, or specify machine parts for cryogenic hydrogen pumping systems.

How often should cryogenic pump machine parts be inspected?

Inspection frequency depends on duty cycle, start-stop frequency, operating envelope, and criticality. High-cycle hydrogen transfer pumps need trend-based checks beyond calendar maintenance.

At minimum, review vibration, leakage, pressure stability, and cooldown behavior after each significant operating change or abnormal shutdown.

Which machine parts should be stocked as critical spares?

Seals, gaskets, bearings, shaft sleeves, wear rings, and selected coupling components are common candidates. The final list should reflect failure consequence and lead time.

For remote hydrogen logistics assets, spare strategy should include storage conditions and shelf-life controls, not only purchase quantity.

Can damaged cryogenic pump parts be repaired instead of replaced?

Some machine parts may be repaired if the material, geometry, and surface function can be restored without compromising cryogenic performance.

Sealing faces, bearing fits, and highly stressed rotating parts require conservative judgment. When safety impact is high, replacement is usually easier to justify.

What information is needed before requesting a quotation?

Provide pump type, service medium, operating temperature, pressure, flow rate, serial information, failure photos, and required delivery date.

If available, include old machine parts dimensions, material references, and maintenance history. Better input reduces revision loops and quotation uncertainty.
