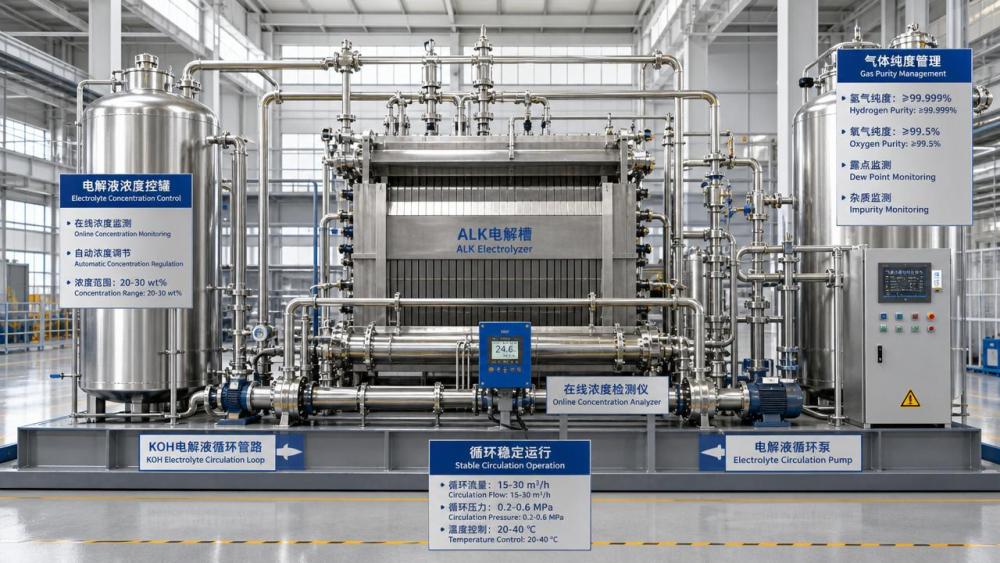

Electrolyte Concentration (KOH): Common Setup Mistakes in ALK Systems

In ALK hydrogen systems, electrolyte concentration (KOH) is a small setting with outsized impact on efficiency, gas purity, corrosion risk, and long-term stack stability. Many operating issues begin not with major hardware faults, but with avoidable setup mistakes in concentration control. This article highlights the most common errors operators make and how correct KOH management supports safer, more reliable system performance.

Why does electrolyte concentration (KOH) create so many ALK operating problems?

For operators, electrolyte concentration (KOH) often looks like a basic commissioning parameter. In practice, it affects conductivity, viscosity, separator behavior, bubble removal, pump load, heat balance, and impurity transport. A small deviation can move the whole ALK system away from its designed operating window.

This is especially important in large-scale hydrogen production, where uptime, gas quality, and maintenance intervals directly influence plant economics. In utility-scale and sovereign decarbonization projects, concentration control is not just a chemistry issue. It is a system integrity issue that links stack performance to material durability and downstream safety.

G-HEI focuses on this system-level view. Rather than treating ALK electrolysis as an isolated skid, the platform benchmarks operating practice against broader hydrogen infrastructure demands, including storage, logistics, and fueling requirements. If electrolyte concentration (KOH) is unstable, the effect can propagate into purification loads, compressor protection, and compliance risk.

• Low concentration can reduce ionic conductivity and increase cell voltage, which raises power consumption per kilogram of hydrogen.
• High concentration can increase corrosion potential, raise viscosity, and make circulation less effective in certain temperature ranges.
• Poor concentration control can worsen gas crossover behavior and make purity targets harder to maintain during load changes.
• Inconsistent concentration from tank to stack can create misleading field readings and wrong corrective actions.

What operators usually overlook during setup

The most common mistake is assuming that one target value alone is enough. Actual performance depends on the relationship among KOH concentration, operating temperature, circulation rate, water makeup quality, and measurement timing. A correct concentration at ambient conditions may not represent the effective condition once the loop is hot and under load.

Common setup mistakes in electrolyte concentration (KOH)

The following mistakes appear repeatedly across new installations, retrofit projects, and restarted ALK assets. Operators can use this section as a troubleshooting checklist before blaming membranes, electrodes, rectifiers, or gas treatment modules.

1. Filling to a nominal percentage without checking the supplier’s process basis, such as weight percent versus volume-based field interpretation.
2. Taking concentration readings before the loop is fully mixed, which can hide local stratification in tanks and recirculation headers.
3. Ignoring temperature compensation when using density or conductivity instruments for electrolyte concentration (KOH) verification.
4. Using makeup water of unstable quality, allowing carbonate formation and contamination to alter the effective electrolyte condition.
5. Adding KOH too quickly during adjustment, creating local hot spots and concentration gradients that stress materials and sensors.
6. Setting concentration once at startup and then managing only level, not composition, during long campaigns.

Mistake by mistake: what it causes on the plant floor

When the electrolyte is too dilute, operators often see rising stack voltage and assume electrode aging. In many cases, the cell is simply losing conductivity. The result is higher specific energy consumption, unstable load response, and more heat generation for the same hydrogen output.

When it is too concentrated, circulation may become less forgiving. Pumping resistance can rise, gas disengagement may worsen, and localized corrosion risk can increase depending on metallurgy and operating temperature. This does not always fail immediately, which is why the error is often missed during short acceptance runs.

Another frequent issue is poor sampling discipline. If samples are taken from stagnant sections or shortly after a top-up, the measured electrolyte concentration (KOH) may not represent actual stack conditions. Operators then make corrections in the wrong direction and deepen the problem.

To make these mistakes easier to recognize, the table below links common setup errors with field symptoms and practical operator responses for ALK systems.

These patterns matter because they mimic other faults. A plant may spend time on power electronics, separator inspection, or gas purification hardware when the root cause is still electrolyte concentration (KOH). Good diagnosis starts with disciplined process verification, not part replacement.

How should operators set and verify electrolyte concentration (KOH)?

A reliable setup method should be repeatable, documented, and compatible with actual operating conditions. Operators need more than a handbook value. They need a defined sequence for preparation, mixing, measurement, correction, and re-verification. This is where many sites improve quickly once procedures are standardized.

A practical verification workflow

• Confirm the intended process concentration range from the system documentation and check whether the basis is mass fraction, density correlation, or conductivity reference.
• Ensure the electrolyte loop has circulated long enough after any addition so the tank, pipes, and stack manifold are representative.
• Take samples from predefined locations, not from convenient but stagnant drains or low-flow points.
• Record sample temperature and use the plant-approved correction method before deciding whether the reading is high, low, or normal.
• Adjust in small steps, then observe voltage, gas purity, pump response, and temperature stability instead of relying on one reading alone.

The next table summarizes a practical decision framework that operators can apply when checking electrolyte concentration (KOH) during startup, routine operation, and post-maintenance return to service.

This kind of workflow is valuable in modern hydrogen projects because ALK systems increasingly operate under dynamic conditions. A setting that was acceptable in base-load service may become fragile when the unit follows solar or wind power variations.

Which operating scenarios make KOH concentration control more critical?

Not every plant sees the same risk profile. Operators should pay extra attention to electrolyte concentration (KOH) in scenarios where process conditions change often or where downstream hydrogen specifications are strict.

High-risk scenarios for concentration drift

• Plants with frequent water top-up because of evaporation, carryover, or maintenance interventions.
• Electrolyzers coupled to variable renewables, where thermal cycling and load shifts make a narrow operating window harder to hold.
• Sites feeding hydrogen into compression, storage, liquefaction, or high-pressure dispensing systems that require tight impurity control.
• Aging plants where instrumentation drift, piping dead legs, or altered circulation behavior can distort true concentration measurement.

For the broader hydrogen value chain, this is not a minor operating detail. If upstream ALK performance becomes erratic because electrolyte concentration (KOH) is poorly managed, downstream units may face unstable moisture loading, impurity removal stress, or compressor trips. G-HEI addresses these cross-asset interactions because sovereign-scale decarbonization depends on integrated reliability, not isolated equipment efficiency.

What should operators and project teams review before procurement or retrofit?

Although concentration control is an operating task, many failures begin in project definition. If a plant is procured without clear requirements for measurement method, sampling points, water quality management, and operating documentation, operators inherit avoidable uncertainty from day one.

Procurement and retrofit checklist

1. Ask how the supplier defines the target electrolyte concentration (KOH), including the measurement basis and the reference temperature.
2. Review whether sampling ports are located in representative flow sections and whether the maintenance team can access them safely.
3. Check compatibility between concentration range, metallurgy, seals, pumps, and operating temperature band.
4. Confirm makeup water specification, pretreatment responsibilities, and the expected response to carbonate or contamination growth.
5. Require clear startup, shutdown, and restart procedures that address mixing time, measurement timing, and corrective dosing limits.

This review matters even more for large hydrogen hubs, where equipment from different vendors must work as one system. G-HEI supports project teams by connecting stack-level operating concerns with infrastructure-grade standards thinking, helping decision-makers compare technical assumptions before they become field problems.

Standards, safety, and why concentration discipline matters beyond the stack

Electrolyte concentration (KOH) itself is not governed by one single universal setpoint across all ALK designs, but its management affects compliance-related outcomes. Stable hydrogen purity, predictable pressure behavior, and controlled corrosion all support safer operation within the broader frameworks used across hydrogen infrastructure.

For operators, the practical takeaway is simple: concentration discipline helps reduce conditions that can compromise separators, produce unstable gas quality, or accelerate unexpected maintenance. For project leaders, it supports alignment with recognized engineering practice when assets interact with storage, piping, fueling, or turbine systems governed by standards such as ISO 19880, ASME B31.12, and SAE J2601 in their relevant application areas.

Key compliance-related habits

• Maintain traceable operating records for concentration checks, correction steps, and sample temperatures.
• Link electrolyte changes with gas purity trends and maintenance observations rather than treating them as separate logs.
• Use approved chemical handling procedures and verify that dosing practices do not create local overheating or splash hazards.

FAQ: electrolyte concentration (KOH) in daily ALK operation

How often should electrolyte concentration (KOH) be checked?

The right frequency depends on operating stability, load profile, and water balance. New plants, restarted systems, and units with frequent top-ups usually need tighter monitoring than mature steady-state assets. The key is trend-based control. If voltage, purity, or temperature behavior shifts, concentration should be rechecked early rather than waiting for the next routine interval.

Can gas purity issues be caused by wrong KOH concentration?

Yes, indirectly. Poor electrolyte concentration (KOH) can change circulation behavior, bubble disengagement, and separator performance. It can also worsen instability during load changes. Purity issues are not caused by concentration alone, but incorrect concentration often contributes to the conditions that make purity control harder.

Is higher concentration always better for conductivity?

No. Operators should avoid assuming that more KOH always means better performance. Conductivity, viscosity, corrosion behavior, and thermal conditions interact. Above the intended design window, gains in one area may be offset by losses in circulation quality, material life, or process stability.

What is the fastest way to identify a setup-related concentration error?

Compare measured concentration against process behavior, not in isolation. If stack voltage, pump response, gas purity, and temperature trend do not match the reported value, review mixing completeness, sampling location, and temperature correction first. Many apparent equipment faults are actually verification faults.
