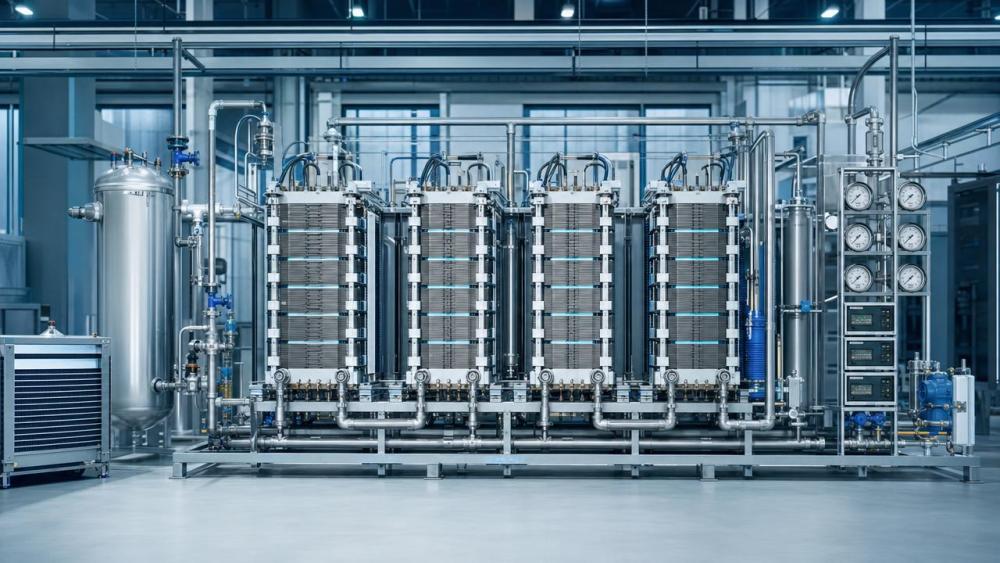

Electrolytic Cell Voltage Efficiency: How to Compare Claims Across Suppliers

For procurement teams evaluating electrolyzer vendors, electrolytic cell voltage efficiency is often presented as a headline metric—but not always on a truly comparable basis. This guide helps you assess supplier claims with greater precision, separating test-condition bias from real operating performance so you can make lower-risk, technically sound purchasing decisions in large-scale hydrogen projects.

In utility-scale hydrogen procurement, a difference of just 0.05 V to 0.15 V per cell can materially alter stack power demand, balance-of-plant sizing, and long-term levelized hydrogen cost. Yet suppliers may quote voltage efficiency at different current densities, temperatures, pressures, gas purity levels, or degradation assumptions, making side-by-side comparisons misleading. For buyers working on sovereign-scale decarbonization programs, bankable comparison requires a normalized framework rather than a headline figure.

For organizations benchmarking PEM and alkaline systems across the zero-carbon infrastructure chain, the issue is not whether electrolytic cell voltage efficiency matters—it does—but whether the reported number reflects laboratory optimization, nominal design point, or dispatchable field performance over 40,000 to 80,000 operating hours. That distinction is central to contract quality, warranty clarity, and project risk control.

Why Electrolytic Cell Voltage Efficiency Is Hard to Compare Directly

Electrolytic cell voltage efficiency is commonly discussed as the ratio between theoretical decomposition voltage and actual operating cell voltage. In practice, however, procurement teams rarely buy a single cell operating at a single point. They buy stacks and systems that must deliver hydrogen across variable load, ambient conditions, and maintenance cycles. A supplier claim at 1.80 V per cell may look stronger than one at 1.92 V, but the comparison is incomplete unless both values were measured under matching test conditions.

The most common source of distortion is current density. A PEM stack evaluated at 1.0 A/cm² can show a lower cell voltage than one reported at 2.0 A/cm², yet the higher-current design may deliver better plant-level economics if footprint, capex per kilogram per day, and dynamic response are superior. Temperature, pressure, electrolyte concentration, and water quality add another 4 variables that can shift efficiency claims by several percentage points.

The Main Variables Behind Supplier Claims

When buyers review data sheets, at least 6 items should be checked before accepting an electrolytic cell voltage efficiency number: current density, operating temperature, stack pressure, gas crossover limit, start-of-life versus end-of-life condition, and whether the value refers to stack DC performance or full system AC performance. Confusion between these categories is one of the most frequent reasons that technical bids appear stronger on paper than in execution.

• Current density range, often 0.2 to 2.5 A/cm² depending on technology
• Operating temperature, commonly 50°C to 80°C for PEM and 60°C to 90°C for alkaline
• Pressure basis, such as ambient, 10 bar, 20 bar, or differential pressure
• Measurement basis: stack DC, skid DC, or plant AC consumption
• Degradation treatment over 10,000, 40,000, or 80,000 hours
• Hydrogen purity and water specification during testing

Why Procurement Cannot Rely on a Single Efficiency Number

A single-point efficiency claim may be useful for early screening, but it is not sufficient for tender ranking or total-cost modeling. Industrial hydrogen assets are dispatched over partial-load bands such as 20%, 50%, 75%, and 100% of nameplate power. If a vendor provides only one electrolytic cell voltage efficiency figure without a polarization curve, degradation profile, and auxiliary load breakdown, the buyer cannot accurately estimate energy use per kilogram across real operating duty.

This matters because electricity often represents 60% to 80% of hydrogen production cost in green hydrogen projects. Even a 2% to 4% mismatch between quoted and delivered efficiency can affect multi-year offtake pricing, transformer sizing, and renewable integration strategy. For ministries, utilities, and infrastructure investors, that gap is not a minor technical detail; it becomes a financial exposure.

How to Normalize Supplier Data Before You Compare

The most reliable way to compare electrolytic cell voltage efficiency across suppliers is to build a common evaluation basis. Instead of asking whether Vendor A or Vendor B has the lower headline voltage, ask both vendors to restate performance at the same current density, temperature, pressure, and hydrogen output band. A normalized request package can reduce ambiguity in technical tender reviews within 2 to 3 procurement rounds.

A practical benchmark package should include at least 5 operating points, such as 25%, 50%, 75%, 100%, and overload if allowed. It should also specify whether the buyer wants start-of-life values only, average efficiency over a degradation interval, or guaranteed end-of-warranty performance. Without that instruction, suppliers may present their strongest point rather than the most decision-relevant one.

A Standardized Comparison Framework

The table below shows a practical structure procurement teams can use to align submissions. It helps distinguish electrochemical performance from system-level energy consumption, which is essential when comparing PEM and alkaline technologies in large hydrogen hubs.

The key takeaway is that normalized comparison should separate 3 layers: cell behavior, stack behavior, and plant behavior. A vendor can have strong electrolytic cell voltage efficiency but weaker full-system energy use if auxiliaries are oversized or if thermal integration is poor. Buyers should score each layer independently before assigning commercial value.

Questions to Include in the RFQ or Technical Clarification Round

A well-built RFQ can eliminate most ambiguity before bid evaluation. In projects above 10 MW, it is prudent to require vendors to provide raw operating assumptions, not just brochure values. This reduces the risk of renegotiation after FEED, when design changes become expensive.

1. At what current density is the quoted electrolytic cell voltage efficiency measured?
2. Is the figure based on beginning-of-life, average life, or end-of-warranty condition?
3. What are the inlet water quality, conductivity, and temperature requirements?
4. Does the quoted kWh/kg include compression, drying, cooling, and controls?
5. What is the guaranteed efficiency at 50% and 100% load after 20,000 or 40,000 hours?

These questions shift the discussion from marketing language to measurable operating obligations. They are especially useful for public-sector and strategic infrastructure procurement, where technical comparability, auditability, and contract enforceability are just as important as capex.

What Procurement Teams Should Evaluate Beyond the Cell Voltage Number

Even when electrolytic cell voltage efficiency is normalized correctly, purchasing decisions should not be made on that parameter alone. For large-scale hydrogen assets, at least 4 adjacent procurement dimensions affect real project value: degradation rate, operating flexibility, maintainability, and compliance alignment. A lower initial voltage with poor degradation can become less attractive within 3 to 5 years of operation.

Lifecycle Performance Matters More Than Day-One Performance

A supplier may quote an attractive initial stack voltage, but buyers should also request voltage drift over time. In practical evaluation, a rise of several millivolts per cell per 1,000 hours can materially alter annual electricity consumption. Across a stack containing hundreds of cells, that change compounds into significant operating cost over 40,000 to 80,000 hours.

Stack replacement interval is another major factor. If one offer has slightly weaker initial electrolytic cell voltage efficiency but longer service life, fewer shutdowns, and more predictable maintenance windows every 12 to 24 months, it may deliver better plant availability and lower spare-parts exposure. Procurement scoring should therefore combine efficiency with lifecycle service assumptions.

A Practical Evaluation Matrix for Buyers

The matrix below helps procurement teams weight technical and commercial criteria in a way that reflects project reality rather than brochure claims alone.

This matrix reinforces a procurement principle: a technically strong supplier is not simply the one with the lowest cell voltage, but the one whose performance can be validated across the system life, operating envelope, and compliance framework. For national and utility-scale projects, that broader view is essential.

Common Misinterpretations in Vendor Presentations

Buyers should watch for 3 recurring issues. First, stack DC performance may be presented as if it were plant AC consumption. Second, test conditions may be favorable but not representative of the target site. Third, efficiency may be quoted near design optimum while load-following penalties are omitted. Each issue can distort tender scoring if not corrected during technical clarification.

Another common mistake is comparing PEM and alkaline claims without accounting for system architecture. PEM may offer better dynamic response and compactness; alkaline may offer different capex and operating profiles. The right choice depends on dispatch regime, power source variability, water treatment strategy, and downstream compression plan—not on electrolytic cell voltage efficiency alone.

How to Turn Efficiency Claims Into a Lower-Risk Purchasing Decision

The most effective procurement process translates efficiency data into commercial protections. That means linking electrolytic cell voltage efficiency claims to guaranteed test procedures, acceptance criteria, and remedy structure. For projects with multi-stage delivery, this is often done through factory acceptance testing, site acceptance testing, and a defined performance verification period lasting 30 to 90 days.

Contracting and Verification Steps

1. Define the common performance basis in the tender package.
2. Require full-load and part-load energy consumption data.
3. Specify whether guarantees apply to cell, stack, or full system.
4. Set tolerance bands, such as allowable deviation in kWh/kg or cell voltage.
5. Tie underperformance to corrective action, retest rights, or commercial adjustment.

For high-value programs, buyers should also ask for the vendor’s recommended operating window rather than only the absolute maximum capability. Equipment that can technically reach a certain current density is not always equipment that should be operated there continuously. Sustainable performance is usually a better purchasing guide than edge-case performance.

Where Strategic Benchmarking Adds Value

For organizations developing zero-carbon infrastructure at scale, benchmarking across technology, standards, and operational assumptions can shorten supplier evaluation cycles and reduce technical blind spots. This is especially relevant where electrolysis interfaces with cryogenic hydrogen logistics, hydrogen-ready turbines, refueling systems above 70 MPa, or broader decarbonization frameworks that demand strict documentation and asset integrity review.

A disciplined comparison of electrolytic cell voltage efficiency should therefore sit inside a wider due-diligence process: standards mapping, material review, safety integration, power profile assessment, and lifecycle service planning. Procurement teams that evaluate all 5 layers are better positioned to select systems that perform reliably beyond commissioning and remain defensible in board-level or ministerial review.

For procurement professionals, the strongest approach is simple: do not compare vendor claims until they are expressed on the same basis, across the same load points, and with the same lifecycle assumptions. Electrolytic cell voltage efficiency is a valuable metric, but only when connected to degradation, system boundaries, verification method, and project operating profile. That is how technical evaluation becomes commercially actionable.
