Feedwater Deionization Conductivity Limits for Stable ALK Operation

Feedwater deionization conductivity limits explained for stable ALK operation. Learn target ranges, alert bands, and monitoring tips to reduce contamination risk and improve hydrogen reliability.
Time : May 16, 2026

In alkaline electrolysis, stable performance starts with water quality. Understanding feedwater deionization conductivity limits is essential for operators who need to protect stack efficiency, reduce contamination risks, and maintain long-term ALK reliability. This article explains why conductivity control matters, what limits are typically targeted, and how practical monitoring can support safer, more consistent hydrogen production.

For operators in utility-scale and industrial hydrogen plants, water treatment is not a secondary utility. It is a frontline control point that influences electrolyte purity, separator condition, stack voltage behavior, maintenance intervals, and shutdown risk. In ALK systems running for 8,000 to 24,000 hours per year, even small drift in feedwater deionization conductivity can accumulate into measurable efficiency loss and higher contamination burden.

Within the broader hydrogen infrastructure landscape, disciplined water quality management also supports safer compliance with plant integrity programs, commissioning protocols, and long-duration asset planning. Operators do not need abstract theory; they need practical conductivity limits, realistic monitoring routines, and escalation thresholds that fit daily operation.

Why Feedwater Conductivity Is a Critical ALK Operating Variable

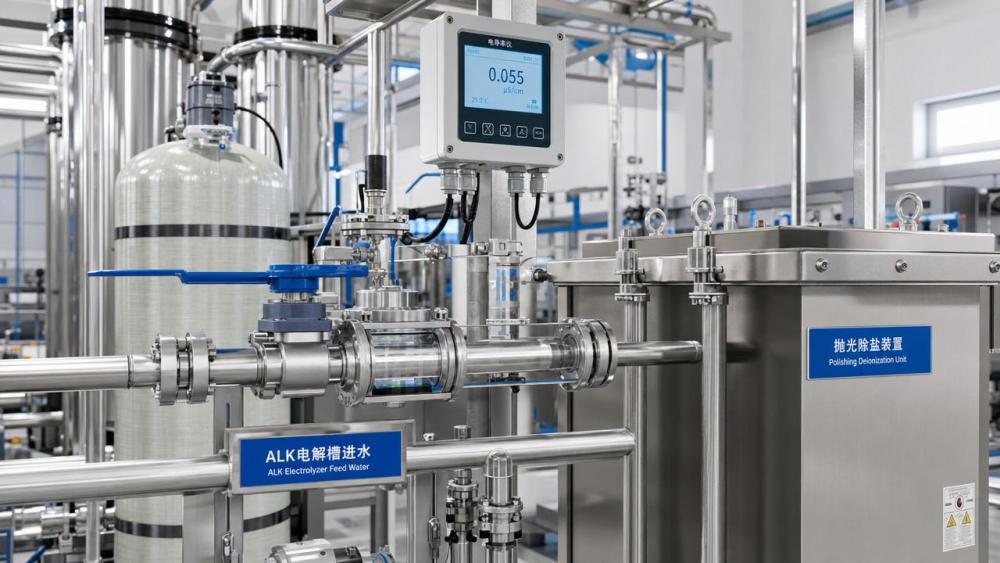

Feedwater Deionization Conductivity Limits for Stable ALK Operation

In alkaline electrolysis, feedwater deionization conductivity is used as a fast, practical indicator of ionic contamination. While conductivity does not identify every specific impurity, it gives operators a real-time warning when dissolved ions are entering the process at levels that may challenge purity control. Typical concerns include sodium imbalance, chloride ingress, silica carryover, calcium or magnesium hardness leakage, and residual dissolved solids from exhausted resin beds.

For most ALK plants, the lowest-risk strategy is to keep deionized makeup water in the low microsiemens or sub-microsiemens range before it reaches the electrolyzer water circuit. Many operators target less than 1.0 µS/cm at 25°C for normal operation, and stricter facilities work closer to 0.2 to 0.5 µS/cm at the outlet of the polishing stage. Internal limits vary by OEM design, recirculation philosophy, and pretreatment quality, but the operational principle is consistent: lower and stable conductivity reduces uncertainty.

How conductivity affects stack performance

If feedwater conductivity rises, unwanted ions can enter the electrolyte loop and alter chemical balance over time. In the short term, the stack may still produce hydrogen, but voltage stability can deteriorate, gas quality may fluctuate, and filter or ion-exchange components can load faster. Over a 30-day to 90-day operating window, those effects often become more visible than they are during a single shift.

Operators should also remember that conductivity is temperature dependent. A reading of 1.2 µS/cm without temperature compensation can be misleading if compared directly to a compensated 25°C value. That is why modern monitoring points should use automatic temperature compensation and clearly display both measured and corrected values where possible.

What contamination risks usually matter most

  • Chlorides, which can increase corrosion sensitivity in parts of the water and gas path.
  • Hardness leakage, especially calcium and magnesium, which can contribute to deposits and fouling.
  • Silica, which is not always fully represented by conductivity but often rises when treatment quality declines.
  • Carbon dioxide ingress, which can change ionic balance and increase treatment load in exposed tanks.
  • Organic fouling from aged pretreatment media, membranes, or poorly maintained storage systems.

A practical view for operators

Conductivity should not be treated as a lab-only metric. It is an operations metric. A stable reading over 7 days, 14 days, and 30 days is more valuable than a single low number captured during commissioning. Trend quality matters because ALK systems often tolerate brief disturbances but are less forgiving of persistent low-level contamination.

Typical Feedwater Deionization Conductivity Limits and Alert Bands

Because OEM specifications differ, operators should always follow plant-specific documentation first. Still, a general benchmarking framework helps define response levels. The table below summarizes a practical conductivity banding approach commonly used to support stable ALK operation, commissioning reviews, and water treatment troubleshooting.

Conductivity at 25°C Typical Operating Interpretation Recommended Operator Response
0.05-0.20 µS/cm High-purity polished water, low contamination risk Continue normal operation and routine trending
0.20-0.50 µS/cm Generally acceptable for many ALK systems if stable Verify trend, check pretreatment differential and resin status
0.50-1.00 µS/cm Caution band; acceptable only if within OEM guidance Increase sampling frequency and inspect polishing performance
1.00-5.00 µS/cm Elevated contamination risk and possible system upset Hold makeup if required, isolate source, test full water train

The key conclusion is not that every ALK plant must use exactly the same threshold. The key conclusion is that a defined alert structure prevents hesitation. When feedwater deionization conductivity moves from 0.3 to 0.8 µS/cm in 48 hours, the trend itself is a signal, even if the number has not crossed a hard trip limit.

Why operators should work with bands instead of a single number

A single specification limit is useful for compliance, but bands are better for daily control. They help shift teams respond progressively rather than waiting for a late-stage alarm. In practice, many plants use at least 3 levels: normal, caution, and intervention. Advanced facilities add a fourth level for shutdown review or hold-point authorization.

This is especially important in plants where hydrogen production availability targets exceed 95% and water treatment downtime has a direct effect on dispatch planning. Early action can avoid an unnecessary stack flush, unplanned resin replacement, or extended post-event analysis.

Common reasons conductivity limits are exceeded

  1. Mixed-bed resin exhaustion after higher-than-expected inlet conductivity.
  2. Reverse osmosis underperformance caused by scaling, membrane aging, or pressure imbalance.
  3. Instrument drift from poorly calibrated conductivity probes.
  4. Tank vent exposure leading to carbon dioxide absorption.
  5. Bypass valve leakage or incorrect line-up after maintenance.

How to Monitor Feedwater Deionization Conductivity in Daily Operation

Good control depends on measurement location as much as it depends on instrument quality. A single conductivity reading at the final outlet is helpful, but it is rarely enough for root-cause diagnosis. Most reliable ALK plants monitor at 3 to 5 points across the treatment train so operators can quickly determine whether the issue starts in pretreatment, polishing, storage, or distribution.

Recommended monitoring points

A practical arrangement often includes raw water after pretreatment, RO permeate, mixed-bed outlet, deionized water tank outlet, and final feedwater line to the electrolyzer. If only 2 points are available, the minimum useful combination is polishing outlet plus final feed to stack service. That gives both treatment quality and delivery confirmation.

Routine checks by shift and by week

  • Every shift: verify online conductivity values, temperature compensation status, and alarm history.
  • Every 24 hours: compare online data with grab sample results if site procedures require parallel validation.
  • Every 7 days: review conductivity trend slope, not just average value.
  • Every 30 days: inspect calibration records, resin differential indicators, and tank vent condition.

When operators track slope, they can identify degradation before a limit is crossed. For example, a rise from 0.12 to 0.35 µS/cm over 10 days may justify preventive action even though the water still appears acceptable on paper. Slow degradation is often easier and cheaper to correct than a sudden excursion above 1.0 µS/cm.

The table below outlines a practical monitoring and response workflow that can be adapted for site SOPs, control room dashboards, and preventive maintenance planning.

Monitoring Point Typical Check Frequency Primary Action if Reading Rises
RO permeate outlet Continuous online plus daily review Inspect membrane recovery, pressure profile, and scaling indicators
Mixed-bed or EDI outlet Continuous online plus shift verification Check resin exhaustion, regeneration quality, or module health
DI storage tank outlet Every shift or continuous if critical service Check vent protection, tank hygiene, and recirculation status
Final ALK feedwater line Continuous online with alarm integration Initiate hold-point review before contaminated makeup reaches stack loop

The main operational lesson is that conductivity control works best as a layered defense. If a final reading rises but upstream points remain clean, the problem may be local storage or piping contamination. If every point rises in sequence, the fault is more likely upstream water treatment underperformance.

Selecting Water Treatment and Control Strategies for Stable ALK Performance

Stable ALK operation depends on more than one device. It depends on the full chain: source water characterization, pretreatment, desalination, polishing, storage, instrumentation, and operator response. For plants above 5 MW, selecting the wrong treatment sequence can create recurring conductivity excursions, chemical handling burden, and unnecessary maintenance cost over the first 12 to 36 months.

What operators and technical buyers should evaluate

  • Source water variability across seasons, especially if conductivity or hardness changes between dry and wet periods.
  • Pretreatment adequacy for suspended solids, chlorine removal, and hardness control.
  • Whether RO plus mixed-bed, double-pass RO, or RO plus EDI best fits continuity and staffing levels.
  • Availability of spare probes, calibration standards, and replacement media within 2 to 6 weeks.
  • Integration of alarms into DCS or SCADA for shift-based response and event logging.

Three common implementation models

Smaller or pilot ALK sites often use single-pass RO with polishing resin because the setup is simple and familiar. Large industrial sites usually require stronger resilience, often using double-pass RO or EDI-assisted polishing to reduce breakthrough risk. The correct choice depends on water source stability, operator skill coverage, chemical handling preference, and the acceptable intervention frequency per quarter.

Another key selection factor is how the plant handles upset recovery. Some systems allow rapid isolation and recirculation within minutes. Others require manual flushing, sample confirmation, and staged restart procedures that can extend for 4 to 12 hours. Treatment architecture should therefore be evaluated not only on purity but also on recovery time after an excursion.

Frequent mistakes that reduce conductivity control reliability

  1. Assuming low conductivity always means low contamination, even when silica or organics are not separately monitored.
  2. Relying on one monthly calibration instead of confirming probe response after maintenance events.
  3. Ignoring tank breathing and carbon dioxide pickup in partially sealed storage systems.
  4. Changing resin only after alarms rather than using trend-based replacement planning.
  5. Using generic purity targets without aligning them to the electrolyzer supplier’s operating window.

Operational Guidance, Risk Reduction, and Escalation Practice

When feedwater deionization conductivity rises, speed matters, but so does discipline. A rushed response can misdiagnose the source and create unnecessary downtime. A structured escalation path is usually more effective: confirm instrument validity, compare upstream and downstream points, isolate the most probable stage, and then decide whether continued operation is acceptable under site rules.

A simple 5-step response sequence

  1. Verify whether the reading is temperature compensated and whether the probe passed its latest calibration check.
  2. Compare the final feed line with at least 2 upstream monitoring points.
  3. Take a grab sample if plant procedure requires confirmation within 15 to 30 minutes.
  4. Pause or limit makeup addition if the value enters the intervention band defined by the OEM or site SOP.
  5. Document trend direction, probable cause, and corrective action for shift handover and reliability review.

When a conductivity issue becomes a broader asset risk

A repeated conductivity excursion is rarely just a water issue. It can indicate pretreatment underdesign, insufficient redundancy, poor instrument governance, or gaps in operator training. If the same event appears 3 or more times in one quarter, plants should move beyond corrective maintenance and reassess treatment configuration, alarm logic, and consumables strategy.

For sovereign-scale hydrogen infrastructure and large energy operators, that review matters because electrolyzer availability, hydrogen purity consistency, and lifecycle efficiency all influence downstream compression, storage, transport, and power integration. Water quality discipline at the front end supports integrity across the wider zero-carbon chain.

Feedwater deionization conductivity is one of the most practical early-warning indicators available to ALK operators. Clear conductivity bands, multi-point monitoring, trend-based intervention, and a treatment system matched to source water conditions can reduce contamination risk and improve stack stability over the long term. If you are evaluating ALK water quality limits, treatment architecture, or operating procedures for a new or existing hydrogen facility, contact us to get a tailored technical benchmark, discuss implementation details, and explore more zero-carbon infrastructure solutions.
