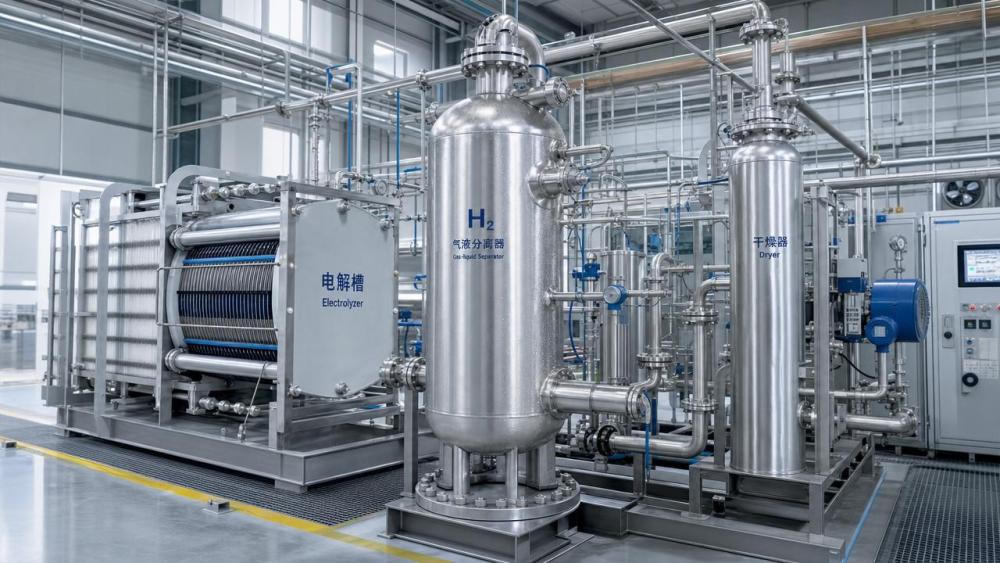

When gas-liquid separator capacity no longer matches electrolyzer output, the earliest warning signs often appear in unstable pressure, rising moisture carryover, and declining downstream efficiency. For hydrogen infrastructure programs, detecting these shifts early helps prevent safety exposure, production loss, and expensive retrofit work across large-scale electrolysis assets.

Gas-liquid separator capacity is the separator’s ability to handle mixed flow without losing phase separation performance.
In hydrogen electrolysis, the separator removes entrained liquid water and electrolyte droplets from hydrogen or oxygen streams.
If gas-liquid separator capacity is too low, gas residence time falls and droplet settling becomes incomplete.
That mismatch may look minor at first, especially during ramp-up, but it affects purity, pressure control, and downstream equipment life.
For PEM and alkaline systems, separator sizing must match actual operating envelopes, not only nameplate hydrogen production.
Transient loads, turndown ratios, stack upgrades, and warmer process water can all change separation behavior.
In sovereign-scale hydrogen infrastructure, undersized separation can compromise compliance with safety and efficiency frameworks.
That is why gas-liquid separator capacity should be reviewed alongside stack output, pressure profile, and purification design.
The first signs are rarely dramatic. Most appear as small operating instabilities that become more frequent over time.
One common indicator is pressure fluctuation at the separator outlet or before downstream drying equipment.
Another signal is increasing moisture carryover, even when stack conditions seem normal and water management looks unchanged.
Operators may also see unexplained drops in dryer performance, faster desiccant saturation, or higher condensate loads.
If hydrogen purity trends downward during peak production, gas-liquid separator capacity deserves immediate review.
Frequent level control activity is another clue. The separator may be struggling to stabilize liquid disengagement.
In some plants, alarms first appear in compressors, analyzers, valves, or coalescing filters rather than at the separator itself.
This happens because poor separation travels downstream as a system problem, not just a vessel problem.
When these symptoms cluster together, undersized gas-liquid separator capacity becomes a likely root cause.
An undersized separator does more than reduce comfort margins. It can affect safety, reliability, and project economics.
Moisture carryover may degrade analyzers, foul valves, and increase corrosion or material compatibility concerns.
In alkaline systems, electrolyte entrainment can contaminate downstream components and increase maintenance frequency.
In PEM plants, excessive water in the gas path may upset purification trains and compression stages.
Poor gas-liquid separator capacity also amplifies performance loss during dynamic operation, especially in grid-responsive assets.
That matters for integrated energy systems linked to renewables, hydrogen storage, refueling, or turbine fuel blending.
At large scale, a separator bottleneck can force derating of the entire electrolyzer block.
This raises levelized hydrogen cost because stack capacity exists, but the balance of plant cannot support it.
Retrofitting later is often expensive because separator geometry, nozzle orientation, controls, and drainage logic are interdependent.
Confirmation requires data, not assumption. Several issues can mimic separator undersizing, including poor level control or bad instrumentation.
Start by trending operating data across different loads, temperatures, and startup sequences.
Compare stack production rate with separator pressure behavior, moisture results, and downstream equipment response.
If symptoms intensify near peak output, gas-liquid separator capacity may be too close to the actual flow requirement.
Also check whether process modifications were added after the original design basis was set.
Examples include stack uprates, different water chemistry, tighter purity targets, or a new compression package.
A short performance test often clarifies the issue faster than repeated maintenance on downstream equipment.
Nameplate vessel size alone does not define true gas-liquid separator capacity. Internal design matters equally.
Demister quality, inlet momentum control, droplet size distribution, and drainage performance all affect separation efficiency.
Operating pressure also changes gas density and phase behavior, which influences effective capacity.
Higher temperature may worsen entrainment if gas velocity rises and droplets remain too fine to settle quickly.
Poor piping layout can make a good separator perform badly. Sharp elbows near the inlet create unfavorable flow patterns.
Control logic is another factor. Aggressive level control may increase instability during varying production rates.
Common causes of lost gas-liquid separator capacity include the following:
These factors are especially important for integrated zero-carbon infrastructure where utilization patterns change over time.
Not every case requires immediate vessel replacement. Some issues can be reduced through operational or component-level improvements.
First, verify instrumentation. False level readings and moisture measurements can hide the real condition.
Next, inspect internal elements such as demisters, vane packs, and drainage paths.
If internals are healthy, review ramp rate strategy and peak production scheduling.
A modest change in operating profile can restore acceptable performance while a long-term upgrade is engineered.
Where practical, adding a pre-knockout stage or upgrading internals may increase effective gas-liquid separator capacity.
However, these fixes should be validated against applicable safety and materials standards.
A useful action path is:
This sequence supports technical resilience and avoids reactive spending across the hydrogen production train.
Future-ready sizing begins with realistic operating scenarios, including cycling, partial load, startup surges, and expansion phases.
The separator should be assessed as part of the complete balance of plant, not as an isolated vessel.
That means linking gas-liquid separator capacity to stack roadmap, purification needs, compression strategy, and final use case.
Projects serving liquid hydrogen logistics, hydrogen-ready turbines, or 70 MPa refueling may require tighter moisture control margins.
In those cases, conservative separator sizing often protects both compliance and lifecycle efficiency.
For critical infrastructure, design review should benchmark against recognized engineering and safety frameworks.
It is also wise to document assumptions on future stack upgrades, renewable intermittency, and maintenance intervals.
Well-documented assumptions reduce the chance that gas-liquid separator capacity becomes tomorrow’s hidden bottleneck.
Gas-liquid separator capacity is easy to underestimate because problems often surface outside the separator itself.
Yet early signs are measurable: unstable pressure, increasing moisture carryover, and declining downstream performance.
A structured review of data, internals, controls, and future duty can reveal whether the electrolyzer system is effectively undersized.
For resilient hydrogen infrastructure, treat gas-liquid separator capacity as a strategic design parameter, not a secondary vessel check.
The practical next step is a targeted capacity audit aligned with current throughput, transient loads, and downstream purity requirements.
