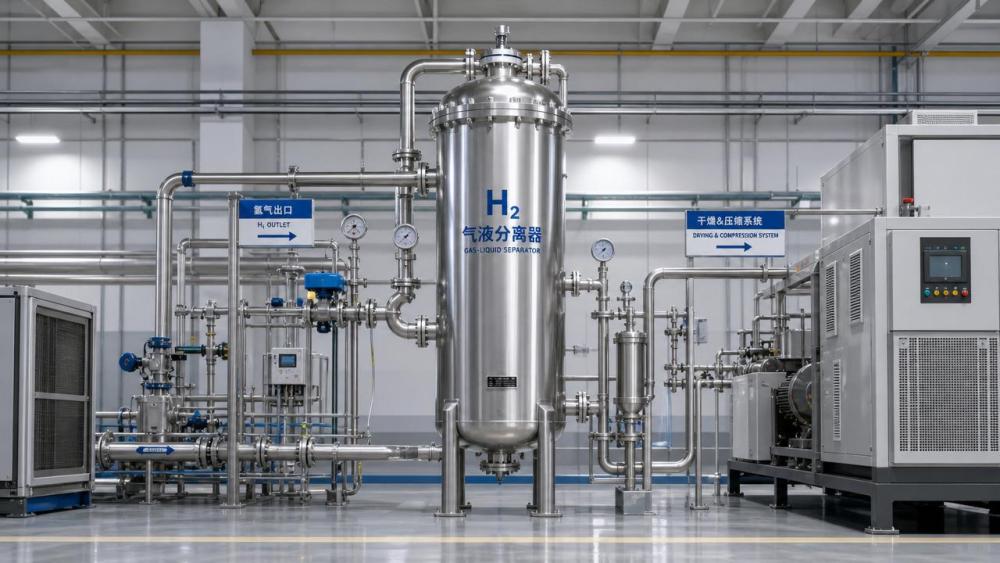

In hydrogen production systems, gas-liquid separator capacity is more than a vessel-sizing issue—it directly affects purity, recovery, and downstream stability. For project managers and engineering leads, even small sizing mistakes can reduce hydrogen output, increase carryover risks, and compromise compliance targets. This article examines the most common capacity errors, their impact on performance, and how to size separators more accurately for reliable, utility-scale hydrogen operations.
In utility-scale PEM and alkaline electrolysis plants, separator performance sits at the junction of process efficiency, equipment protection, and safety management. When gas-liquid separator capacity is underestimated, hydrogen slip, entrained moisture, pressure instability, and downstream contamination can escalate quickly. When it is oversized without process logic, capital cost, residence-time mismatch, and control lag can create a different set of operational problems. For project leads responsible for schedule, uptime, and compliance, getting separator sizing right early is a high-value engineering decision.

In hydrogen production, separators are commonly positioned after electrolyzer outlets, knockout stages, condensate removal loops, and intermediate compression steps. Their basic role is simple: separate gas from liquid. Their project impact is not. A capacity mismatch of even 10% to 20% against actual peak flow can alter gas velocity, droplet capture efficiency, and pressure-drop behavior enough to affect plant output.
For project managers, the issue is rarely the vessel alone. Separator capacity influences dryer loading, compressor suction conditions, instrumentation reliability, and maintenance frequency. In hydrogen systems designed around high purity targets, such as 99.9% and above, poor phase separation often causes secondary costs that appear elsewhere in the line rather than at the separator itself.
A separator that operates above its intended gas throughput can allow liquid carryover into downstream piping or purification equipment. In practical terms, this means more moisture load on dryers, more frequent coalescer replacement, and a higher chance of compressor trips. In severe cases, output losses do not occur because the electrolyzer underperforms, but because downstream units must be derated to protect equipment.
On large hydrogen projects, that derating can become material. A plant expected to run at 85% to 95% availability may see repeated short interruptions, each lasting 30 minutes to 4 hours, if separator sizing does not account for transient peaks, startup surges, or turndown conditions. These are avoidable losses that can materially weaken project economics.
The most common problems are not exotic design flaws. They usually begin with one of four mistakes: using average flow instead of peak flow, ignoring pressure and temperature swings, assuming a constant liquid loading, or selecting vessel dimensions based only on nozzle size and footprint constraints. In hydrogen projects, especially megawatt-scale electrolysis, these shortcuts can be costly.
Hydrogen systems present a particular challenge because low molecular weight gas behaves differently from heavier industrial gases in terms of velocity, entrainment, and sealing sensitivity. In electrolysis service, separators may also face alkaline droplets, deionized water carryover, oxygen-side crossover concerns, and frequent load-following patterns tied to renewable power inputs. These factors mean gas-liquid separator capacity should be evaluated as a dynamic operating parameter, not a static vessel volume.
Project teams usually discover separator problems after commissioning, when moisture alarms, unstable pressure control, or unexpected maintenance start affecting output. The table below summarizes common sizing mistakes and the practical consequences seen in hydrogen production and zero-carbon infrastructure projects.
A key takeaway is that separator issues are often system issues in disguise. What appears to be a moisture problem at the dryer may originate from poor vessel sizing, inadequate internals, or an unrealistic design basis upstream. For utility-scale hydrogen operations, the cost of redesign after installation is usually much higher than the cost of better process validation during FEED or detailed engineering.
Electrolyzer plants tied to wind or solar do not always behave like conventional baseload systems. Ramp rates can be fast, and gas production can swing across a 30% to 100% load band within a short interval. If gas-liquid separator capacity is based only on steady-state production, transient gas velocities may exceed the internals’ separation limit, especially in vertical vessels with compact geometry.
Capacity is not just shell volume. Mesh pads, vane packs, inlet devices, calming sections, and drain arrangements all affect effective separation. Two separators with the same diameter and height can perform very differently if one includes proper mist elimination and the other does not. Many teams discover this only after seeing wet gas in lines that were assumed to be dry enough for downstream service.
A separator optimized only for day-one throughput may become a constraint within 12 to 24 months if the site adds electrolyzer skids, compression stages, or storage capacity. At the same time, poor low-load performance can also matter. If level control becomes erratic at 25% to 40% of design flow, plants operating in flexible dispatch mode may experience recurring nuisance alarms and unnecessary operator actions.
Better sizing starts with a stronger design basis. For project decision-makers, the goal is not to create the largest possible vessel, but to define a practical operating envelope that covers normal production, upset events, maintenance logic, and future scalability. A useful sizing workflow should combine process data, mechanical constraints, and downstream equipment sensitivity.
This disciplined approach helps project teams avoid the usual FEED-stage trap: treating separator selection as a commodity item rather than a process-critical component. In hydrogen plants, that mindset shift can reduce late-stage redesign and improve first-pass commissioning success.
At minimum, the package should define operating pressure range, gas temperature range, liquid chemistry, expected droplet loading, allowable pressure drop, control philosophy, and upset scenarios. For many projects, pressure may vary by several bar and temperature by 10°C to 30°C across different operating states. Those changes can materially affect actual separator capacity.
The next table shows a practical checklist that project teams can use during specification review, vendor clarification, or procurement alignment.
The practical lesson is that accurate gas-liquid separator capacity depends on complete operating data and clear performance criteria. Vessel dimensions alone do not tell the full story. For procurement teams, asking for rated performance across multiple operating cases is often more valuable than comparing shell size only.
For engineering leaders, separator sizing must stay connected to delivery risk, HAZOP outcomes, and long-term maintainability. A design that looks acceptable on paper can still create problems if the drain arrangement is difficult to access, internals are hard to inspect, or the control range is too narrow for real plant operations. These are execution issues, not only design issues.
In hydrogen infrastructure, these checks matter because separator problems may cascade into storage, fueling, or turbine-adjacent systems. For example, moisture or liquid carryover entering high-pressure hydrogen compression can increase wear, compromise reliability, and trigger broader asset-protection concerns. That is why separator sizing should be reviewed as part of the total hydrogen chain, not as a stand-alone purchase line.
While exact separator design requirements depend on jurisdiction and service conditions, project teams should align process design, materials, and pressure equipment decisions with recognized frameworks used across hydrogen and energy infrastructure. In complex programs involving electrolyzers, compression, storage, and dispensing, consistency with broader engineering standards supports permitting, quality control, and sovereign-level asset assurance.
During startup, teams should watch for three early indicators: repeated high-level alarms, unexplained downstream moisture readings, and pressure fluctuation larger than expected across the separation stage. If any of these appear within the first 7 to 30 days of operation, the root cause review should include gas-liquid separator capacity, internal condition, and control settings before blaming downstream packages alone.
For decision-makers managing cost, schedule, and plant performance, the most effective strategy is to address separator capacity early, review it across realistic operating cases, and connect it to downstream reliability targets. In hydrogen systems, small sizing errors can create recurring operational penalties that remain hidden until the plant ramps toward full utilization.
A robust gas-liquid separator capacity review should therefore be included in FEED validation, vendor technical clarification, and commissioning readiness checks. This is particularly important for utility-scale electrolysis, cryogenic interface systems, hydrogen-ready power assets, and high-pressure refueling infrastructure where phase separation quality affects more than one equipment package.
If your team is evaluating hydrogen process equipment, planning a capacity upgrade, or trying to improve purity and recovery at plant scale, a structured separator assessment can prevent avoidable output loss and downstream instability. To benchmark your design basis, compare options, or obtain a tailored review for large-scale hydrogen operations, contact us to get a customized solution and discuss the right engineering path for your project.
