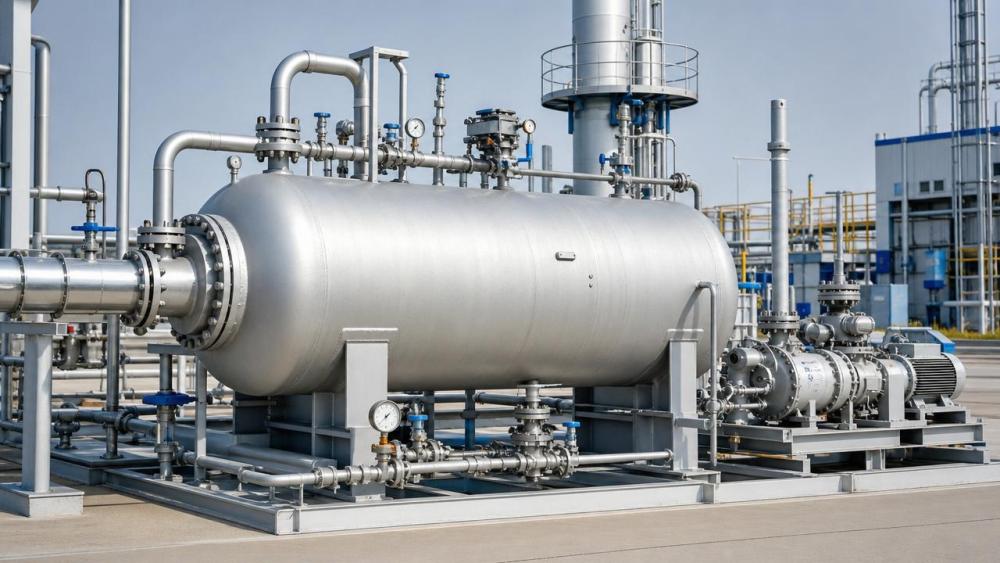

Gas-Liquid Separator Capacity: Sizing Mistakes to Avoid

Gas-liquid separator capacity is often misjudged at the earliest design stage, leading to carryover, pressure instability, rework, and costly delays. For project managers and engineering leads overseeing hydrogen, CCUS, or process infrastructure, avoiding sizing mistakes is essential to meeting safety, uptime, and performance targets. This article highlights the most common capacity-sizing errors and what to verify before they escalate into operational risk.

Why does gas-liquid separator capacity fail in real projects?

In capital projects, gas-liquid separator capacity is rarely a standalone vessel issue. It is usually the result of weak process assumptions, incomplete transient data, or procurement decisions made before operating envelopes are fully defined.

For project managers, the practical risk is not only poor separation efficiency. A wrongly sized separator can trigger compressor trips, downstream contamination, off-spec gas, relief events, and schedule erosion across the package.

This is especially relevant in hydrogen, CCUS, cryogenic handling, and gas turbine balance-of-plant systems, where gas density, pressure swings, liquid loading, and safety margins can vary more than early FEED documents suggest.

• Design teams often size for average flow, while the separator must survive startup, upset, and turndown conditions.
• Mechanical selection may proceed before mist elimination performance, residence time, and liquid surge capacity are reconciled.
• In hydrogen-related systems, low molecular weight gas can alter velocity limits and droplet behavior, making generic rules dangerous.

Why early assumptions create late-stage cost

A separator that appears adequate on paper may fail under real operating variability. Once installed, fixes usually involve internal retrofits, nozzle changes, larger vessels, or upstream conditioning, all of which are expensive and slow.

G-HEI tracks these interface risks across electrolysis plants, hydrogen logistics, refueling systems, and CCUS assets, where separator sizing is linked to material integrity, pressure control, and compliance expectations rather than vessel volume alone.

Which gas-liquid separator capacity mistakes appear most often?

The most damaging mistakes are usually simple. They happen when teams treat gas-liquid separator capacity as a nameplate value instead of a condition-specific performance limit tied to fluid properties and internals.

The list below summarizes the errors that most often lead to carryover, flooding, unstable control, or repeated engineering queries during procurement and commissioning.

1. Using normal flow only and ignoring maximum credible gas rate, slugging, or recycle conditions.
2. Applying generic K-values without checking actual pressure, density ratio, and mist eliminator selection.
3. Underestimating liquid holdup needed for control-valve response, pump protection, or upset inventory.
4. Ignoring inlet device performance and assuming internals can compensate for poor feed distribution.
5. Failing to consider foaming, solids, waxes, amine traces, water carryover, or corrosive condensate.
6. Selecting orientation based on plot space instead of process behavior and maintenance access.

Mistake pattern by project phase

The timing of the mistake matters. Some errors originate in concept design, while others are introduced when package vendors optimize cost and compress dimensions.

The table below helps teams identify when gas-liquid separator capacity assumptions are most vulnerable and what operational consequence usually follows.

For engineering leaders, this phase-based view is useful because it converts a vessel discussion into a project risk register. The earlier the gas-liquid separator capacity assumptions are challenged, the cheaper the correction.

What should project managers verify before approving sizing?

A good approval process is not about recalculating every detail internally. It is about asking the right technical questions before the vessel is frozen, purchased, and integrated into a larger hydrogen or process package.

The checks below are especially important when gas-liquid separator capacity affects compressors, analyzers, metering, cryogenic interfaces, or pressure-sensitive downstream equipment.

• Confirm all design cases: normal, maximum, minimum, startup, shutdown, recycle, blocked outlet, and upset liquid loading.
• Check the sizing basis for gas density, liquid density, viscosity, temperature, and expected contaminants.
• Verify internals: inlet device type, vane pack or mesh pad selection, turndown range, and maintenance access.
• Review control philosophy: liquid level response time, alarm bands, instrument nozzle placement, and drain strategy.
• Validate materials against process chemistry, pressure class, hydrogen service expectations, and relevant code requirements.

A practical pre-approval checklist

Use the following table during vendor review meetings. It helps convert gas-liquid separator capacity from a generic datasheet item into a defined acceptance criterion.

This checklist is useful across electrolyzer balance-of-plant skids, CO2 compression trains, and hydrogen refueling modules. In each case, separator performance influences both operational continuity and acceptance risk.

How do application scenarios change gas-liquid separator capacity decisions?

Not every gas-liquid separator capacity problem looks the same. Hydrogen production, carbon management, and gas fuel systems each impose different design priorities, even when the vessel type appears similar on the P&ID.

Hydrogen production and purification

In electrolyzer and hydrogen conditioning systems, separators may need to manage water droplets, pressure cycling, and purity-sensitive downstream equipment. Small carryover can compromise dryers, analyzers, and compression stages.

CCUS compression and dehydration

CO2 systems can experience variable phase behavior, corrosive moisture, and compression-induced condensate. Here, gas-liquid separator capacity must be checked against transient condensation and corrosion management, not just nominal gas flow.

Hydrogen-ready gas turbine and fuel gas systems

For turbine applications, liquid breakthrough can threaten combustion stability and hardware life. A separator sized only for clean steady gas can fail during startup purge, blending transitions, or cold-weather condensate events.

The table below compares how application context changes gas-liquid separator capacity priorities for project teams making design or procurement decisions.

This scenario view matters because a “standard” separator can be acceptable in one duty and risky in another. G-HEI supports these distinctions by benchmarking assets against operating context and relevant international frameworks.

What standards and compliance points should not be ignored?

Gas-liquid separator capacity decisions sit inside a broader compliance environment. Vessel codes, piping rules, hydrogen service expectations, and fuel handling standards all influence what is acceptable from both safety and documentation perspectives.

For zero-carbon infrastructure, separator selection should be reviewed with reference to the applicable pressure vessel code, piping design basis, hazard study outcomes, and material compatibility requirements. In hydrogen and refueling contexts, frameworks such as ISO 19880, ASME B31.12, and SAE J2601 may shape interface expectations even when they do not directly prescribe separator dimensions.

• Check whether the sizing basis is traceable in the design dossier and vendor calculations.
• Confirm material compatibility where hydrogen embrittlement, wet CO2 corrosion, or low-temperature exposure may be relevant.
• Ensure hazard reviews consider liquid carryover as a credible initiator for downstream failure or unsafe operation.
• Require inspection and maintenance access, because maintainability is part of long-term compliance and reliability.

How can teams reduce rework during procurement and delivery?

The best way to protect gas-liquid separator capacity is to convert vague technical intent into procurement language that vendors can price, verify, and guarantee within a clear operating envelope.

This means defining required cases, internals philosophy, pressure drop limits, liquid handling expectations, material notes, and documentation deliverables before bid comparison starts.

Recommended procurement workflow

1. Issue a datasheet with explicit operating cases instead of a single design flow number.
2. Request separator sizing calculations, internals details, and limits of performance in the bid package.
3. Compare vendors on usable operating envelope, maintainability, and documentation quality, not vessel cost alone.
4. Run a cross-discipline review involving process, mechanical, controls, and operations representatives.
5. Freeze the package only after interfaces with compressors, drains, relief systems, and downstream consumers are closed.

For complex hydrogen and CCUS assets, this workflow reduces late technical clarifications and helps avoid situations where separator revisions delay FAT, site erection, or commissioning readiness.

FAQ: practical questions about gas-liquid separator capacity

How do I know if gas-liquid separator capacity is being underestimated?

Warning signs include vendor calculations based on one operating point, no discussion of startup or upset cases, limited liquid holdup explanation, and no stated droplet removal target. If downstream equipment is sensitive to contamination, a minimal datasheet review is not enough.

Should I choose a horizontal or vertical separator?

It depends on liquid volume, slugging tendency, plot constraints, maintenance access, and separation target. Horizontal vessels often offer more liquid surge volume, while vertical arrangements may suit lower liquid rates or compact skids. Orientation should follow duty, not layout convenience alone.

Can a demister solve an undersized vessel problem?

Not reliably. Better internals can improve droplet removal, but they do not fully compensate for excessive gas velocity, poor inlet distribution, or insufficient liquid residence time. Relying on internals alone often shifts the failure mode rather than removing it.

What should I request from suppliers during bid evaluation?

Ask for the design basis, sizing calculations, operating envelope, internals description, pressure drop data, material list, inspection access details, and assumptions about contaminants or foaming. This gives your team a defendable basis for comparing gas-liquid separator capacity across offers.
