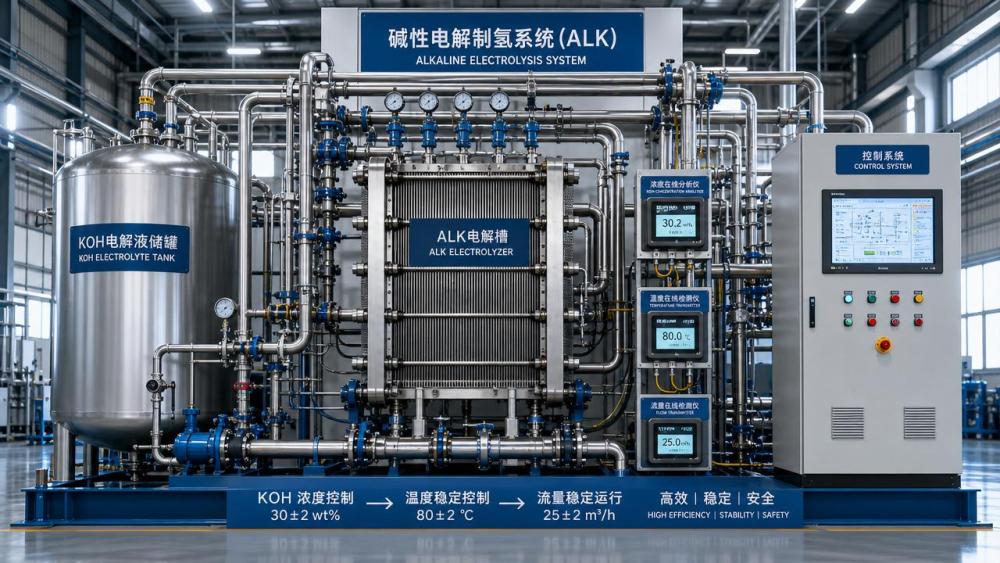

Getting KOH Concentration Right in Large ALK Systems

In large alkaline electrolysis systems, getting electrolyte concentration (KOH) right is not a minor adjustment—it directly affects conductivity, heat balance, corrosion risk, and long-term stack reliability. For after-sales maintenance teams, understanding how KOH concentration shifts during operation is essential to preventing efficiency losses, unplanned downtime, and safety issues across utility-scale hydrogen production assets.

For most maintenance teams, the key question is practical rather than academic: what KOH range keeps a large ALK system stable, how fast can concentration drift, and which field signals show that electrolyte quality is becoming a performance problem?

The short answer is that electrolyte concentration must stay within the OEM-defined operating window, because even modest deviation can reduce ionic conductivity, increase cell voltage, worsen gas separation behavior, and accelerate corrosion or carbonate-related fouling.

In utility-scale plants, concentration management is not just a lab control item. It is a daily reliability variable linked to water balance, temperature control, sampling quality, replenishment discipline, and the accuracy of operator response during transient operating conditions.

This article focuses on the real search intent behind electrolyte concentration (KOH): helping after-sales personnel diagnose drift, understand its operational consequences, and apply a workable maintenance approach that protects stack performance over time.

Why KOH concentration matters more in large ALK systems than many teams expect

In alkaline electrolysis, the electrolyte is not a passive fluid. It is the ionic medium that enables hydroxide transport between electrodes, so its concentration directly shapes resistance, efficiency, and thermal behavior inside the stack and balance-of-plant loop.

If the KOH solution becomes too dilute, conductivity falls and internal resistance rises. The stack then needs higher voltage to maintain the same current, which increases specific energy consumption and can create misleading symptoms that resemble aging or catalyst decline.

If concentration becomes too high, conductivity does not improve indefinitely. Viscosity rises, pumping behavior changes, heat transfer can worsen, and corrosion stress on wetted materials may increase, especially in hot sections or stagnant parts of the circulation loop.

Large systems are especially sensitive because they have bigger electrolyte volumes, longer pipe runs, more complex recirculation behavior, and more points where evaporation, make-up water error, cross-contamination, or poor mixing can distort the true electrolyte concentration (KOH).

At megawatt scale, the consequences are also magnified. A small conductivity penalty at cell level can turn into meaningful plant-level power loss, while a persistent chemistry imbalance can shorten maintenance intervals and raise the risk of unexpected shutdowns.

What after-sales maintenance teams are really trying to prevent

From a maintenance standpoint, concentration control is about preventing three expensive outcomes: hidden efficiency loss, stack or loop material damage, and process instability that eventually becomes a safety or availability event.

The first risk is silent efficiency degradation. Operators may only notice that rectifier demand is rising or hydrogen output per kilowatt is falling, but the root cause can be electrolyte drift rather than membrane, electrode, or power electronics problems.

The second risk is chemistry-driven wear. When concentration, temperature, and impurity load combine unfavorably, corrosion rates can increase in metallic components, seals may experience harsher exposure, and deposits can form in low-flow or temperature-variable sections.

The third risk is operational instability. Improper concentration can affect gas disengagement, foaming tendency, liquid level control, and the consistency of process instrumentation, especially if the plant already operates under dynamic load rather than steady baseload conditions.

Maintenance teams therefore need a field-ready framework: not just a target percentage, but a way to connect concentration values with symptoms, causes, urgency, and the correct corrective action path.

What causes electrolyte concentration to drift during real plant operation

KOH concentration rarely changes for only one reason. In practice, drift usually reflects a combination of water management, thermal effects, sampling mistakes, carryover, contamination, and maintenance execution quality across the entire electrolyte circuit.

Water addition is the most common driver. If make-up water volume, injection timing, or distribution is not properly controlled, the electrolyte can become gradually diluted or locally imbalanced, particularly after shutdowns, start-ups, or high-load operating periods.

Evaporation and thermal concentration effects also matter. In hot systems, water loss through venting, gas streams, or imperfect condensation recovery can slowly increase KOH concentration, especially if operators assume the nominal water balance still applies under changed ambient conditions.

Sampling error is another major issue. A sample taken from a poorly mixed location, from a dead leg, or at the wrong temperature can misrepresent true system concentration, leading teams to overcorrect a problem that did not actually exist plant-wide.

Carbonation is often underestimated. If carbon dioxide enters the system through water quality issues, storage exposure, or poor handling during maintenance, potassium carbonate formation can alter effective electrolyte behavior even when total dissolved alkali appears acceptable on paper.

Leaks, carryover, drain losses, and maintenance interventions can also shift the chemistry. Any event that removes electrolyte but is replaced with water only—or vice versa—can move concentration outside the preferred range faster than trend data may initially suggest.

How to recognize that KOH concentration is becoming a plant problem

Maintenance teams should not rely on a single number alone. The best diagnosis comes from linking concentration measurements with electrical, thermal, hydraulic, and gas-quality indicators that together show whether electrolyte chemistry is affecting system performance.

A common early sign is rising cell voltage at comparable current density and temperature. If the stack requires more power without a clear mechanical or electrical fault, reduced ionic performance from off-spec electrolyte should be part of the first troubleshooting layer.

Another indicator is abnormal temperature behavior. Changes in concentration alter heat generation and heat transfer characteristics, so operators may see unexplained loop temperature shifts, less stable thermal control, or wider temperature differences across the system.

Pump behavior can also provide clues. Electrolyte that is more concentrated than intended may show different viscosity-related flow characteristics, while contamination or carbonate formation can worsen filter loading, pressure drop, and circulation consistency.

Gas-side symptoms matter too. If disengagement is less effective, or if liquid behavior changes in separators, teams may observe unstable level control, more carryover, or secondary issues in downstream gas treatment equipment.

These symptoms are not unique to concentration drift, but when several appear together, they justify immediate verification of electrolyte concentration (KOH), temperature-corrected measurement quality, and recent water or maintenance history.

What concentration range should teams aim for, and why OEM guidance must lead

There is no single universal KOH percentage that fits every alkaline electrolyzer design. Different OEMs optimize around different electrode configurations, operating temperatures, separator technologies, and circulation strategies, so the correct window must always come from system-specific documentation.

That said, many large ALK systems operate within a relatively defined KOH concentration band selected to balance conductivity, viscosity, heat management, and material compatibility. The important point is not chasing a textbook value, but keeping the actual plant inside its validated range.

After-sales teams should treat the lower and upper bounds differently. A low reading often points first to water balance or dilution issues, while a high reading may indicate water loss, overcorrection, or concentration during prolonged hot operation.

It is also essential to interpret concentration together with temperature. Many field methods are temperature sensitive, and a reading taken without proper correction can suggest a chemistry issue when the real problem is only a measurement artifact.

When plants operate dynamically, acceptable short-term fluctuation may still exist around the setpoint. The maintenance priority is to know which transient shifts are normal for that model and which indicate a developing control or integrity problem.

Best-practice field methods for measuring electrolyte concentration accurately

Good decisions depend on good samples. Before adjusting the electrolyte, teams should verify that the sample point is representative, the sample temperature is known, the instrument is calibrated, and the measurement method matches the plant’s chemistry control procedure.

Common field methods include density-based measurement, refractive index methods, and laboratory titration. Each has strengths, but none is reliable if sampling discipline is poor or if carbonate content and contamination are ignored during interpretation.

Sampling should be done from designated points with sufficient flow and mixing. Avoid dead zones, low-circulation sections, or immediately post-dosing locations where the sample may reflect a local condition rather than the concentration of the full loop.

Instrument calibration must be part of routine maintenance, not an occasional check after a problem appears. A drifting densitometer or handheld tool can trigger unnecessary chemical adjustments that move the system farther from the correct electrolyte balance.

For critical plants, laboratory confirmation is valuable whenever field values conflict with operating symptoms. If stack voltage suggests dilution but field density appears normal, deeper analysis for carbonate loading or contamination may be necessary.

How to correct off-spec KOH concentration without creating a second problem

Corrective action should be controlled, staged, and documented. Large ALK systems contain significant electrolyte inventory, so aggressive correction can create mixing delays, local concentration gradients, thermal stress, or overshoot that complicates the original problem.

If concentration is too low, teams typically review water addition history first, then calculate the required correction against total circulating volume using the OEM-approved procedure. Direct addition should never rely on rough estimates or shift-level judgment alone.

If concentration is too high, the focus is usually on controlled dilution with verified water quality. The source, purity, and dosing sequence matter, because poor-quality water can introduce impurities or carbon dioxide that solve one problem while creating another.

After any adjustment, allow adequate mixing and stabilization time before remeasuring. In large systems, apparent post-correction values can change as the loop equalizes, so immediate readings may not represent the final steady-state concentration.

Just as important, teams should identify the root cause before closing the event. If the plant is repeatedly drifting, the issue is not the concentration correction itself but the underlying failure in water balance, control logic, hardware condition, or operating practice.

How concentration control connects to corrosion, carbonate formation, and stack life

Maintenance personnel often see concentration management as an efficiency topic first, but over the long term it is equally a materials integrity topic. Electrolyte chemistry directly influences how aggressively the system interacts with metals, coatings, gaskets, and separators.

High temperature combined with off-target KOH can accelerate corrosion in susceptible components, especially where flow is poor or where crevices allow concentration differences to develop. This can shorten the useful life of valves, instruments, and loop hardware.

Carbonate formation deserves special attention because it can be mistaken for a simple concentration issue. Carbonates change electrolyte behavior, can affect conductivity, and may contribute to deposits or operational instability even when total alkali content seems acceptable.

Over time, unmanaged chemistry also affects stack reliability indirectly. If pumps, filters, separators, and piping performance degrade, the stack experiences less stable circulation and less consistent operating conditions, which can increase long-term degradation pressure.

For that reason, after-sales teams should treat electrolyte concentration (KOH) as part of a broader chemistry health program rather than as a standalone percentage target on a monthly checklist.

A practical maintenance checklist for keeping KOH concentration under control

First, confirm the OEM operating window, measurement method, correction table, and response thresholds. A site should never depend on inherited habits or generic alkaline plant assumptions when the stack design has specific chemistry requirements.

Second, establish a concentration trend, not just isolated readings. Trend values together with temperature, stack voltage, water consumption, and major operating events so teams can detect gradual drift before it becomes a performance complaint.

Third, standardize sampling. Define location, temperature handling, sample timing, and acceptable instrument error. Consistency matters as much as precision because poor repeatability makes troubleshooting slow and often misleading.

Fourth, investigate repeated corrections. If the plant needs frequent adjustment, inspect for hidden water balance issues, condenser effectiveness changes, leaks, control valve problems, dosing errors, or abnormal gas-side moisture behavior.

Fifth, include chemistry review in shutdown and restart procedures. Large concentration shifts often happen around maintenance windows, partial drains, component replacement, or extended idle periods when normal recirculation and control conditions are interrupted.

Finally, document every intervention with cause, measured value, correction amount, verification result, and follow-up observation. That history becomes essential when diagnosing whether the system is facing routine drift or a developing reliability threat.

Conclusion: getting KOH concentration right is a reliability discipline, not a small adjustment

In large alkaline electrolyzers, KOH concentration sits at the intersection of efficiency, heat balance, materials durability, and safe long-term operation. For after-sales maintenance teams, it is one of the most important chemistry variables to control consistently.

The most useful mindset is simple: do not treat electrolyte concentration as an isolated lab number. Treat it as an operating condition that must be measured correctly, interpreted in context, corrected carefully, and linked to the plant’s broader performance behavior.

When teams follow OEM ranges, use disciplined sampling, trend plant symptoms, and investigate root causes instead of repeatedly making blind corrections, they can prevent avoidable energy loss, reduce downtime risk, and protect stack life across utility-scale hydrogen assets.

In other words, getting electrolyte concentration (KOH) right is not just about keeping chemistry in range. It is about preserving the technical integrity and economic output of the entire ALK system over its operating life.
