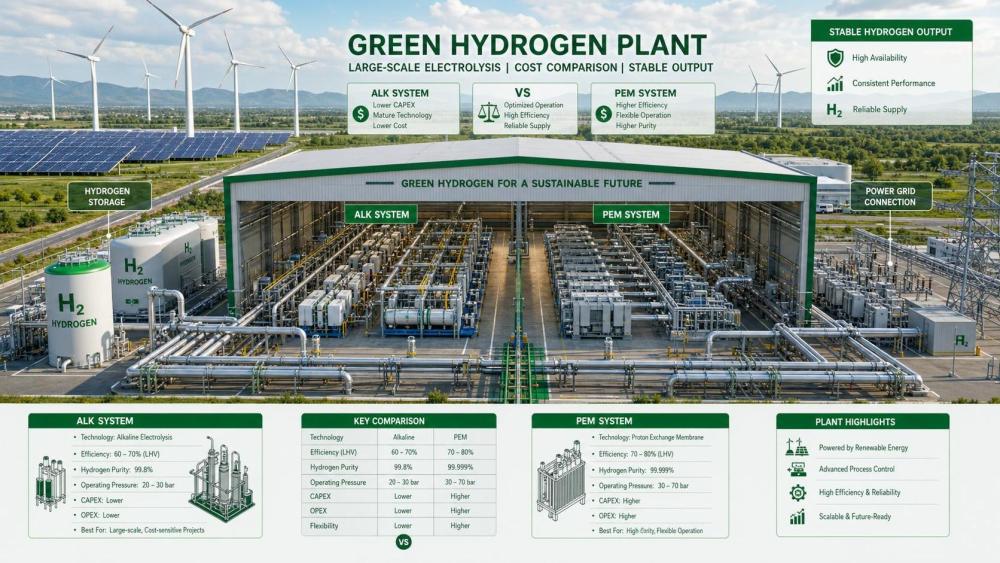

Large-Scale Electrolysis: ALK vs PEM for Cost and Output

Large-scale electrolysis now sits near the center of hydrogen strategy. In utility-scale projects, the ALK versus PEM decision affects capital intensity, operational flexibility, output quality, and long-term asset resilience.

That is why the comparison has moved beyond simple efficiency claims. At sovereign and industrial scale, the real question is how each platform performs under grid variability, water constraints, safety rules, and decades of service.

Within that context, G-HEI treats large-scale electrolysis as part of a broader zero-carbon infrastructure system. Electrolyzer selection influences storage design, hydrogen logistics, turbine integration, and compliance pathways across the full value chain.

Why ALK and PEM matter now

The market no longer evaluates electrolysis only by nameplate capacity. Projects are judged by delivered hydrogen cost, annual utilization, ramp behavior, and reliability under real operating conditions.

ALK, or alkaline electrolysis, is the more established route. PEM, or proton exchange membrane electrolysis, is newer in deployment history but stronger in dynamic response.

Both can support large-scale electrolysis plants. Yet they behave differently when paired with intermittent renewables, high-purity output requirements, or strict footprint and pressure constraints.

As 2026 approaches deeper hydrogen adoption, this difference matters more. National programs and major utilities cannot afford to optimize stack choice in isolation from downstream infrastructure.

Core technical distinction

ALK systems use a liquid alkaline electrolyte, typically potassium hydroxide. PEM systems use a solid polymer membrane and depend on more specialized catalyst and balance-of-plant materials.

That chemistry leads to different engineering consequences. ALK is often favored for lower equipment cost and long industrial familiarity. PEM is often chosen for compactness, fast ramping, and high current density.

In large-scale electrolysis, those traits shape plant architecture. They influence stack count, power electronics, compression needs, water treatment scope, and maintenance planning.

A practical comparison

This table should not be read as a winner-takes-all result. It only shows why large-scale electrolysis decisions must follow the project profile, not a generic technology ranking.

Cost is wider than electrolyzer price

The headline cost gap between ALK and PEM can be misleading. Stack CAPEX matters, but plant economics are shaped by utilization rate, electricity price structure, maintenance intervals, and hydrogen conditioning.

ALK often appears attractive where power is stable and inexpensive. In baseload or near-baseload conditions, the lower equipment cost can support favorable levelized hydrogen economics.

PEM can justify a higher initial cost when the power source is volatile. Faster ramping reduces curtailment losses and may improve annual hydrogen output from wind and solar-linked assets.

Another cost layer is balance-of-plant integration. Water purification, power conversion, cooling, gas drying, compression, and control systems can narrow or widen the practical cost difference.

For large-scale electrolysis, the useful metric is not cheapest stack procurement. It is lowest defensible cost per kilogram over the operating life of the full installation.

Output quality and production stability

Output is not only a matter of peak production. Serious evaluation looks at annualized hydrogen volume, purity consistency, start-stop penalties, and degradation under partial load.

PEM systems usually perform well where operating profiles are dynamic. They can respond quickly to renewable fluctuations, making them useful in grids with frequent load swings.

ALK systems are commonly stronger in steady production environments. When operated within a narrower band, they can support dependable hydrogen output with mature industrial service practices.

The decisive issue is efficiency stability over time. A system that starts efficiently but degrades rapidly can undermine output forecasts, maintenance budgets, and downstream supply contracts.

What usually changes the result

• Renewable intermittency and ramp frequency
• Required hydrogen purity and outlet pressure
• Local water quality and treatment burden
• Ambient conditions and cooling strategy
• Expected stack replacement cycle
• Integration with storage, transport, or turbine use

Infrastructure and safety cannot be separated

Large-scale electrolysis is part of a hazardous energy system, not a standalone machine purchase. Material compatibility, leak control, venting, pressure management, and emergency isolation all affect project viability.

This is where G-HEI’s benchmarking approach becomes useful. Electrolysis must be read alongside cryogenic logistics, hydrogen-ready turbines, refueling systems, and related standards pathways.

Frameworks such as ISO 19880, ASME B31.12, and SAE J2601 matter because they shape design assumptions early. Delayed compliance thinking often leads to redesign, delay, and hidden cost escalation.

PEM projects may require closer attention to specialized material supply and membrane integrity. ALK projects may place stronger operational emphasis on electrolyte handling and plant-wide chemical safety controls.

Where each pathway tends to fit

In practice, technology fit follows the energy and offtake model. There is rarely a universal answer across export terminals, industrial clusters, ammonia plants, and grid-balancing hydrogen hubs.

ALK often aligns with sites that have steady electricity, available space, and cost pressure on installed capacity. It can be a strong choice for bulk hydrogen production with predictable duty cycles.

PEM often aligns with sites exposed to renewable variability, land constraints, or higher requirements for operational responsiveness. It can also simplify certain high-pressure integration strategies.

When hydrogen feeds turbines, mobility infrastructure, or liquid hydrogen chains, the electrolysis choice should reflect downstream purity, compression, and storage consequences from the start.

A disciplined way to evaluate large-scale electrolysis

A useful comparison starts with the operating envelope, not vendor claims. Define the electricity profile, expected annual load factor, target pressure, water conditions, and downstream interface requirements.

Then test both ALK and PEM against the same project logic. That includes degradation assumptions, spare parts strategy, outage tolerance, safety case maturity, and standards alignment.

Shortlists become clearer when evaluation criteria stay concrete:

• Delivered hydrogen cost across the full asset life
• Annual output under the real power profile
• Efficiency retention after cycling and aging
• Compliance readiness for target jurisdictions
• Material durability under local operating stress
• Integration impact on storage and transport systems

For decision quality, that framework matters more than broad statements about one technology being cheaper or more advanced.

What to do next

The ALK versus PEM choice should be treated as an infrastructure decision with long operational consequences. Cost and output remain central, but they only make sense when read with durability, safety, and system integration.

A practical next step is to build a project-specific comparison matrix for large-scale electrolysis. Include duty cycle, standards exposure, water treatment demand, compression needs, and replacement assumptions.

From there, the strongest path is usually the one that stays technically coherent across the full hydrogen chain. In large-scale electrolysis, that discipline is what turns a promising concept into bankable output.
