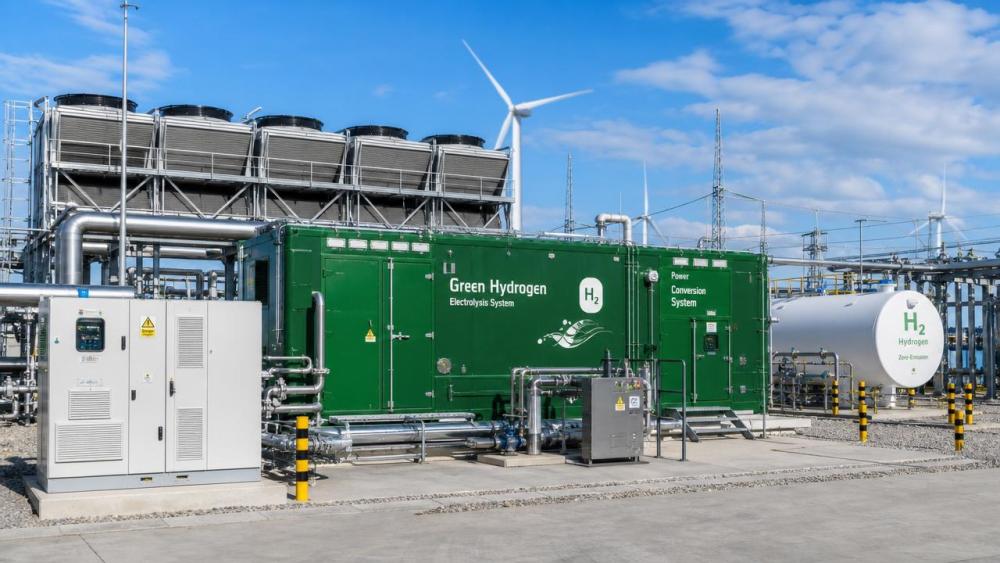

Dynamic Grid Balancing Protocols for Electrolyzers: Key Design Checks

For technical evaluators assessing utility-scale hydrogen assets, dynamic grid balancing protocols are no longer a secondary control issue but a core design criterion for electrolyzer reliability, efficiency, and compliance. As power inputs become more intermittent and grid-responsive operation more demanding, rigorous design checks are essential to verify stack stability, load-following capability, material integrity, and system safety under real-world balancing conditions.

In utility-scale hydrogen projects, the control philosophy applied between the grid interface, power electronics, and electrolyzer balance of plant now affects bankability as much as nameplate capacity. For G-HEI stakeholders working across PEM and alkaline systems, the question is no longer whether an electrolyzer can ramp, but whether it can ramp within defined electrical, thermal, and electrochemical limits over 10,000 to 80,000 operating hours.

This article outlines the most important design checks behind dynamic grid balancing protocols, with emphasis on load-following performance, protection architecture, degradation control, and acceptance criteria. The focus is practical: what technical evaluators should verify before procurement approval, performance guarantees, EPC integration, or sovereign-scale infrastructure deployment.

Why Dynamic Grid Balancing Protocols Matter in Electrolyzer Design

Electrolyzers connected to variable renewable power rarely operate at a flat 100% load. In many projects, the stack may cycle between 15% and 100% load several times per day, with step changes occurring in less than 5 seconds when grid services, curtailment recovery, or frequency response obligations are enabled.

Under these conditions, dynamic grid balancing protocols determine how rapidly the system accepts power, how the rectifier manages current ripple, how water and cooling loops respond, and how hydrogen purity is preserved during transient operation. A weak protocol can cause voltage overshoot, gas crossover risk, unstable cell temperature, and accelerated membrane or electrode wear.

For technical evaluators, the core concern is not just flexibility, but controlled flexibility. A system that advertises a 10% to 100% turndown range is not necessarily suitable for grid balancing unless it also specifies ramp rate limits, minimum dwell times, transient efficiency penalties, restart sequencing, and protection logic under abnormal frequency or voltage conditions.

Primary Evaluation Drivers

• Stack response time under rising and falling load, often measured in 1 to 30 second windows
• Minimum stable operating point, commonly 10% to 25% for PEM and 20% to 40% for ALK depending on design
• Power quality tolerance, including harmonics, flicker, current ripple, and short-duration voltage dips
• Hydrogen purity retention during transient operation and shutdown-restart cycles
• Thermal stabilization performance across repeated cycling over daily, weekly, and seasonal profiles

Where Grid Balancing Stress Appears First

In PEM systems, stress often appears in membrane hydration balance, catalyst layer durability, and localized temperature excursions. In alkaline units, the first warning signs may be gas purity drift, slower low-load stability, and electrolyte management challenges. In both cases, dynamic grid balancing protocols must be tested beyond nominal steady-state conditions.

A reliable review should compare declared dynamic performance against the electrical architecture. If a supplier claims sub-second ramping, evaluators should confirm whether the transformer, rectifier, DC bus, controls, and safety interlocks were designed for repeated fast transients rather than one-off demonstration events.

Key Design Checks for Technical Evaluators

The most effective way to review dynamic grid balancing protocols is to break the system into measurable design checks. This prevents procurement teams from relying on generic flexibility claims and helps identify whether dynamic operation has been engineered at stack level, subsystem level, and plant-control level.

1. Electrical Interface and Power Quality Verification

Start with the grid connection and conversion chain. Verify the acceptable voltage window, frequency deviation tolerance, harmonic distortion threshold, and current ripple control strategy. In many utility projects, acceptable grid frequency deviation checks are reviewed within ±1 Hz, while voltage disturbance ride-through may be assessed over 100 millisecond to 3 second events.

The rectifier is especially critical. Excessive DC ripple can reduce stack efficiency and increase degradation pressure on cells. Evaluators should request ripple limits at full load and partial load, plus evidence that those values remain controlled during ramping rather than only during stable operation.

Electrical questions to validate

1. What is the maximum allowed ramp rate in % per second or MW per minute?
2. Does the system support curtailment recovery without overshoot above cell voltage limits?
3. Are frequency response modes isolated from stack protection thresholds?
4. What is the tested ride-through performance for short grid disturbances?

2. Stack Dynamic Envelope and Load-Following Stability

A stack dynamic envelope should define more than a nameplate operating range. It should include minimum stable load, maximum ramp rate, allowable cycle count, warm and cold start times, and any mandatory dwell intervals. Without these parameters, dynamic grid balancing protocols remain incomplete from a technical risk perspective.

For example, a plant may claim operation from 20% to 100% load, but if hydrogen purity falls outside specification below 30% load, or if repeated hourly cycling doubles the maintenance interval for key components, then practical dispatch flexibility is narrower than the headline figure suggests.

The table below highlights design checks commonly used during technical review of dynamic operation capability.

The key conclusion is that dynamic capability must be expressed as a verified operating envelope, not a single ramping claim. Technical evaluators should insist on load maps and transient test records that show where the electrolyzer remains stable, efficient, and compliant.

3. Thermal, Water, and Gas Management Checks

Dynamic grid balancing protocols are often undermined by balance-of-plant limitations rather than stack chemistry alone. Cooling loops may lag behind current changes, deionized water supply may not track demand quickly enough, and gas separators may experience unstable residence times during fast cycling. These issues can appear within 3 to 10 minutes of repeated dispatch changes.

Evaluators should ask whether thermal control is predictive or reactive, whether pumps and valves are variable-speed or staged, and whether gas-liquid separation performance has been tested at low-load and transient conditions. A plant designed around flat baseload production may struggle when balancing duty becomes the dominant operating mode.

Critical subsystem checks

• Coolant temperature deviation during ramps, often reviewed within a narrow design band
• Water quality control under frequent start-stop events
• Separator performance at reduced gas flow
• Pressure control coordination between stack outlet, purification, and compression systems

4. Degradation and Lifetime Modeling Under Cycling Duty

One of the most important procurement risks is the gap between lifetime under steady operation and lifetime under dynamic service. A supplier may present stack life expectations based on relatively stable duty, while the actual project profile includes 4 to 12 load cycles per day, seasonal curtailment swings, and frequent partial-load dispatch.

Technical evaluators should request degradation assumptions tied to operating profile. This includes voltage increase rate, catalyst or electrode wear expectations, membrane stress, seal aging, and maintenance interval changes under cycling. If dynamic grid balancing protocols are central to the business model, lifetime guarantees should reference that dispatch profile explicitly.

Controls, Safety, and Compliance Integration

Dynamic operation is not only a performance question. It is also a safety and compliance question. The control system must keep the electrolyzer inside safe electrochemical, thermal, and pressure boundaries while responding to external grid signals. This is where dynamic grid balancing protocols intersect with interlocks, shutdown logic, alarms, and code compliance.

Control Architecture Review

At minimum, evaluators should review the hierarchy between plant supervisory control, power conversion control, stack control, and emergency shutdown layers. Fast balancing commands should not bypass protective checks. A robust architecture typically separates dispatch optimization from safety-critical response functions, with validated fallback states for communication loss or sensor disagreement.

The response sequence also matters. If the system receives a sudden curtailment signal, power reduction, pressure stabilization, purge logic, and downstream compression coordination should occur in a managed sequence measured in seconds, not improvised through operator intervention. Automated sequencing reduces both safety exposure and production loss.

Safety-Oriented Checks for Dynamic Duty

During fast load changes, transient gas crossover, pressure imbalance, and abnormal temperature gradients become more likely. Review whether thresholds are static or adaptive, whether sensor redundancy is provided on critical measurements, and whether the system can distinguish a temporary balancing event from a fault condition.

The following table can be used as a practical compliance-oriented screening framework during technical due diligence.

This framework is especially relevant for G-HEI-aligned projects because balancing performance cannot be separated from asset integrity and sovereign infrastructure security. The more dynamic the duty cycle, the more important it becomes to confirm that controls and safety layers were designed as an integrated package.

Documentation Technical Evaluators Should Request

1. Transient operating envelope with load, temperature, and pressure boundaries
2. Factory or site test records for ramping, ride-through, and restart performance
3. Degradation assumptions under the intended annual dispatch profile
4. Cause-and-effect matrix for alarms, trips, and fallback modes
5. Interface definition between electrolyzer controls and plant energy management system

Procurement Guidance and Common Evaluation Mistakes

A frequent procurement mistake is to compare electrolyzers using only efficiency at rated load and total installed cost per megawatt. For projects exposed to volatile renewable supply or ancillary-service participation, this misses the operational value and technical risk embedded in dynamic grid balancing protocols.

Another common error is accepting simulation output without matching it to tested duty profiles. A credible assessment should align 3 layers: the expected grid service profile, the stack and balance-of-plant response capability, and the contractual guarantees covering efficiency, availability, purity, and maintenance intervals.

Practical selection criteria

• Match operating envelope to actual dispatch profile, not idealized renewable output
• Review transient performance at 25%, 50%, 75%, and 100% load points
• Check whether efficiency guarantees include part-load operation
• Confirm maintenance strategy for high-cycle duty over 12-month and multi-year periods
• Validate integration requirements with compression, storage, and hydrogen offtake systems

What a Strong Technical Submission Looks Like

Strong submissions provide clear boundaries, tested data, and operational assumptions. They explain not only maximum performance, but also restrictions, response delays, protective thresholds, and expected wear mechanisms. This level of transparency helps evaluators quantify total asset resilience rather than chasing headline flexibility figures.

For ministries, utility CTOs, and energy investment directors using G-HEI benchmarking principles, the preferred solution is one that balances dynamic responsiveness with verifiable integrity, compliance discipline, and long-duration operational stability.

Dynamic grid balancing protocols should be treated as a front-end design requirement, not a late-stage controls add-on. The most robust electrolyzer projects are those that verify electrical compatibility, stack operating envelope, thermal and gas management, degradation under cycling, and integrated safety logic before procurement commitments are locked in.

If your team is evaluating utility-scale electrolysis assets for renewable integration, grid services, or sovereign hydrogen infrastructure, G-HEI can help benchmark the relevant technical checks, standards alignment, and risk controls. Contact us to obtain a tailored evaluation framework, review project-specific dynamic duty assumptions, or explore broader zero-carbon infrastructure solutions.
