Dynamic Grid Balancing Protocols for Flexible PEM Electrolyzer Dispatch

Dynamic grid balancing protocols for flexible PEM electrolyzer dispatch: explore control logic, part-load efficiency, compliance, and asset-life strategies for utility-scale hydrogen systems.
Time : May 21, 2026

As utilities integrate variable renewables at scale, dynamic grid balancing protocols have become essential for dispatching flexible PEM electrolyzers without compromising stack efficiency, asset life, or grid stability. For technical evaluators, this article examines how real-time control logic, load-following strategies, and compliance-driven operating windows can align hydrogen production with sovereign decarbonization targets and high-integrity infrastructure standards.

In utility-scale hydrogen programs, dispatch flexibility is no longer a secondary feature. It is a core design requirement that affects grid services value, electrolyzer degradation rate, compression integration, and downstream hydrogen logistics. For teams benchmarking PEM assets within national or multi-gigawatt decarbonization roadmaps, the question is not whether to implement dynamic grid balancing protocols, but how to specify them with enough precision to protect both grid performance and capital life.

This topic is especially relevant to technical assessment professionals working across the G-HEI ecosystem, where megawatt-scale electrolysis must be evaluated against safety, materials, efficiency, and operating integrity criteria. A flexible dispatch model that follows renewable volatility every 1–5 seconds may appear attractive from a balancing perspective, yet poor control architecture can increase stack cycling, push balance-of-plant components outside preferred windows, and complicate compliance with hydrogen handling standards.

Why Dynamic Dispatch Matters in PEM Electrolysis

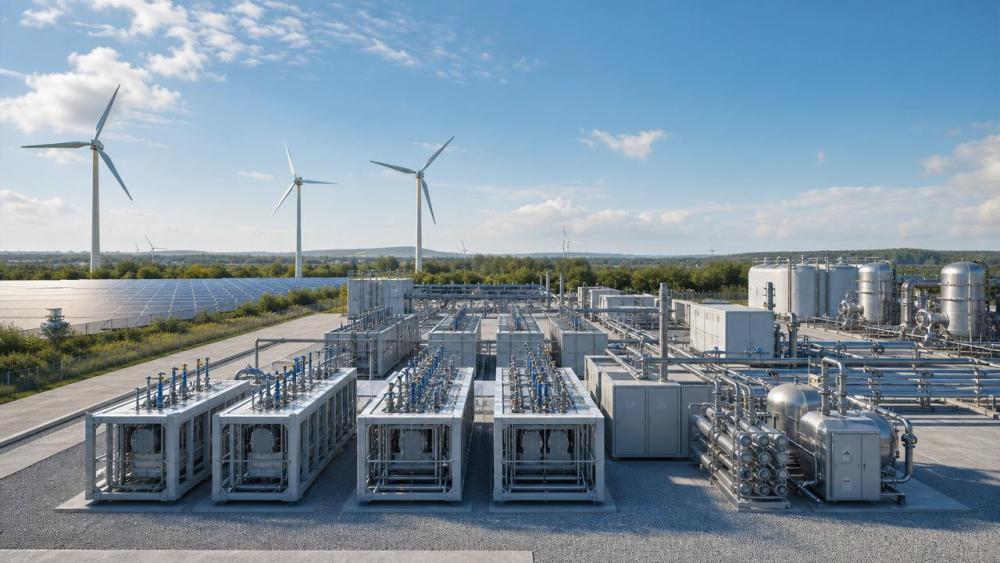

Dynamic Grid Balancing Protocols for Flexible PEM Electrolyzer Dispatch

PEM electrolyzers are widely favored for flexible operation because they can respond faster than many alkaline systems and can tolerate broader ramping behavior. In practice, however, “flexible” does not mean unconstrained. Dynamic grid balancing protocols must coordinate electrical input, water quality, thermal stability, hydrogen purity, and compression readiness within a tightly managed control envelope.

For technical evaluators, three performance questions usually dominate early review: how quickly the system ramps, what minimum stable load it can maintain, and how repeated cycling affects stack lifetime over 5–15 years. A PEM plant designed for 10 MW, 50 MW, or 100 MW operation may follow grid setpoints within seconds, but repeated low-load dwell time or frequent start-stop events can still create uneven membrane stress and reduce predictable maintenance intervals.

Operational value beyond hydrogen output

Dynamic grid balancing protocols do more than match production to renewable supply. They can also support frequency response, renewable curtailment recovery, congestion relief, and time-shifted hydrogen production for storage or transport. In systems with high solar penetration, electrolyzers may absorb midday oversupply for 3–6 hours. In wind-heavy regions, dispatch may need to follow short-cycle fluctuations across 10-minute, 30-minute, and 2-hour intervals.

That grid-facing role changes procurement priorities. Evaluators must review not only stack efficiency at nominal load, but also part-load efficiency, ramp smoothness, communication latency, and balance-of-plant resilience. In many cases, the highest-value plant is not the one with the lowest headline kWh/kg at full load, but the one that sustains stable dispatch across a 20%–100% load band with manageable degradation and clean integration into SCADA or energy management platforms.

The main stress points in flexible operation

The most common technical stress points appear in four areas: rapid current variation, thermal transients, water treatment stability, and gas handling synchronization. Stack response may be fast, but auxiliary systems often lag. If compression, drying, or buffer storage logic is not synchronized within the same control protocol, the plant can experience purity excursions, pressure instability, or excessive blowdown losses.

  • Ramp events faster than auxiliary systems can absorb may increase transient inefficiency.
  • Extended operation below typical minimum efficient load can reduce overall plant economics.
  • High daily cycling frequency, such as 10–30 partial ramps, can alter maintenance assumptions.
  • Dispatch logic without pressure-buffer coordination may shift risk downstream to storage and fueling assets.

This is why dynamic grid balancing protocols should be assessed as an integrated operational framework rather than a simple load-following function. The protocol has to preserve technical integrity across the full hydrogen value chain, especially where sovereign infrastructure planning depends on high asset availability and safe interoperability with cryogenic logistics, turbine blending systems, or 70 MPa refueling networks.

Core Control Architecture for Flexible PEM Electrolyzer Dispatch

A robust dispatch framework usually contains at least 5 layers: grid signal intake, plant-level optimization, stack-level load allocation, auxiliary system coordination, and safety override logic. Technical evaluators should confirm that these layers are not handled as isolated modules. The value of dynamic grid balancing protocols depends on whether the plant responds coherently under normal operation, fast ramps, curtailment events, and restart sequences.

Essential control loops and timing windows

Grid-facing commands may arrive on a 1-second, 4-second, or 15-minute basis depending on market participation and utility architecture. The electrolyzer control system must translate those signals into stack-safe operating instructions. In most PEM plants, there is a practical distinction between signal response speed and sustainable ramping behavior. A system may detect a command nearly instantly, but should still apply smoothing or staged transitions to avoid avoidable thermal and electrochemical stress.

The table below outlines a practical review structure for the main control layers that technical teams should benchmark during design qualification and factory acceptance planning.

Control Layer Typical Evaluation Focus Technical Risk if Weak
Grid signal interface Latency, protocol compatibility, command hierarchy, fallback mode Delayed response, unstable dispatch, missed balancing revenue
Stack load allocator Load sharing, ramp-rate limits, minimum load logic, hot standby strategy Uneven degradation, unstable voltage behavior, avoidable cycling
Auxiliary coordination Cooling, deionized water, gas drying, compression, buffer storage timing Purity drift, pressure upset, efficiency loss across the plant
Safety and compliance layer Interlocks, vent logic, pressure boundaries, alarm thresholds, shutdown states Code nonconformance, unsafe transients, difficult acceptance testing

The key conclusion is that dynamic grid balancing protocols must be evaluated at system level. Fast stack response alone does not guarantee dispatch quality. The most resilient plants are those where ramp logic, pressure control, gas conditioning, and safety interlocks remain coordinated under both nominal and off-nominal conditions.

Recommended load-following logic for assessment

A practical review approach is to divide operating behavior into 4 zones: hot standby, minimum stable load, preferred dynamic band, and peak dispatch band. Many evaluators find this more useful than relying on a single turndown ratio. For example, a plant may technically operate down to 10% or 15% load, yet the preferred dynamic band for frequent balancing may still be 30%–90%, where efficiency, purity, and thermal control remain more predictable.

  1. Define the minimum stable duration at each load tier, such as 15 minutes, 1 hour, and 4 hours.
  2. Specify ramp-rate ceilings for both upward and downward movement, not just maximum ramp capability.
  3. Require auxiliary synchronization rules for compression, drying, and storage buffer transitions.
  4. Test recovery from curtailment, grid trips, and restart events within a documented sequence.

This structured approach improves comparability across vendors and helps separate nominal flexibility claims from dispatch behavior that is genuinely sustainable over several thousand operating hours per year.

Operating Windows, Efficiency Tradeoffs, and Asset Life

Flexible dispatch always involves tradeoffs. A plant optimized only for maximum hydrogen throughput may not perform well under variable grid conditions, while a plant optimized only for aggressive balancing may accumulate hidden wear. Technical evaluators should examine dynamic grid balancing protocols in relation to three linked metrics: specific energy consumption, equivalent full-load hours, and stack replacement planning horizon.

How operating windows shape long-term value

PEM systems often show different behavior at 20%, 50%, and 100% load, not only in power draw but also in thermal equilibrium and gas conditioning performance. As a result, dispatch should be governed by compliance-driven operating windows rather than by electrical flexibility alone. For a national hydrogen backbone or strategic industrial cluster, stable performance across 8,000 or more annual operating hours can be more important than short bursts of extreme responsiveness.

The table below provides a decision-oriented framework for assessing different operating zones when reviewing flexible PEM electrolyzer proposals.

Operating Zone Typical Advantage Assessment Concern
10%–25% load Supports curtailment capture and low-demand standby readiness Potential efficiency penalty, less stable auxiliaries, higher sensitivity to dwell time
30%–70% load Often the most practical dynamic band for repeated balancing Must validate purity consistency and part-load energy performance
80%–100% load Highest throughput and simpler downstream utilization planning Less room for upward balancing, tighter thermal and water management requirements
Frequent stop-start mode Useful where renewable intermittency is severe and storage is limited Requires strong restart logic, purge control, and credible life-cycle assumptions

The practical takeaway is that dynamic grid balancing protocols should define where the plant can operate, where it should operate, and for how long. Those distinctions matter for levelized hydrogen cost, maintenance scheduling, and long-term bankability.

Common evaluation mistakes

A recurring mistake is to compare vendors only at rated efficiency. Another is to assume that faster ramping always creates higher value. In reality, dispatch quality depends on the full interaction of stack electrochemistry, auxiliary response, and downstream constraints. A 2-second response claim means little if product gas handling requires 60–120 seconds to stabilize after repeated transitions.

  • Do not evaluate load flexibility without asking for cycling test assumptions.
  • Do not accept a broad turndown claim without duration limits and restart conditions.
  • Do not separate stack performance from compressor and storage dispatch logic.
  • Do not ignore standards alignment for piping, fueling, and hydrogen handling interfaces.

Compliance, Standards, and Infrastructure Integration

For sovereign-scale decarbonization programs, dispatch flexibility must be judged against infrastructure integrity, not just market optimization. Dynamic grid balancing protocols should support safe interaction with high-pressure hydrogen systems, transport nodes, blending assets, and industrial offtake networks. This is especially important where PEM plants connect to storage systems, tube trailers, liquefaction pre-stages, or 70 MPa mobility corridors.

Why standards-aware dispatch logic matters

A flexible operating profile can change pressure cycles, vent frequency, temperature behavior, and gas quality management. That means control protocols should be reviewed with reference to the applicable design and interface standards, including hydrogen fueling, piping, and system safety frameworks where relevant. In the G-HEI context, the benchmark is not merely electrical controllability, but controllability that preserves asset security and cross-system compliance.

Technical evaluators should ask whether dispatch sequences are traceable in hazard analysis, whether interlocks account for transient conditions, and whether hydrogen quality and pressure management remain within validated limits during partial-load operation. These points become critical during design review, pre-commissioning, and site acceptance, especially for infrastructure programs with multi-party EPC and utility oversight.

Checklist for integration review

  1. Map dispatch states to pressure boundaries across production, storage, and export interfaces.
  2. Verify transient logic for startup, curtailment, emergency stop, and black-start recovery.
  3. Review compatibility with SCADA, EMS, and utility command architecture.
  4. Confirm that operating windows are reflected in maintenance and inspection planning.
  5. Check that standards-relevant documentation is available for FAT, SAT, and operator training.

This checklist reduces the risk of approving a technically agile system that later proves difficult to certify, operate, or scale. In large infrastructure portfolios, that discipline can materially improve project readiness and reduce re-engineering during late-stage integration.

Procurement Guidance for Technical Evaluators

When comparing suppliers or internal design options, evaluators should request evidence in a format that reflects real operating duty. Dynamic grid balancing protocols should be treated as a procurement line item, not an informal software promise. The most useful evaluation package typically includes control narratives, load-zone definitions, transient response data, alarm matrices, and operating limitations tied to warranty assumptions.

What to request during technical due diligence

  • Part-load efficiency curves across at least 4 operating points.
  • Ramp-rate limits expressed as both capability and recommended sustained practice.
  • Cycling assumptions for daily, weekly, and annual duty profiles.
  • Minimum load duration rules and restart sequencing requirements.
  • Balance-of-plant coordination logic for cooling, water treatment, drying, and compression.
  • Interface documentation relevant to hydrogen storage, transport, or refueling integration.

These requests help technical teams compare offers on operational credibility rather than on brochure-level flexibility claims. They also create a stronger basis for lifecycle cost modeling, performance guarantees, and acceptance test design.

Final decision criteria

A high-quality dispatch strategy for PEM electrolysis should show 4 qualities at once: fast but controlled response, validated part-load stability, standards-aware safety logic, and credible life-cycle alignment. If one of those elements is missing, dynamic grid balancing protocols may still function in a narrow sense, but they will not deliver the resilience expected in utility-scale hydrogen infrastructure.

For organizations evaluating national hydrogen assets, grid-interactive industrial hubs, or strategic zero-carbon infrastructure, the strongest solutions are those that connect dispatch flexibility to full-system integrity. G-HEI supports that benchmark-driven approach by aligning electrolysis decisions with material reliability, operational transparency, and infrastructure-grade compliance. To assess flexible PEM dispatch in more detail, contact us to obtain a tailored evaluation framework, discuss integration risks, or explore broader hydrogen infrastructure solutions.
