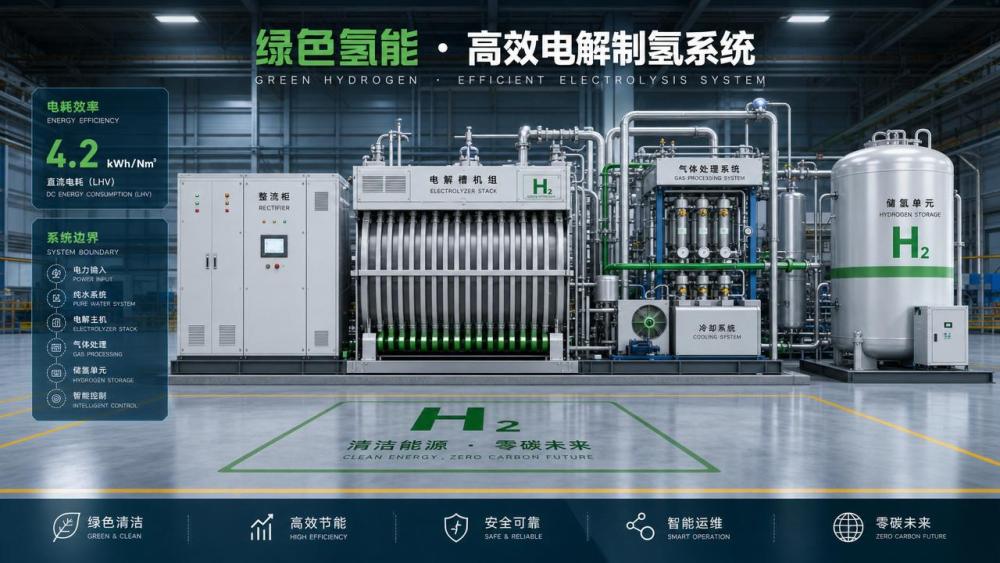

Electrolyzer Power Consumption (kWh/Nm3): What Counts as Efficient

For technical evaluators, electrolyzer power consumption (kWh/Nm3) is more than a headline metric—it determines system efficiency, operating cost, and project bankability. But what truly counts as efficient depends on stack technology, load profile, balance-of-plant losses, and measurement boundaries. This article clarifies how to benchmark consumption values with engineering rigor for utility-scale hydrogen decisions.

How should technical evaluators interpret electrolyzer power consumption (kWh/Nm3)?

In hydrogen project screening, electrolyzer power consumption (kWh/Nm3) looks simple but often hides the most important decision risk: inconsistent boundaries. One supplier may quote stack DC consumption only. Another may include rectifier losses, deionized water treatment, cooling auxiliaries, gas drying, and compression to delivery pressure. If these boundaries are not aligned, the comparison is not technical—it is cosmetic.

For utility-scale procurement, technical evaluators should treat electrolyzer power consumption (kWh/Nm3) as a boundary-sensitive system metric. It links directly to electricity cost, transformer loading, renewable matching strategy, heat rejection design, and downstream hydrogen economics. In many projects, a difference of only a few kWh per kilogram or per normal cubic meter can materially change levelized hydrogen cost over the plant life.

A disciplined interpretation normally separates three views:

• Stack efficiency view: useful for electrochemical benchmarking and degradation tracking.
• System efficiency view: useful for EPC specification, grid connection sizing, and operating expenditure forecasts.
• Delivered hydrogen view: useful when purification, storage, or compression defines the actual commercial product.

For sovereign-scale or utility-scale hydrogen infrastructure, G-HEI’s technical benchmarking approach is valuable because it does not stop at nominal stack figures. It connects electrolyzer performance to material integrity, safety codes, hydrogen transport interfaces, and downstream use cases such as refueling, gas turbine blending, or cryogenic logistics. That broader systems perspective is where many efficient-looking offers fail detailed review.

What does the metric actually measure?

Electrolyzer power consumption (kWh/Nm3) expresses the electrical energy required to produce one normal cubic meter of hydrogen, typically referenced to standard temperature and pressure conditions defined in the vendor’s documentation. Because “Nm3” is volume-normalized, it enables practical comparison between systems, but only when gas purity, moisture condition, and outlet state are consistently defined.

Technical evaluators should also convert the figure into kWh/kg during review. Since 1 kg of hydrogen is approximately 11.126 Nm3 under normal conditions, this conversion helps connect the number to project finance models, electricity supply contracts, and hydrogen offtake economics.

What counts as efficient for PEM and alkaline systems in practice?

The table below helps frame what technical teams usually mean when discussing electrolyzer power consumption (kWh/Nm3) in utility-scale evaluations. These are not guaranteed values for any specific supplier; they are practical review bands that must be validated against test conditions, operating pressure, and auxiliary load definitions.

The key lesson is that “efficient” is not a single universal number. A PEM system with slightly higher nominal electrolyzer power consumption (kWh/Nm3) may still outperform in renewable-coupled duty because it ramps faster, spends less time off-design, and recovers production more effectively after power fluctuations. An alkaline plant may show strong steady-state efficiency but lose advantage if the project requires frequent starts, stops, or deep turndown.

Why a low number alone can mislead

A very attractive data-sheet value may be based on ideal load, favorable water temperature, fresh stack condition, and a narrow DC-only boundary. If your plant will operate behind solar or wind, actual energy consumption can drift upward due to transient inefficiencies, converter losses, standby loads, and repeated thermal stabilization periods.

That is why technical evaluators should request performance maps, not single-point values. A credible supplier should show consumption across load range, outlet pressure, ambient conditions, and degradation assumptions over time.

Which measurement boundaries change the answer most?

When teams disagree about electrolyzer power consumption (kWh/Nm3), the issue is usually not arithmetic. It is scope. The table below highlights the boundary items that most often distort vendor comparison in serious hydrogen tenders.

For projects that extend into refueling, blending, export, or liquefaction chains, boundary discipline is not optional. G-HEI’s cross-value-chain view matters here because electrolyzer efficiency should be judged in relation to the final infrastructure interface, not in isolation. A hydrogen plant feeding a 70 MPa refueling system must be evaluated differently from one supplying a nearby industrial user at modest pressure.

A practical boundary checklist

• Define the electrical boundary at incoming AC, rectifier DC output, or stack terminals.
• Define the hydrogen boundary at wet gas outlet, dry gas outlet, or compressed delivery point.
• State the production basis at rated load, average annual load, or a renewable dispatch profile.
• Confirm whether standby, startup, and transient losses are included in annualized consumption.
• Require a guaranteed test procedure, not only a brochure value.

How do load profile and degradation affect real efficiency?

Many projects underestimate the gap between nominal electrolyzer power consumption (kWh/Nm3) and annual operating consumption. The reason is simple: hydrogen plants do not live on data sheets. They live in dispatch curves, ambient variability, maintenance schedules, water quality excursions, and stack aging.

For technical evaluators, three operating realities deserve close attention:

1. Part-load operation can reduce efficiency or increase auxiliary share, especially when pumps and cooling systems do not scale proportionally.
2. Frequent cycling can add startup energy penalties and accelerate component wear, affecting both consumption and availability.
3. Degradation shifts the operating voltage upward over time, increasing energy use per Nm3 unless stack replacement or operational optimization is planned.

This is where evaluation should move beyond a first-year efficiency snapshot. A bankable review should ask for expected consumption at year 1, mid-life, and end-of-guarantee condition, together with stack replacement assumptions and maintenance intervals. A system with slightly better initial electrolyzer power consumption (kWh/Nm3) may become less attractive if degradation is steeper or downtime is higher.

Why renewable coupling changes the benchmark

If the plant is tied to curtailed renewables, offshore wind, or hybrid solar-storage supply, the right benchmark is not only minimum kWh/Nm3 at rated condition. It is annual hydrogen yield under the real power profile. Fast-ramping PEM systems often receive attention in this duty because utilization and responsiveness can improve total production economics, even when the nominal efficiency gap versus alkaline appears small.

By contrast, where baseload power is available and operating pressure, water quality, and thermal conditions remain stable, alkaline systems may remain highly competitive. The correct judgment depends on dispatch reality, not technology preference alone.

What should procurement teams ask before accepting a consumption claim?

Technical evaluators often face a difficult procurement environment: competing claims, compressed bid schedules, and pressure to simplify comparison into one headline metric. The safer approach is to build a structured request package around electrolyzer power consumption (kWh/Nm3) and force transparency early.

Key questions for vendor clarification

• At which operating point was the quoted value measured: rated load, optimum load, or average load?
• What are the inlet water specifications, ambient temperature assumptions, and outlet hydrogen pressure?
• Does the figure include rectifier losses, cooling loads, water treatment, controls, ventilation, and gas purification?
• What purity basis is guaranteed, and what conditioning steps are needed to reach it?
• How does consumption change across 20%, 40%, 60%, 80%, and 100% load?
• What is the guaranteed degradation rate or voltage rise over the performance warranty period?

A mature technical repository such as G-HEI is especially useful when procurement teams must compare technologies within a larger zero-carbon architecture. Electrolyzer selection cannot be separated from turbine blending constraints, cryogenic export paths, refueling pressure requirements, and applicable safety standards. In practice, the best option is often the one that minimizes interface risk across the full hydrogen chain.

A simple selection framework

This framework prevents one common mistake: overvaluing the lowest headline electrolyzer power consumption (kWh/Nm3) while underestimating integration penalties, duty mismatch, or downstream conditioning energy.

Which standards and compliance checks support a credible benchmark?

Efficiency numbers become meaningful only when they sit inside a credible engineering and compliance framework. For large hydrogen assets, technical evaluators should review not just performance claims but also how the design aligns with recognized safety, piping, fueling, and material-integrity requirements across the intended application.

Depending on project scope, evaluators may need to cross-check against standards and practices associated with hydrogen fueling systems, hydrogen piping, pressure containment, gas quality, and equipment interfaces. In cross-border or national infrastructure projects, this matters because an apparently efficient system can lose viability if compliance-driven redesign later alters pressure class, auxiliary equipment, or storage architecture.

• Use performance guarantees that specify test protocol, uncertainty treatment, and acceptance criteria.
• Review material selections under hydrogen service conditions, especially where embrittlement, corrosion, or purity sensitivity matters.
• Verify that efficiency assumptions remain valid at the actual storage, export, or refueling interface.

This integrated evaluation mindset is consistent with G-HEI’s role as a strategic benchmarking repository. For technical teams working at ministerial, utility, or global-investment level, the question is not simply whether the electrolyzer is efficient in isolation. The question is whether it remains efficient, safe, and commercially coherent inside the full zero-carbon infrastructure chain.

What are the most common misconceptions about electrolyzer power consumption (kWh/Nm3)?

Is the lowest quoted kWh/Nm3 always the best choice?

No. The best choice is the lowest validated lifecycle consumption under your actual operating profile and delivery boundary. A lower brochure figure can be offset by higher auxiliary demand, poorer part-load behavior, faster degradation, or greater compression energy at the real offtake condition.

Can stack efficiency be used as the procurement decision metric?

Not by itself. Stack efficiency is useful for electrochemical comparison, but procurement decisions should consider system-level consumption, availability, maintainability, safety compliance, and downstream interface requirements. Otherwise, the selected plant may perform well in isolation but weakly in operation.

Do PEM and alkaline figures compare directly?

Only when measured on consistent boundaries and duty assumptions. Technology choice should include ramping needs, pressure targets, maintenance philosophy, water treatment strategy, and future expansion plans. A direct numerical comparison without context often leads to false confidence.

Should compression be excluded from efficiency discussions?

For stack comparison, perhaps. For project economics, usually no. If the business case depends on delivered hydrogen at a defined pressure, compression energy is part of the decision. Excluding it may understate operating cost and distort technology ranking.

Why work with us when evaluating efficiency, boundaries, and project fit?

G-HEI supports technical evaluators who need more than generic market commentary. Our value is the ability to benchmark electrolyzer power consumption (kWh/Nm3) within the broader hydrogen infrastructure reality: megawatt-scale electrolysis, cryogenic logistics, hydrogen-ready power systems, CCUS-linked decarbonization pathways, and high-pressure refueling interfaces.

If your team is screening PEM or alkaline projects, we can help clarify where vendor numbers are directly comparable and where they are not. That includes system boundaries, pressure basis, purity assumptions, balance-of-plant losses, integration with storage or fueling, and the relevance of international frameworks such as ISO 19880, ASME B31.12, and SAE J2601 where applicable to the broader project chain.

You can contact us for practical support on:

• Parameter confirmation for electrolyzer power consumption (kWh/Nm3), including AC/DC boundary and load-point interpretation.
• Technology selection between PEM and alkaline for grid-connected, renewable-coupled, or high-pressure delivery projects.
• Review of delivery scope, auxiliary loads, and likely hidden OPEX drivers before final bid comparison.
• Alignment of hydrogen production assumptions with downstream storage, transport, refueling, or power-generation requirements.
• Consultation on compliance-sensitive design choices, documentation expectations, and evaluation workflows for strategic infrastructure projects.

If you are preparing a tender, validating a supplier offer, or stress-testing a utility-scale hydrogen concept, start with the right question: not “Which number is lowest?” but “Which electrolyzer power consumption (kWh/Nm3) figure is truly comparable, achievable, and bankable for our application?” That is the point where better decisions begin.
