Feedwater Deionization Conductivity Limits That Keep PEM Electrolyzers Running Stable

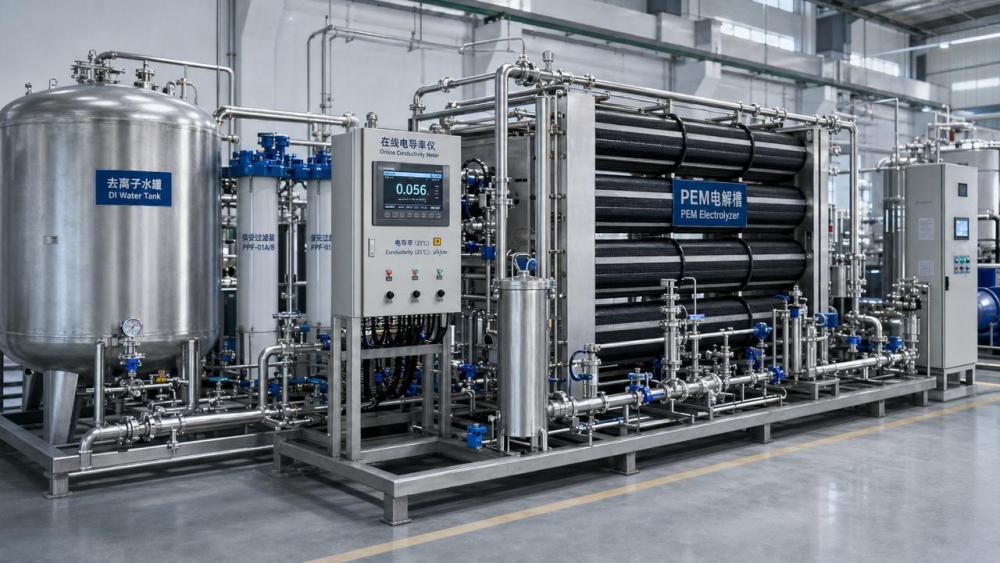

Stable PEM electrolyzer performance starts with strict control of feedwater deionization conductivity. For operators and plant users, even small conductivity drift can accelerate membrane degradation, reduce hydrogen purity, and trigger efficiency losses. This article explains the practical conductivity limits, why they matter in daily operation, and how to keep water quality within safe ranges for reliable, long-term system stability.

What does feedwater deionization conductivity mean in PEM electrolyzer operation?

In daily plant language, feedwater deionization conductivity is the electrical conductivity of purified water entering the PEM electrolyzer loop. It indicates how many dissolved ions remain after pretreatment, reverse osmosis, electrodeionization, mixed-bed polishing, or other purification stages. For operators, this value matters because PEM stacks are highly sensitive to ionic contamination, especially sodium, chloride, calcium, silica-related carryover, and trace metals that can disturb membrane function and catalyst stability.

Although OEM limits differ, practical operating targets for PEM systems are usually far tighter than general industrial demineralized water standards. Many plants aim for feedwater conductivity below 1.0 µS/cm at 25°C, while higher-performance systems often target 0.2–0.5 µS/cm or even lower at the point of use. The closer the water approaches ultrapure quality, the lower the ionic burden placed on membranes, porous transport layers, and recirculation components.

The key point is that feedwater deionization conductivity is not only a water-treatment number. It is also an early warning signal for stack health, polishing resin exhaustion, improper regeneration, instrument drift, and leakage from upstream equipment. When operators treat conductivity as a process-control parameter rather than a lab-only metric, system stability improves over 24-hour, 30-day, and annual production cycles.

Why is conductivity watched so closely instead of only checking resistivity?

Conductivity and resistivity are two ways to express the same water-purity condition, but conductivity is usually easier to interpret on the plant floor. As conductivity rises, ionic content rises. In many control systems, alarm thresholds are set directly in µS/cm, making it simple to define action points such as 0.5 µS/cm for watch status, 1.0 µS/cm for intervention, and 2.0 µS/cm for hold or diversion depending on system design.

Resistivity is useful, especially for ultrapure applications, but conductivity often connects more directly with field troubleshooting. If a reading rises from 0.15 to 0.45 µS/cm within 8 hours, operators can quickly suspect resin breakthrough, inadequate membrane performance in EDI, or contamination entering from storage tanks, piping dead legs, or maintenance work. Trend direction is often more valuable than a single spot reading.

For sovereign-scale hydrogen infrastructure, where uptime and consistency are strategic priorities, conductivity trending should be integrated with temperature compensation, sample-point discipline, and event logging. That allows operators to distinguish true water-quality deterioration from false changes caused by temperature shifts, sensor fouling, or calibration drift.

Typical interpretation ranges used by operators

The table below gives a practical interpretation framework for feedwater deionization conductivity in PEM electrolyzer service. Exact limits should always follow the stack supplier and water package design, but these ranges are widely useful for operator judgment.

This table should not replace site-specific procedures, but it helps explain why feedwater deionization conductivity is such a decisive metric. Even a rise of 0.3–0.5 µS/cm can be operationally meaningful when a PEM plant is expected to run at high current density for thousands of hours each year.

What conductivity limits usually keep PEM electrolyzers running stable?

A stable PEM electrolyzer normally depends on maintaining feedwater deionization conductivity well below general utility-water standards. In many installations, operators are advised to hold the feedwater below 1.0 µS/cm continuously, with preferred control targets closer to 0.1–0.2 µS/cm at the final polishing outlet or stack inlet. The more dynamic the operating profile, such as load-following tied to renewables, the more valuable a conservative conductivity target becomes.

The reason for using a tighter internal target than the absolute alarm limit is simple. Water quality does not degrade in a perfectly smooth line. A plant may spend 10 days near 0.15 µS/cm, then jump to 0.60 µS/cm after a resin issue, sampling contamination, or a minor leak across a water-treatment barrier. If operators already treat 0.40–0.50 µS/cm as an investigation point, they gain time to correct the cause before stack exposure becomes prolonged.

Users should also remember that conductivity is not the only specification. Total organic carbon, silica, hardness, dissolved gases, and microbiological cleanliness may all matter depending on the system. However, feedwater deionization conductivity remains the fastest and most visible single indicator for routine control, especially in utility-scale hydrogen production where operators need a simple, continuous signal every minute of operation.

Are the same limits valid for every plant size and duty cycle?

No. A smaller packaged PEM unit, a multi-megawatt electrolyzer block, and a national-scale hydrogen hub may all use different water loops, hold-up volumes, and purification architectures. A plant with frequent start-stop cycles may see greater risk from conductivity excursions because unstable thermal and hydraulic conditions can amplify contamination effects. In contrast, a base-load unit operating 7 days a week may maintain tighter steady-state control if its water system is robust.

Stack design also matters. Some OEMs specify very low inlet conductivity thresholds because their membrane-electrode assemblies, catalyst layers, and internal recirculation strategies are optimized for ultrapure conditions. Others provide a slightly wider operating envelope but still recommend a lower normal target to preserve lifetime. Operators should therefore distinguish between maximum permitted conductivity and preferred long-term operating conductivity.

When reviewing limits, plant teams should always ask for four items: the normal operating target, the warning threshold, the high-high alarm, and the permitted exposure time above target. A temporary spike for 2 minutes may be handled differently from a sustained rise for 2 hours. That distinction is essential for practical alarm rationalization.

• Preferred control target in many PEM plants: approximately 0.1–0.2 µS/cm.
• Common caution range requiring investigation: approximately 0.5 µS/cm and above.
• Typical upper operating boundary in many practical discussions: around 1.0 µS/cm, unless OEM guidance is stricter.
• Any rapid step-change within a single shift can be more important than a stable but slightly elevated reading.

Why does feedwater deionization conductivity directly affect membrane life, hydrogen purity, and efficiency?

PEM electrolysis depends on a proton-conducting membrane, catalytic interfaces, and carefully controlled water transport. When feedwater deionization conductivity rises, dissolved ions can accumulate in the membrane and recirculation loop. Over time, these contaminants may alter proton transport behavior, promote unwanted deposits, and interfere with catalyst-layer performance. The result is often higher cell voltage, unstable differential pressure behavior, or a faster decline in efficiency over the operating year.

Hydrogen purity can also be affected indirectly. Poor water quality may contribute to corrosion, scaling, or carryover in auxiliary equipment, increasing the burden on downstream purification. In a plant designed to support mobility, ammonia, steel, or synthetic-fuels applications, product consistency is critical. Operators cannot assume that a conductivity problem remains isolated to the water skid; if left unresolved for 24–72 hours, it may propagate into broader reliability issues.

Efficiency losses can appear gradually rather than dramatically. A small increase in cell voltage across hundreds or thousands of cells adds up to meaningful power consumption over a month. For large-scale hydrogen infrastructure, even a 1–3% efficiency penalty matters because it affects electricity cost, cooling demand, and the economics of every kilogram of hydrogen produced.

Which contaminants often sit behind a high conductivity reading?

Conductivity is a general indicator, so it does not identify the exact contaminant by itself. Still, operators commonly trace elevated feedwater deionization conductivity back to ions such as sodium from resin leakage, chloride from raw-water upset or chemical carryover, calcium and magnesium from hardness breakthrough, and metallic ions from corrosion in unsuitable piping or tanks. Silica may not always dominate conductivity, but it remains an important risk in water-treatment design.

If the conductivity trend worsens after maintenance, suspect contamination from improperly flushed lines, open vessels, gasket debris, chemical residue, or temporary hoses not intended for ultrapure service. If the drift occurs gradually over 2–6 weeks, resin exhaustion, EDI membrane fouling, or RO performance decline is more likely. If readings fluctuate hour to hour, sampling methods and online instrument integrity should be checked immediately.

The following comparison helps operators connect a conductivity event with likely operational consequences inside a PEM hydrogen facility.

This comparison shows why conductivity should always be linked to root-cause analysis. The same 0.8 µS/cm reading can mean very different things depending on whether it came from a real purification failure or an inaccurate sensor.

How should operators monitor and control feedwater deionization conductivity in practice?

The most effective approach combines online measurement, shift-based review, and periodic offline verification. At minimum, operators should monitor conductivity at the final purified-water outlet and ideally also at one or more upstream points, such as post-RO, post-EDI, and before the electrolyzer inlet. A multi-point view helps isolate the source of drift within minutes instead of after a full shift of uncertain operation.

Temperature compensation is essential because conductivity increases with temperature. If one reading is compensated to 25°C and another is not, comparisons become misleading. Operators should confirm instrument settings during commissioning and after maintenance. A difference that appears to be 0.2 µS/cm in the historian may turn out to be only a temperature artifact, which can lead to the wrong corrective action.

Sampling discipline matters just as much as hardware quality. Open beakers, unflushed sample lines, or poorly cleaned bottles can distort results. In high-purity water service, even small external contamination can push readings upward. That is why experienced plants define a standard sample flush time, often 1–3 minutes, and use dedicated clean containers or closed measurement cells.

What routine checks should a shift team follow?

A good operating routine turns feedwater deionization conductivity into a manageable control item instead of an occasional surprise. The checklist below is especially useful for plants supplying strategic hydrogen demand where uptime, safety margins, and asset protection are closely linked.

1. Review the online conductivity trend at least once per shift and compare it with the previous 24 hours.
2. Confirm temperature compensation status and sensor health after any instrument maintenance or power interruption.
3. Check differential pressure, flow, and product-water demand across RO, EDI, or polishing units for early signs of treatment decline.
4. Perform offline verification on a defined schedule, such as daily or weekly depending on plant criticality.
5. Log any conductivity jump larger than a site-set threshold, such as 0.2 µS/cm within 1 hour, for root-cause review.
6. Inspect recent maintenance activity, chemical additions, or raw-water changes whenever the trend no longer matches normal behavior.

With this routine, operators can usually identify whether the issue is process-related, treatment-related, or instrument-related before the PEM stack experiences prolonged exposure. In large projects, this discipline supports better asset benchmarking and more predictable stack replacement planning.

Suggested operator action matrix

An action matrix helps shift teams respond consistently instead of relying on individual judgment. The values below are examples and should be aligned with the actual electrolyzer package and water system.

A matrix like this reduces confusion during night shifts, handovers, and upset conditions. It also helps standardize decisions across single-site and multi-site hydrogen operations.

What are the most common mistakes when judging feedwater deionization conductivity?

One common mistake is focusing only on whether the current value is below the absolute limit. In practice, a stable reading of 0.18 µS/cm is very different from a trend that moved from 0.08 to 0.18 to 0.40 µS/cm over 12 hours. The first may be normal; the second may signal early breakthrough. Trend rate often matters more than a single number, especially in plants where continuous production is tied to power-market dispatch or industrial offtake commitments.

Another mistake is assuming that low conductivity means all water-quality risks are eliminated. Conductivity does not capture every impurity equally. Organic contamination, microorganisms, particulates, or certain neutral compounds may still create problems in storage tanks, valves, and final-use components. That is why feedwater deionization conductivity should sit inside a broader water-quality control program rather than replacing it.

A third mistake is using incompatible materials in the purified-water loop. If tanks, valves, or hoses are selected for general service rather than high-purity water, contamination can be reintroduced downstream of otherwise well-performing treatment equipment. In such cases, operators may repeatedly replace resin or recalibrate sensors without fixing the true source.

Which operator misconceptions deserve the most attention?

• “If hydrogen output is still normal today, the water issue can wait.” In reality, damage mechanisms may accumulate before output visibly changes.
• “Only the water-treatment team needs to care.” In PEM plants, stack operators, maintenance crews, and utilities personnel all influence water cleanliness.
• “A conductivity alarm always means bad water.” Sometimes it means bad sampling, sensor fouling, or temperature mismatch.
• “General demineralized water is enough.” PEM systems often need a much tighter feedwater deionization conductivity window than standard plant services.

Correcting these misconceptions improves both reliability and cost control. It also reduces avoidable stack stress, which is especially important in high-capex hydrogen projects where replacement planning, warranty conditions, and lifetime economics are closely watched by owners and technical leadership.

If a plant is planning, upgrading, or sourcing equipment, what should be confirmed first?

Before selecting a water package or revising operating procedures, plant users should first confirm the electrolyzer supplier’s required feedwater deionization conductivity at the stack inlet, not just at the outlet of the water-treatment skid. That difference matters because storage, recirculation, and transfer piping can all add contamination between those points. A design that delivers 0.15 µS/cm from the skid but 0.60 µS/cm at the inlet still has a plant problem.

Second, confirm the full water-quality specification and the expected raw-water variation through the year. Seasonal conductivity swings, silica load changes, or source-water blending can affect pretreatment sizing. A system designed for one raw-water condition may struggle when feed conditions shift over 3–4 months. For green hydrogen projects with remote or mixed water sources, this review is essential before procurement.

Third, review service intervals, spare strategy, and response time for consumables such as resin, filters, membranes, and instrument probes. A plant that must run continuously cannot rely on long replacement lead times. In many cases, users should ask for recommended replacement frequencies, critical spare lists, and upset-recovery procedures at the same time they request pricing.

Which questions are worth asking suppliers or technical partners?

The right questions help avoid future instability and unplanned operating cost. Whether the project involves a new PEM installation, a water-system retrofit, or a broader hydrogen infrastructure benchmark, the topics below should be clarified early.

• What feedwater deionization conductivity is recommended for normal operation, and what is the absolute maximum permitted?
• At which sample point are these limits defined: polishing outlet, storage tank, or electrolyzer inlet?
• What pretreatment sequence is recommended for the actual raw-water profile and annual variability?
• Which materials of construction are suitable for high-purity water in the local operating environment?
• What are the expected maintenance intervals, spare parts plan, and calibration requirements over the first 12 months?
• How should operators respond to conductivity excursions of 15 minutes, 2 hours, or longer durations?

For users responsible for uptime and performance, these questions are more valuable than focusing on headline equipment size alone. They help connect water quality, stack protection, maintenance effort, and long-term hydrogen economics into one practical decision framework.
