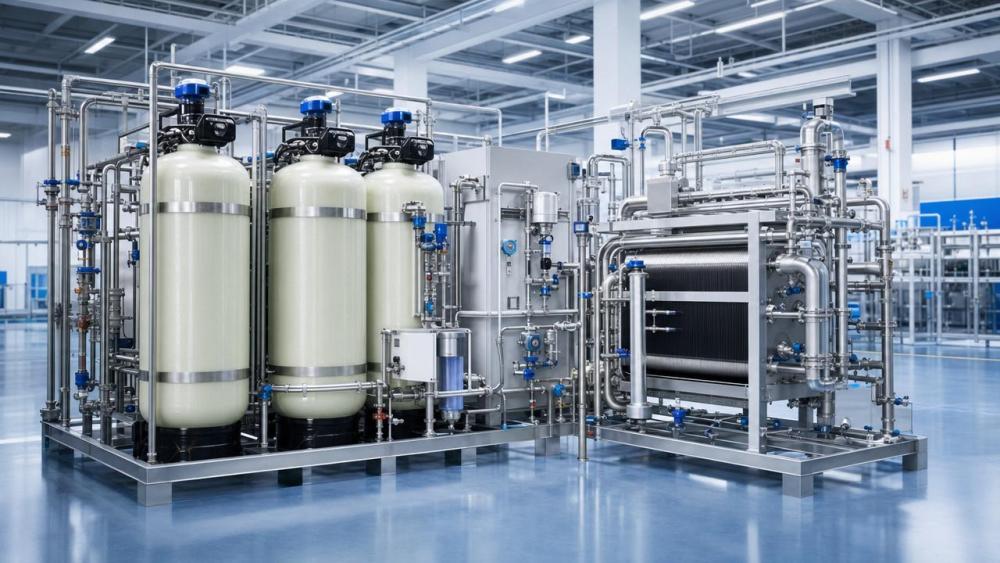

Feedwater Deionization Conductivity: The Limit That Protects PEM Stacks

In PEM electrolysis, feedwater deionization conductivity is not a housekeeping metric. It is a control limit that determines whether the stack continues operating efficiently or starts accumulating conditions that can shorten membrane life, raise cell voltage, and introduce contamination into the system. For operators, the practical answer is simple: once conductivity begins drifting upward, risk rises faster than many dashboards suggest, and corrective action should start before the stack shows electrical symptoms.

The core search intent behind “feedwater deionization conductivity” is usually operational, not academic. People searching this term want to know what conductivity level is acceptable, why that limit matters in PEM systems, what happens when the limit is exceeded, and how to monitor and correct the problem before it causes stack damage or downtime. In other words, they are looking for decision-ready guidance.

For operators and plant users, the most important issues are clear. They need to know the safe range, the warning signs of drift, the connection between conductivity and stack reliability, and the practical steps required to keep the deionized water loop under control. They also want to distinguish between a temporary measurement anomaly and a real water-quality event that demands intervention.

This article focuses on those questions first. Rather than spending time on generic definitions of conductivity or broad hydrogen-industry background, it explains the operating threshold logic, the mechanisms of PEM stack risk, the sources of conductivity increase, and the field actions that help prevent costly failure.

Why feedwater conductivity is a hard protection limit in PEM electrolysis

In a PEM electrolyzer, the water path is part of the electrochemical environment, not just a utility supply. Deionized feedwater enters a system built around a proton exchange membrane, catalytic layers, porous transport media, and highly engineered flow fields. When conductivity increases beyond the intended low range, it signals that dissolved ionic species are present in concentrations high enough to interfere with normal stack conditions.

That matters because PEM stacks are designed for extremely high purity water. The membrane selectively transports protons, and the rest of the system depends on tightly controlled chemistry. If cations, anions, silica-related carryover, or metallic contaminants enter the loop, they can alter local conductivity, disturb ion transport behavior, and accelerate degradation mechanisms that are expensive and often irreversible.

For operators, the phrase “hard limit” should be taken literally. Conductivity is not only a quality indicator; it is an early warning that the electrochemical boundary conditions of the stack are changing. Once those conditions move outside design assumptions, efficiency drops, cell voltages can become unstable, and the probability of long-term membrane or catalyst damage increases.

In practical terms, conductivity limits protect three things at once: stack lifetime, process efficiency, and purity assurance. If conductivity remains tightly controlled, the stack sees a stable ionic environment. If it drifts upward and stays there, the stack begins operating under contamination stress, even if hydrogen production appears normal for a period of time.

What operators usually want to know first: what conductivity is acceptable?

The exact allowable conductivity limit depends on the OEM, stack design, plant architecture, and whether the value is measured at raw feed, polished feed, recirculation loop, or stack inlet. For that reason, the first rule is straightforward: the OEM specification always overrides general industry guidance. If the manufacturer states a maximum conductivity at the stack inlet, that number is the real operating limit.

That said, PEM systems generally require very low conductivity water, typically in the ultra-pure or near ultra-pure range. In many systems, operators target conductivity low enough to correspond to high-resistivity deionized water, often around 0.1 to 1.0 µS/cm depending on the measurement point and temperature correction basis. Some systems may expect even tighter control under stable operating conditions.

The important operational insight is that there is a difference between a target value and a shutdown limit. A target is where the plant should normally operate with margin. A warning level is where troubleshooting should begin. A trip or stop level is where continued operation creates unacceptable stack risk. Plants that treat those three levels as the same value usually respond too late.

Operators should also verify whether their conductivity instrumentation is temperature compensated and whether the displayed value reflects the actual OEM reference condition. A reading that looks acceptable on one panel may not align with the stack vendor’s acceptance criteria if the compensation basis is different or if the sensor is installed upstream of the relevant treatment stage.

Why conductivity rises and what it means physically inside the stack

When conductivity rises, it usually means ionic contamination has entered or accumulated in the water circuit. That contamination may come from exhausted ion-exchange resin, poor polishing performance, makeup water breakthrough, corrosion products, leaching from materials, maintenance contamination, or process-side carryover from components that were not sufficiently cleaned or isolated.

Inside the PEM electrolyzer, these ions do more than change a number on a display. They can compete with proton transport pathways, deposit on active surfaces, alter membrane hydration behavior, and increase the chance of localized electrochemical imbalance. Some ions are especially problematic because they can poison catalyst sites or remain trapped in membrane structures, causing persistent performance loss.

One of the key reasons conductivity is so useful operationally is that it provides an integrated signal. It does not identify every contaminant species directly, but it tells the operator that the water is no longer chemically quiet. In PEM service, that “loss of quietness” is dangerous because the stack is much less tolerant of impurities than many conventional water-consuming industrial systems.

Another critical point is that damage may lag behind the conductivity event. A plant can experience a conductivity excursion, recover the water number later, and still see elevated voltage or reduced efficiency days or weeks afterward. This delayed effect is why operators should document every excursion, even if it appears short and the unit quickly returns to production.

What happens when the limit is exceeded: the real operational consequences

Exceeding the feedwater deionization conductivity limit can affect the stack in several connected ways. First, cell voltage may increase because the electrochemical environment is no longer optimized. Second, gas purity margins can become harder to maintain if water management and membrane behavior are disturbed. Third, long-term degradation may accelerate, reducing useful stack life and bringing forward major maintenance or replacement costs.

In day-to-day operation, the first symptoms are often subtle. Operators may see a slow voltage creep, more frequent alarms, unstable differential behavior between cells, reduced current efficiency, or a pattern of conductivity spikes after startup or load changes. None of these signs alone proves stack damage, but together they strongly suggest the water system is no longer under proper control.

If the excursion is severe or prolonged, consequences can move beyond efficiency loss into asset protection concerns. Membrane contamination, catalyst poisoning, and deposit formation can become difficult to reverse. In some cases, even after the water loop is restored to specification, the stack may not return fully to its previous baseline performance.

For this reason, conductivity should be treated as a leading indicator, not a lagging record. Waiting for visible stack underperformance before acting is poor operating practice in PEM electrolysis. By the time hydrogen output or voltage behavior is clearly affected, the contamination event may already have imposed permanent damage.

How to interpret conductivity readings without making the wrong call

One of the most common operator mistakes is reacting to a single conductivity number without context. A transient spike during startup, a sensor calibration issue, or stagnant sample water can create misleading readings. The correct interpretation always considers trend direction, duration, process state, measurement location, and whether other indicators support the signal.

Start by asking four questions. Where is the sensor located? Is the reading temperature corrected correctly? Is the increase sustained or momentary? Do related parameters such as resistivity, total organic carbon if monitored, differential pressure, cell voltage, or polishing-bed outlet quality show abnormal behavior at the same time?

If the conductivity increase is small but persistent, the problem may be exhaustion of polishing capacity or low-level contamination ingress. If the increase is sharp and sudden, suspect a valve alignment issue, treatment-system upset, maintenance error, bypass leakage, or contaminated makeup water. If the conductivity fluctuates cyclically, check for operational sequences such as stop-start operation, intermittent flow, or recirculation dead legs.

Operators should also avoid treating all measurement points equally. Conductivity at incoming utility water, treated water outlet, recirculation loop, and stack inlet each tells a different story. The stack inlet or the closest validated proxy is usually the most important number for protection decisions, while upstream values help identify the source of the deviation.

Common root causes of poor deionized water conductivity in PEM plants

In real facilities, conductivity problems often begin outside the stack room. Pretreatment failure is a major cause. If reverse osmosis performance slips, upstream loading on the deionization stage increases and resin exhaustion accelerates. The conductivity alarm may appear in the polishing section, but the actual root cause may be fouling, scaling, or breakthrough in upstream treatment.

Resin exhaustion is another frequent issue, especially where regeneration or replacement intervals are based on fixed schedules instead of actual loading and outlet quality. Once mixed-bed or polishing resin approaches exhaustion, conductivity can rise gradually, tempting operators to keep running. That margin-running behavior is risky in PEM service.

Material compatibility also matters. Metallic corrosion products, elastomer leachables, and residues from cleaning agents can all contribute to conductivity or broader water-quality deterioration. This is why commissioning, maintenance flushing, and chemical control procedures must be disciplined. A system can be mechanically complete and still chemically unfit for stack operation.

Other causes include sample contamination, sensor drift, poor calibration practice, stagnant lines, inadequate recirculation, and bypass valves that do not fully seat. In many cases, the conductivity event is not caused by one dramatic failure but by multiple small control weaknesses that align at the wrong time.

What operators should do when conductivity approaches the limit

The best response plan is tiered. When conductivity moves above the normal target but remains below the OEM action threshold, increase monitoring frequency, verify sensor health, review recent maintenance activity, and inspect pretreatment and polishing performance. This is the stage for diagnosis before the issue becomes a stack event.

When conductivity reaches the warning or action band, operators should confirm the reading with a second validated measurement if possible, check the relevant treatment stage for breakthrough, isolate suspected contamination sources, and reduce operational stress if plant procedures allow. Depending on the OEM guidance, that may mean adjusting load, holding steady-state conditions, or preparing for a controlled stop.

Once the trip or maximum allowable limit is reached, continued operation should not be normalized. The appropriate response is usually to protect the stack first and troubleshoot second. Running beyond the specified conductivity ceiling in order to preserve short-term hydrogen output can create far larger lifecycle losses through degraded stack performance or premature replacement.

Every response should be logged. Record the conductivity value, duration, sensor location, plant load, water-treatment status, corrective actions, and post-event stack behavior. This record is essential for distinguishing isolated incidents from repeated systemic failure and for supporting warranty, reliability, and root-cause analysis efforts.

How to keep feedwater deionization conductivity under control long term

Long-term control starts with treating water quality as a core stack-protection function rather than a peripheral utility task. The most reliable PEM plants establish clear operating bands, not just alarm points. They define normal, alert, action, and shutdown conductivity ranges and train operators on what each band requires.

Instrumentation discipline is equally important. Sensors should be installed at meaningful locations, maintained on schedule, and checked against known standards. Sampling systems should avoid dead legs and contamination traps. If conductivity data is noisy or inconsistent, the monitoring system itself may be undermining good decisions.

Preventive maintenance on pretreatment, reverse osmosis, electrodeionization or mixed-bed polishing stages should be based on condition and trend data whenever possible. Waiting for conductivity alarms as the first sign of treatment degradation is reactive and exposes the stack to unnecessary risk.

It is also good practice to correlate water-quality trends with stack performance metrics such as average cell voltage, voltage spread, current efficiency, startup behavior, and gas-quality events. When those datasets are reviewed together, operators can often detect emerging water issues before they cross the formal limit.

A practical rule for operators: protect the stack before the number looks catastrophic

The most useful mindset is simple: the conductivity limit is not the point where damage begins; it is the point beyond which risk is no longer acceptable. In PEM electrolysis, harmful contamination effects can begin developing before the displayed number becomes dramatic. That is why operating margin matters.

If your system normally runs at a very low conductivity and then begins drifting upward, do not wait for a trip. Investigate early. Verify the instrumentation, check the treatment train, review recent interventions, and confirm whether the stack inlet water still meets specification with margin. Early correction is almost always cheaper than post-event recovery.

For users and operators, the value of understanding feedwater deionization conductivity is practical and immediate. It helps you make better go/no-go decisions, avoid hidden stack degradation, and maintain hydrogen production without sacrificing asset life. In a PEM plant, water purity is not background chemistry. It is one of the main conditions that determines whether the stack remains healthy.

In summary, feedwater deionization conductivity is a protective limit because it directly reflects the ionic cleanliness required by PEM stacks. The right operational approach is to know the OEM threshold, maintain a lower working target, interpret trends rather than isolated readings, and act before a warning becomes a damage event. Operators who manage conductivity proactively protect efficiency, reliability, and stack lifetime at the same time.
