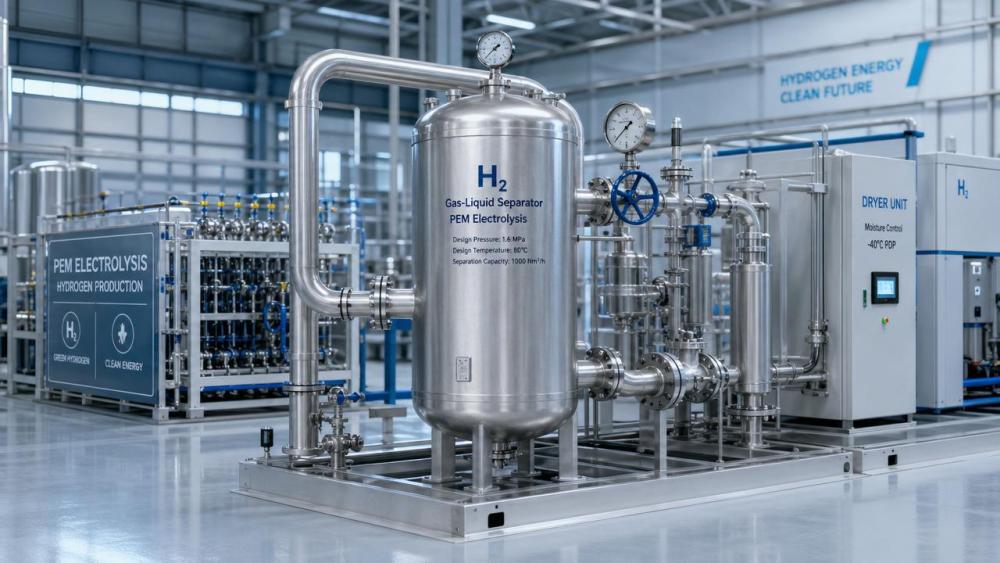

Gas-Liquid Separator Capacity: A Sizing Mistake That Can Undercut PEM System Reliability

In PEM hydrogen systems, gas-liquid separator capacity is not a minor specification—it is a reliability threshold. Undersizing can trigger moisture carryover, pressure instability, and downstream component stress, quietly eroding efficiency and uptime. For technical evaluators, understanding this sizing risk is essential to assessing whether a system can meet stringent performance, safety, and lifecycle expectations at scale.

For evaluators comparing PEM system designs, the central question is not whether a separator exists, but whether its real operating capacity is aligned with stack dynamics, load variation, water management behavior, and downstream purity requirements. A unit that looks acceptable on a datasheet can still become a hidden bottleneck once the plant moves from nominal design conditions to transient or peak operation.

This is why gas-liquid separator capacity deserves scrutiny during technical due diligence. In many projects, separator sizing is treated as a secondary mechanical detail. In practice, it directly influences hydrogen quality stability, balance-of-plant durability, control performance, and maintenance burden. A sizing mistake here can undercut the very reliability claims a PEM system is expected to deliver.

Why gas-liquid separator capacity is a first-order reliability issue in PEM systems

In a PEM electrolyzer, the separator sits at a critical interface between electrochemical generation and gas handling. Its job is simple in principle: separate hydrogen or oxygen from entrained liquid water before the gas moves to downstream conditioning, compression, purification, or storage. But under real operating conditions, the separator must do this across a range of pressures, flow rates, bubble loads, water recirculation states, and transient events.

When gas-liquid separator capacity is undersized, the first consequence is usually not a dramatic failure. More often, the damage appears as moisture carryover, unstable level control, erratic pressure behavior, and intermittent stress on valves, sensors, dryers, membranes, or compressors. These are exactly the kinds of issues that reduce uptime without immediately revealing the root cause.

For technical evaluation personnel, this matters because separator capacity often masks itself as a system integration problem elsewhere. Repeated dryer overload, unexplained purity excursions, frequent drain cycling, or premature wear in downstream equipment may all originate upstream at the separator. If the separation volume, residence time, internal geometry, or demisting approach is inadequate, the rest of the system is forced to compensate.

In large-scale hydrogen projects, that compensation is expensive. It can require overspecification of purification units, tighter maintenance intervals, more conservative operating windows, or added control complexity. None of those measures correct the fundamental issue if the separator cannot reliably handle the actual gas-water mixture generated by the stack under all expected conditions.

What technical evaluators are really trying to determine

The core search intent behind a query like gas-liquid separator capacity is practical and diagnostic. Evaluators want to know how separator sizing affects PEM system performance, what happens when it is wrong, and how to identify risk before procurement or deployment. They are not looking for a generic definition of separation technology; they need decision-grade criteria.

More specifically, they usually want answers to five questions. First, what operating symptoms indicate that the separator may be undersized? Second, which design variables actually govern effective capacity? Third, how does separator sizing interact with purity, pressure control, and component life? Fourth, what information should be requested from OEMs to validate the design? Fifth, what red flags suggest the capacity margin is too thin for utility-scale or mission-critical service?

These concerns are especially relevant in PEM systems because operating behavior is not static. PEM assets are often selected for dynamic response, renewable coupling, and flexible load following. That operating flexibility makes separator sizing more demanding, not less. A vessel that performs adequately at steady nameplate conditions may struggle during ramping, part-load recirculation changes, or rapid transitions linked to power electronics and grid signals.

As a result, the most useful evaluation framework is not “Is the separator big enough on paper?” but “Can the separator preserve gas quality and hydraulic stability across the full duty envelope?” That is the standard technical reviewers should apply when assessing whether a PEM system is robust enough for long-duration industrial service.

How undersizing actually shows up in plant performance

One of the most common consequences of inadequate gas-liquid separator capacity is moisture carryover. In PEM hydrogen production, this means fine droplets or excess vapor-laden gas pass downstream before adequate disengagement occurs. If the separator lacks sufficient residence time or effective mist elimination, downstream dryers and purification stages see higher and more variable moisture loads than intended.

That additional moisture burden is rarely neutral. It can shorten desiccant service intervals, destabilize pressure swing or membrane-based gas conditioning, and increase the risk of condensate-related issues in piping and controls. In systems feeding compression or storage, liquid entrainment can also contribute to mechanical stress or contamination in equipment that assumes a much drier inlet condition.

Another symptom is pressure instability. Undersized separators often operate with narrow hydraulic margins, making liquid level behavior more sensitive to flow fluctuations and control lag. This can produce pressure pulsation, erratic valve actuation, or oscillation between gas disengagement and liquid accumulation. In a PEM architecture, where stack operating conditions and balance-of-plant controls are closely coupled, that instability can propagate quickly.

There is also a purity dimension. While separator sizing alone does not define product purity, it strongly affects the consistency of upstream phase separation before gas conditioning. Poor separation can create variable inlet conditions that complicate the maintenance of specification-grade hydrogen. For systems designed for mobility, industrial feedstock, or high-integrity energy infrastructure, that variability is a material bankability concern.

Which design factors determine real separator capacity

Gas-liquid separator capacity is not just vessel volume. Effective capacity depends on a combination of gas velocity, liquid loading, pressure, temperature, droplet size distribution, internal flow path, demister performance, control strategy, and expected transient envelope. Two separators with similar shell dimensions can perform very differently if their internals and operating assumptions differ.

Residence time is a key factor, but it should not be treated in isolation. A separator may have nominally acceptable residence time under average flow conditions while still failing during short-duration peaks if internal turbulence re-entrains droplets. Likewise, a demister pad may look sufficient in design documents yet lose effectiveness if gas velocity exceeds the intended limit during ramp events or if fouling changes pressure drop behavior over time.

Level control philosophy is equally important. If drain response, liquid sensing, and control logic are not matched to the dynamics of the separator, apparent capacity is effectively reduced. This is particularly relevant in PEM systems where water circulation conditions can shift rapidly. A well-sized vessel paired with poor control can behave like an undersized unit; an already small vessel leaves almost no room for operational error.

Evaluators should also distinguish between nominal capacity and usable capacity. OEM literature may cite flow capability at idealized conditions, but real usable capacity must account for upset tolerance, part-load behavior, startup and shutdown transitions, and degradation margin. In strategic hydrogen infrastructure, capacity without resilience is not enough.

Why transient operation makes PEM separator sizing more difficult

PEM electrolysis is frequently chosen for its fast response to variable power input, but that flexibility places added demands on gas-liquid separation. During ramp-up, ramp-down, and rapid load changes, gas generation rate, bubble entrainment characteristics, pressure behavior, and water recirculation conditions can all shift in a short time window. Separator sizing must therefore address dynamic, not only steady-state, operation.

This is where many sizing mistakes originate. A separator may be selected using average design throughput and a static separation assumption, while the actual plant spends meaningful time in dynamic modes. If the system is integrated with solar, wind, ancillary grid services, or power market optimization strategies, those dynamic modes may become routine rather than exceptional.

For evaluators, this means the most relevant question is whether the OEM has validated separator performance under representative transients. Has the design been tested during rapid ramping? Are moisture carryover and pressure excursions measured during load changes? Is there evidence that the separator maintains stable liquid control at partial load and at peak output? If those answers are vague, the capacity claim may be incomplete.

A separator that only works well at one operating point does not support the real value proposition of PEM technology. In flexible hydrogen production, dynamic robustness is part of capacity. Any evaluation that ignores this point risks approving a system that performs acceptably in factory acceptance conditions but degrades in field operation.

How to assess separator adequacy during technical due diligence

Technical evaluators should ask for more than separator dimensions and rated flow. The first step is to request the design basis: expected gas flow range, liquid carryover assumptions, operating pressure window, temperature conditions, transient cases, and purity targets downstream. Without that context, a capacity number is not meaningful.

Next, review how the separator was sized. Was the sizing based on conservative superficial velocity criteria, tested mist elimination performance, and credible transient margins? Were startup, shutdown, and upset conditions included? Was the separator evaluated as part of the entire gas handling train, or only as a standalone vessel? Strong OEMs can answer these questions clearly and quantitatively.

It is also important to examine instrumentation and controls. Ask how liquid level is measured, how often drains actuate, what protections exist against high-level or carryover events, and whether the control logic has been tuned for load-following service. Separator adequacy is not purely mechanical; it is a combined vessel-internals-controls question.

Finally, connect separator performance to downstream consequences. If the separator is near its limit, what is the impact on dryers, recombiners, analyzers, compressors, storage interfaces, or refueling components? A mature technical assessment does not stop at the separator itself. It evaluates whether separator limitations could shift cost and risk into the rest of the hydrogen system.

Red flags that suggest a hidden capacity problem

One red flag is reliance on nameplate flow alone without a published transient envelope. Another is sparse discussion of mist elimination internals, especially in systems marketed for variable renewable coupling. If the vendor emphasizes stack performance but provides little detail on phase separation behavior, evaluators should probe deeper.

Frequent downstream maintenance can also be a warning sign. If field references show recurring dryer replacement, unexplained condensate issues, unstable analyzers, or compressor inlet moisture concerns, separator sizing may be part of the root cause chain. These symptoms are often dismissed as operating nuisances, but they can indicate a structural mismatch between gas generation dynamics and separator capacity.

Short control cycling intervals are another concern. If drain valves actuate excessively or level control appears difficult to stabilize, the separator may be operating with insufficient buffer volume. Similarly, if the OEM requires unusually tight operating constraints to maintain purity or protect downstream equipment, that may indicate the separation stage lacks practical margin.

Evaluators should also be cautious when design data is expressed only for clean, new, steady-state conditions. Real plants age, foul, drift, and operate under non-ideal power profiles. A credible separator design acknowledges this reality and includes margin for performance retention, not just initial acceptance.

What good separator sizing means for asset value and sovereign-scale deployment

Well-judged gas-liquid separator capacity improves more than process neatness. It supports stable hydrogen conditioning, protects downstream equipment, reduces maintenance variability, and enables the system to tolerate flexible operation without hidden efficiency loss. In other words, it enhances both technical reliability and economic predictability.

For large hydrogen programs, that matters at portfolio scale. Small recurring issues in moisture management or pressure stability can translate into major lifecycle penalties when multiplied across megawatt-class fleets, export terminals, refueling corridors, or strategic industrial hubs. Separator sizing therefore becomes part of asset integrity assurance, not just vessel specification.

This is especially relevant for institutions evaluating infrastructure against high-consequence standards and long-term decarbonization objectives. Whether the end use is mobility, grid balancing, ammonia synthesis, steel decarbonization, or sovereign energy storage, PEM systems must deliver repeatable performance under real operating conditions. Separation reliability is one of the quiet enablers of that outcome.

In high-value technical benchmarking, the separator should be treated as a reliability lever. If its capacity is validated rigorously, it strengthens confidence in the entire balance of plant. If it is accepted on assumption, it can become a low-visibility failure point that erodes performance long before headline components appear to be at fault.

Conclusion: treat separator capacity as a validation item, not a checkbox

The practical conclusion is straightforward: gas-liquid separator capacity in PEM hydrogen systems should be evaluated as a critical reliability parameter, not a routine accessory specification. Undersizing may not trigger immediate failure, but it can degrade purity stability, pressure control, downstream equipment life, and operating resilience in ways that are costly and difficult to diagnose later.

For technical evaluation personnel, the right approach is to test the separator concept against the full operating reality of the plant: peak flow, transient load shifts, water management behavior, control strategy, downstream sensitivity, and maintenance expectations. The question is not whether the separator exists or meets a nominal rating. The question is whether it preserves system integrity across the conditions that matter commercially and operationally.

In PEM projects where reliability, safety, and lifecycle performance are non-negotiable, separator sizing is a decision point worth elevating. A well-sized separator protects the promise of the system. A marginal one can quietly undercut it.
