IEC 61000 EMC Risks in Power Electronics for PEM Electrolyzers

For technical evaluators assessing PEM electrolyzer projects, IEC 61000 EMC for power electronics is no longer a secondary compliance issue but a core reliability and risk factor. As megawatt-scale hydrogen systems expand, understanding electromagnetic compatibility challenges in converters, controls, and grid interfaces becomes essential to preventing instability, downtime, and costly certification delays.

In utility-scale hydrogen programs, electromagnetic compatibility affects more than test-lab acceptance. It shapes stack availability, control accuracy, protection selectivity, and even the pace of project financing when technical due diligence uncovers unresolved grid-interface risk.

For organizations benchmarking sovereign-grade hydrogen assets, IEC 61000 EMC for power electronics must be reviewed alongside efficiency, materials integrity, safety interlocks, and lifecycle maintainability. In PEM electrolyzers above 1 MW, the converter architecture is often the fastest path to both performance gains and hidden failure modes.

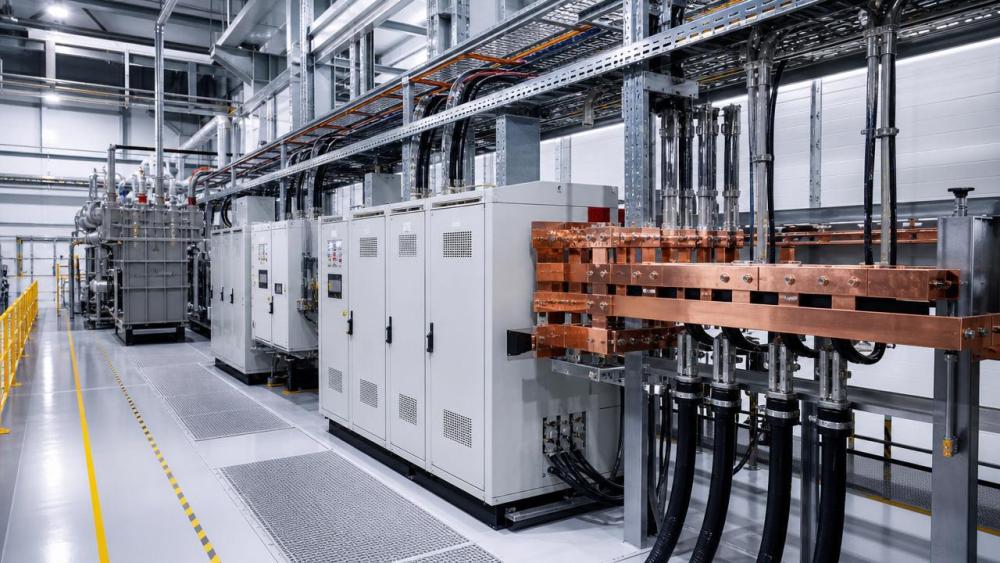

Why EMC Has Become a Front-Line Risk in PEM Electrolyzer Power Trains

PEM electrolyzers depend on high-current DC power, fast control loops, and stable auxiliary systems. A single plant may include rectifiers, DC/DC stages, variable-speed drives, PLCs, Ethernet networks, safety relays, analyzers, and grid synchronization modules operating across frequencies from 50 Hz to several MHz.

That density creates multiple coupling paths for conducted and radiated interference. In practical terms, a converter that meets its nameplate output can still trigger nuisance trips, sensor drift, communication errors, or degraded stack current distribution if EMC design is weak.

Typical interference sources in megawatt-scale systems

In most PEM projects, the dominant sources are switching power semiconductors, busbar parasitics, long motor cables, fast gate-drive edges, transformer leakage, and poorly bonded cabinet structures. Problems often intensify when switching frequencies rise into the 2 kHz to 20 kHz range or when cable runs exceed 20 m.

• Rectifier and inverter common-mode noise entering control cabinets
• Ground potential differences between skid modules and plant earthing grids
• Harmonic interaction at the point of common coupling
• High dV/dt stress on instrumentation and communication lines
• Transient susceptibility during black start, load step, or fault recovery

Why technical evaluators should not isolate EMC from reliability

In PEM electrolysis, low-voltage controls and high-power conversion are tightly linked. If electromagnetic immunity is marginal, the issue may appear first as process instability rather than as a failed EMC report. Symptoms can include oscillating current control, false gas-quality alarms, unexplained restart sequences, or unstable water-treatment instrumentation.

These failures are expensive because they rarely remain local. A 3-second control interruption in a 5 MW skid can propagate into stack protection logic, compressor coordination, and plant-level dispatch signals. The resulting downtime may last 30 minutes or more even when no hardware is permanently damaged.

The table below outlines common EMC risk mechanisms in PEM power electronics and how they usually appear during evaluation, factory acceptance, and early site operation.

For evaluators, the key takeaway is that IEC 61000 EMC for power electronics should be treated as a system-integration discipline, not a stand-alone test certificate. The costliest issues usually emerge when compliant subassemblies are combined into a non-compliant plant layout.

How IEC 61000 Applies to PEM Electrolyzer Architecture

The IEC 61000 framework covers emission limits, immunity behavior, measurement methods, and power quality considerations. For PEM electrolyzers, the practical challenge is mapping these requirements across the AC input stage, transformer, rectifier, DC bus, stack interface, auxiliaries, and digital controls.

Technical evaluators should expect different subcomponents to fall under different test environments. A cabinet-level result does not automatically validate skid-level performance, and skid-level performance does not guarantee plant-level compliance once cable routing and earthing change on site.

Critical interfaces that deserve deeper review

There are 4 interfaces where IEC 61000 EMC for power electronics most often influences project risk: grid connection, converter-to-stack coupling, control network integrity, and auxiliary package interaction. Each one can alter certification scope and acceptance criteria.

1. Grid-side interaction at medium-voltage or low-voltage connection points
2. DC output stability under dynamic load and partial-load operation
3. Control and safety communications across distributed skids
4. Interaction with pumps, chillers, dryers, and hydrogen compression packages

What to ask during design review

A robust review should include at least 6 checks: switching frequency strategy, filter topology, cabinet bonding, shield termination, cable separation rules, and immunity validation under realistic operating modes. It is also useful to ask whether tests were performed at nominal load, 50% load, and transient ramp conditions.

In many projects, EMC issues stay hidden because testing is done in a simplified configuration. For example, a power unit may be tested with short temporary leads in a clean hall, while the final installation uses 30 m to 80 m routes near pumps, contactors, and metallic structures that alter the noise environment.

Evaluation matrix for standards-driven due diligence

The following matrix helps technical teams connect IEC 61000 EMC for power electronics with project evaluation checkpoints that matter during specification, FAT, SAT, and early operations.

This approach reduces a common blind spot: assuming the EMC story is complete after a supplier submits test paperwork. For megawatt PEM projects, installed condition verification is often as important as laboratory evidence.

High-Impact Failure Modes and Their Cost to Project Delivery

EMC-related problems can delay projects in 3 ways: repeated engineering modifications, longer commissioning windows, and constrained operating envelopes after start-up. Even when equipment remains safe, a plant that must run below intended ramp rate or current density loses strategic value.

For power-electronics-heavy skids, the most disruptive failures are rarely dramatic. A repeated communication timeout every 12 hours or a false trip during load changes can force weeks of troubleshooting across EPC teams, control vendors, and utility representatives.

Common patterns seen during commissioning

• Hydrogen purity analyzers drifting when high-current ramps exceed predefined thresholds
• Remote I/O modules losing packets during motor starts or contactor switching
• Protective relays reacting to harmonics or fast transient events not reproduced in FAT
• Stack current ripple exceeding process tolerance under partial-load operation
• Unexpected resets after surge events, breaker operations, or auxiliary restart sequences

A useful rule for evaluators is to examine whether the supplier distinguishes between emissions compliance and process-quality compliance. A plant may pass emissions limits yet still expose the stack to ripple, noise, or transient behavior that shortens component life over 3 to 7 years.

Commercial consequences of weak EMC planning

The direct cost is redesign, but the strategic cost is confidence loss. If technical due diligence identifies unresolved IEC 61000 EMC for power electronics late in procurement, investors and operators may request extra hold points, longer warranties, or staged performance acceptance.

That affects delivery schedules. A corrective filter redesign can add 2 to 6 weeks. Re-routing cables across a built skid can consume several shutdown days. Repeating site tests with utility coordination may stretch even longer, especially in multi-vendor hydrogen hubs.

Selection Criteria for Technical Evaluators and Procurement Teams

When comparing suppliers, technical evaluators should treat IEC 61000 EMC for power electronics as a differentiator in engineering maturity. The question is not only whether a vendor has test reports, but whether those reports represent the delivered configuration, operating duty, and installation context.

A practical selection process often uses 5 dimensions: evidence quality, integration discipline, maintainability, site adaptability, and residual risk ownership. This is especially important for PEM projects above 10 MW, where modular replication can multiply one unresolved EMC weakness across many skids.

Procurement questions that improve decision quality

1. Were EMC tests performed on a production-representative assembly rather than a simplified prototype?
2. What switching conditions, load points, and auxiliary interactions were included?
3. How are shield terminations, grounding bonds, and cable zoning defined in installation manuals?
4. Which mitigation actions remain as site responsibilities for the EPC or owner?
5. What evidence exists for stable operation after surge, EFT, or transient events?

Red flags during technical comparison

Be cautious if a supplier offers only generic declarations, cannot map test evidence to the exact converter family, or relies heavily on future site tuning. Another warning sign is the absence of clear cable-length limits, grounding instructions, or acceptable separation distances between power and signal wiring.

For B2B hydrogen infrastructure buyers, a stronger proposal usually includes a defined EMC installation concept, documented commissioning checks, and a corrective-action path with response windows such as 48 hours for remote review and 5 business days for field recommendations.

Implementation Roadmap for Lower-Risk EMC Compliance

A lower-risk approach starts early. The most effective programs address IEC 61000 EMC for power electronics in 4 phases: concept design, detailed engineering, factory validation, and site verification. Waiting until final acceptance usually increases both cost and schedule pressure.

Phase-by-phase actions

• Phase 1: Define grid conditions, converter topology, switching regime, and installation assumptions.
• Phase 2: Freeze cabinet layout, bonding scheme, filter positions, and cable segregation rules.
• Phase 3: Validate representative loads, transients, and control integrity during FAT.
• Phase 4: Reconfirm earthing, routing, shielding, and interaction with plant auxiliaries during SAT.

This staged method helps separate design defects from installation defects. It also creates cleaner accountability between OEM, integrator, EPC, and owner. In hydrogen projects involving 3 or more major electrical vendors, that clarity can save significant rework time.

Recommended documentation package

Technical evaluators should request a package that includes EMC test summaries, grounding and bonding drawings, filter and protection schematics, cable-routing instructions, and a site checklist. A concise document set is often more useful than hundreds of pages of loosely connected certificates.

For organizations using G-HEI style benchmarking, the value lies in comparing not only compliance status but engineering reproducibility. The best-performing suppliers make their EMC assumptions explicit, measurable, and transferable from factory to sovereign-scale deployment.

Final Considerations for Hydrogen Infrastructure Decision-Makers

In PEM electrolyzer projects, EMC is not a side topic buried in electrical annexes. It directly affects uptime, ramping capability, certification progress, and confidence in long-duration operation. As projects move from pilot scale to multi-megawatt and gigawatt pathways, these risks become harder to absorb through late-stage fixes.

Technical evaluators who review IEC 61000 EMC for power electronics early can identify hidden integration gaps before they become site disputes or performance shortfalls. That discipline supports better procurement choices, more predictable commissioning, and stronger asset resilience across the hydrogen value chain.

If you are assessing PEM electrolyzer architectures, converter packages, or grid-interface risk, G-HEI can support a structured benchmark of EMC readiness, standards alignment, and implementation exposure. Contact us to obtain a tailored evaluation framework, discuss project-specific technical details, or explore broader zero-carbon infrastructure solutions.
