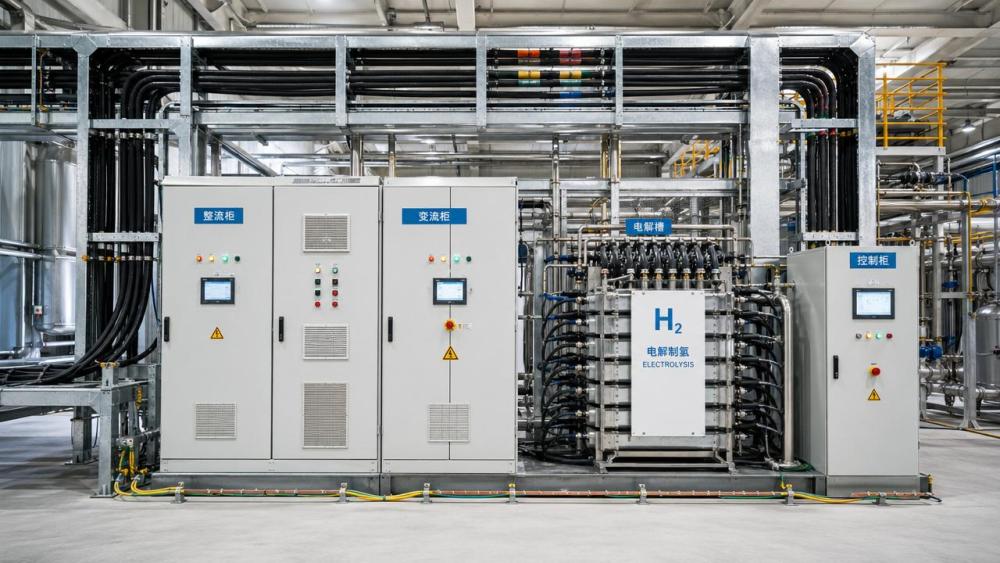

IEC 61000 EMC for Power Electronics: Common Compliance Gaps in Electrolyzer Systems

In electrolyzer projects, IEC 61000 EMC for power electronics is often treated as a late-stage checklist rather than a design-critical discipline. For quality and safety managers, this creates hidden compliance gaps across rectifiers, converters, cabling, grounding, and control interfaces. This article highlights the most common EMC weak points in electrolyzer systems and shows how to reduce certification risk, operational instability, and costly retrofit delays.

Why IEC 61000 EMC for Power Electronics Becomes a Hidden Risk in Electrolyzer Systems

Electrolyzer plants combine high-current power conversion, fast-switching semiconductor devices, distributed sensors, PLC-based control, communication networks, and often large outdoor cable routes. That combination makes IEC 61000 EMC for power electronics far more than a paperwork issue. It directly affects process stability, safety interlocks, alarm behavior, and the reliability of hydrogen production assets.

For quality and safety teams, the challenge is structural. Mechanical completion, electrical energization, and process ramp-up often progress faster than EMC coordination. By the time emission or immunity problems are visible, the project may already be approaching FAT, SAT, or third-party compliance review. At that stage, corrective actions are more expensive because they affect cabinets, cable trays, grounding layouts, filters, and control architecture.

In PEM and alkaline electrolyzer systems, the power electronics chain commonly includes MV/LV transformers, rectifiers, DC/DC converters, inverter-fed auxiliaries, cooling units, instrumentation loops, and communication gateways. Each interface can create a compliance gap if emission control, immunity planning, and installation practice were not coordinated from the start.

• High dv/dt and di/dt switching from converters can inject conducted noise into DC buses, AC feeders, and low-voltage control wiring.
• Long cable runs between power cabinets, skids, and field instruments increase both radiated susceptibility and common-mode coupling.
• Poor bonding between skid frames, enclosures, and ground reference points creates unstable return paths and unpredictable interference behavior.
• Late design changes, such as adding filters or ferrites after commissioning, may solve one symptom while creating thermal, maintenance, or space issues elsewhere.

Where the Most Common Compliance Gaps Appear

Most nonconformities related to IEC 61000 EMC for power electronics do not come from a single failed component. They come from interface mistakes between subsystems. Quality and safety managers should therefore review the complete electrical architecture instead of checking individual certificates in isolation.

1. Rectifier and converter cabinet design

A frequent gap is assuming that a converter manufacturer’s internal EMC measures remain effective once the unit is installed in a plant-specific enclosure arrangement. In practice, cabinet segmentation, door bonding, cable entry location, filter placement, and separation between power and signal routes strongly influence real-world performance.

2. AC input and DC output filtering mismatch

Teams sometimes specify line filters only on the AC side while ignoring DC-side noise propagation toward electrolyzer stacks, sensor references, and monitoring devices. In large electrolysis systems, DC-side common-mode noise can affect analog measurements, stack diagnostics, and protective logic.

3. Cable routing and segregation errors

One of the most common installation-level failures is routing encoder, Ethernet, 4–20 mA, and safety signal cables too close to switching power cables. Even when drawings show separation, site conditions often compress cable tray space. This is where planned compliance turns into field-level EMC failure.

4. Grounding and bonding inconsistency

Grounding philosophy is often documented in broad terms but not executed consistently. Mixed bonding practices between skids, local panels, analyzers, and building steel can create noise loops, equipotential differences, and intermittent communication faults that are difficult to reproduce during formal testing.

5. Control interface vulnerability

Hydrogen plants rely on shutdown logic, gas detection, pressure monitoring, and thermal management. If these interfaces lack sufficient immunity margins, electromagnetic disturbances can trigger nuisance alarms, control resets, unstable process values, or false trips. For safety managers, this is not only a compliance issue but an operational risk issue.

The table below maps common weak points in IEC 61000 EMC for power electronics to their likely plant-level consequences in electrolyzer applications.

For procurement and compliance review, this table shows why component certificates alone are not enough. IEC 61000 EMC for power electronics must be evaluated at system level, especially where high-current conversion and low-level instrumentation coexist within the same electrolyzer asset.

What Quality and Safety Managers Should Check Before FAT and SAT

A practical review process reduces late-stage surprises. The most effective approach is to move from document-based approval to evidence-based verification. That means checking drawings, component integration, installation practice, and expected disturbance environment as one package.

Pre-test checklist for IEC 61000 EMC for power electronics

1. Confirm which IEC 61000 parts are relevant to the system functions, installation environment, and equipment categories involved in the electrolyzer package.
2. Verify that the EMC plan covers both cabinet-level design and site installation practice, not just supplier declarations.
3. Check AC and DC cable segregation rules on as-built drawings and compare them with the real tray and gland arrangement.
4. Review shield termination method, grounding points, bonding jumpers, and door continuity for every power electronics enclosure.
5. Assess transient protection strategy for communication ports, I/O lines, power supplies, and field-mounted devices.
6. Require evidence that integrated testing or engineering analysis considered nearby VFDs, transformers, switchgear, and outdoor surge exposure.

This checklist is particularly important in hydrogen projects where process interruptions can impact venting sequences, water treatment continuity, thermal balance, and stack health. A nuisance trip in a conventional industrial plant may be inconvenient. In an electrolyzer project, it can affect availability, maintenance cost, and safety confidence at the same time.

How to Compare Supplier Readiness for EMC Compliance in Electrolyzer Projects

When several vendors offer rectifiers, converters, skids, or integrated power packages, the lowest bid rarely reveals the real EMC risk. Quality and safety managers need a decision framework that separates nominal compliance from project-ready compliance.

Use the following comparison table during technical clarification. It helps determine whether a supplier can support IEC 61000 EMC for power electronics under actual electrolysis operating conditions rather than under isolated lab assumptions.

This comparison often changes supplier ranking. A vendor that costs slightly more at purchase stage may save substantial time during FAT, field installation, and certification closeout. That tradeoff is highly relevant in utility-scale hydrogen programs with strict launch schedules and investor scrutiny.

Why Large-Scale Hydrogen Projects Need a System-Level EMC Benchmarking Approach

Electrolyzer EMC cannot be managed effectively in isolation from the wider hydrogen infrastructure. Power conditioning interacts with stack behavior, water treatment controls, gas drying packages, compressors, storage interfaces, and utility connection rules. That is why a multidisciplinary benchmark is more valuable than a narrow equipment review.

G-HEI is positioned around this exact need. Its technical perspective spans megawatt-scale electrolysis systems, cryogenic hydrogen logistics, hydrogen-ready gas turbine integration, CCUS infrastructure, and high-pressure refueling systems. For quality and safety managers, this wider benchmark matters because EMC disturbances often cross package boundaries. What appears to be a converter issue may become a process control issue, a material-integrity issue, or a plant-availability issue.

• In utility-scale electrolysis, the electrical environment is shaped not only by the rectifier but also by transformer topology, harmonic mitigation strategy, and dynamic load behavior.
• In hydrogen logistics and compression interfaces, EMC weaknesses can propagate into instrumentation reliability and protective shutdown confidence.
• In sovereign-level decarbonization projects, compliance evidence must be robust enough for ministries, CTOs, investment committees, and EPC stakeholders to trust asset readiness.

Because G-HEI benchmarks assets against demanding frameworks such as ISO 19880, ASME B31.12, and SAE J2601 where relevant to the wider hydrogen value chain, it helps stakeholders view IEC 61000 EMC for power electronics as part of a larger integrity architecture rather than an isolated electrical checkbox.

Implementation Priorities: How to Reduce Retrofit Cost and Certification Delay

The cheapest stage to fix EMC is the design stage. The second cheapest is before panel fabrication. After cabling and commissioning begin, every correction becomes slower and more disruptive. For that reason, implementation priorities should focus on risk concentration points first.

High-impact actions for project teams

• Freeze a clear grounding and bonding philosophy early, then convert it into installation details instead of leaving it at single-line level.
• Require EMC-sensitive cable segregation drawings before manufacturing release and verify them again during site routing.
• Review converter switching behavior, line reactor needs, and filter thermal margins together rather than as separate procurement items.
• Prioritize immunity for shutdown-critical circuits, gas detection interfaces, and stack monitoring loops.
• Introduce witness points in FAT that focus on integrated signal stability, not only functional energization.

These actions are especially relevant when delivery windows are tight. Many retrofit costs are not caused by major design flaws, but by small omissions repeated across many cabinets and field devices. A missing bonding strap or a poor shield termination rule may look minor on paper, yet it can delay project acceptance across an entire electrolyzer block.

FAQ: Practical Questions About IEC 61000 EMC for Power Electronics

Does component compliance guarantee electrolyzer system compliance?

No. Component-level conformity is useful, but IEC 61000 EMC for power electronics must be considered at the integrated system level. Cable length, cabinet arrangement, shield bonding, grounding topology, and nearby equipment can all change actual emission and immunity performance after installation.

Which electrolyzer subsystems are most sensitive to EMC problems?

The most sensitive areas usually include PLC and remote I/O networks, stack monitoring circuits, analog pressure and temperature loops, gas detection interfaces, shutdown logic, and communication links between power cabinets and process skids. Failures here often appear as unstable readings, false alarms, or nuisance trips rather than obvious electrical faults.

What should procurement teams ask suppliers during technical clarification?

Ask for the applicable IEC 61000 scope, assumptions behind the compliance claim, cabinet bonding method, AC and DC filter arrangement, cable segregation rules, shield termination practice, surge protection strategy, and support during FAT and SAT. If the supplier cannot explain how IEC 61000 EMC for power electronics is maintained after field installation, the compliance risk remains open.

Is late-stage filtering a practical fix?

Sometimes, but it should not be the default strategy. Retrofitted filters can create space constraints, thermal issues, maintenance complexity, and incomplete noise reduction if the root cause lies in routing or bonding. Late fixes are often necessary, but early coordination is usually more reliable and less expensive.
