IEC 61000 EMC for Power Electronics: Common Fail Points During System Approval

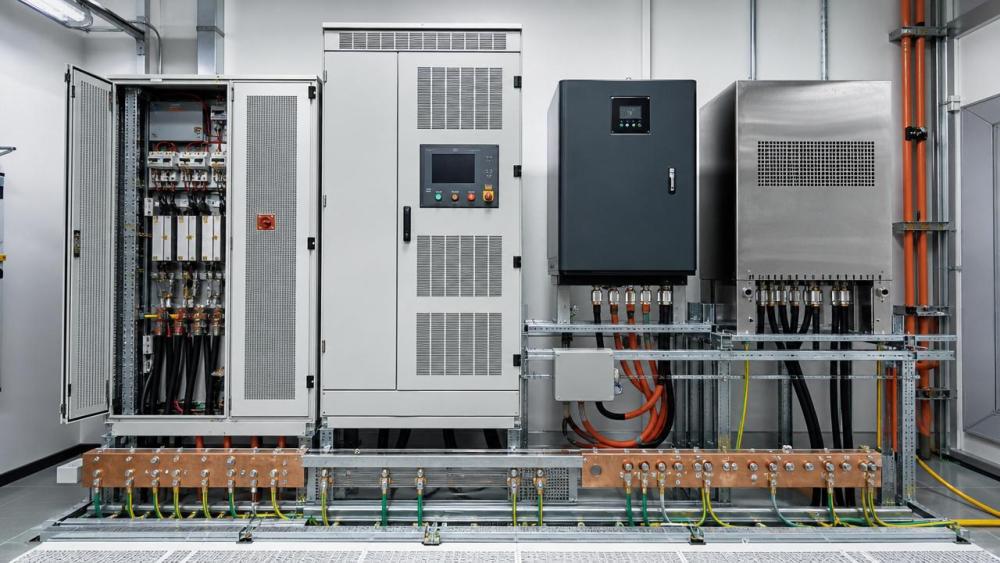

IEC 61000 EMC for power electronics is a decisive checkpoint during system approval, especially where safety, reliability, and grid compatibility are non-negotiable. For quality and safety managers working across advanced energy infrastructure, understanding the most common EMC fail points helps prevent costly redesigns, certification delays, and field-performance risks before they escalate into approval barriers.

In hydrogen production, cryogenic logistics, turbine auxiliaries, CCUS systems, and high-pressure refueling assets, power electronics sit at the center of conversion, control, and protection. Rectifiers, inverters, DC/DC converters, motor drives, PLC power stages, and fast-switching auxiliary supplies all influence electromagnetic compatibility. During system approval, many projects do not fail because the core process technology is weak, but because EMC behavior under realistic installation conditions was underestimated.

For B2B teams responsible for quality assurance, safety governance, and final acceptance, IEC 61000 EMC for power electronics should be treated as an integrated design and validation discipline rather than a late-stage lab exercise. The most expensive failures usually emerge in the final 10% of the program, when enclosure details, cable routing, grounding strategy, and immunity margins become visible under formal testing.

Why IEC 61000 EMC for Power Electronics Fails Late in Advanced Energy Projects

In zero-carbon infrastructure, approval teams often assess electrical safety, pressure integrity, thermal performance, and control reliability in parallel. EMC is sometimes deferred until prototype maturity, yet switching frequencies from 4 kHz to 150 kHz, high di/dt transitions, and long field cable runs can create emissions or immunity issues that only appear in integrated testing. This is especially common in megawatt-scale electrolysis skids and hydrogen compression packages where multiple converters operate simultaneously.

A second reason for failure is the gap between component compliance and system compliance. A drive, filter, or power supply may pass bench-level checks individually, but once installed in a cabinet with contactors, communication wiring, metallic pipe interfaces, and external grounding paths, the assembled system behaves differently. Quality managers frequently find that 2 or 3 compliant subsystems can still produce a non-compliant installation.

Typical approval-stage conditions that expose EMC weaknesses

• Long cable harnesses above 10 m between converter cabinets and field devices
• Mixed signal and power routing inside compact enclosures below 2 m in length
• Grounding modifications introduced during site installation in the final 2–4 weeks
• Simultaneous operation of VFDs, rectifiers, HMI supplies, and communication modules
• Shared earth references between process instrumentation and high-current power stages

The table below highlights where system approval teams most often encounter failure modes when applying IEC 61000 EMC for power electronics in utility, hydrogen, and process-energy environments.

The key lesson is that IEC 61000 EMC for power electronics must be judged under real installation topology, not only at product datasheet level. In hydrogen infrastructure, a single interference path can affect shutdown logic, pressure monitoring, or communications between safety layers, making EMC a risk management issue rather than just a compliance checkbox.

The Most Common EMC Fail Points During System Approval

When quality and safety teams review failed tests, a limited set of repeat issues usually appears. These are rarely random. Most can be traced to layout, installation discipline, or insufficient margin between nominal performance and test stress conditions. Addressing these points before formal validation can reduce approval friction significantly.

1. Inadequate grounding and bonding architecture

Grounding errors remain one of the top causes of IEC 61000 EMC for power electronics failure. In practice, teams often mix protective earth, functional earth, and shield terminations without a documented bonding concept. In large skids with 3 to 8 cabinet sections, bolted panel continuity alone is not always enough. Bond impedance increases quickly with paint, corrosion, washer selection, or poor mechanical contact.

A common warning sign is inconsistent shield termination strategy. If one cabinet uses 360-degree shield bonding and the next uses pigtail connections of 100 mm or more, radiated performance can deteriorate. In high-speed switching systems, these small implementation differences can decide whether emissions stay below limits.

What to check

• Low-impedance bonding between enclosure panels, doors, and gland plates
• Consistent treatment of shield terminations at both cabinet and field ends
• Separation of noisy return paths from low-level analog reference circuits
• Documented grounding plan reviewed before FAT and again before site SAT

2. Poor cable segregation and routing discipline

Power and signal cables routed in parallel for 3 m to 15 m are frequent sources of coupling. This occurs in electrolyzer balance-of-plant systems, compressor packages, and hydrogen dispensing controls where retrofit space is limited. Even where shielded cables are used, routing high-current output conductors adjacent to encoder, thermocouple, or Ethernet lines increases susceptibility.

The problem is rarely visible in schematic review alone. It emerges during cabinet build or site assembly, when installers optimize for convenience rather than EMC separation. A design that looked compliant on paper can fail because cable trays, gland entries, and field loops were not specified tightly enough.

3. Filter selection based on catalog assumptions instead of system conditions

EMI filters are often selected using nominal current and voltage only. However, leakage current, source impedance, load characteristics, cable length, and switching behavior all affect performance. In hydrogen infrastructure with variable loads, a filter that works at 30% load may be insufficient at 90% load, particularly if multiple converters share the same supply architecture.

Another issue is installation geometry. A well-rated filter can underperform if unfiltered and filtered conductors are routed too close together, or if the filter is mounted too far from the cabinet entry point. In many failed approvals, the hardware itself was not wrong; the mechanical implementation was.

4. Immunity weakness in controls and communications

A system may pass emissions screening but still fail surge, EFT, or electrostatic discharge testing. This is critical for safety managers because immunity failures can trigger false trips, frozen HMIs, sensor offset drift, or communication loss between PLC and remote I/O. In applications linked to hydrogen process control, even a 1 to 2 second interruption can create operational instability or forced shutdown.

Interfaces requiring special attention include 24 VDC control buses, Ethernet-based diagnostics, pressure transmitter loops, and intrinsically related interface zones. Immunity resilience should be evaluated not only at board level but also across cable entries, cabinet interfaces, and network topology.

5. Overlooking combined operating modes during test planning

Formal approval is often prepared around a simplified test mode. Yet field operation may involve startup, standby, regenerative events, pulsed loads, or simultaneous valve and motor activity. IEC 61000 EMC for power electronics should be assessed under the noisiest credible operating states. If teams validate only a partial-load scenario, failures may appear later at witness testing or commissioning.

A Practical Pre-Approval Checklist for Quality and Safety Managers

Before booking a formal EMC campaign, approval teams should run a structured pre-check. This reduces the risk of multiple test-lab iterations, which can add 2–6 weeks to the schedule and affect release plans for utility or infrastructure projects. The most effective approach is a staged review combining documentation, physical inspection, and pre-compliance measurement.

Recommended 5-step workflow

1. Review one-line diagrams, cabinet layout, grounding concept, and cable schedule.
2. Inspect physical build quality, especially shield bonding, gland entry, and segregation.
3. Run pre-compliance checks for conducted noise and functional immunity under load.
4. Test worst-case modes such as startup, transient switching, and communication traffic peaks.
5. Freeze the approved installation method for factory and site replication.

The table below can be used as a working acceptance tool during FAT preparation for IEC 61000 EMC for power electronics.

This checklist is particularly valuable for multidisciplinary assets where electrical, process, and safety approvals intersect. In hydrogen projects, EMC should be reviewed alongside pressure-system controls, emergency shutdown behavior, and grid-interface expectations so that the final acceptance package reflects actual operating risk.

How to Reduce Redesign Risk in Hydrogen and Zero-Carbon Infrastructure

The best way to manage IEC 61000 EMC for power electronics is to move it upstream. If EMC design rules are embedded at concept stage, many approval-stage surprises disappear. This matters in G-HEI-relevant sectors such as PEM and alkaline electrolysis, hydrogen-ready turbine auxiliaries, cryogenic transfer systems, and refueling platforms above 70 MPa, where electrical noise can intersect with mission-critical controls.

Design decisions that pay off early

• Reserve cabinet zones for clean control wiring and noisy power sections from day 1
• Define approved cable entry and shield termination methods in fabrication drawings
• Specify pre-compliance verification before witness testing, not after failure
• Use installation work instructions so site teams replicate the tested configuration
• Include EMC review in management of change whenever cable length or component mix changes

From a procurement perspective, buyers should ask suppliers for more than a declaration of conformity. Decision-makers should request the intended installation conditions, filter assumptions, cable limits, grounding requirements, and test mode definitions. These details often determine whether a compliant product remains compliant inside a larger system.

Questions to ask vendors and integrators

Technical clarification before approval

• What switching frequency range was assumed during EMC validation?
• What maximum cable lengths were used for pass results?
• Were immunity tests performed with communications active and loads cycling?
• What field installation deviations would require re-evaluation?
• What evidence exists for multi-converter operation in the same cabinet line-up?

These questions help quality and safety managers distinguish between paper compliance and deployment-ready compliance. In complex energy infrastructure, that distinction can affect handover timing, insurance confidence, and long-term operational stability.

Approval Readiness Depends on System Thinking, Not Isolated Components

IEC 61000 EMC for power electronics becomes manageable when teams treat emissions, immunity, grounding, cable architecture, and operational modes as one approval system. The recurring fail points are usually predictable: bonding mistakes, routing shortcuts, filter misapplication, and unrealistic test assumptions. For quality and safety managers in hydrogen and zero-carbon projects, early EMC discipline can save weeks of delay, reduce redesign cost, and strengthen confidence in final acceptance.

If your project involves electrolysis platforms, hydrogen logistics equipment, turbine support systems, CCUS power packages, or refueling infrastructure, a structured EMC review can improve both compliance readiness and operational resilience. Contact us to discuss a tailored benchmarking approach, evaluate approval risks, or obtain a practical framework for IEC 61000 EMC for power electronics in your next system qualification program.
