IEC 61000 EMC for Power Electronics: Common Failure Points to Check

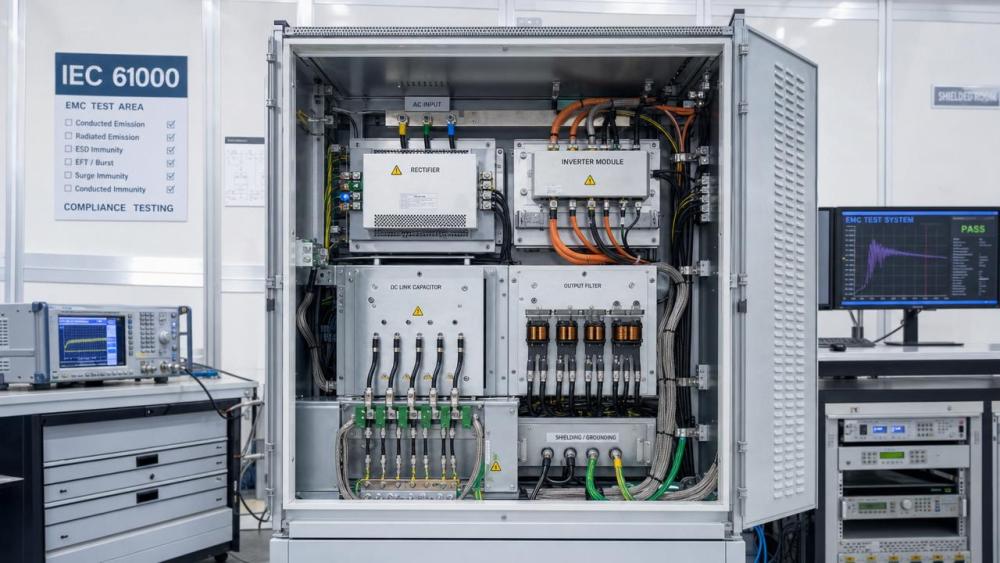

In hydrogen infrastructure and other high-stakes power systems, IEC 61000 EMC for power electronics is not just a compliance issue but a critical safeguard for reliability and safety. For quality control and safety managers, identifying common failure points early can reduce costly redesigns, prevent field faults, and strengthen confidence in system performance under demanding operating conditions.

For most teams searching for guidance on IEC 61000 EMC for power electronics, the real question is not “What is EMC?” but “Why do designs that look electrically sound still fail during testing or in the field?” In practice, failures usually come from a small set of repeatable weaknesses: noisy switching behavior, poor grounding strategy, cable coupling, enclosure leakage, filter mismatch, and test-condition gaps between engineering assumptions and actual operating modes.

For quality control and safety managers in hydrogen production, storage, compression, fueling, and related zero-carbon infrastructure, this matters because EMC problems are rarely isolated laboratory inconveniences. They can trigger unstable controls, communication dropouts, false trips, sensor corruption, overheating in mitigation parts, or degraded immunity during transient events. In power-dense systems such as rectifiers, inverters, DC/DC converters, electrolyzer power supplies, compressor drives, and hydrogen-ready turbine auxiliaries, these risks are directly linked to asset integrity and operational safety.

The good news is that most IEC 61000 failures are predictable if you know where to look. A useful review process focuses less on broad theory and more on common failure points, the signals and subsystems most likely to be affected, and the design-for-compliance checks that can be done before formal testing. That is the approach this article takes.

Why IEC 61000 EMC failures in power electronics are usually design-integration problems

IEC 61000 EMC for power electronics is challenging because power converters are intentional noise generators. Fast switching edges, high dv/dt, high di/dt, parasitic capacitances, common-mode currents, and wide cable networks create multiple coupling paths at the same time. Even when every major component is individually qualified, the assembled system can fail once filters, harnesses, enclosures, sensors, software states, and operating loads interact under test conditions.

For quality and safety teams, the first practical insight is this: EMC noncompliance is often not caused by a single “bad part.” It is more often a system-integration issue. A converter may pass on one bench setup, then fail after a cabinet layout change, a different motor cable length, a revised grounding bond, or a software mode that changes switching patterns. This is why EMC must be reviewed as a whole-system reliability topic, not only as a component-level checklist.

In hydrogen infrastructure, that systems view is especially important. Electrolyzer skids, high-power rectifier assemblies, compressor motor drives, cryogenic pumping systems, valve controllers, and safety PLC networks all combine power electronics with sensitive instrumentation. EMC failures may therefore appear as process instability, unexplained alarms, corrupted measurements, or intermittent shutdowns rather than obvious electrical faults.

Which failure points matter most to QC and safety managers

The target reader for this topic usually wants to know three things quickly: where failures are most likely, how those failures show up in testing or operation, and what evidence indicates that the design is robust enough for release. From that perspective, the most important failure points are emissions paths, immunity weaknesses, grounding and bonding quality, cable management, and the mismatch between tested configuration and real operating configuration.

Quality managers are typically concerned with avoiding repeated test cycles, production escapes, supplier variation, and field returns. Safety managers focus on whether an EMC event can cause unsafe states, loss of monitoring, nuisance tripping, or impaired protective functions. Both groups need a practical method to judge whether the engineering team has addressed the real risk areas, not just generated paperwork.

That means the most useful article is not one that lists every IEC 61000 substandard in equal depth. It is one that explains the highest-probability failure points and connects them to acceptance decisions, corrective actions, and confidence in operating resilience. The sections below focus on exactly those issues.

Common failure point #1: Conducted emissions from switching stages and input interfaces

One of the most frequent reasons systems fail IEC 61000 EMC for power electronics is excessive conducted emissions on AC or DC power lines. The root cause is usually the switching stage itself: IGBTs, MOSFETs, SiC devices, gate-drive behavior, and layout parasitics combine to produce noise that propagates back to the source or across the DC bus. In high-power equipment, the problem is often aggravated by long bus structures, insufficient segregation, and filter performance that looks acceptable in simulation but weakens under real impedance conditions.

Typical warning signs include strong low-frequency harmonics, broadband switching noise, or narrowband peaks tied to PWM frequency and its multiples. A common mistake is assuming the line filter alone will solve the issue. In reality, if the noise is being generated by an aggressive switching loop with poor current return control, the filter may saturate, heat excessively, or become less effective once installed in the cabinet.

For QC review, ask whether the team has characterized emissions across the full operating range: low load, nominal load, regenerative conditions if applicable, startup, shutdown, and abnormal but expected operating modes. Conducted emissions often worsen in modes that are not the nominal design point. If formal scans only cover one stable condition, the compliance picture may be incomplete.

Also verify whether the test setup reflects actual cable lengths, grounding topology, and source impedance assumptions. Many late-stage failures happen because pre-compliance tests were done on a simplified setup that did not reproduce the final system harnessing.

Common failure point #2: Radiated emissions caused by layout, enclosure leakage, and cable routing

Radiated emissions problems often start with board-level or module-level layout choices. Fast switching nodes with large loop areas, poorly controlled return paths, and inadequate shielding can turn a power stage into an efficient radiator. Once that energy couples into cables or escapes through enclosure seams, vents, or panel interfaces, the entire product can fail in the chamber even if the internal converter appears functional.

In large industrial systems, cable routing is often the deciding factor. Motor leads, DC links, sensor cables, Ethernet lines, encoder cables, and safety I/O may run in parallel for practical installation reasons. If separation is poor or shield termination is inconsistent, common-mode noise can travel surprisingly far and produce radiated failures at frequencies that are difficult to suppress late in the project.

From a safety perspective, this is more than a test-lab issue. The same coupling mechanisms can disturb pressure sensors, flow instrumentation, stack monitoring channels, or emergency-stop circuits in hydrogen facilities. That is why layout review must include not just PCB design but cabinet architecture, wire routing rules, shield bonding methods, and enclosure continuity.

A strong review question is whether the design team has identified the highest dv/dt nodes and physically minimized their exposure. If not, EMC mitigation may become reactive and expensive, relying on ferrites and shielding patches rather than robust current-path control.

Common failure point #3: Immunity failures during EFT, surge, ESD, and RF exposure

Passing emissions tests does not guarantee operational robustness. Many power electronics systems fail because they cannot maintain intended function during immunity testing. In IEC 61000 work, the most damaging surprises often appear during electrical fast transients, surge, electrostatic discharge, or radiated RF immunity, especially where digital control and analog sensing are mixed with high-power switching.

In practical terms, immunity failure modes include controller resets, communication loss, corrupted ADC readings, gate-drive misbehavior, contactor chatter, false fault detection, and unexpected mode transitions. For hydrogen infrastructure, even a brief upset can be unacceptable if it affects ventilation controls, leak detection interfaces, pressure management, stack protection logic, or interlock chains.

One common weakness is inadequate segregation between noisy power grounds and sensitive signal references. Another is insufficient protection at cable entry points, where transient energy enters faster than the internal circuitry can tolerate. Teams also underestimate the role of firmware behavior. A product may recover electrically after a disturbance but remain stuck in an unsafe or undefined software state.

QC and safety managers should therefore look for evidence of functional performance criteria, not only hardware survival. Ask what “pass” means for each immunity test. Is a temporary display flicker acceptable? Is a communication retry acceptable? Is any trip acceptable if it causes a process upset? Clear criteria are essential because the standard test result must align with the actual safety and continuity needs of the installation.

Common failure point #4: Grounding and bonding strategy that looks correct on paper but fails in the cabinet

Grounding and bonding are among the most misunderstood areas in IEC 61000 EMC for power electronics. Drawings may show a neat grounding concept, but real cabinets often introduce painted surfaces, high-impedance bonds, long pigtails, mixed shield terminations, and inconsistent panel assembly quality. These practical details can turn a good design into a noisy and immunity-sensitive one.

The problem is especially serious in modular systems where suppliers deliver subassemblies built to different conventions. One module may expect 360-degree shield bonding at entry, another may rely on a single-point signal reference, and a third may connect protective earth and functional earth differently. When integrated, these assumptions can create ground loops or uncontrolled common-mode paths.

For QC teams, this is an area where process discipline matters as much as design intent. Bond resistance checks, assembly training, torque control, surface preparation, and verification of shield termination methods should be treated as quality-critical items. If EMC performance depends on a bond being made a certain way, then that bond is not just a mechanical detail; it is a compliance feature.

Safety managers should also pay attention to the relationship between EMC grounding and protective grounding. They are related but not identical, and poorly chosen compromises can hurt both performance and maintainability. A robust design clearly defines return paths for high-frequency currents while preserving protective-earth integrity and inspection practicality.

Common failure point #5: Filter selection that ignores real operating conditions

Another recurring issue is the assumption that a catalog filter rating guarantees compliance. In reality, EMC filters are highly installation-dependent. Their effectiveness changes with source and load impedance, cable length, leakage current limits, mounting method, enclosure bonding, and the frequency content of the actual noise. A filter that works well in one build may underperform in another cabinet with the same schematic.

In high-power hydrogen-related systems, filter stress is also a reliability concern. Thermal loading, saturation behavior, vibration, and contamination can reduce long-term effectiveness. If the filter is undersized or installed with poor high-frequency bonding, it may pass early tests and then degrade or create maintenance issues later.

For that reason, quality review should go beyond part number approval. Check whether the engineering team validated the filter in the final mechanical arrangement, with representative cables and realistic switching conditions. Also ask whether there is sufficient margin. Designs that only barely pass in a controlled lab often become production and field headaches.

This is where a risk-based mindset helps. If the asset will operate in critical infrastructure with long service life and high downtime cost, compliance margin is not optional. It is part of lifecycle assurance.

Common failure point #6: Sensor, communication, and control interfaces treated as secondary EMC concerns

In many power projects, attention is concentrated on the main converter while low-power interfaces receive less scrutiny. Yet in actual IEC 61000 EMC investigations, it is often the sensor wiring, communication ports, encoders, and digital I/O that reveal the first weakness. A converter can continue switching while the control layer silently degrades.

This is particularly relevant for hydrogen systems that depend on precise monitoring and coordinated control. Pressure transducers, temperature inputs, flow meters, gas detection links, HMI networks, remote diagnostics, and safety PLC communication all have different susceptibility profiles. If cable shielding, isolation strategy, reference management, and surge protection are inconsistent, these interfaces become common entry points for disturbances.

For safety managers, the key question is whether EMC events can create dangerous hidden failures. A sensor may not fail completely; it may drift, spike, or temporarily freeze. A network may not collapse; it may delay messages or intermittently drop packets. Such faults are harder to detect than a total shutdown and can be more dangerous in automated facilities.

Therefore, interface-level validation should be built into the compliance process. Do not treat it as an afterthought once the main power stage has passed.

How to review a design before formal testing

A practical pre-test review for IEC 61000 EMC for power electronics should combine design review, configuration control, and risk prioritization. Start by mapping the major noise sources, coupling paths, and vulnerable functions. Then compare the tested configuration with the actual production-intent configuration, including cable lengths, grounding points, software modes, accessories, and optional modules.

Next, review whether each critical subsystem has a defined EMC rationale. Why is the filter selected? How are shields terminated? Where do common-mode currents return? What happens to controls during surge or EFT? Which functions are allowed to degrade temporarily, and which must remain stable? If these answers are vague, the design is unlikely to be mature enough for confident certification.

It is also wise to classify findings by operational consequence, not just by technical category. An emissions issue that is easy to fix may be lower risk than an immunity issue that can disable monitoring or force unsafe trips. This helps quality and safety managers prioritize corrective action in language that management and project stakeholders understand.

What strong evidence of EMC readiness looks like

For decision-makers, the best indicator of readiness is not a claim that “we followed best practices.” It is a body of evidence showing the design behaves consistently across realistic operating states and assembly variations. Strong evidence includes pre-compliance scans with production-representative configurations, documented grounding and shielding requirements, immunity pass criteria tied to functional safety expectations, and corrective actions that address root causes rather than symptoms.

Supplier alignment is also important. If key modules such as power supplies, drives, communication units, or control boards come from different vendors, their EMC assumptions must be reconciled early. Otherwise, integration risk remains hidden until full-system testing.

Finally, there should be a clear handoff from design to manufacturing and service. EMC-sensitive assembly features must be visible in work instructions, inspection plans, and maintenance guidance. If compliance depends on details that production teams do not consistently control, the test result will not be durable.

Conclusion: focus on repeatable failure mechanisms, not abstract compliance language

For quality control and safety managers, the value of understanding IEC 61000 EMC for power electronics lies in preventing predictable failures before they reach certification or the field. The most common problems are not mysterious. They usually stem from switching-noise generation, uncontrolled current return paths, weak cable and shield practices, filter mismatch, vulnerable interfaces, and immunity expectations that are not tied to real operating risk.

In hydrogen infrastructure and other mission-critical energy systems, these weaknesses can translate into much more than a failed test report. They can undermine control stability, asset reliability, and safety confidence. The most effective approach is to review EMC as a system-integration discipline, demand evidence from realistic configurations, and treat grounding, filtering, routing, and functional immunity as core quality characteristics.

If your team checks those common failure points early, IEC 61000 compliance becomes far more manageable. More importantly, the resulting power electronics platform is not only easier to certify, but also safer and more reliable in the environments where it matters most.
