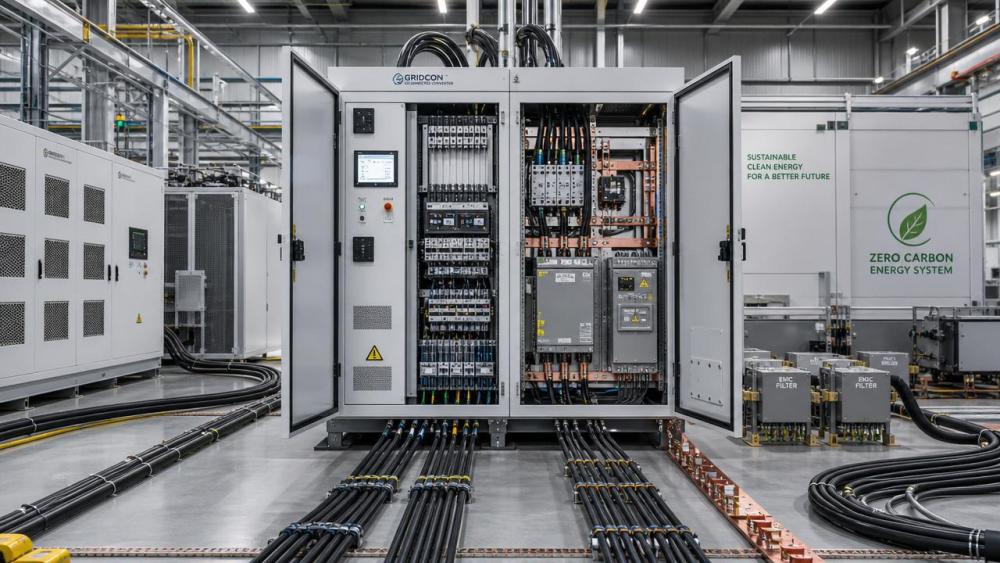

IEC 61000 EMC for Power Electronics: Key Checks Before System Commissioning

Before energizing utility-scale converters, inverters, or electrolyzer power trains, IEC 61000 EMC for power electronics must be verified as rigorously as thermal, insulation, and protection performance. For technical evaluators working across hydrogen, grid, and zero-carbon infrastructure, the key question is not whether EMC matters, but which checks most reliably predict commissioning success. In practice, the highest-value reviews are those that identify conducted emissions, immunity weak points, grounding errors, control-cabinet coupling paths, and installation-dependent failures before site energization. A structured pre-commissioning EMC review reduces the risk of nuisance trips, unstable controls, communication faults, failed compliance demonstrations, and expensive retrofit work after the system is already installed.

For technical assessment teams, the core search intent behind IEC 61000 EMC for power electronics is highly practical: they want a commissioning-focused checklist that helps them judge whether a high-power system is genuinely ready for operation and whether hidden EMC risks remain. They are less interested in textbook definitions and more interested in what to inspect, what documentation to request, how to separate design compliance from installation compliance, and where utility-scale systems most often fail despite nominal lab conformity.

The most useful way to address that intent is to focus on decision-making. Which IEC 61000 checks are critical before energization? Which test evidence is meaningful for site acceptance? How do switching converters, transformers, cable runs, PLCs, sensors, and communication networks interact in real hydrogen and zero-carbon facilities? And how should evaluators interpret EMC readiness when systems include megawatt-scale rectifiers, VFDs, inverter stages, skid-mounted auxiliaries, and sensitive control electronics in the same electrical environment?

What technical evaluators really need to confirm before commissioning

When reviewing IEC 61000 EMC for power electronics, technical evaluators should begin with one governing principle: EMC compliance is not only a product attribute, but a system-level outcome. A converter may have passed type testing, yet the integrated installation can still fail in operation because of cable routing, grounding topology, enclosure bonding, transformer configuration, filter implementation, or interactions among multiple switching assets.

That is especially true in hydrogen infrastructure, where large electrolysis systems, compression packages, cryogenic support systems, rectifier cabinets, and plant-wide automation may share the same electrical and control environment. In these settings, pre-commissioning EMC checks should answer three questions. First, has the equipment been designed and tested against the right IEC 61000 framework? Second, has the installation preserved the assumptions behind that compliance? Third, are there operating scenarios at full load, partial load, startup, or fault recovery that could introduce unacceptable electromagnetic disturbance?

For evaluators, the highest-priority concerns usually include false sensor readings, PLC or SCADA communication instability, protective relay maloperation, unexplained inverter trips, unstable control loops, and harmonic or high-frequency noise that spreads through shared power or signal paths. These issues can delay plant acceptance even when no obvious hardware defect exists. That is why EMC should be treated as a readiness gate before system commissioning, not as a paperwork exercise completed after procurement.

Which parts of the IEC 61000 framework matter most for power electronics

IEC 61000 is a broad family, so evaluators need to focus on the parts that materially affect utility-scale power electronics. In most commissioning reviews, the relevant areas include emission limits, immunity performance, power quality interaction, electrostatic discharge resilience, surge withstand capability, electrical fast transient immunity, radiated and conducted RF immunity, and harmonic or flicker-related assessments where applicable.

For high-power converters and inverters, conducted emissions and immunity are often more operationally significant than radiated issues alone. Fast switching devices generate common-mode and differential-mode noise that can travel through AC feeders, DC buses, shields, protective earth conductors, and communication lines. Evaluators should therefore look beyond a generic declaration of conformity and identify which specific tests were performed, under what loading conditions, with what cable configurations, and according to which installation class or environment.

In practical review terms, it is useful to distinguish between component-level standards, product-family EMC requirements, and the wider IEC 61000 basic standards used to demonstrate immunity and emissions behavior. A supplier may cite compliance broadly, but the evaluator should verify whether the submitted evidence reflects the actual converter topology, switching frequency range, cabinet arrangement, line filter design, transformer interface, and auxiliary equipment included in the delivered scope.

This matters because lab-tested configurations are often cleaner than real installations. Short cables, ideal bonding, controlled grounding, and simplified I/O setups can hide vulnerabilities that appear at site. The evaluator’s task is to determine whether the compliance evidence is transferable to the field installation or whether additional mitigation, testing, or design clarification is needed before energization.

The pre-commissioning EMC checklist that catches the most costly problems

A strong EMC review starts with documentation, but it should not end there. The most effective pre-commissioning checklist combines paper review, physical inspection, and operational verification. From a documentation perspective, evaluators should request the EMC test plan, declarations of conformity, test reports, single-line diagrams, grounding and bonding drawings, cable schedules, filter specifications, enclosure layouts, and installation manuals that define EMC-critical requirements.

On the equipment side, confirm the converter architecture, switching devices used, PWM strategy, filter topology, transformer arrangement, shield termination method, and separation of power and control wiring. Verify whether the EMC design depends on specific cable lengths, shield continuity, gland types, ferrites, bonding straps, or metal-backplate mounting. If these assumptions are missing or not maintained on site, compliance confidence drops quickly.

Grounding and bonding deserve special attention because many commissioning failures originate there. Technical evaluators should check whether cabinet doors, gland plates, cable trays, PE bars, skid frames, transformers, and auxiliary enclosures are bonded with low-impedance connections appropriate for high-frequency currents, not just DC continuity. A grounding system that appears adequate for safety can still be poor for EMC if it creates long return paths or floating metal sections.

Cable management is another decisive factor. Inspect the separation of noisy power cables from analog instrumentation, encoder lines, Ethernet, fieldbus, and safety I/O. Verify crossing angles, tray segregation, shield termination at entry points, and any long parallel runs that can increase coupling. In electrolyzer plants and hydrogen balance-of-plant skids, dense modular packaging often creates EMC compromises that are invisible in drawings but obvious during site walkdowns.

Input and output filtering should also be reviewed in the context of real operation. Confirm that line reactors, dv/dt filters, sine filters, common-mode chokes, and surge protection devices match the delivered hardware and cable lengths. If modifications were made during FAT, shipping, or installation, the evaluator should assess whether the original EMC assumptions still hold. Even small substitutions in cable glands, shield clamps, or filter locations can materially affect performance.

How to judge whether test evidence is credible enough for site acceptance

One of the most common evaluator challenges is deciding whether supplier EMC evidence is merely formal or genuinely decision-useful. A credible EMC file should do more than state compliance. It should identify the applicable standards, define the equipment under test, describe the setup clearly, specify operating modes and load conditions, and record pass criteria in a way that relates to actual system functionality.

For power electronics, immunity performance should be examined with a functional mindset. A converter that remains energized but drops communication, drifts in control accuracy, resets an HMI, or produces intermittent sensor errors may still be operationally unacceptable even if a narrow pass criterion was met in testing. Evaluators should therefore review not only whether the unit “passed,” but what level of functional degradation was permitted during the test.

It is also important to check whether the tested configuration included representative auxiliaries such as control boards, remote I/O, communication interfaces, cooling systems, and sensor inputs. In large hydrogen and zero-carbon facilities, these peripheral systems often create the most consequential EMC failure modes. If a test report isolates the power stage but excludes critical controls, then the evidence may not support full commissioning confidence.

Where site conditions differ materially from tested conditions, the evaluator may recommend additional risk controls. These can include targeted site immunity checks, harmonic and power quality measurements, oscilloscope-based noise investigation, communication stress tests, or staged energization with enhanced monitoring. The goal is not to recreate a laboratory on site, but to close the gap between generic compliance and installation-specific readiness.

Common failure modes in hydrogen, grid, and zero-carbon infrastructure

In hydrogen and other high-availability energy assets, EMC problems rarely present themselves as a simple “EMC failure.” More often, they appear as unstable process behavior, unexplained alarms, or repeated commissioning anomalies that different teams initially attribute to software, instrumentation, or utility disturbances. Technical evaluators who understand these patterns can identify root causes faster.

A frequent example is common-mode noise from high-power rectifiers or inverter stages coupling into analog sensor loops, especially where pressure, temperature, flow, or gas purity signals travel through mixed routing environments. In an electrolyzer context, this can affect process control stability and produce misleading diagnostics. Another common issue is communication disruption in Ethernet-based or fieldbus-based control systems caused by poor shield bonding or excessive proximity to switching cables.

Protective devices can also behave unpredictably in poor EMC environments. Residual current devices, protection relays, or monitoring circuits may nuisance-trip when exposed to high dv/dt edges, surge events, or grounding noise. In compressor skids, gas turbine auxiliaries, hydrogen refueling packages, and cryogenic handling systems, this can halt commissioning sequences and create false perceptions of equipment unreliability.

Power quality interaction is another concern. While not all such issues fall strictly under classic EMC emissions and immunity categories, harmonic distortion, interharmonics, and switching-related disturbance can interact with transformers, capacitor banks, UPS systems, and other converters. In facilities with multiple megawatt-class assets, the combined effect may only become visible during integrated operation, which is why staged loading and coordinated measurement plans are valuable before final acceptance.

What a robust commissioning strategy looks like in practice

For technical evaluators, the best commissioning strategy is risk-based and sequential. Begin with design document review and conformity assessment, then verify installation-critical EMC features before first energization, and finally confirm performance under realistic operating states. This approach is more effective than waiting for faults to emerge during full-load operation, when troubleshooting becomes slower and more politically difficult across EPC, OEM, and owner teams.

Before energization, confirm that all EMC-related installation requirements from the manufacturer have been implemented and documented. This includes grounding, shielding, filter placement, cable segregation, enclosure bonding, and any specified mitigation accessories. During initial energization, monitor not only voltage, current, and thermal behavior, but also communication stability, control responsiveness, alarm patterns, and sensor integrity.

During staged commissioning, test operating transitions that are known to expose EMC weaknesses: startup, shutdown, ramp changes, partial-load operation, switching between redundant units, transformer energization, and fault recovery. If the system includes electrolyzer stacks, compressors, chillers, hydrogen dispensers, or gas turbine auxiliaries, verify that their controls remain stable when major converter equipment changes state. Interactions often appear during dynamic transitions rather than steady-state operation.

Where criticality is high, evaluators should recommend an EMC punch-list as part of the formal commissioning dossier. This may include unresolved cable routing deviations, missing shield terminations, unclear grounding interfaces between packages, pending power quality measurements, or insufficient evidence for communication robustness. Capturing these items explicitly helps owners avoid accepting a latent reliability problem in the name of schedule pressure.

How IEC 61000 EMC for power electronics supports better investment and asset decisions

Although EMC is often discussed as an engineering compliance topic, it has direct investment implications in large zero-carbon infrastructure. Poor EMC readiness can delay revenue start, increase warranty disputes, consume specialist troubleshooting budgets, and undermine confidence in otherwise high-value assets. For utility-scale hydrogen and power systems, these consequences are disproportionate because a single unstable converter or control subsystem can constrain the entire plant.

That is why technical evaluators should treat IEC 61000 EMC for power electronics as part of asset security, not just commissioning hygiene. Good EMC performance protects process continuity, measurement integrity, digital control reliability, and interoperability across packages from different vendors. In sovereign-scale decarbonization projects, where large electrolysis trains, hydrogen logistics systems, and supporting grid infrastructure must operate together, that reliability is foundational.

From a benchmarking perspective, mature suppliers tend to show the same strengths: clear standard mapping, installation-specific EMC guidance, transparent test evidence, disciplined cabinet and cable design, and a willingness to define operational limits or mitigation requirements early. Less mature suppliers often rely on generic declarations, incomplete reports, or assumptions that shift responsibility to site teams. Technical evaluators can use this contrast to differentiate low-risk solutions from those likely to generate hidden lifecycle costs.

Conclusion: the best time to find EMC problems is before the plant is live

The main takeaway is straightforward: IEC 61000 EMC for power electronics should be assessed as a system commissioning gate, not as a late-stage checkbox. For technical evaluators, the most valuable checks are those that connect standards evidence to real installation conditions, operating modes, and plant-wide control interactions. If grounding, shielding, filtering, cable routing, immunity performance, and functional test evidence are all aligned, commissioning risk drops sharply.

In hydrogen, grid, and zero-carbon infrastructure, the cost of missing EMC issues is rarely limited to a failed test. It often appears as unstable operation, delayed acceptance, recurring trips, unreliable data, and expensive post-installation remediation. A disciplined pre-commissioning EMC review helps teams make a clearer judgment: whether the asset is truly ready for energization, what residual risks remain, and what corrective actions are justified before the system enters live service.

For organizations benchmarking high-power assets at sovereign or utility scale, that discipline is not optional. It is part of technical due diligence, operational resilience, and long-term asset confidence.
