IEC 61000 EMC for Power Electronics: Key Checks for PEM Compliance

IEC 61000 EMC for power electronics: discover the key checks for PEM compliance, scenario-based risks, and practical fixes to improve stability, safety, and project readiness.
Time : May 16, 2026

For quality-control and safety programs across hydrogen infrastructure, IEC 61000 EMC for power electronics is more than a laboratory checklist. It is a practical control framework for stable PEM operation, safer grid interaction, and smoother regulatory acceptance.

In zero-carbon projects, PEM systems combine fast-switching converters, sensitive sensors, communications hardware, and high-current power paths. That mix makes electromagnetic compatibility a daily engineering issue, not a late-stage paperwork task.

This article explains how IEC 61000 EMC for power electronics should be checked in real deployment scenarios. It focuses on key EMC checks, scenario differences, common blind spots, and practical actions for PEM compliance.

When IEC 61000 EMC for Power Electronics Becomes a Critical PEM Decision Point

PEM electrolyzers depend on tightly controlled DC power, accurate measurement, and uninterrupted automation. EMC weakness can distort signals, trip protection, degrade efficiency, or interrupt hydrogen production cycles.

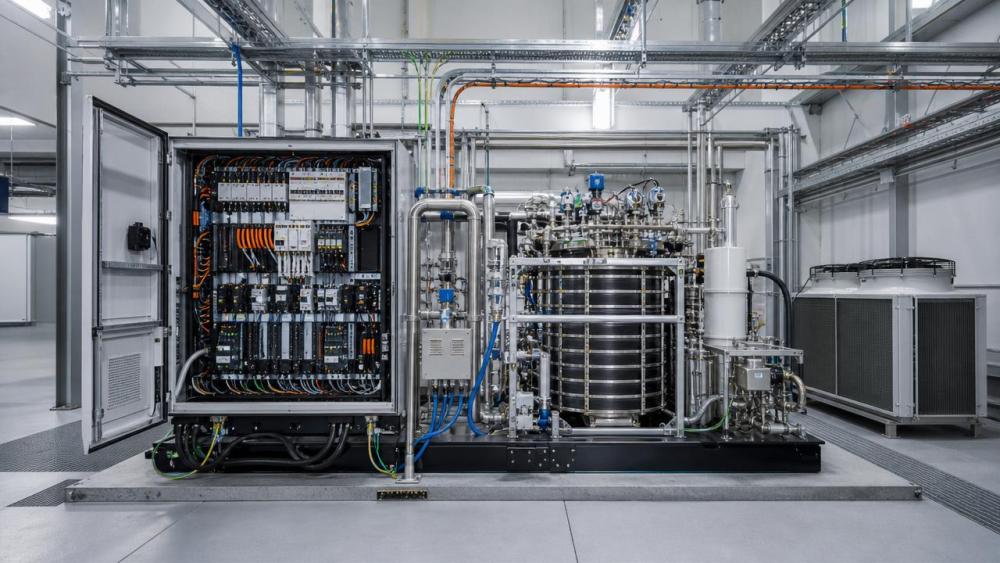

IEC 61000 EMC for Power Electronics: Key Checks for PEM Compliance

IEC 61000 EMC for power electronics matters most when systems operate near substations, renewable inputs, battery storage, variable-speed drives, or industrial communications networks. These environments increase both emission sources and immunity demands.

For comprehensive hydrogen assets, the issue extends beyond one converter cabinet. It affects stack balance-of-plant controls, rectifiers, cooling units, gas monitoring, functional safety loops, and remote supervisory systems.

Why scenario-based checking matters

A grid-connected PEM plant faces conducted disturbances differently from a containerized mobile hydrogen unit. A coastal terminal may struggle with grounding quality, while a dense industrial site may face radiated noise from multiple power assets.

That is why IEC 61000 EMC for power electronics should be evaluated by use scenario, installation topology, cable architecture, and critical-load sensitivity, not by component datasheet claims alone.

Scenario 1: Grid-Connected PEM Electrolysis Plants With High-Power Conversion

Large electrolysis plants usually include transformers, rectifiers, DC/DC stages, PLC cabinets, analyzers, and long cable runs. In this scenario, conducted emissions and harmonic-related interactions are often the first EMC concern.

The key checks under IEC 61000 EMC for power electronics include emission measurement at ports, immunity against fast transients, surge withstand, voltage dips, and electrostatic discharge resistance for control interfaces.

Core judgment points

  • Whether switching frequencies create interference with analyzers, flow meters, and communication buses.
  • Whether cable shielding and grounding remain effective over long routes.
  • Whether immunity margins protect shutdown logic during grid disturbances.
  • Whether filter design still performs after full-load thermal rise.

If any of these checks are weak, PEM production can become unstable. Small EMC failures often appear first as nuisance alarms, drifting data, or unexplained controller resets.

Scenario 2: Renewable-Coupled PEM Systems With Fast Dynamic Loads

When PEM units are paired with solar, wind, or battery energy storage, power electronics operate under rapid ramping conditions. Switching behavior changes frequently, which can alter the plant’s EMC profile during real duty cycles.

In this case, IEC 61000 EMC for power electronics should be checked not only at rated steady state, but also during load transitions, startup, curtailment response, and low-voltage recovery events.

Core judgment points

  • Whether transient emissions increase during ramp-up or ramp-down.
  • Whether DC ripple impacts stack health monitoring accuracy.
  • Whether communication links remain stable during inverter state changes.
  • Whether immunity testing reflects renewable variability, not ideal lab conditions.

This scenario often reveals the gap between formal compliance and operational robustness. A converter may pass a standard test yet still disturb adjacent control equipment during field transients.

Scenario 3: Containerized, Modular, or Remote PEM Installations

Remote sites, skid packages, and modular hydrogen units present tighter physical layouts. That increases coupling risks between power sections, instrumentation, safety relays, wireless devices, and external utility interfaces.

Here, IEC 61000 EMC for power electronics must be checked together with enclosure bonding, cable separation, gland design, grounding continuity, and access-panel contact quality.

Core judgment points

  • Whether compact routing forces signal cables near noisy switching paths.
  • Whether field assembly changes the tested EMC configuration.
  • Whether surge exposure is higher due to outdoor placement.
  • Whether maintenance access damages shielding or termination integrity.

These installations need strong configuration control. A compliant cabinet can become non-compliant after cable substitutions, grounding changes, or connector rework performed during commissioning.

How IEC 61000 EMC for Power Electronics Requirements Differ Across PEM Scenarios

The same standard family leads to different priorities depending on installation context. The table below highlights where attention should shift for effective PEM compliance.

Scenario Primary EMC Risk Key Check Focus Practical Priority
Grid-connected plant Conducted emissions and utility disturbances Ports, surge, EFT, voltage dips, harmonized interfaces Power quality and protection continuity
Renewable-coupled system Dynamic switching and transient instability Load transitions, ripple, communications immunity Operational robustness under variability
Modular or remote unit Coupling in compact layouts and field changes Grounding, shielding, enclosure bonding, surge Installation consistency and maintainability

Practical Checks That Support IEC 61000 EMC for Power Electronics in PEM Projects

A useful compliance approach combines design review, test planning, and installation verification. For PEM applications, the following actions usually deliver the highest value.

  1. Map every emission source and every sensitive circuit before layout freeze.
  2. Separate power, control, and measurement routes with defined crossing rules.
  3. Validate filter performance at actual switching frequencies and thermal conditions.
  4. Check grounding topology from transformer to stack auxiliaries.
  5. Run immunity tests on complete operating modes, not isolated subassemblies only.
  6. Confirm that software faults and communication retries do not mask EMC issues.
  7. Lock approved cable types, shield terminations, and bonding hardware in site documentation.

These steps align IEC 61000 EMC for power electronics with real PEM performance goals. They also reduce redesign risk after factory acceptance or site energization.

Common Misjudgments That Delay PEM EMC Compliance

One frequent mistake is assuming component-level certificates guarantee system-level conformity. EMC behavior changes when converters, sensors, and control cabinets are integrated into one hydrogen platform.

Another mistake is treating EMC as an electrical-only topic. In PEM systems, piping layout, cabinet mechanics, ventilation openings, and maintenance modifications can influence emissions and immunity.

A third blind spot is ignoring low-level signal paths. Pressure transmitters, gas analyzers, stack voltage monitors, and remote I/O lines may fail long before main power hardware shows obvious symptoms.

  • Do not rely only on pass or fail reports without installation assumptions.
  • Do not test only nominal operation if the plant will cycle aggressively.
  • Do not change cable assemblies after testing without impact review.
  • Do not separate EMC records from safety and reliability documentation.

A Practical Next Step for Stronger IEC 61000 EMC for Power Electronics Readiness

Start with a scenario-based EMC review of the full PEM power chain. Include converter topology, site grounding, communication architecture, auxiliary systems, and expected operating dynamics.

Then build a check matrix linking each IEC 61000 EMC for power electronics requirement to a physical interface, operating mode, and installation rule. That makes compliance measurable and easier to maintain.

For hydrogen infrastructure programs seeking durable technical assurance, the best results come from early coordination between EMC verification, electrical design, safety engineering, and field commissioning controls.

In PEM environments, IEC 61000 EMC for power electronics is not just a standard reference. It is a decision tool for stable output, asset protection, and credible deployment across demanding zero-carbon infrastructure.
