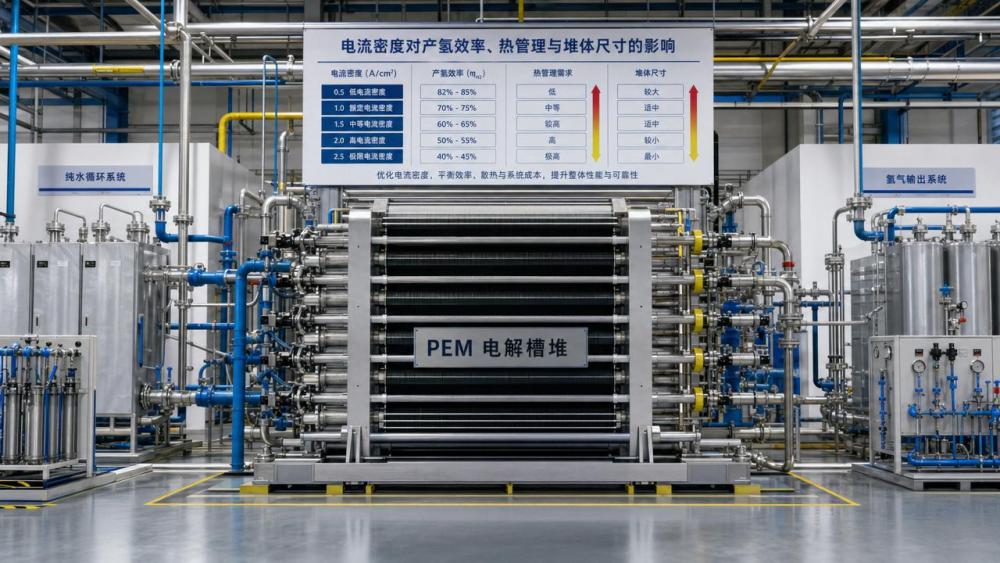

PEM Stack Current Density (A/cm2): How It Changes Output, Heat, and Stack Sizing

PEM stack current density (A/cm2) is one of the most decisive variables in electrolysis performance, directly shaping hydrogen output, thermal load, efficiency trade-offs, and overall stack footprint. For technical evaluators comparing sovereign-scale hydrogen assets, understanding how current density influences heat management, degradation risk, and system sizing is essential to making sound design, benchmarking, and investment decisions.

In megawatt-scale hydrogen programs, current density is not a laboratory detail. It affects capex per kilogram of daily hydrogen, balance-of-plant complexity, cooling duty, stack replacement intervals, and the practical operating window under variable renewable input. For ministries, utility CTOs, EPC teams, and investment committees working through G-HEI benchmarking frameworks, PEM stack current density (A/cm2) is a critical lens for assessing both technical competitiveness and sovereign infrastructure resilience.

This article examines how current density changes output, heat generation, and stack sizing in PEM electrolysis, while highlighting the trade-offs technical evaluators should test during vendor review, pilot validation, and bankability assessment. The focus is practical: what the number means, how it shifts system design, where the hidden risks are, and which metrics deserve closer scrutiny before procurement decisions are finalized.

What PEM Stack Current Density Really Measures

PEM stack current density (A/cm2) expresses the electrical current flowing through each square centimeter of active cell area. In simple terms, it shows how hard the electrolyzer is being driven. A stack operating at 1.0 A/cm2 is under a lighter electrochemical load than one at 2.5 A/cm2, assuming similar cell design, membrane type, catalyst loading, and operating pressure.

Because hydrogen production follows Faraday’s law, higher current density generally increases hydrogen output per unit cell area. That is attractive for reducing stack footprint and potentially lowering the amount of installed active area required for a target plant capacity such as 5 MW, 20 MW, or 100 MW. However, the benefit is never linear once voltage rise, ohmic losses, gas crossover margins, and thermal control requirements are considered.

For technical evaluators, the key point is that PEM stack current density (A/cm2) should never be read in isolation. A vendor’s headline number only becomes meaningful when paired with cell voltage, efficiency at rated load, operating temperature range, differential pressure strategy, water quality requirements, and degradation rate over 20,000 to 80,000 operating hours.

Typical operating ranges in sovereign-scale PEM projects

In current commercial practice, many PEM electrolyzer stacks operate in a broad window of roughly 1.0 to 3.0 A/cm2, with some systems optimized toward the lower end for durability and efficiency, and others pushed higher for compactness and higher specific output. The exact preferred range depends on whether the project prioritizes minimum footprint, lower electricity consumption per kilogram, dynamic ramping, or longer maintenance intervals.

The table below shows how evaluators can interpret current density levels in relation to output intensity, efficiency pressure, and design implications. These are not universal guarantees; they are practical benchmarking bands used for structured technical review.

The practical conclusion is that higher PEM stack current density (A/cm2) is not automatically “better.” It is a strategic design choice. In utility-scale procurement, the most bankable option is often the one with the strongest whole-life performance, not the one with the highest nameplate intensity per square centimeter.

Key review questions for evaluators

• At what current density is the published hydrogen output measured: nominal, overload, or short-duration peak?
• How does cell voltage shift between 25%, 50%, 100%, and 110% load?
• What degradation assumptions are attached to operation above 2.0 A/cm2 over 40,000+ hours?
• Does the vendor provide separate efficiency data in kWh/kg for stack DC and full system AC?

How Current Density Changes Hydrogen Output and Electrical Efficiency

The most immediate effect of higher PEM stack current density (A/cm2) is greater hydrogen production from the same active cell area. If active area remains fixed, doubling the current roughly doubles the molar hydrogen generation rate. This is why high-current-density designs can achieve more compact stacks, fewer cells for a target output, or a smaller total installation area in constrained industrial sites, ports, and hydrogen export terminals.

Yet increased output intensity usually comes with higher cell voltage. As current density rises, activation losses, ohmic resistance, and mass transport limitations become more pronounced. That means electrical energy consumption per kilogram of hydrogen tends to increase. In practical terms, a plant may produce more hydrogen per square meter, but require more kWh/kg at rated load than a less aggressive design operating at 1.2 to 1.6 A/cm2.

For projects tied to low-cost renewable power with occasional oversupply, a higher-current-density strategy may be acceptable or even desirable. For baseload applications where electricity is the dominant lifetime cost driver, even a difference of 2 to 4 kWh/kg can materially affect total cost of ownership over 10 to 15 years.

Output gain versus efficiency penalty

Technical evaluators should request performance maps rather than single-point marketing data. The same PEM stack current density (A/cm2) can produce very different outcomes depending on stack architecture, membrane thickness, catalyst quality, flow field design, and thermal balance. A disciplined review should compare nominal operation, overload capability, and partial-load efficiency across several duty profiles.

The comparison table below helps frame a realistic discussion between compactness and electrical efficiency in PEM electrolysis design reviews.

The decision therefore depends on which economic lever dominates. In regions where electricity cost exceeds stack replacement cost by a wide margin, efficiency losses can outweigh compactness benefits. In space-constrained or modular deployments, the balance may shift the other way. This is why G-HEI-style benchmarking should compare not just MW installed, but AC energy consumption, annual utilization profile, and expected replacement planning under actual grid or renewable operating conditions.

Three metrics that matter more than the headline current density

1. System-specific energy consumption in kWh/kg at 30%, 60%, and 100% load.
2. Cell voltage progression across the operating range, including any overload mode above rated output.
3. Annual hydrogen yield under site-specific renewable intermittency, not only at steady-state test conditions.

Thermal Load, Water Management, and Degradation Risk

As PEM stack current density (A/cm2) increases, waste heat also rises. The electrochemical process becomes less efficient at higher load intensity, meaning a larger share of input power appears as heat that must be removed to keep the stack within its preferred operating temperature, often around 50°C to 80°C depending on the design. Heat that is not controlled can accelerate membrane stress, catalyst degradation, seal fatigue, and uneven cell performance.

This is particularly important in sovereign-scale plants expected to run continuously for 4,000 to 8,000 hours per year or to ramp frequently with wind and solar fluctuations. A stack that looks attractive at 2.5 A/cm2 on paper may impose materially larger cooling loops, pumps, heat exchangers, and control complexity than a design operating at 1.6 A/cm2. The thermal burden does not stay inside the stack; it moves into the full balance of plant.

Water management also becomes less forgiving. At higher current density, electro-osmotic drag, local hydration variation, gas bubble handling, and pressure stability can all become more difficult to optimize. If water purity drifts, temperature control lags, or flow distribution becomes uneven across cells, long-term durability can deteriorate faster than nominal specifications suggest.

Common risk points during high-intensity operation

Evaluators should be cautious about stack claims based only on short test runs. Thermal cycling, start-stop frequency, and partial-load transitions often reveal weaknesses that steady-state testing hides. A vendor should be able to explain how its stack maintains uniformity across cell planes, how cooling is integrated, and how gas purity is protected under transient operation.

The following checklist summarizes practical risk controls to review when PEM stack current density (A/cm2) is above moderate operating bands.

• Confirm allowable operating temperature window and alarm thresholds, not just nominal temperature.
• Review cooling system redundancy for plants above 10 MW where thermal excursions can propagate quickly.
• Check stack degradation assumptions in terms of microvolts per hour or annual efficiency drift.
• Ask whether differential pressure and gas crossover limits tighten at higher current density.
• Verify water treatment specification, conductivity control, and maintenance interval under real load cycling.

Why degradation economics must be modeled early

A compact stack can reduce initial footprint, but if it degrades faster, replacement planning can erase early capex gains. For example, a 1% to 2% annual increase in specific power consumption or a shortened refurbishment interval can materially affect levelized hydrogen cost. In large public-private hydrogen programs, these lifecycle effects should be tested over 10-year and 15-year scenarios, not only against first-year performance metrics.

For this reason, technical due diligence should include accelerated aging evidence, stack service philosophy, spare strategy, and the impact of operating above nominal current density during renewable curtailment events. A strong thermal design is not only about safety; it is a central determinant of long-term project economics.

How Current Density Influences Stack Sizing and Plant Footprint

Stack sizing is where PEM stack current density (A/cm2) becomes immediately visible in engineering layouts. If hydrogen output targets remain constant, raising current density reduces the active area required per stack. That can lower the number of cells, shorten stack length, simplify module packaging, and reduce the physical footprint assigned to the electrolyzer hall. In brownfield retrofits or port facilities where land cost is high, this can be strategically valuable.

However, smaller stack area does not automatically mean a smaller total plant. The balance of plant may expand as current density rises because more aggressive thermal control, power electronics capacity, water recirculation, and gas handling measures are needed. A compact stack module can therefore coexist with a more demanding supporting infrastructure. Evaluators should distinguish between stack footprint and total site footprint.

This distinction matters in sovereign infrastructure planning where electrolysis is linked to compression, storage, liquefaction, ammonia synthesis, pipeline injection, or refueling corridors above 70 MPa. A few square meters saved at stack level may have less strategic value than a lower thermal and maintenance burden over the full hydrogen chain.

Sizing logic for technical comparison

A rigorous stack sizing review should move through four steps: define annual hydrogen output, model load profile, compare stack area at candidate current density bands, and then recalculate cooling and auxiliary loads. This prevents misleading comparisons where vendors present compact stacks without showing the corresponding impact on efficiency and support systems.

The table below outlines a practical comparison framework for utility-scale procurement teams.

The main takeaway is that stack sizing must be evaluated at plant level. For a 100 MW program, a 10% reduction in stack area is useful only if it does not trigger disproportionate increases in cooling capex, parasitic load, or service complexity. That is the level of discipline required for asset benchmarking at G-HEI scale.

Practical procurement criteria

1. Compare hydrogen output per stack and per module at the same ambient and pressure conditions.
2. Separate stack area savings from full balance-of-plant footprint changes.
3. Model lifecycle replacement and outage effects for 5-year, 10-year, and 15-year operation.
4. Assess maintainability, including cell access, spare parts strategy, and turnaround time.

Selection Guidance for Technical Evaluators and Investment Decision Teams

Choosing the right PEM stack current density (A/cm2) is ultimately a decision about project objective alignment. There is no universal ideal value across all hydrogen infrastructure strategies. Export-oriented hubs, grid-balancing electrolysis plants, industrial feedstock systems, and high-pressure mobility supply chains all place different weights on efficiency, ramping, compactness, durability, and maintenance planning.

For technical evaluators, the strongest approach is to define a weighted decision matrix before engaging vendors. A typical matrix may include 5 to 7 categories: stack efficiency, dynamic response, thermal integration, expected degradation, maintainability, standards compatibility, and total cost of ownership. This prevents the procurement process from overvaluing a single parameter such as maximum current density or shortest published footprint.

It is also important to align current density assessment with downstream hydrogen handling. Projects tied to liquefaction, pipeline blending, or ISO 19880 and SAE J2601 aligned fueling systems may require tighter output consistency and purity controls than projects focused on flexible grid absorption. In these cases, the “best” stack is often the one that maintains stable, repeatable performance under variable load rather than the one with the highest nameplate intensity.

A practical evaluation workflow

• Define target hydrogen production, annual operating hours, and expected renewable intermittency profile.
• Request vendor curves for PEM stack current density (A/cm2), cell voltage, kWh/kg, and temperature across the load range.
• Review thermal design basis, water quality specification, and degradation methodology.
• Map stack choice to downstream compression, storage, pipeline, or mobility infrastructure constraints.
• Test lifecycle economics using at least 3 scenarios: efficiency-led, compactness-led, and balanced operation.

FAQ for due diligence teams

How high is too high for PEM stack current density (A/cm2)?

There is no universal threshold, but caution should increase when current density claims move beyond mainstream commercial ranges without transparent lifecycle data. Any design promoted at the upper end of 2.2 to 3.0 A/cm2 should be checked for efficiency drift, heat rejection strategy, and long-duration stability evidence.

Should procurement teams prioritize lower kWh/kg over smaller footprint?

In many utility-scale projects, yes, because electricity is often the dominant long-term cost driver. But in constrained industrial sites or modular expansion programs, footprint and stack density may carry higher value. The correct answer depends on site economics, available land, power pricing, and service strategy.

What is the most common evaluation mistake?

The most common mistake is comparing PEM stack current density (A/cm2) without matching the surrounding assumptions. Different pressure conditions, temperature setpoints, overload allowances, and DC versus AC efficiency definitions can distort comparisons. Always normalize the data set before ranking options.

PEM stack current density (A/cm2) is a strategic design variable that influences three outcomes at once: hydrogen output per unit area, thermal stress across the electrolysis system, and the total stack area needed to meet a production target. Higher current density can improve compactness and raise specific output, but it usually adds voltage loss, heat management burden, and durability pressure that must be evaluated across the full asset lifecycle.

For sovereign-scale hydrogen programs, the right choice is rarely the highest current density on a brochure. It is the operating range that best aligns efficiency, thermal control, system sizing, maintainability, and downstream infrastructure requirements. G-HEI supports this kind of disciplined comparison by framing electrolyzer selection within broader zero-carbon asset security, safety, and performance benchmarking priorities.

If your team is reviewing PEM electrolysis options for large-scale deployment, now is the time to compare current density claims against real operating data, lifecycle assumptions, and integration constraints. Contact us to discuss a tailored technical benchmarking framework, request a structured evaluation checklist, or explore broader hydrogen infrastructure solutions across electrolysis, storage, transport, and end-use integration.
