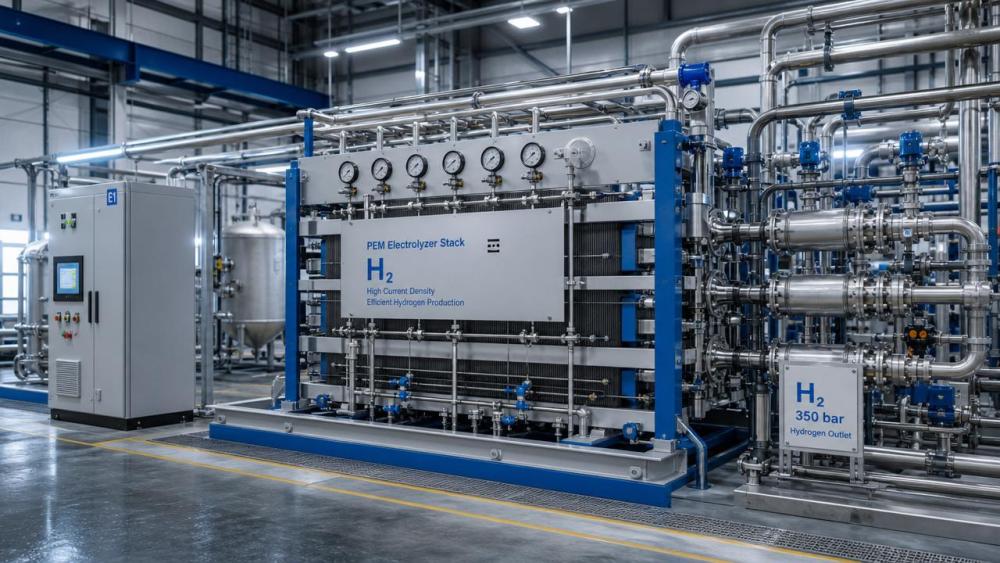

PEM Stack Current Density: Higher Output, Higher Stress?

In PEM electrolysis, raising PEM stack current density (A/cm2) can unlock higher hydrogen output and smaller system footprints—but it also intensifies thermal loads, mass-transport limits, membrane stress, and degradation risk. For technical evaluators, the real question is not simply how high current density can go, but where performance, durability, efficiency, and asset security remain in balance.

Why does PEM stack current density (A/cm2) matter so much in project evaluation?

For utility-scale hydrogen production, current density is not a lab curiosity. It directly shapes stack area, skid footprint, power density, balance-of-plant sizing, cooling duty, and long-term replacement strategy. A higher PEM stack current density (A/cm2) can reduce active area requirements for the same hydrogen output, which is attractive where space, CAPEX density, or modularity matter.

However, technical evaluators rarely approve a stack based on nameplate output alone. They must judge whether the gain in production rate justifies the penalties in cell voltage, heat generation, water management sensitivity, catalyst stress, and lifetime uncertainty. In large sovereign or strategic decarbonization programs, that trade-off becomes even more important because failure risk propagates across storage, transport, and power conversion assets.

G-HEI approaches this issue from an infrastructure perspective rather than a single-component perspective. In practice, the acceptable operating window for PEM stack current density (A/cm2) depends on how the electrolyzer integrates with hydrogen compression, liquid hydrogen logistics, gas turbine fuel blending, refueling systems, and plant-level compliance expectations.

• Higher current density can increase hydrogen production per unit stack area.
• It often raises cell voltage, which can reduce system efficiency if not offset by design improvements.
• It may accelerate membrane, catalyst layer, porous transport layer, and bipolar plate stress.
• It changes procurement logic, because the cheapest stack on day one may become the costliest asset over service life.

What changes inside the stack as current density rises?

When PEM stack current density (A/cm2) increases, electrochemical reaction rates rise, but so do the losses. Activation losses become less dominant at high-quality catalyst interfaces, while ohmic and mass-transport losses become increasingly visible. This means the stack may still produce more hydrogen, but each incremental ampere can cost more voltage and more thermal management effort.

The membrane sees greater ionic flux and often a harsher hydration gradient. The anode side can experience oxygen evolution intensification, while the cathode side must sustain stable hydrogen generation and pressure management. If water distribution, pressure differential, or temperature uniformity are poorly controlled, local dry-out or flooding can emerge, both of which undermine durability.

Key technical effects evaluators should track

• Cell voltage rise at target production rate, not just at beginning-of-life but across the expected degradation curve.
• Heat rejection requirements, including coolant loop sizing and thermal gradients across large active areas.
• Mass-transport stability under dynamic operation, especially for renewable-powered duty cycles with ramping.
• Pressure differential tolerance across the membrane during start-stop events and load transitions.
• Material compatibility of titanium components, coatings, seals, and catalyst support structures under sustained high load.

In other words, PEM stack current density (A/cm2) is not an isolated performance number. It is a stress multiplier. That is why serious evaluations should connect electrochemical data to mechanical integrity, water purity controls, and downstream hydrogen conditioning requirements.

Which performance metrics should be reviewed together, not separately?

One common procurement mistake is treating hydrogen output, efficiency, and lifetime as separate checkboxes. They are linked. The table below helps technical evaluators assess PEM stack current density (A/cm2) in a multi-variable framework rather than through a single headline figure.

The strongest proposals show these metrics as an integrated operating envelope. If a supplier promotes very high PEM stack current density (A/cm2) but provides weak lifecycle evidence, technical risk remains high even when day-one output looks attractive.

How should evaluators compare low, moderate, and aggressive operating strategies?

Different project objectives justify different current density targets. A hydrogen refueling hub with space constraints may tolerate a more aggressive design than a remote strategic production facility where maintenance access is limited. The goal is not to maximize PEM stack current density (A/cm2) at all costs, but to match the operating strategy to the asset mission.

This comparison is especially useful when assessing sovereign-scale hydrogen infrastructure. For example, a project feeding cryogenic liquefaction or high-pressure mobility systems may value production density, but not if upstream electrolyzer volatility compromises downstream scheduling or safety margins.

Which application scenarios justify higher PEM stack current density (A/cm2)?

Not every installation benefits equally from pushing current density upward. Technical evaluators should map stack operating philosophy to the real duty cycle, maintenance model, and hydrogen offtake profile.

Scenarios where higher current density may be justified

• Urban or port-adjacent sites where footprint restrictions increase the value of compact stack architecture.
• Renewable integration projects that need high output from modular skids during favorable power windows.
• High-throughput hydrogen refueling infrastructure where production density and buffering strategy are closely linked.
• Projects with advanced thermal management, strong water treatment capability, and disciplined predictive maintenance programs.

Scenarios where caution is warranted

• Remote installations where service access is difficult and unplanned stack intervention is operationally expensive.
• Projects with unstable water quality control, because contamination and hydration imbalance become more punishing at higher loads.
• Mission-critical supply chains where downtime penalties outweigh the savings from smaller active area.
• Facilities expected to run under wide dynamic ramps without robust control logic and validated transient data.

For G-HEI, this scenario-based assessment is essential because electrolyzer design does not live in isolation. It affects hydrogen logistics, power integration, fueling reliability, and compliance planning across the broader zero-carbon infrastructure chain.

What should procurement teams ask suppliers before approving a stack?

A vendor may advertise a compelling PEM stack current density (A/cm2), but the technical file must explain how that number is achieved and sustained. Procurement teams should move beyond headline current density and request evidence that links design choices to operating reality.

1. Ask for the rated operating window, not only the peak demonstrated point. Peak values may be short-duration or test-specific.
2. Request beginning-of-life and projected end-of-life voltage behavior at the same current density and temperature conditions.
3. Verify water purity requirements, coolant specifications, pressure limits, and transient response assumptions.
4. Review maintenance intervals, stack replacement philosophy, seal inspection procedures, and spare-parts strategy.
5. Confirm how the supplier addresses material integrity in titanium hardware, coatings, gaskets, and porous transport structures.
6. Check whether the control system includes logic for gas crossover alarms, temperature excursions, and differential pressure protection.

These questions are particularly relevant for public or strategic infrastructure tenders, where technical assessment must account for lifecycle resilience, not just initial equipment density. G-HEI supports this process by benchmarking electrolysis assets against broader infrastructure expectations and internationally recognized engineering frameworks.

How do standards and compliance affect current density decisions?

PEM stack current density (A/cm2) is often discussed as a performance variable, but it also has compliance implications. Higher operating intensity influences temperature control, gas purity assurance, pressure boundary confidence, and safe interaction with downstream storage or fueling systems. Technical evaluators should therefore connect stack data with the relevant codes and standards governing hydrogen facilities.

While a stack itself is only one subsystem, its operating profile can affect how the entire plant demonstrates safe design basis and operational control. In hydrogen infrastructure projects, references such as ISO 19880, ASME B31.12, and SAE J2601 help frame downstream expectations for fueling, piping integrity, and handling discipline. Upstream electrolyzer behavior must not undermine those requirements.

Compliance checkpoints to review

• Whether stack operating limits are clearly translated into plant interlocks and shutdown sequences.
• Whether hydrogen purity and moisture management support the needs of compression, storage, liquefaction, or refueling systems.
• Whether pressure-containing components and associated piping align with the intended service class and safety philosophy.
• Whether dynamic operation under renewable input has been considered in hazard reviews and operating procedures.

For evaluators, this means the best current density decision is usually the one that remains compatible with the full hydrogen value chain, not the one that only looks strongest in a narrow stack-level comparison.

Common misconceptions technical evaluators should avoid

“Higher current density always means a better stack”

Not necessarily. A higher PEM stack current density (A/cm2) may improve power density but still reduce project value if it drives excessive voltage, more frequent maintenance, or stricter water-treatment burdens.

“Efficiency losses can be ignored if electricity is cheap”

Cheap power does not erase thermal stress, degradation acceleration, or downstream operational impacts. Over a multi-year asset life, small voltage penalties can compound into major energy and maintenance consequences.

“A compact stack automatically lowers total project cost”

Compactness may reduce footprint-related costs, but it can also require more advanced cooling, tighter water conditioning, and more disciplined controls. Total installed and lifecycle cost should be reviewed together.

FAQ: practical questions about PEM stack current density (A/cm2)

How should I compare two suppliers if both claim high PEM stack current density (A/cm2)?

Compare them at the same temperature, pressure, water quality, and degradation assumptions. Ask for rated voltage at the claimed operating point, expected lifetime behavior, and control strategy during ramping and shutdown. A fair comparison requires a normalized duty basis.

Is higher current density better for renewable-powered electrolyzers?

It can be, especially when the project wants to maximize hydrogen production during limited renewable availability windows. But dynamic operation adds stress. The stack must demonstrate stable transient response, thermal control, and acceptable degradation under frequent load changes.

What is the biggest hidden risk in chasing a very high operating point?

The biggest hidden risk is usually not a single catastrophic failure. It is the accumulation of smaller penalties: higher voltage, narrower operating margins, more demanding water purity, greater thermal load, and earlier stack service. Together, these can erode project economics and reliability.

When should a project deliberately choose a more moderate current density?

A moderate approach is often preferable when the plant is remote, downtime is costly, compliance expectations are strict, or hydrogen supply continuity matters more than compactness. Many strategic infrastructure projects fit this profile.

Why choose us for hydrogen infrastructure benchmarking and technical evaluation support?

G-HEI helps technical evaluators move beyond isolated stack claims and assess PEM stack current density (A/cm2) in the context of sovereign-grade hydrogen infrastructure. Our perspective spans megawatt-scale electrolysis systems, cryogenic liquid hydrogen logistics, hydrogen-ready gas turbine integration, CCUS-adjacent decarbonization pathways, and high-pressure refueling architecture.

This multidisciplinary scope matters because the best electrolysis decision is the one that stays bankable, maintainable, and compliant across the full zero-carbon asset chain. We support evaluation teams with structured benchmarking logic tied to material integrity, safety frameworks, efficiency trade-offs, and downstream compatibility.

• Parameter confirmation for stack operating window, voltage behavior, thermal duty, and water quality sensitivity.
• Selection support comparing conservative, balanced, and high-intensity PEM stack current density (A/cm2) strategies.
• Guidance on delivery planning, spare philosophy, and integration constraints affecting project schedule risk.
• Review of compliance considerations linked to hydrogen handling, piping integrity, and refueling or storage interfaces.
• Discussion of customized evaluation frameworks for national-scale, utility-scale, or mobility-linked hydrogen assets.
