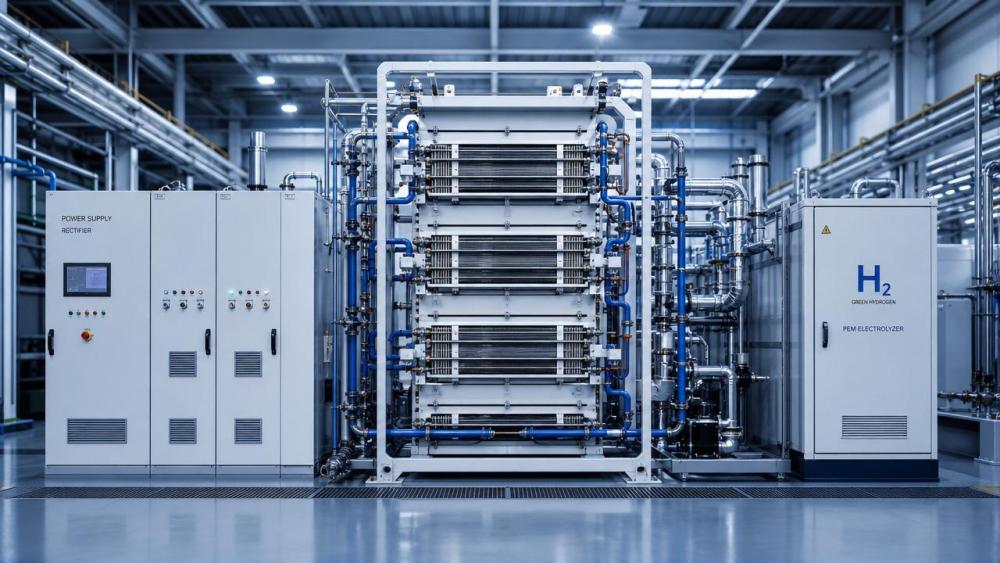

PEM Stack Current Density: How Higher A/cm2 Affects Real Plant Performance

PEM stack current density (A/cm2) is often promoted as a shortcut to smaller footprints and lower capex, but real plant performance depends on far more than nameplate intensity. For technical evaluators, the key question is how higher operating current impacts efficiency, heat management, degradation, balance-of-plant loading, and long-term reliability under utility-scale conditions.

In megawatt-scale hydrogen projects, current density is not a marketing detail. It directly shapes stack sizing, DC power demand, thermal control strategy, water management, gas quality, and maintenance intervals. A design that looks attractive at 2.5 A/cm2 on a datasheet can become less compelling when assessed at plant level, where auxiliary loads, dynamic duty cycles, and annual availability matter more than a single operating point.

For technical assessment teams working under sovereign decarbonization mandates, the practical question is not whether higher PEM stack current density is possible, but under which boundary conditions it improves total project value. That means comparing stack-level gains against efficiency penalties, thermal stress, material demands, and balance-of-plant implications across 10 MW, 100 MW, and larger deployment scenarios.

Why PEM Stack Current Density Matters Beyond Footprint

At a basic level, higher PEM stack current density allows more hydrogen production per unit active area. If a stack operates at 1.0 A/cm2 versus 2.0 A/cm2, the higher-current design can theoretically deliver similar output with roughly half the active membrane area, assuming comparable cell voltage and utilization. This can reduce stack count, compression hardware interfaces, and some enclosure costs.

However, the trade-off is rarely linear. As current density rises, cell voltage also rises due to activation, ohmic, and mass transport losses. That means energy consumption per kilogram of hydrogen typically increases. In practical evaluation, many utility-scale PEM systems show a more favorable efficiency window around moderate operating ranges, while very high current operation is often reserved for peak throughput or constrained footprint cases rather than continuous baseload duty.

The Stack-Level Logic

Current density, expressed in A/cm2, links total current to electrode active area. When the same membrane-electrode assembly is pushed from 1.5 A/cm2 to 2.5 A/cm2, hydrogen output increases, but so do resistive heating, water transport requirements, and local reactant distribution challenges. Even a 100 mV to 200 mV increase in average cell voltage can have a material effect on plant electricity cost over 60,000 to 80,000 operating hours.

Technical evaluators should therefore separate three different claims that are often bundled together: compact stack architecture, lower first-cost per installed kilowatt, and lower levelized hydrogen cost. A stack can improve the first two while weakening the third if higher A/cm2 causes a 3% to 8% rise in specific energy consumption or shortens major stack replacement intervals.

What Changes at Plant Scale

At plant scale, the effect of PEM stack current density extends into transformers, rectifiers, deionized water systems, cooling loops, gas separators, dryers, and controls. A more aggressive current density target can reduce stack hall footprint by 10% to 30% in some layouts, yet increase cooling duty and raise the sensitivity of the plant to flow maldistribution, transient ramping, and water purity deviations.

This is especially relevant for projects tied to variable renewable energy. Under frequent cycling, stack operation near the upper end of the polarization curve can magnify thermal and electrochemical stress during starts, stops, and load swings. In such cases, design margins and real dispatch logic become more important than headline current density alone.

The table below helps frame the core engineering trade-offs technical evaluators should examine when comparing moderate and high PEM stack current density operation.

The key conclusion is that higher PEM stack current density can be an advantage, but only when plant architecture, duty cycle, and service strategy are designed around it. Without that integration, stack compactness may simply shift cost and risk into power electronics, cooling systems, and lifecycle performance.

How Higher A/cm2 Influences Efficiency, Heat, and Degradation

The strongest technical debate around PEM stack current density usually centers on three interconnected variables: efficiency, thermal load, and durability. These are not separate topics. In practice, a 15% to 25% increase in current density can alter all three at once, changing the plant’s economics over a 15-year to 20-year project horizon.

Efficiency Penalty at Higher Current Density

Electrolyzer efficiency declines as current density rises because overpotentials increase. For a technical evaluator, the relevant metric is not only stack efficiency at beginning of life, but average system efficiency across annual operation. If operation shifts from a lower cell voltage band to a higher one, even a modest increase in specific consumption can accumulate into millions of kilowatt-hours at a 100 MW facility.

For example, if two design options differ by 2 kWh/kg H2 under expected operating conditions, the annual impact becomes substantial once production reaches tens of thousands of tons per year. That is why evaluation should be based on the expected load profile, not the best single-point performance shown at partial load or nominal temperature.

What to Request from Suppliers

• Polarization curves covering at least 20%, 50%, 80%, and 100% load
• Specific energy consumption in kWh/kg H2 at beginning and expected mid-life condition
• Temperature-corrected operating windows, for example 50°C to 80°C
• Guaranteed performance bands rather than isolated best-case values

Heat Rejection and Cooling Complexity

Higher PEM stack current density increases heat generation per unit active area. This raises coolant flow demand, heat exchanger duty, and control sensitivity. In large installations, the issue is not only total thermal load, but local hot spots. Uneven temperature distribution can accelerate membrane thinning, catalyst degradation, and gasket stress, especially during ramp events or under suboptimal water distribution.

For plants in hot climates or water-constrained regions, cooling design deserves extra scrutiny. A stack that performs well in a controlled factory acceptance test may face tighter margins at a site with summer ambient temperatures above 35°C, seasonal cooling-water variability, or aggressive renewable ramp profiles. Under these conditions, thermal headroom is a strategic design parameter, not a secondary utility issue.

Durability and Degradation Pathways

Durability concerns become more pronounced at higher A/cm2 because electrochemical and mechanical stresses intensify. Technical teams should examine membrane hydration stability, catalyst layer utilization, titanium component coatings, differential pressure control, and impurity tolerance. In PEM systems, degradation rarely comes from one factor alone; it is often the combined result of current density, thermal gradients, cycling severity, and water quality control.

A supplier may claim acceptable degradation at 2.5 A/cm2, but evaluators need to ask under what duty assumptions. Was the test based on steady-state operation, daily cycling, or renewable-following dispatch with multiple ramp events per hour? A stack designed for 60,000 hours at moderate current may not deliver the same service interval when regularly pushed toward peak current density.

Balance-of-Plant Effects: Where Plant Reality Often Overrides Stack Claims

Many procurement decisions overemphasize stack compactness and underweight balance-of-plant consequences. Yet for a utility-scale PEM electrolyzer, rectifiers, transformers, water treatment, hydrogen purification, cooling equipment, controls, and safety systems can represent a major share of complexity, interfaces, and outage risk. A higher PEM stack current density can reduce stack count, but it may also intensify auxiliary system loading.

Power Electronics and Electrical Design

As current density rises, current handling requirements through busbars, rectifiers, and power conditioning equipment become more demanding. Evaluators should examine current ripple limits, rectifier efficiency, heat dissipation, and maintainability. Small percentage losses in DC conversion become highly visible at 20 MW, 50 MW, or 100 MW scale.

Electrical architecture should also be checked for part-load behavior. A plant optimized around peak current density can be less flexible when renewable input falls to 30% to 50% of nominal capacity. This matters where the business model depends on following intermittent wind or solar rather than operating on a stable baseload contract.

Water, Gas Quality, and Separation Load

At higher stack intensities, water flow control and gas-liquid separation become tighter operational priorities. Inadequate water management can contribute to membrane dehydration, local resistance increase, and off-spec gas purity. For projects supplying hydrogen to ammonia synthesis, refueling infrastructure, or turbine co-firing, downstream purity and moisture control may carry contractual implications that go beyond electrolyzer efficiency alone.

The evaluation process should therefore include hydrogen purity targets, oxygen crossover thresholds, separator residence times, and dryer loading under transient operation. These factors are especially important where the plant must comply with multiple interface standards across production, storage, and transport boundaries.

The following table summarizes how higher PEM stack current density can shift requirements across key balance-of-plant functions.

For most large projects, the main lesson is clear: stack current density should be judged as a plant design variable, not a standalone performance trophy. The more aggressive the A/cm2 target, the more carefully evaluators must verify the supporting electrical, thermal, and fluid systems.

A Practical Evaluation Framework for Technical Assessment Teams

A robust procurement or benchmarking process should compare PEM stack current density claims against actual project constraints. For G-HEI-aligned evaluations, that usually means aligning stack operating range with grid profile, water availability, heat rejection conditions, maintenance strategy, safety envelope, and downstream hydrogen specification. A useful approach is to evaluate at least three operating scenarios rather than one nominal point.

Recommended Three-Scenario Review

1. Base-load case at 70% to 90% capacity factor
2. Renewable-following case with frequent ramps and 20% to 100% load swings
3. Constrained-footprint case where CAPEX per square meter is strategically important

This framework prevents a common mistake: selecting the highest current density option because it appears best in a single CAPEX comparison, while ignoring the dispatch regime that will actually define annual hydrogen cost and service life.

Six Questions to Ask Before Accepting a High A/cm2 Claim

• At what temperature, pressure, and water quality is the claimed PEM stack current density achieved?
• Is the figure continuous-duty capable, or only a peak operating limit?
• What is the guaranteed degradation rate under the expected duty cycle?
• How does specific energy consumption change across 1.5, 2.0, and 2.5 A/cm2?
• What balance-of-plant upgrades are required to support higher thermal and electrical loading?
• What maintenance interval and stack replacement philosophy supports the design basis?

Standards and Interface Discipline

For sovereign-scale hydrogen infrastructure, stack benchmarking should not be isolated from broader compliance architecture. Interfaces with storage, transfer, refueling, and hydrogen-fired power applications must be assessed against recognized engineering frameworks such as ISO 19880, ASME B31.12, and SAE J2601 where relevant to the downstream chain. Higher PEM stack current density is only valuable if the produced hydrogen can be delivered safely and consistently into the next asset boundary.

What a Strong Supplier Response Looks Like

A credible supplier will provide operating envelopes, not just promotional peaks. That includes stack maps, transient response data, expected efficiency by load band, water quality requirements, cooling design assumptions, and degradation expectations over defined hours and start-stop counts. Technical assessment personnel should view incomplete boundary-condition disclosure as a material evaluation gap, especially for projects above 10 MW where integration risk multiplies quickly.

Where Higher PEM Stack Current Density Makes Sense—and Where It Does Not

Higher PEM stack current density is often most attractive in projects where footprint is genuinely constrained, grid connection costs dominate, or short-duration peak hydrogen output has outsized commercial value. Examples may include industrial retrofits with limited available plot area, port-side installations with high civil costs, or hybrid systems that need to absorb short renewable surges.

It may be less attractive in projects optimized for lowest long-run electricity consumption, sites with limited cooling margin, or deployments where maintenance access and long service intervals matter more than equipment compactness. In those cases, a moderate current density strategy may deliver a better lifecycle result even if the initial footprint is larger.

For technical evaluators, the decision should rest on project-specific optimization: capex per installed kilowatt, kWh per kilogram hydrogen, thermal management complexity, expected stack life, and the cost of downtime. Those five dimensions are usually more decision-relevant than headline A/cm2 alone.

Real plant performance is shaped by how PEM stack current density interacts with efficiency, heat removal, degradation behavior, and balance-of-plant design under actual duty cycles. A higher A/cm2 can be a strategic advantage, but only when the full system is engineered to support it and when lifecycle economics still hold at scale.

For ministries, utility CTO teams, and technical investment evaluators building hydrogen infrastructure with long asset lives and strict safety expectations, benchmark current density claims against operating envelopes, plant integration demands, and standards-aligned reliability criteria. To assess project fit more precisely, contact G-HEI to obtain a tailored benchmarking framework, technical comparison matrix, or application-specific hydrogen infrastructure review.
