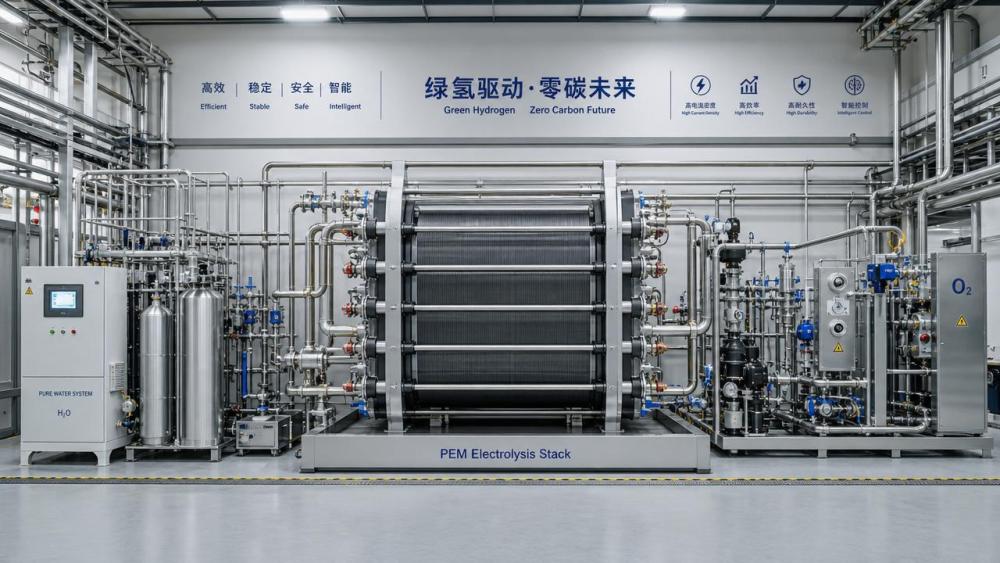

PEM Stack Current Density: When Higher A/cm2 Improves Value—and When It Doesn’t

PEM stack current density (A/cm2) is often treated as a shortcut to lower CAPEX and higher output, but for technical evaluators, the real value depends on efficiency, durability, thermal management, and balance-of-plant tradeoffs. This article examines when pushing current density improves project economics—and when it introduces hidden risks that weaken lifetime performance and sovereign-scale hydrogen asset reliability.

Why a checklist approach is the right way to assess PEM stack current density (A/cm2)

For technical assessment teams, PEM stack current density (A/cm2) should never be judged as a standalone performance headline. A higher operating point can reduce stack footprint, shrink active area, and improve nominal hydrogen output per unit of installed stack material. However, those gains only matter if system efficiency, degradation rate, thermal stability, water management, and downstream equipment loading stay within acceptable limits.

That is why a checklist is more useful than a marketing comparison. It helps evaluators move from “higher is better” to “higher under which constraints, for which duty cycle, and with what lifetime cost?” In utility-scale electrolysis and sovereign hydrogen infrastructure, the correct decision is often not the maximum current density tested in a brochure, but the current density range that protects bankability, availability, and asset integrity over years of operation.

Start with the first-screen questions before comparing suppliers

Before reviewing detailed stack curves, technical evaluators should confirm several framing questions. These determine whether a high PEM stack current density (A/cm2) is actually valuable for the project.

• Is the project optimized for lowest initial stack CAPEX, lowest levelized cost of hydrogen, or longest service life? These objectives can point to different current density choices.
• Will the plant run at baseload, renewable-following duty, or frequent ramping service? Dynamic operation can magnify the stress associated with high current density.
• Are electrical efficiency targets defined at stack level or system level? A favorable stack metric may be offset by balance-of-plant penalties.
• What are the required maintenance intervals, availability guarantees, and replacement assumptions? Higher output today is less attractive if mid-life stack changeouts arrive early.
• Are site conditions challenging, such as limited cooling capacity, variable water quality, aggressive ambient temperatures, or grid instability? These can narrow the safe operating window.

If these questions are not resolved first, a current density comparison can become misleading, especially in procurement exercises where different vendors quote different assumptions for cell voltage, degradation, pressure, and auxiliaries.

Core evaluation checklist: when higher current density creates real value

A higher PEM stack current density (A/cm2) can improve value when several conditions are simultaneously true. Technical reviewers should use the following checklist as a practical decision filter.

1. Check whether stack area reduction translates into meaningful installed cost savings

The main advantage of higher current density is that less active area is needed for the same hydrogen output. This may reduce membrane area, catalyst-coated area, bipolar plate count, and stack enclosure size. But evaluators should verify whether those savings remain material after including compression, rectification, cooling, water purification, gas handling, and safety systems. In many large plants, stack CAPEX is only one part of total installed cost, so the value uplift may be smaller than expected.

2. Verify efficiency at the actual operating point, not at a favorable low-load reference

As PEM stack current density (A/cm2) rises, cell voltage generally increases, which reduces electrical efficiency. The correct question is not whether the stack can run at high current density, but what specific energy consumption looks like there in kWh/kg H2. Review full polarization data, not isolated nameplate values. Also check whether auxiliary loads rise because of stronger cooling demand, water recirculation requirements, or pressure management.

3. Confirm the degradation curve under realistic duty cycles

Higher PEM stack current density (A/cm2) often raises electrochemical and thermal stress. That can accelerate membrane thinning, catalyst degradation, interfacial resistance growth, and mechanical fatigue. Ask for durability data under start-stop cycling, load-following, and partial-load operation if the plant will be linked to intermittent renewables. A strong beginning-of-life performance number is not enough without end-of-life evidence.

4. Evaluate heat rejection limits and thermal uniformity

At elevated current density, heat generation rises quickly. Review whether coolant design, channel distribution, and plate geometry maintain uniform temperature across the active area. Localized hotspots can drive non-uniform aging and shorten stack life. For multi-megawatt systems, this is not a laboratory detail; it directly affects maintainability and fleet reliability.

5. Check gas purity, crossover risk, and pressure operating conditions

High current density can influence differential pressure management and membrane transport behavior. Technical evaluators should confirm gas crossover limits, purity performance, and transient control logic at both normal and abnormal conditions. This is especially important where hydrogen quality specifications and downstream compression or storage standards are strict.

A practical comparison table for technical evaluators

Use the table below to decide whether a higher PEM stack current density (A/cm2) improves project value or simply shifts cost and risk elsewhere.

When higher PEM stack current density (A/cm2) usually makes strategic sense

There are several project conditions where pushing current density can be justified and economically sound.

• Space-constrained installations, where stack footprint and equipment density matter significantly.
• Projects with expensive stack materials, where reducing active area yields a strong capital benefit.
• Facilities with robust cooling, purified water, and disciplined operating controls that can support tighter electrochemical margins.
• Applications where utilization is high and throughput revenue strongly rewards compact, high-output operation.
• Mature operator environments that can monitor cell voltage spread, thermal behavior, and degradation trends in real time.

In these cases, a higher PEM stack current density (A/cm2) can improve asset productivity without undermining lifetime value, provided the data package is transparent and the operating envelope is well validated.

When it usually does not improve value

Technical evaluators should be cautious when high current density is used to compensate for weak system design or to win bids on nameplate compactness alone. It often fails to improve real value in the following situations:

• Renewable-coupled plants with frequent starts, stops, and wide-load swings.
• Projects where electricity cost dominates economics, making efficiency losses more expensive than stack savings.
• Sites with constrained heat rejection or uncertain water-treatment reliability.
• Programs with strict lifetime guarantees, limited maintenance access, or strategic requirements for sovereign-scale reliability.
• Procurements where vendors present different test temperatures, pressures, or degradation assumptions, masking like-for-like comparison.

Common blind spots that distort PEM stack current density (A/cm2) decisions

Several issues are regularly overlooked during technical evaluation. Each can turn an apparently attractive current density target into a lifetime performance problem.

Ignoring end-of-life efficiency

A stack that is acceptable at beginning-of-life may become unattractive after voltage degradation accumulates. Review the full efficiency profile at both initial and projected end-of-life conditions.

Comparing stack data without system context

PEM stack current density (A/cm2) can look impressive in isolated stack tests but deliver weaker system economics once cooling skids, power electronics, controls, and gas processing loads are included.

Underestimating materials and sealing stress

Higher electrochemical intensity may increase demands on membranes, coatings, seals, and compression hardware. Material compatibility and mechanical integrity should be checked against long-term operating pressure and thermal cycling.

Treating peak capability as normal operating strategy

Some stacks can temporarily reach a high current density, but that does not mean they should live there continuously. Evaluators should distinguish between peak, rated, and economically optimal operation.

Execution guidance: what to request from vendors and internal teams

If your organization is evaluating PEM stack current density (A/cm2) for large-scale hydrogen assets, prioritize the following information package before advancing a shortlist:

1. Polarization curves across the proposed operating temperature and pressure range.
2. Specific energy consumption at stack and system level for the expected load profile.
3. Durability data expressed in voltage degradation rate under both steady and dynamic operation.
4. Thermal maps, cooling design margins, and fault-response logic for hotspot prevention.
5. Hydrogen purity, crossover, and safety performance under transient conditions.
6. Replacement strategy, service intervals, spare philosophy, and lifecycle cost assumptions.
7. Evidence that performance claims align with recognized engineering, safety, and materials standards relevant to utility-scale hydrogen infrastructure.

Decision rule for technical evaluators

A simple rule helps: higher PEM stack current density (A/cm2) improves value only when the stack-area savings exceed the combined penalties from lower efficiency, faster degradation, tighter thermal constraints, and more demanding balance-of-plant support. If that proof is incomplete, the safer assumption is that the project is shifting cost from visible CAPEX into hidden operating and replacement risk.

For G-HEI-style sovereign benchmarking, the most credible option is rarely the highest published figure. It is the operating window that preserves technical security, compliance discipline, and predictable hydrogen output across the full asset life.

Next-step questions to prepare before deeper engagement

If you need to confirm parameter suitability, system fit, delivery scope, or long-term value, prepare these questions first: What is the target operating current density range, not just the maximum? At what cell voltage and temperature is it achieved? How does degradation change under renewable-linked cycling? What cooling and water-treatment margins are required? What is the expected stack replacement interval at the proposed duty cycle? And how do system-level kWh/kg H2, availability, and maintenance assumptions compare on a normalized basis across vendors?

Those answers will do far more to validate PEM stack current density (A/cm2) than any isolated headline number, and they are the right foundation for technical due diligence, budget validation, and strategic procurement in zero-carbon hydrogen infrastructure.
