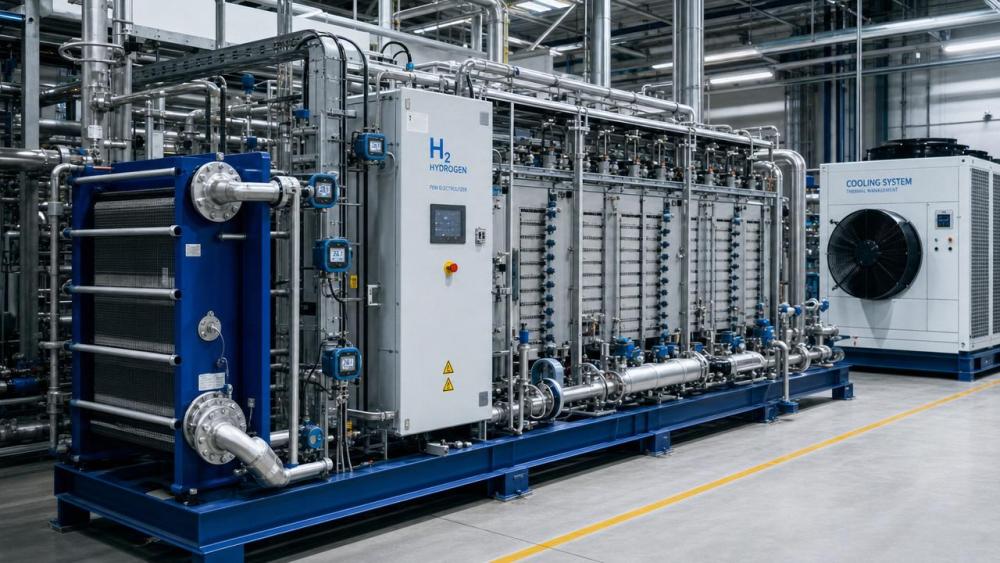

Thermal Management Efficiency: A Fast Way to Compare PEM System Design

For technical evaluators comparing PEM architectures, thermal management efficiency is one of the fastest indicators of system robustness, stack longevity, and operating stability. In hydrogen projects where performance must align with strict safety, materials, and efficiency benchmarks, a clear thermal comparison framework helps identify designs that can scale reliably under sovereign-grade decarbonization requirements.

Why thermal management efficiency is a decisive screening metric in PEM system evaluation

In PEM electrolysis, heat is never a secondary variable. It directly affects membrane hydration, catalyst utilization, gas purity stability, balance-of-plant loading, and the degradation rate of stack materials. For technical evaluators working on utility-scale hydrogen assets, thermal management efficiency offers a fast way to compare PEM system design because it exposes how well the architecture handles real operating stress rather than only nameplate performance.

A system may show attractive current density or compact footprint on paper, yet still underperform if its thermal control loop cannot maintain stable temperature across load swings, ambient changes, and part-load operation. That gap matters in the broader hydrogen economy, where sovereign-scale projects must integrate electrolysis with power markets, storage assets, refueling systems, and safety frameworks without creating hidden thermal bottlenecks.

For organizations benchmarking assets through a framework like G-HEI, thermal management efficiency also acts as a bridge metric. It links stack-level design choices to material integrity, system reliability, maintenance planning, and compliance readiness across high-value zero-carbon infrastructure programs.

• It reveals whether heat rejection capacity is matched to rated and transient operating conditions.
• It helps identify uneven temperature distribution that can accelerate membrane and gasket wear.
• It indicates how much auxiliary power the cooling loop consumes relative to hydrogen output.
• It supports procurement decisions where uptime, safety margin, and lifecycle economics matter more than brochure efficiency.

What technical evaluators should compare first when reviewing PEM thermal design

When teams are under pressure to shortlist vendors quickly, they need practical comparison dimensions. Thermal management efficiency should be reviewed through measurable design signals rather than vague claims about optimized cooling. The table below summarizes the first-pass screening areas that usually separate resilient PEM architectures from designs that may face operating instability later.

This screening approach helps evaluators avoid a common mistake: treating thermal management efficiency as a narrow cooling-spec issue. In reality, it is a system-level indicator of how well stack, controls, fluid handling, and heat rejection hardware work together under realistic duty cycles.

Key questions to ask during technical review

1. How does the system maintain temperature stability from minimum turndown to rated output?
2. What is the expected temperature spread across the stack at steady state and during ramping?
3. How much auxiliary power is required for cooling at site-specific ambient conditions?
4. What materials in the wetted cooling path are exposed to corrosion, scaling, or contamination risk?
5. What operating data can be provided to verify thermal management efficiency beyond factory acceptance claims?

How thermal management efficiency affects stack life, uptime, and safety margins

For technical evaluators, the real value of comparing thermal management efficiency lies in downstream consequences. Stable thermal behavior protects stack components from avoidable stress. Temperature imbalance can contribute to membrane drying in some regions, excessive hydration in others, uneven current distribution, and sealing fatigue over repeated cycles.

These effects do not stay inside the stack. They influence gas separation performance, water management, shutdown frequency, and maintenance planning for pumps, heat exchangers, and sensors. In large hydrogen projects, thermal instability can also complicate integration with downstream compression, storage, liquefaction preconditioning, or refueling operations that depend on predictable hydrogen flow and purity.

Typical operational consequences of weak thermal control

• Higher degradation uncertainty, making warranty interpretation and replacement planning more difficult.
• Reduced availability during hot weather or fast renewable power fluctuations.
• Greater balance-of-plant energy use, lowering delivered hydrogen competitiveness.
• Narrower safety margin when combined with pressure dynamics, impurity risk, or off-design operations.

This is why institutions using G-HEI-style benchmarking do not isolate PEM stacks from the wider zero-carbon infrastructure chain. A thermally unstable electrolyzer can weaken the performance logic of adjacent systems, from cryogenic logistics planning to hydrogen-ready turbine fuel assurance.

PEM architecture comparison: which design choices usually improve thermal management efficiency?

Not every PEM system design handles heat in the same way. Some architectures prioritize compactness and high current density. Others emphasize maintainability, modularity, or dynamic response. The comparison below highlights design choices that technical evaluators should interpret carefully when assessing thermal management efficiency.

No single design choice is automatically superior. The strongest PEM system design is the one that delivers balanced thermal management efficiency across steady operation, transient duty, maintainability, and site-specific climate conditions.

A practical interpretation rule

If a vendor emphasizes high stack power density but provides limited information on thermal spread, coolant control logic, or auxiliary load at peak ambient conditions, evaluators should treat the proposal as incomplete. Thermal management efficiency is only meaningful when performance, heat rejection, and reliability are reviewed together.

What procurement teams should request before selecting a PEM system

Procurement and technical assessment often fail at the handoff point between design claims and bankable evidence. For hydrogen programs tied to national infrastructure, utility-scale decarbonization, or strategic industrial fuel switching, the procurement package must translate thermal management efficiency into verifiable documentation.

Recommended request list for vendor clarification

• Thermal balance summary at rated load, part load, and rapid ramp conditions.
• Cooling loop process and instrumentation diagram with control points identified.
• Auxiliary power breakdown showing pump, fan, and heat rejection energy consumption.
• Expected operating envelope across ambient temperature, water quality, and altitude assumptions.
• Material compatibility details for cooling and adjacent process circuits, especially where corrosion or contamination risk could influence stack life.
• Alarm, derating, and shutdown logic tied to overtemperature events.

These requests are especially relevant when comparing systems intended for integration with variable renewable power, export hydrogen corridors, or refueling infrastructure that must align with broader international frameworks such as ISO 19880, ASME B31.12, and SAE J2601 at the downstream interface level.

How G-HEI supports sovereign-grade thermal comparison across the hydrogen value chain

G-HEI’s value for technical evaluators lies in structured benchmarking. Instead of reviewing PEM system design in isolation, G-HEI frames thermal management efficiency within the five interconnected pillars of zero-carbon infrastructure: megawatt-scale electrolysis, cryogenic hydrogen logistics, hydrogen-ready gas turbine power, CCUS infrastructure, and high-pressure refueling systems.

This multidisciplinary lens matters because thermal design decisions in electrolysis affect the wider asset chain. A PEM system with unstable thermal behavior can alter hydrogen delivery consistency, increase compression duty planning uncertainty, and complicate reliability assumptions for export, storage, or mobility applications. By benchmarking against recognized safety, materials, and performance frameworks, G-HEI helps decision-makers compare systems on asset security rather than isolated component claims.

Where this approach adds value for evaluators

1. It shortens the time needed to identify whether thermal management efficiency claims are operationally credible.
2. It connects stack-level thermal behavior to material integrity and infrastructure compatibility.
3. It supports high-stakes procurement where uptime, compliance, and capital discipline must be aligned.
4. It reduces the risk of selecting designs that appear efficient but create long-term instability or retrofit cost.

Common misconceptions about thermal management efficiency in PEM projects

Even experienced teams can misread thermal data when project schedules are tight. Several recurring misconceptions lead to weak technical decisions.

Misconception 1: Lower stack temperature always means better design

The target is not simply a lower temperature. The real objective is controlled, uniform, and stable temperature within the intended operating window. Overcooling can increase auxiliary consumption, disturb water management, and reduce overall system efficiency.

Misconception 2: Rated efficiency figures are enough to judge thermal behavior

Rated figures rarely show what happens during fast ramping, intermittent renewable input, or summer ambient peaks. Thermal management efficiency must be reviewed under transient and seasonal conditions.

Misconception 3: Cooling hardware can be resized later without major consequences

Late changes to the cooling architecture may affect control logic, skid footprint, water balance, electrical loads, and warranty boundaries. Thermal design should be screened early, not treated as a downstream optimization.

FAQ: thermal management efficiency questions technical evaluators often ask

How can thermal management efficiency be compared quickly between two PEM proposals?

Start with four items: stack temperature spread, cooling auxiliary power, transient response during ramping, and thermal derating behavior at high ambient temperature. If one vendor cannot provide these clearly, the proposal is harder to validate regardless of attractive headline efficiency.

Which applications are most sensitive to weak thermal control?

Projects linked to variable renewable generation, high-utilization industrial hydrogen supply, export-oriented liquefaction planning, and high-pressure refueling infrastructure are especially sensitive. These use cases require stable hydrogen output and predictable uptime, making thermal management efficiency a critical filter.

What is the most overlooked cost factor related to thermal design?

Parasitic energy use is frequently underestimated. A design that needs higher pump or fan power to maintain thermal stability can reduce net plant efficiency and increase operating expenditure over the project life. Evaluators should review annualized auxiliary consumption, not only stack conversion performance.

How does thermal management efficiency relate to compliance and safety?

Thermal instability can trigger wider process risks, including pressure fluctuation, material stress, and shutdown frequency. While compliance depends on full system design, strong thermal control supports safer operation and more predictable alignment with recognized engineering and hydrogen handling frameworks.

Why technical evaluators choose structured benchmarking before final vendor selection

In the hydrogen transition, procurement mistakes are rarely caused by a lack of data. They are usually caused by poor comparison logic. Thermal management efficiency is one of the fastest ways to compare PEM system design because it condenses performance, durability, control quality, and system integration into a practical decision lens.

G-HEI supports technical evaluators who need more than general market commentary. We help stakeholders review parameter assumptions, compare design pathways, assess compliance implications, and benchmark electrolysis assets against the material-integrity and operational demands of sovereign-grade zero-carbon infrastructure.
