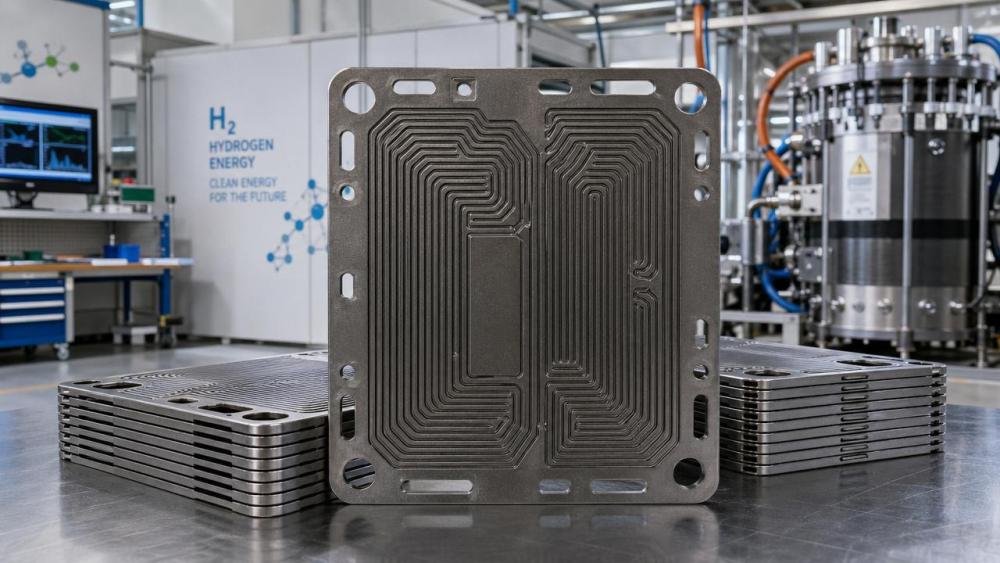

Titanium Bipolar Plate Coating: A Small Detail With Big Lifetime Impact

In PEM stack design, titanium bipolar plate coating may seem like a minor specification, yet it directly shapes conductivity, corrosion resistance, and long-term system reliability. For technical evaluators assessing sovereign-scale hydrogen assets, this detail can determine whether a stack meets demanding efficiency, durability, and compliance benchmarks in real-world zero-carbon infrastructure deployment.

What titanium bipolar plate coating means in PEM systems

In proton exchange membrane electrolyzers and related PEM stack architectures, bipolar plates perform several essential functions at once: they distribute reactants, collect current, manage water and heat, and physically support the membrane electrode assembly. Titanium is widely selected for PEM electrolyzer bipolar plates because it offers excellent corrosion resistance in highly oxidative and acidic operating environments. However, bare titanium also forms a stable oxide film on its surface, and that oxide increases interfacial contact resistance. That is where titanium bipolar plate coating becomes critical.

A coating on the titanium plate is designed to preserve corrosion resistance while lowering electrical resistance at the contact interface. In practical terms, the coating must remain conductive, chemically stable, mechanically adherent, and compatible with compression cycling over long operating periods. Common coating approaches include precious metal layers, conductive nitrides, carbides, and advanced multi-layer structures engineered to balance cost and durability. For technical evaluation teams, the issue is not simply whether a coating exists, but whether its performance remains stable under realistic current density, start-stop cycling, water chemistry, pressure, and temperature conditions.

Why the industry pays close attention to this small material detail

Hydrogen infrastructure is moving from pilot scale to sovereign-scale deployment. In that transition, component-level reliability becomes a system-level financial issue. A PEM stack may contain many coated titanium interfaces, so small increases in contact resistance can compound into measurable efficiency losses. Likewise, local coating failure can trigger corrosion products, voltage drift, uneven current distribution, and premature stack refurbishment. For ministries, utility CTOs, and large-asset investors monitoring benchmark performance, titanium bipolar plate coating directly influences total lifecycle economics.

This attention is especially relevant in projects positioned within zero-carbon infrastructure frameworks such as megawatt-scale electrolysis, hydrogen transport integration, and industrial decarbonization corridors. G-HEI’s strategic perspective highlights a broader truth: material integrity is no longer a laboratory concern. It is part of energy sovereignty, safety assurance, and asset bankability. A coating that performs well in a short qualification test but degrades under aggressive operating profiles can undermine national hydrogen rollout targets, availability guarantees, and compliance confidence.

Core performance dimensions used in technical evaluation

When assessing titanium bipolar plate coating, technical evaluators typically review several linked dimensions rather than a single pass-fail metric. First is interfacial contact resistance, because low resistance supports high stack efficiency and stable power consumption over time. Second is corrosion resistance in acidic and anodic conditions, where titanium’s native oxide behavior interacts with coating defects and local electrochemical stress. Third is adhesion and mechanical durability, since bipolar plates experience clamping pressure, thermal shifts, and repeated operating transients.

A fourth factor is coating uniformity across flow-field geometry, edges, and microfeatures. Uneven deposition may create local hotspots or differential degradation. A fifth factor is contamination risk. If a coating releases ions or particles, membrane performance and catalyst health may be affected. Finally, cost-to-lifetime ratio matters. Some premium coatings offer excellent early performance but may be difficult to scale economically for gigawatt manufacturing. Therefore, technical assessment must link material science with manufacturing repeatability and fleet-level maintenance expectations.

The table above is especially useful for cross-functional review committees. It helps align electrochemistry specialists, procurement analysts, stack designers, and infrastructure planners around the same technical language rather than evaluating titanium bipolar plate coating only from a materials procurement perspective.

How coating choice affects efficiency, durability, and compliance pathways

Efficiency impact is the most immediate consequence. Every additional resistance contribution increases cell voltage demand, which raises electricity consumption for hydrogen production. In utility-scale electrolyzers, even modest losses accumulate significantly over years of operation. A robust titanium bipolar plate coating helps maintain low resistance across thousands of interfaces, preserving system efficiency under commercial duty cycles rather than only in beginning-of-life measurements.

Durability impact is equally important. PEM environments expose components to oxidizing potentials, humidity, pressure changes, and dynamic load conditions. If the coating cracks, thins, or loses adhesion, the exposed titanium surface may reform insulating oxide layers, and local resistance can rise quickly. Over time, this can influence heat distribution, stack balancing, and degradation behavior. For technical evaluators, coating durability should always be considered with stack service profile, not in isolation.

Compliance and certification pathways also intersect with coating performance. Although standards such as ISO 19880, ASME B31.12, and SAE J2601 focus on broader hydrogen infrastructure, the credibility of upstream electrolyzer assets depends on documented material integrity and safe operating margins. In sovereign-scale projects, qualification records, traceability, and long-duration testing often carry as much weight as headline performance values. A titanium bipolar plate coating strategy that is well documented, repeatable, and supported by failure analysis contributes to audit readiness and investment confidence.

Typical coating categories and where they fit

Not all coatings serve the same strategic purpose. Some are optimized for maximum conductivity, some for corrosion defense, and some for manufacturability at scale. Understanding these categories helps technical evaluators compare claims more accurately.

For benchmark-driven organizations, the best option is rarely the one with the strongest isolated metric. The better choice is the coating platform that delivers stable stack behavior, acceptable manufacturing yield, and traceable lifetime evidence under the intended deployment profile.

Where technical evaluators should be most careful

A common assessment mistake is to rely heavily on beginning-of-life data. Low initial resistance is useful, but it does not prove long-term suitability. Evaluators should request aging data under representative current density, water quality, pressure, and shutdown patterns. Another frequent issue is insufficient attention to test methodology. Differences in compression load, counterface material, surface roughness, and environmental control can make coating results difficult to compare across suppliers.

It is also important to examine the relationship between coating and forming process. Stamped or machined flow fields may create local stress points, edge defects, or thickness variation after coating. In addition, technical teams should ask whether quality control is performed only on witness coupons or on actual plate geometries. A titanium bipolar plate coating that looks excellent on flat sample panels may behave differently on production parts with channels, corners, and real sealing regions.

Finally, lifecycle evaluation should extend beyond the stack. If coating degradation increases electrical losses, the effect propagates into plant power consumption, thermal management demands, maintenance intervals, and hydrogen production cost. This is why advanced benchmarking frameworks treat coating performance as part of integrated asset evaluation rather than a narrow materials checkbox.

Practical guidance for zero-carbon infrastructure programs

For organizations developing or assessing large PEM electrolysis fleets, a practical review framework should include five actions. First, define operating envelopes clearly, including load flexibility, water treatment quality, pressure regime, and expected annual starts and stops. Second, compare titanium bipolar plate coating data under matched test conditions, not marketing summaries. Third, review failure modes and post-test surface analysis, because understanding how a coating degrades is often more valuable than a single lifetime number.

Fourth, connect coating performance to stack-level and plant-level models. This helps teams estimate how interfacial resistance drift changes electricity consumption, output stability, and replacement timing. Fifth, align material decisions with documentation requirements relevant to international benchmarking and sovereign-scale project governance. In strategic hydrogen programs, technical excellence must be auditable, reproducible, and compatible with long-horizon capital planning.

Conclusion: small component, major infrastructure consequence

Titanium bipolar plate coating is a small design detail only on paper. In operating PEM assets, it influences conductivity, corrosion resistance, degradation pace, and long-term bankability. For technical evaluators working across the hydrogen economy, this topic deserves structured attention because it sits at the intersection of materials engineering, stack efficiency, manufacturing quality, and infrastructure reliability.

As hydrogen systems scale into critical national and industrial platforms, the best evaluations will look beyond surface-level specifications. They will ask whether the titanium bipolar plate coating can maintain performance across real duty cycles, whether it supports compliance-oriented documentation, and whether it strengthens the lifetime economics of zero-carbon infrastructure. That is the level of scrutiny required to turn advanced PEM technology into secure, durable, and sovereign-grade hydrogen assets.
