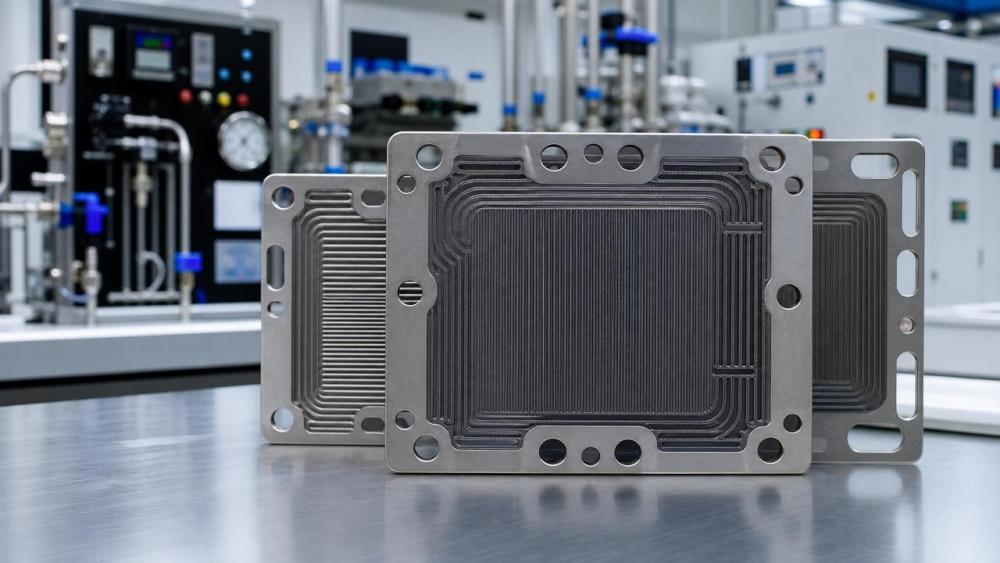

Titanium Bipolar Plate Coating: Corrosion Risks and Lifetime Impact

In PEM stack engineering, titanium bipolar plate coating is not just a surface treatment—it is a decisive factor in corrosion resistance, interfacial conductivity, and system lifetime. For technical evaluators assessing sovereign-scale hydrogen assets, understanding how coating failure accelerates degradation, raises operating risk, and affects long-term stack economics is essential to making reliable material and infrastructure decisions.

For most technical evaluators, the core question is not whether titanium needs a coating, but whether a given coating system will remain conductive and corrosion-resistant over the real duty life of the stack.

The short answer is clear: titanium offers excellent bulk corrosion resistance, yet bare titanium forms a passive oxide film that drives contact resistance upward. That is why titanium bipolar plate coating is mission-critical in PEM electrolyzers and fuel cells.

When the coating performs well, it protects conductivity, suppresses metal ion release, and stabilizes efficiency. When it fails, the consequences extend beyond a surface defect to voltage loss, contamination risk, accelerated component degradation, and shortened asset life.

For organizations evaluating utility-scale hydrogen infrastructure, the practical issue is lifetime under realistic electrochemical, thermal, and mechanical stress. Material selection decisions must therefore be based on failure modes, validation methods, and total stack impact rather than brochure-level coating claims.

What technical evaluators really need to know about titanium bipolar plate coating

The core search intent behind titanium bipolar plate coating usually combines three needs: understand corrosion risk, estimate lifetime impact, and compare whether coating quality meaningfully changes stack reliability and lifecycle cost.

Technical evaluators are rarely looking for a basic definition. They want to know which coating systems fail first, how failure appears in test data, and what performance indicators separate robust plates from high-risk procurement options.

In sovereign-scale or utility-scale hydrogen assets, this matters because bipolar plates sit at the intersection of electrical conduction, fluid separation, manufacturability, and durability. A coating issue can propagate through efficiency, maintenance intervals, warranty exposure, and bankability assumptions.

Therefore, the most valuable assessment framework is not “which coating is popular,” but “which coating remains conductive and adherent under the combined stress profile of PEM operation over the intended service window.”

Why titanium needs coating in PEM environments

Titanium is widely used for PEM bipolar plates because it resists aggressive acidic and oxidizing conditions better than many alternatives. This makes it especially attractive in electrolyzer anode environments where water oxidation creates a severe corrosion challenge.

However, titanium’s natural passivation is a double-edged feature. The native oxide layer protects against corrosion, yet it is electrically resistive. In bipolar plates, that resistance appears as rising interfacial contact resistance, which directly harms stack efficiency.

A suitable titanium bipolar plate coating must therefore accomplish two things at once. It must preserve low contact resistance while still surviving electrochemical attack, local potential excursions, compression stress, and repeated startup-shutdown cycling.

That is why coating selection cannot be reduced to nominal hardness or initial conductivity. A technically credible solution must maintain both properties after aging, not only at beginning-of-life measurements.

How coating failure actually develops

Coating failure is rarely a single catastrophic event. More often, it begins as a gradual breakdown involving pinholes, microcracks, localized delamination, edge defects, or wear at asperity contact points created by stack compression.

Once exposed titanium areas appear, the substrate rapidly repassivates and forms oxide. That local oxide growth increases contact resistance. At the same time, electrochemical conditions at defects can accelerate underfilm attack or amplify further coating instability.

Mechanical effects are also important. Bipolar plates experience clamping loads, vibration, flow-field stress concentration, handling damage, and differential thermal expansion. Even a chemically stable coating can lose performance if adhesion and toughness are not sufficient.

In real systems, degradation is often synergistic rather than isolated. Corrosion, fretting, oxide regrowth, and localized coating fracture can interact, causing performance decay that appears slow at first and then increasingly difficult to recover.

Corrosion risks that matter most in lifetime assessment

For evaluators, the biggest mistake is treating corrosion as only a substrate loss issue. In PEM stacks, corrosion risk includes ionic contamination, increased ohmic loss, unstable cell behavior, and secondary degradation effects elsewhere in the membrane electrode assembly.

If coating defects allow titanium dissolution or release of corrosion-related species, those contaminants may migrate into sensitive stack regions. Even low levels of contamination can influence catalyst activity, membrane durability, and long-term electrochemical consistency.

Another critical risk is nonuniform degradation across the plate population. A stack does not fail according to average performance alone. A small fraction of weak plates can drive local hotspots, voltage dispersion, or sealing stress issues that reduce system reliability.

Edge regions, flow-field corners, and stamped geometries deserve special scrutiny because these locations often concentrate stress or receive less uniform coating coverage. Lifetime qualification should therefore include geometry-sensitive inspection, not just flat coupon results.

How coating degradation affects stack efficiency and economics

The most immediate system-level effect of coating degradation is higher interfacial contact resistance. Even modest resistance growth across many plate interfaces increases stack voltage, which raises specific energy consumption and weakens operating efficiency.

At laboratory scale, this may look manageable. At megawatt scale, however, a small voltage penalty compounds into substantial electricity cost over years of operation. For hydrogen projects, that directly affects levelized hydrogen economics and asset competitiveness.

Degradation also changes maintenance and replacement assumptions. If plate-related losses emerge earlier than expected, operators may face shorter overhaul intervals, lower stack availability, and more conservative dispatch strategies to control further damage.

For investment-grade projects, this means titanium bipolar plate coating quality should be treated as an economic variable, not merely a materials detail. Its lifetime performance influences stack replacement timing, efficiency retention, and confidence in long-duration revenue models.

Which coating properties deserve the closest scrutiny

Technical evaluators should focus on a compact set of properties that strongly predict field behavior: interfacial contact resistance after aging, corrosion current under relevant potentials, coating adhesion, defect density, thickness uniformity, and wear resistance under compression.

Surface conductivity at beginning of life is useful but incomplete. A coating can test impressively when fresh and still fail quickly if it has weak adhesion, porosity, poor coverage at formed features, or insufficient resistance to electrochemical transients.

Microstructure matters as well. Dense, well-bonded coatings with controlled composition generally outperform systems with high porosity or internal stress. Deposition method, pretreatment quality, and process consistency often matter as much as nominal coating chemistry.

Evaluators should also ask whether reported data come from production-representative plates. Results from polished test coupons may overstate real performance if actual stamped channels, edges, and mass-production surface conditions are more difficult to coat reliably.

How to evaluate test data without being misled

Supplier data should be read with caution because corrosion and contact resistance performance are highly sensitive to test design. Results are only meaningful when the environment, potential range, compression load, and exposure duration reflect actual PEM duty conditions.

Priority should be given to datasets that include before-and-after interfacial contact resistance, potentiodynamic or potentiostatic corrosion testing, long-duration hold conditions, and post-test microscopy of defects, delamination, and exposed substrate regions.

Compression-dependent measurements are especially important. Some coatings perform acceptably under ideal contact pressure but degrade when repeated assembly cycles or realistic clamping loads create local fracture and conductive pathway loss.

Where possible, evaluators should compare coupon tests, formed-plate tests, and stack-level validation. A coating that survives electrochemical immersion but fails after forming, gasketing, and thermal cycling should not be considered field-ready.

Questions to ask suppliers before qualification or procurement

A strong qualification process begins with disciplined questioning. Ask suppliers which failure mode they consider dominant in their titanium bipolar plate coating system and what evidence they have that the mode remains controlled over target life.

Request data on adhesion after forming, not just before forming. Ask for defect inspection methods, edge coverage control, coating thickness distribution maps, and batch-to-batch variability data from serial production rather than pilot samples.

It is also useful to ask how the coating behaves during startup-shutdown cycles, transient overload, and impurity events. Some systems remain stable during steady operation yet deteriorate during repeated dynamic or off-design conditions common in grid-coupled hydrogen plants.

Finally, ask whether the supplier can correlate laboratory tests to stack-level lifetime outcomes. The most credible partners can explain how measured corrosion and resistance trends translate into real maintenance, efficiency, and replacement expectations.

A practical decision framework for technical evaluators

For technical assessment, it helps to rank coating candidates across four dimensions: electrochemical stability, conductivity retention, manufacturability, and evidence quality. A candidate that scores well in only one dimension is not necessarily low risk.

Electrochemical stability answers whether the coating limits corrosion and contamination. Conductivity retention answers whether efficiency will remain acceptable. Manufacturability addresses whether the same quality can be repeated at commercial scale across complex geometries.

Evidence quality may be the most underrated dimension. A moderate-performing coating supported by transparent, realistic, and reproducible data is often a safer choice than a spectacular claim based on limited or nonrepresentative testing.

For high-consequence hydrogen assets, the preferred decision path is conservative: validate on realistic conditions, prioritize aging behavior over initial performance, and connect materials data directly to stack efficiency retention and replacement economics.

Conclusion: coating integrity is a lifetime issue, not a finishing detail

Titanium bipolar plate coating sits at the heart of PEM stack durability because it governs the balance between corrosion protection and electrical conductivity. That balance determines whether titanium delivers long-life value or becomes a source of creeping system loss.

For technical evaluators, the right conclusion is straightforward. Do not judge a coating by its initial appearance, hardness, or headline conductivity alone. Judge it by how well it resists defect growth, preserves low contact resistance, and survives real operating stress.

In practical terms, corrosion risk and lifetime impact are inseparable. Once coating integrity declines, efficiency, contamination control, maintenance planning, and project economics all come under pressure. That makes coating validation a strategic rather than cosmetic decision.

In PEM infrastructure scaled for the hydrogen economy, the best titanium bipolar plate coating is the one with the strongest evidence of durable performance in realistic service. For long-life assets, proof of stability matters more than promise.
