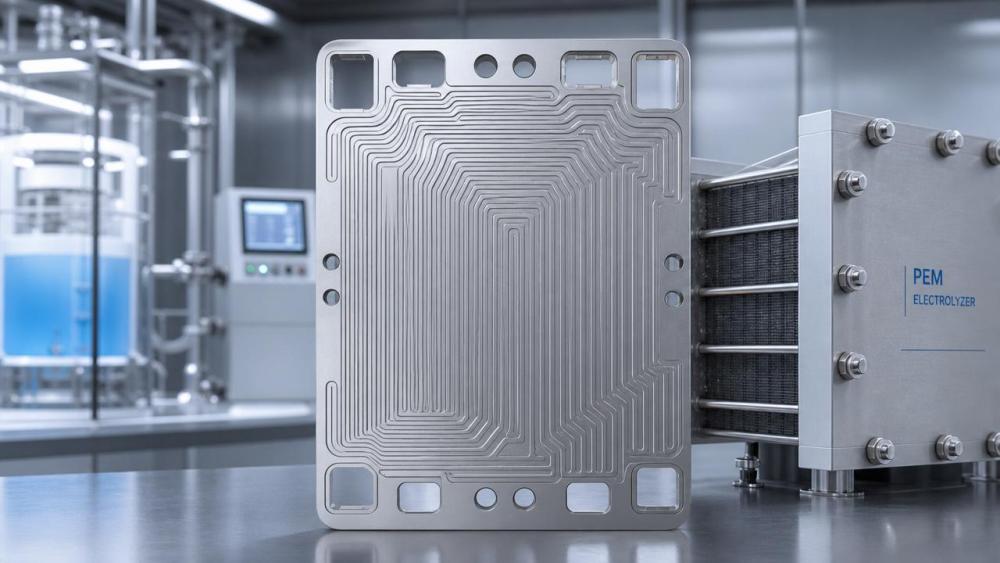

Titanium Bipolar Plate Coating: How It Affects PEM Stack Lifetime

In PEM stack qualification, titanium bipolar plate coating is not a minor surface detail—it is a lifetime-critical variable that shapes contact resistance, corrosion stability, and overall system durability. For technical evaluators, understanding how coating performance translates into degradation risk, efficiency retention, and long-term asset security is essential when benchmarking stacks for large-scale hydrogen infrastructure. In practical terms, the right coating can help preserve stack voltage efficiency over thousands of hours, while the wrong coating can accelerate passivation, metal ion release, and irreversible power loss.

As PEM systems move into megawatt-scale electrolysis and sovereign-level zero-carbon infrastructure, the evaluation of titanium bipolar plate coating must be systematic rather than assumption-driven. Surface chemistry, coating adhesion, porosity, interfacial contact resistance, and corrosion behavior under start-stop and high-current conditions all influence PEM stack lifetime. A structured review makes it easier to compare stack architectures, validate durability claims, and reduce the risk of hidden failure modes that may not appear in short factory tests.

Why a structured review of titanium bipolar plate coating matters

Titanium is widely used in PEM electrolyzer bipolar plates because of its corrosion resistance in acidic and oxidizing environments. However, native titanium oxide is electrically resistive. That is why titanium bipolar plate coating is so important: it must provide low contact resistance while preserving chemical stability under dynamic stack operation. If either function degrades, stack efficiency and lifetime decline together.

A clear review framework also supports broader energy-transition goals. In hydrogen infrastructure, stack replacement intervals affect total cost of ownership, plant availability, service planning, and confidence in long-duration operation. From material qualification to benchmark comparison against standards-led engineering practice, coating performance is directly tied to asset integrity and bankable project outcomes.

Core points to verify before accepting coating lifetime claims

• Confirm the coating chemistry, thickness range, and deposition method, because PVD, sputtering, nitrides, carbides, and noble-metal layers behave very differently under PEM operating stress.
• Check whether interfacial contact resistance was measured before and after durability testing, not only at beginning of life, since early low resistance can hide rapid degradation.
• Review corrosion test conditions in realistic acidic, high-potential, and humid environments, because simplified lab media may understate actual anodic attack in service.
• Verify adhesion performance under compression and thermal cycling, as weakly bonded titanium bipolar plate coating can crack, delaminate, or expose substrate at flow-field edges.
• Look for porosity and pinhole data, since microscopic defects often become corrosion initiation sites that progressively raise contact resistance and contaminate adjacent stack components.
• Compare performance across current-density ranges rather than one fixed point, because coating stability may change significantly between part-load, nominal load, and overload conditions.
• Assess start-stop durability and voltage excursion tolerance, because transient operating events can be more damaging to coatings than steady-state operation in many PEM systems.
• Request evidence of low ion leaching or corrosion-product release, as contamination can impair membrane performance, catalyst activity, and long-term electrochemical stability.
• Examine whether the coating covers ribs, lands, corners, and channel transitions uniformly, since geometry-driven thin spots are frequent origins of premature degradation.
• Check compression-window compatibility with gasket and stack hardware design, because excessive clamping stress may damage coating integrity even when chemistry is suitable.
• Review accelerated stress test methodology carefully, ensuring it correlates with actual PEM duty cycles rather than using unrealistic conditions that inflate lifetime projections.
• Validate manufacturing repeatability from lot to lot, because a durable prototype titanium bipolar plate coating does not guarantee stable mass-production quality or uniformity.

How titanium bipolar plate coating affects PEM stack lifetime in practice

The first lifetime pathway is electrical. If titanium bipolar plate coating maintains low and stable interfacial resistance, stack voltage remains closer to design expectations. If resistance rises over time, the stack needs more power input for the same hydrogen output, increasing operating cost and thermal burden. In large systems, even small resistance drift per cell can accumulate into meaningful efficiency loss at plant level.

The second pathway is chemical. A degraded coating may expose titanium substrate, allowing oxide growth or localized corrosion. This can create a feedback loop: oxidation increases resistance, resistance increases heat and uneven current distribution, and local electrochemical stress accelerates further surface damage. Over long operating horizons, that loop can shorten maintenance intervals and reduce stack service life.

The third pathway is contamination control. When coating defects generate corrosion products or dissolved species, neighboring layers in the membrane electrode assembly may be affected. This risk is especially important in high-purity hydrogen production environments, where long-term stability depends not only on plate survival but on preserving the electrochemical health of the entire stack.

Application-specific checks for different operating scenarios

Megawatt-scale PEM electrolysis

In utility-scale electrolyzers, cumulative operating hours and high utilization place constant pressure on coating durability. Here, titanium bipolar plate coating should be reviewed with emphasis on long-duration resistance stability, corrosion behavior at anodic potentials, and manufacturability at volume. Minor deviations in plate quality can become major availability issues when hundreds or thousands of cells are installed.

It is also important to check how the coating performs under water-quality variation, partial-load operation linked to renewable intermittency, and plant-level startup frequency. These factors can create mixed electrochemical conditions that are harsher than idealized steady-state testing.

Dynamic renewable-coupled operation

When PEM stacks follow solar or wind power profiles, transient events become central to lifetime assessment. In this scenario, titanium bipolar plate coating must tolerate repeated current swings, voltage fluctuations, and idle-to-full-load transitions without cracking, passivating, or losing adhesion.

The most useful review data here includes start-stop cycling, intermittent operation stress tests, and post-test surface analysis. Static polarization data alone does not reveal whether the coating remains robust under renewable-driven duty cycles.

High-security hydrogen infrastructure projects

For projects where reliability, sovereign resilience, and technical assurance are central, coating qualification should be linked to wider asset-integrity frameworks. This means tracing material pedigree, validating process consistency, and aligning stack design choices with established engineering standards and risk-control procedures.

In these contexts, titanium bipolar plate coating is not evaluated only for immediate electrochemical performance. It is also judged by its contribution to predictable maintenance planning, lower replacement uncertainty, and stronger confidence in long-term infrastructure operation.

Frequently overlooked failure risks

Edge and corner thinning. Coatings can perform well on flat coupon samples yet fail at embossed flow-field features, corners, and rib transitions. Real bipolar plates have geometry that makes uniform deposition challenging, so surface maps and cross-sections matter.

Compression-induced damage. A titanium bipolar plate coating may pass electrochemical tests but still degrade under actual stack clamping loads. Mechanical stress, especially during repeated assembly or thermal cycling, can generate microcracks that later become corrosion pathways.

Short test bias. Early-stage results often overstate durability. If resistance and corrosion metrics are reported only for a limited number of hours, they may miss slower degradation mechanisms such as defect growth, substrate exposure, and cumulative passivation.

Ignoring contamination pathways. Lifetime is not only about whether the plate survives physically. It also depends on whether released species influence membranes, catalysts, seals, or water loop cleanliness over extended operation.

Scale-up inconsistency. A coating process that is stable on pilot quantities may produce variable thickness, adhesion, or porosity at industrial throughput. Without production-level evidence, lifetime claims remain incomplete.

A practical review sequence for comparing stack options

1. Start with material disclosure: substrate grade, coating family, deposition route, thickness control, and quality-inspection methods.
2. Match test data to intended duty cycle, including current density, temperature, pressure, water quality, and startup frequency.
3. Request beginning-of-life and end-of-test contact resistance values under realistic compression conditions.
4. Review electrochemical corrosion metrics together with microscopy, cross-sections, and defect analysis.
5. Look for stack-level evidence, not only coupon-level data, because integrated hardware can introduce new stresses.
6. Compare manufacturing repeatability across batches to understand whether titanium bipolar plate coating quality is scalable.

Reference table for fast technical screening

Final takeaways and next actions

Titanium bipolar plate coating has a direct and measurable influence on PEM stack lifetime because it sits at the intersection of conductivity, corrosion control, mechanical durability, and contamination management. In hydrogen infrastructure projects, it should be treated as a core qualification parameter, not a secondary material note.

The most effective next step is to apply a consistent review sequence: verify coating design, examine realistic durability data, check geometry-specific coverage, and confirm manufacturing repeatability at the intended scale. When these points are addressed together, technical benchmarking becomes far more reliable, and stack lifetime claims become easier to trust in real-world deployment.

For long-horizon PEM projects tied to zero-carbon infrastructure, the best decisions come from connecting material-level evidence with stack-level operating reality. That is where titanium bipolar plate coating becomes more than a surface treatment—it becomes a strategic determinant of efficiency retention, service life, and long-term asset security.
