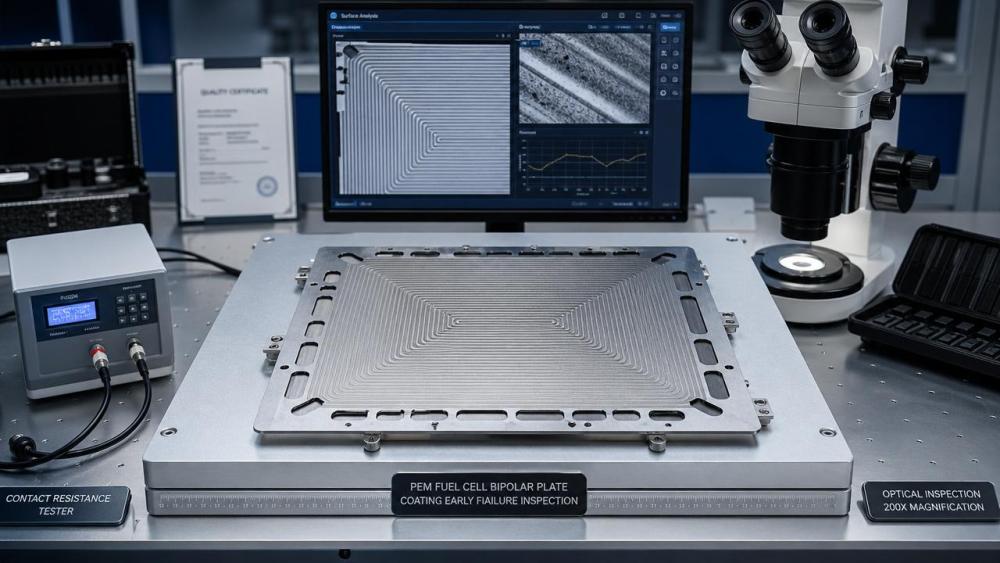

Titanium Bipolar Plate Coating: Which Failure Modes Show Up First

In PEM stack quality assurance, titanium bipolar plate coating is often the first line of defense—and the first place early failure signals emerge. For QC and safety managers, the practical answer to the question in this title is clear: the first failure modes usually do not begin as dramatic coating loss. They tend to appear first as localized interfacial contact resistance increase, micro-defect growth at edges or flow-field features, and early corrosion exposure at pinholes, thin spots, or mechanically stressed regions.

That matters because by the time coating delamination is visible at scale, the stack has often already experienced efficiency loss, uneven current distribution, contamination risk, and a higher probability of downstream reliability events. In other words, the earliest warning signs are electrical and surface-chemical before they become catastrophic and obvious.

For quality control and safety teams, the real objective is not simply to identify whether a titanium bipolar plate coating failed. It is to understand which degradation signatures show up first, where they appear, how to detect them early, and which inspection criteria best separate acceptable variation from emerging stack-level risk.

What usually fails first in titanium bipolar plate coating systems?

The most common early-stage failure modes in a titanium bipolar plate coating system are not all equal in probability or consequence. In most PEM operating environments, the earliest signs tend to cluster around four patterns: rising interfacial contact resistance, localized coating discontinuity, initiation of substrate exposure, and adhesion loss at stressed micro-regions rather than across the whole plate.

For QC personnel, the key point is that “first failure” often means first measurable degradation, not first visible damage. A plate may pass visual inspection yet already show unstable contact resistance behavior under compression, humidity, temperature cycling, and electrochemical load. That makes electrical and surface integrity testing more important than appearance alone.

From a safety management perspective, the first modes that show up are usually those that create pathways for accelerated follow-on damage. A pinhole does not remain just a pinhole in an aggressive PEM environment. Once electrolyte access, potential gradients, and local current concentration act together, exposed titanium can form passive films that protect corrosion to a degree but increase contact resistance and disrupt long-term performance consistency.

In practical plant or supplier quality terms, the early hierarchy often looks like this: first resistance drift, then localized exposure or defect propagation, then corrosion-assisted performance decline, and only later more obvious delamination, cracking, or field-visible surface breakdown. That sequence is why incoming inspection and accelerated verification must be designed to catch subtle precursors rather than wait for obvious failures.

Why contact resistance rise is often the earliest warning sign

Among all detectable issues, contact resistance increase is frequently the earliest and most operationally relevant signal. Titanium is selected for PEM bipolar plates because of its corrosion resistance and structural suitability, but the native oxide on titanium is electrically resistive. The coating exists largely to provide a stable, conductive interface under harsh electrochemical conditions. When that interface begins to degrade, resistance usually rises before bulk material damage becomes obvious.

For QC teams, this means a titanium bipolar plate coating can appear intact under optical review yet still be failing its primary function. Small changes in coating density, composition, thickness uniformity, or compression response may increase interfacial resistance enough to reduce stack efficiency and create uneven heat generation. Those shifts are especially important in high-current-density systems where narrow margins separate acceptable performance from accelerated aging.

Resistance drift can originate from several early mechanisms. One is micro-porosity that allows environmental ingress without immediate visible corrosion. Another is coating thinning at asperity peaks or embossed flow-field features where contact stress is highest. A third is changes in coating chemistry or microstructure after thermal or electrochemical exposure, especially if deposition parameters were not tightly controlled.

For safety managers, resistance rise is not only an efficiency issue. It can also indicate the beginning of localized hot spots or unstable current pathways. In critical infrastructure, those conditions can amplify degradation elsewhere in the stack and complicate root-cause tracing after a field event. That is why resistance trend analysis should be treated as an upstream risk-control tool, not merely a performance KPI.

Where the first coating defects usually appear

The earliest defects in titanium bipolar plate coating rarely distribute evenly across the entire plate. They typically emerge in locations where geometry, stress, or processing variation makes the coating more vulnerable. These locations include sharp channel shoulders, stamped corners, edge zones, sealing transitions, high-contact-pressure points, and any region affected by surface preparation inconsistency before coating deposition.

Edges are a classic weak point because coating thickness control is often harder there, and handling damage is more likely during manufacturing, inspection, and stack assembly. Embossed or formed areas are another concern. Local strain from plate forming can influence surface condition, and if coating is applied after forming, complex topography may challenge uniform coverage. If coating is applied before forming, deformation can introduce microcracks or adhesion stress depending on the process route.

QC teams should also pay close attention to flow-field land areas. These are the functional contact zones where electrical conduction and compressive loading are concentrated. Even very small coating discontinuities in those regions can disproportionately affect interfacial contact resistance and trigger nonuniform current distribution. By contrast, defects in less critical regions may not immediately translate into stack-level loss.

Another common first-failure location is the interface between coated surfaces and sealing architecture. Mechanical compression, micro-motion, chemical exposure, and assembly tolerances can combine there in ways that initiate edge lifting or local coating damage. If your failure analysis only samples central flat areas, you may miss the real initiation points.

What causes early failure: the main root-cause categories

Early failure in titanium bipolar plate coating systems generally comes from one of five root-cause categories: poor surface preparation, unstable coating deposition, insufficient adhesion, mechanical damage during downstream handling, or operating conditions that exceed what the coating system was validated for. Effective quality assurance depends on separating these categories because the mitigation actions are very different.

Surface preparation is foundational. If titanium substrate cleanliness, roughness, oxide condition, or activation is inconsistent, even a high-quality coating chemistry may show weak adhesion or poor electrical stability. Contamination at the interface can create isolated weak zones that look acceptable initially but degrade early under compression and electrochemical stress.

Deposition control is the second major variable. Whether the coating is PVD-based, precious-metal based, nitride based, carbon based, or multi-layered, process stability matters. Thickness variation, nonuniform target behavior, residual stress, incomplete coverage, and poor repeatability between lots can all create early-stage failure signatures. For high-stakes PEM applications, average thickness alone is not enough; distribution and defect density matter more.

Mechanical handling is often underestimated. Plates can incur micro-abrasion, edge impact, fixture damage, or particulate contamination after coating and before stack assembly. For QC and safety teams, this is critical because the defect may be blamed on coating design when the actual cause is packaging, transport, operator handling, or assembly tooling.

Finally, there is application mismatch. A coating validated under short-duration lab conditions may not be adequate for the real duty cycle of a utility-scale or mobility-related PEM system. Start-stop frequency, load transients, humidity cycling, compressive stress relaxation, and contamination exposure all influence which failure mode appears first. A pass in one protocol does not always transfer to another operating context.

How QC teams can detect first-failure signals before visible damage occurs

If the goal is early detection, inspection strategy must move beyond basic visual checks. The most useful methods for identifying first-failure signals in titanium bipolar plate coating include interfacial contact resistance testing under representative compression, localized surface microscopy, coating thickness mapping, adhesion evaluation, defect-density screening, and targeted electrochemical exposure testing.

Interfacial contact resistance testing should be performed under conditions that approximate actual stack compression ranges, not just nominal bench settings. The same coating may behave differently depending on pressure, surface pairing material, and environmental conditions. Tracking resistance distribution across samples and lots is often more informative than relying on a single average value.

Microscopy is valuable when used with purpose. Optical inspection can reveal scratches, edge damage, and macroscopic coverage issues, but SEM-based review or equivalent high-resolution analysis is better for identifying microcracks, pores, nodules, and local discontinuities. If resources are limited, prioritize high-risk regions such as edges, channel shoulders, and sealing transitions rather than random flat-area sampling.

Adhesion testing should also be matched to realistic failure mechanisms. A simple pass/fail tape test may be insufficient for advanced PEM bipolar plate coatings. More meaningful approaches examine how the coating responds after thermal cycling, compression cycling, or corrosive exposure. The objective is to detect latent weakness that will emerge in service, not only gross non-adhesion at the factory gate.

For incoming and process quality teams, statistical process control is essential. The first failure mode in the field often begins as a distribution problem in production. A coating process with acceptable average performance but widening lot-to-lot variation is already generating future reliability risk. Trend monitoring for resistance, thickness spread, defect counts, and adhesion metrics can reveal drift long before field returns do.

Which failure modes create the biggest safety and reliability concerns if missed

Not every early defect carries the same business or safety consequence. For safety managers, the most concerning early failures are those that remain hidden while progressively degrading stack stability. A slight rise in resistance may seem manageable, but if it is localized and linked to substrate exposure, it can contribute to uneven current density, accelerated neighboring degradation, and contamination pathways that reduce membrane-electrode assembly life.

Localized corrosion exposure is particularly important. Titanium itself is corrosion resistant, but once coating defects expose the substrate, oxide film behavior can increase interface resistance and degrade electrical performance. In severe cases, the resulting instability can affect stack voltage uniformity and make troubleshooting more difficult because the symptom appears electrical while the origin is materials-related.

Adhesion loss is another high-risk mode when it occurs in particulate-generating form. Even limited flaking or micro-spallation can create contamination concerns inside a sensitive PEM stack environment. For high-value infrastructure assets, this is not merely a component issue. It becomes a system cleanliness, durability, and warranty-risk issue.

The most dangerous scenario for asset operators is a defect that escapes acceptance testing, remains stable through early commissioning, and then accelerates under actual duty cycles. That is why qualification should include not just initial property measurement but stress sequencing that reflects real operation. Early failure modes matter most when they are silent at first and nonlinear later.

What a practical acceptance framework should include

For organizations responsible for supplier qualification, incoming inspection, or stack safety governance, the most useful framework is a risk-based acceptance model rather than a single-property threshold. A strong acceptance plan for titanium bipolar plate coating should link material behavior to actual failure consequences in PEM service.

At minimum, that framework should define acceptable ranges for interfacial contact resistance under specified compression, coating thickness uniformity, defect-density limits in critical regions, adhesion performance after representative stress exposure, and evidence of corrosion resistance under relevant electrochemical conditions. These criteria should be lot-traceable and tied to documented sampling logic.

It is also wise to classify defects by criticality. For example, a superficial handling mark in a non-contact zone may be cosmetic, while a small discontinuity on a land area near a sealing transition may be a major risk. QC teams become more effective when acceptance decisions reflect functional criticality instead of purely visual severity.

Supplier communication is equally important. If a coating vendor reports only nominal thickness and a generic adhesion result, that is rarely enough for high-consequence hydrogen infrastructure programs. Buyers should seek process capability evidence, defect mapping methodology, lot consistency data, and clear disclosure of any process changes that could alter early-life behavior.

Finally, the acceptance framework should include a feedback loop from field or stack test results back to incoming criteria. If certain microscopic defect patterns repeatedly correlate with resistance drift or stack degradation, those patterns should be elevated in inspection priority. The best quality systems learn which early failure modes truly matter and continuously sharpen their controls around them.

Bottom line for QC and safety managers

If you are asking which failure modes show up first in a titanium bipolar plate coating, the most useful answer is this: the earliest problems are usually subtle, localized, and electrically significant before they become visually obvious. Rising interfacial contact resistance, micro-defect propagation at edges and contact lands, early substrate exposure through pinholes or thin spots, and localized adhesion weakness are the failure modes most likely to appear first.

That means effective control depends less on broad visual screening and more on targeted, function-based verification. The organizations that manage risk best are the ones that inspect the right zones, test under realistic compression and exposure conditions, and treat process variation as an early warning signal rather than a paperwork issue.

For PEM stack quality assurance, titanium bipolar plate coating should be evaluated as a reliability interface, not just a surface finish. When QC and safety teams focus on first-failure signatures instead of late-stage damage, they gain the ability to prevent stack efficiency loss, reduce hidden corrosion exposure, and avoid costly downstream failures in hydrogen infrastructure assets.
