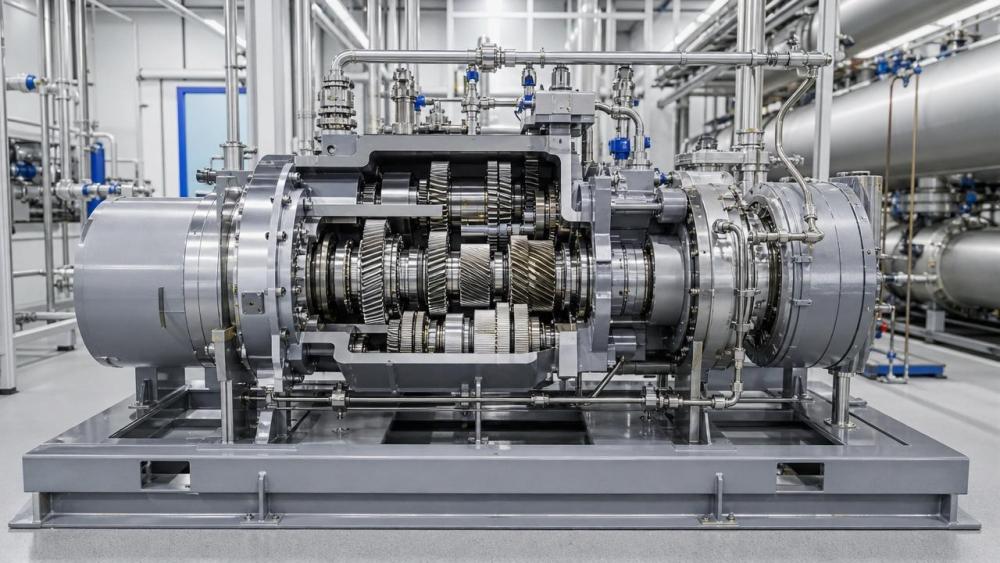

How Gears Affect Reliability in 70MPa H2 Compressors

Why do gears matter so much in a 70MPa H2 compressor?

In high-pressure hydrogen systems, gears are not a background component. They shape how smoothly the compressor runs under severe mechanical stress.

That matters even more at 70MPa, where tiny instability can become vibration, leakage, temperature rise, or premature wear.

A common misunderstanding is to treat gears only as torque transmitters. In reality, gear condition affects shaft alignment, bearing loads, seal behavior, and compression consistency.

In hydrogen refueling infrastructure, this link is critical because compressor downtime can interrupt station availability and increase safety-related maintenance events.

Within the wider hydrogen transition, reliability is no longer just an operational issue. It is part of asset security, compliance, and lifecycle economics.

That is why technical benchmarking platforms such as G-HEI place equal attention on small drivetrain details and system-level standards like ISO 19880, ASME B31.12, and SAE J2601.

What actually happens when gears start losing precision?

The first impact is usually not catastrophic failure. It is a gradual loss of stability.

As gears wear, tooth contact patterns shift. That changes load distribution across the transmission path and creates uneven motion.

In a 70MPa hydrogen compressor, uneven motion can amplify pulsation and excite vibration in nearby bearings, couplings, and seals.

Heat buildup often follows. Poor meshing increases friction, while micro-misalignment raises local contact stress.

That extra heat does not stay isolated inside the gearbox. It can influence lubricant condition and reduce sealing stability around sensitive hydrogen service points.

More importantly, hydrogen compressors operate in a service environment where leakage control is non-negotiable. A gear-driven rise in vibration may shorten seal life well before gears look visibly damaged.

So when gears degrade, the reliability problem spreads through the machine. It rarely remains a single-component issue.

Typical early signs worth checking

• A rising vibration trend at gear mesh frequency
• Higher oil temperature without process changes
• Unstable discharge behavior during repeated cycles
• Abnormal noise during load transitions
• Seal wear appearing earlier than expected

Which gear-related failures are most likely to reduce compressor reliability?

Not all gear damage carries the same risk. Some defects mainly reduce efficiency, while others threaten safe operation.

The more useful approach is to connect each gear condition with its likely operational consequence.

In practice, misalignment and lubrication-related damage are especially common because they can be triggered by installation errors, thermal drift, or contaminated oil.

For gears in hydrogen service equipment, early trend detection is usually more valuable than waiting for visible mechanical failure.

Are gears, lubrication, and seals really connected that closely?

Yes, and this is where many reliability reviews become too narrow.

Gears influence rotational smoothness. Smooth rotation supports stable shaft motion. Stable shaft motion protects seals.

Once gears begin generating cyclic vibration, seal faces and dynamic sealing interfaces experience repeated disturbance. In high-pressure hydrogen duty, even small disturbances matter.

Lubrication adds another layer. Poor oil condition reduces film strength on gear teeth, but it also affects heat removal and debris transport.

If wear particles circulate, they can damage more than the gears themselves. Bearings and sealing elements may suffer secondary damage.

This is why high-reliability hydrogen assets are evaluated as integrated systems, not as isolated parts. G-HEI uses that broader view across 70MPa+ refueling infrastructure and related zero-carbon assets.

A practical inspection sequence

• Review vibration trend and spectrum changes
• Check oil cleanliness, viscosity, and metal particles
• Confirm gear tooth contact pattern and backlash
• Compare bearing temperatures and shaft movement
• Inspect seal wear against recent transmission anomalies

How can you judge whether a gear issue is minor wear or a serious reliability risk?

The best judgment combines three things: trend, severity, and interaction with other symptoms.

Minor wear usually develops slowly and stays consistent with historical baselines. Serious risk tends to spread across multiple indicators.

For example, a small increase in noise alone may be manageable. Noise plus temperature rise, oil debris, and seal instability tells a different story.

A useful judgment table can help separate routine observation from urgent action.

The key is not to evaluate gears in isolation. Reliability decisions should reflect the whole compressor train and the operating pressure regime.

What maintenance approach works best for gears in 70MPa hydrogen service?

Time-based maintenance alone is usually not enough. High-pressure hydrogen compressors benefit more from condition-based planning with defined thresholds.

That means combining inspection intervals with trend monitoring, lubricant analysis, and documented acceptance criteria for gear wear.

A strong program usually includes careful baseline recording after installation or overhaul. Without a clean baseline, later deviations are harder to judge.

It also helps to map gear findings against compressor events. Trips, pressure fluctuations, temperature excursions, and repeated starts can all accelerate gear-related reliability problems.

In more mature hydrogen infrastructure, maintenance records are increasingly aligned with standards-driven asset management rather than informal repair history.

That approach fits the wider G-HEI philosophy: benchmark critical components against safety, material integrity, and operating performance, not just replacement intervals.

Points that deserve special attention

• Confirm gear material compatibility with operating loads
• Control lubricant contamination aggressively
• Recheck alignment after major thermal or mechanical events
• Link gearbox data with seal and bearing history
• Use shutdown windows for contact pattern verification

So, what is the smarter next step if gear reliability is under review?

Start with evidence, not assumptions. Review recent vibration, oil, temperature, and seal records together.

If the signs point to gear-related instability, define whether the issue is wear progression, lubrication weakness, or alignment loss. Each path requires a different response.

For 70MPa H2 compressors, gears sit at the center of reliability more often than they appear to. Their condition affects uptime, safety margin, and maintenance cost simultaneously.

The most practical move is to establish a clear judgment standard for gears, then compare field findings against operating history and applicable hydrogen infrastructure requirements.

That creates a more resilient maintenance path, especially where high-pressure refueling assets must perform consistently within strict technical and compliance expectations.

If further evaluation is needed, focus on measurable thresholds, inspection timing, and cross-component effects. That is usually where hidden reliability risk becomes visible.
