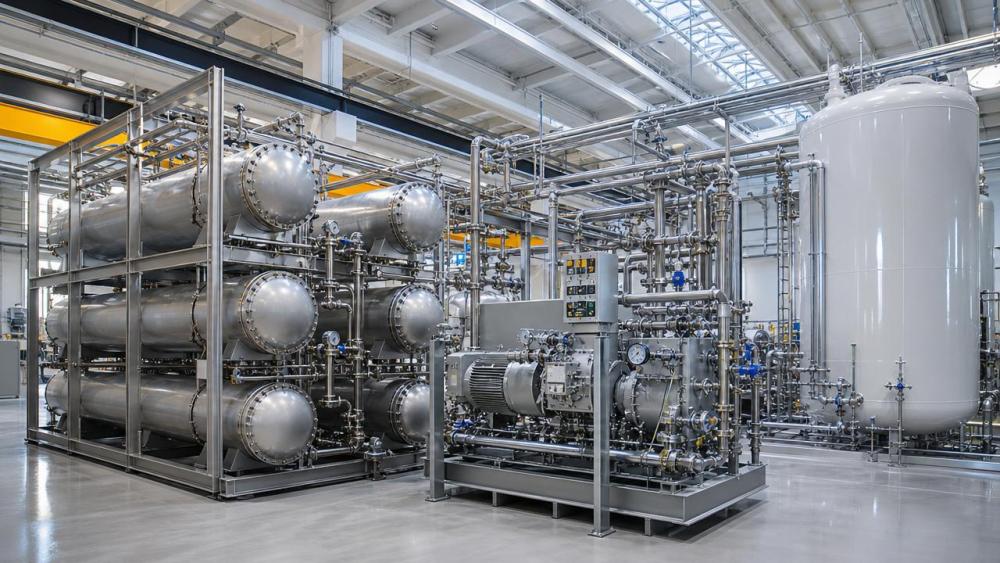

Hydrogen Storage Solutions Compared: Tanks, Compression, and Losses

Selecting the right hydrogen storage solutions is no longer a purely technical decision.

It affects procurement risk, lifecycle cost, asset safety, and long-term decarbonization performance.

When comparing tanks, compression systems, and losses, the real challenge is balancing capacity, pressure, integrity, efficiency, and compliance.

Standards such as ISO 19880, ASME B31.12, and SAE J2601 are now central to hydrogen infrastructure decisions.

Hydrogen Storage Solutions Compared: What Problem Must They Solve?

Hydrogen is light, reactive, and difficult to contain at industrial scale.

Effective hydrogen storage solutions must store enough usable energy without creating excessive compression cost, material stress, or operational loss.

The comparison usually begins with three questions.

• How much hydrogen must be stored?
• How fast must it be filled or discharged?
• What losses are acceptable across the asset life?

For stationary infrastructure, volume and safety margins often dominate.

For refueling, pressure, dispensing speed, and thermal control become decisive.

For export corridors, cryogenic logistics and boil-off management can define project economics.

G-HEI benchmarks hydrogen storage solutions against asset security, material integrity, and sovereign-level energy resilience.

Which Tank Types Are Used in Hydrogen Storage Solutions?

Hydrogen tanks are not interchangeable.

Each design reflects a different balance between pressure rating, weight, cost, inspection demand, and service environment.

Type I and Type II tanks

Type I tanks are all-metal vessels, commonly steel or aluminum.

They are heavy but proven, making them relevant for stationary hydrogen storage solutions with limited space constraints.

Type II tanks use partial composite reinforcement.

They reduce weight while retaining a metallic liner, but require careful fatigue assessment.

Type III and Type IV tanks

Type III tanks use a metal liner with full composite wrapping.

They are common where weight reduction and high pressure both matter.

Type IV tanks use polymer liners with carbon-fiber reinforcement.

They are attractive for 35MPa and 70MPa mobility and refueling applications.

However, permeation, liner compatibility, impact resistance, and end-of-life inspection must be considered.

Cryogenic liquid hydrogen tanks

Liquid hydrogen tanks store hydrogen at extremely low temperatures near minus 253°C.

They offer high volumetric density, which is valuable for shipping, aviation research, and large logistics hubs.

The trade-off is boil-off gas, insulation complexity, and higher energy input for liquefaction.

How Does Compression Change the Economics of Hydrogen Storage Solutions?

Compression improves storage density but consumes energy.

This makes compressor selection a central part of hydrogen storage solutions, not an accessory decision.

Low-pressure buffer storage may suit electrolyzer balancing.

High-pressure storage is preferred when fast dispensing, compact footprint, or cascade filling is required.

Common pressure ranges

• 20–100 bar: buffer storage for production sites.
• 200–350 bar: industrial storage and vehicle applications.
• 700 bar: light-duty hydrogen refueling systems.
• Above 700 bar: specialized cascade and testing configurations.

Higher pressure increases usable inventory in a given footprint.

It also increases power demand, heat generation, seal requirements, and maintenance exposure.

Compression equipment choices

Diaphragm compressors are valued for purity and isolation.

Piston compressors provide high pressure but require strong maintenance discipline.

Ionic and electrochemical compressors may suit niche conditions where contamination control or quiet operation matters.

The best hydrogen storage solutions align compressor duty cycles with electrolyzer output, dispensing peaks, and reserve requirements.

What Losses Matter Most: Leakage, Permeation, or Boil-Off?

Losses can quietly erode the performance of hydrogen storage solutions.

They also affect safety zoning, ventilation design, metering accuracy, and greenhouse accounting.

Leakage

Hydrogen molecules are small and can escape through imperfect joints, seals, valves, and fittings.

Leakage risk rises with pressure, vibration, thermal cycling, and poor installation quality.

Reliable hydrogen storage solutions use compatible sealing materials, leak detection, ventilation, and documented commissioning tests.

Permeation

Permeation is the slow movement of hydrogen through materials.

It is especially relevant for polymer-lined composite tanks and elastomer components.

Permeation is usually manageable, but it must be included in design limits and safety calculations.

Boil-off

Boil-off occurs when liquid hydrogen absorbs heat and vaporizes.

Vacuum insulation, cold box design, pressure control, and gas recovery determine the impact.

For cryogenic hydrogen storage solutions, boil-off is not only a loss.

It is also a system integration challenge that affects scheduling, loading, and backup use.

How Should Hydrogen Storage Solutions Be Compared for Real Projects?

A useful comparison must go beyond tank price.

It should measure installed cost, energy consumption, inspection burden, downtime risk, and regulatory acceptance.

Compressed gas remains the most common option for deployable hydrogen storage solutions.

It is modular, familiar to regulators, and compatible with staged expansion.

Liquid hydrogen becomes attractive when volume constraints or long-distance logistics dominate.

Metal hydrides are less common at infrastructure scale but valuable where pressure reduction has strategic value.

Which Standards and Safety Checks Reduce Storage Risk?

Standards transform hydrogen storage solutions from equipment packages into bankable infrastructure assets.

They help verify design pressure, material selection, emergency shutdown logic, and operational limits.

Important references

• ISO 19880 for hydrogen fueling station design and operation.
• ASME B31.12 for hydrogen piping and pipeline systems.
• SAE J2601 for fueling protocols and temperature control.
• Pressure vessel codes for tank certification and inspection.

Material compatibility is a recurring concern.

Hydrogen embrittlement can affect certain metals under stress, pressure, and repeated cycling.

Qualified materials, conservative design factors, and periodic inspection reduce this exposure.

Safe hydrogen storage solutions also require hazard analysis, fire protection, grounding, ventilation, and controlled access.

What Selection Mistakes Should Be Avoided?

The most common mistake is selecting storage capacity before defining the operating profile.

Daily throughput, peak demand, backup duration, and refill windows should be calculated first.

Another mistake is treating compression power as a secondary utility load.

In high-pressure hydrogen storage solutions, compression can materially affect efficiency and operating cost.

Ignoring losses is also risky.

Even small leakage, permeation, or boil-off rates can matter over long asset lives.

Final Guidance: How to Build Investment-Ready Hydrogen Storage Solutions

Strong hydrogen storage solutions begin with a clear duty profile.

Define production variability, demand peaks, usable reserve, discharge speed, and emergency conditions.

Then compare compressed gas, liquid hydrogen, hydrides, or network storage against measurable criteria.

The best option is rarely the most advanced technology.

It is the option that delivers safe, compliant, efficient hydrogen availability over the full lifecycle.

G-HEI supports this comparison through technical benchmarking across electrolysis, cryogenic logistics, turbines, CCUS, and high-pressure refueling systems.

For the next step, create a storage decision matrix using capacity, pressure, losses, codes, inspection intervals, and expansion pathways.

That approach turns hydrogen storage solutions from isolated assets into resilient zero-carbon infrastructure.
