When 99.999% Hydrogen Gas Purity Becomes Critical in Fueling Applications

In hydrogen fueling, hydrogen gas purity (99.999%) is not just a specification—it is a frontline requirement for safety, equipment longevity, and fueling efficiency. For operators managing high-pressure refueling systems, even trace contaminants can compromise dispensing performance, damage sensitive components, and undermine compliance. Understanding why this purity threshold matters is essential to maintaining reliable, standards-aligned hydrogen infrastructure.

For station operators, maintenance teams, and system supervisors, the issue is practical rather than theoretical. A fueling site running at 35 MPa or 70 MPa depends on stable gas quality from storage through compression, cooling, dispensing, and final vehicle fill. If hydrogen gas purity (99.999%) is not maintained consistently, the impact can appear as failed fills, abnormal pressure drops, sensor drift, valve wear, or higher maintenance frequency within as little as 3 to 12 months.

Within the broader zero-carbon infrastructure landscape, organizations such as G-HEI place purity control alongside material integrity, international standards alignment, and lifecycle efficiency. For operators on the ground, that means purity is not a paperwork checkbox. It is a daily operating condition tied to uptime, asset protection, and safe delivery performance across sovereign-scale hydrogen networks.

Why Hydrogen Gas Purity (99.999%) Becomes Critical in Fueling Operations

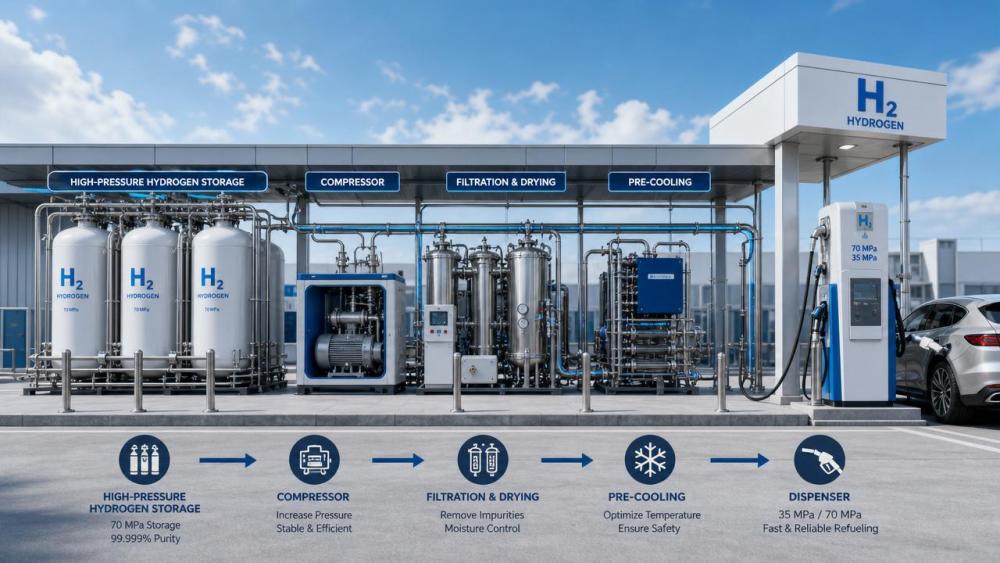

Hydrogen fueling systems are more sensitive to contaminants than many conventional gas systems because the process chain includes high-pressure compression, temperature management, precision flow control, and vehicle interface requirements. In a typical station, gas may pass through dryers, filters, compressors, cascade storage banks, chillers, hoses, nozzles, and communication-controlled dispensers before a fill is complete. Every stage introduces a potential contamination point.

The threshold implied by hydrogen gas purity (99.999%) allows only about 10 parts per million of total impurities in simple percentage terms. In practice, operators must think beyond the headline number. Water, oxygen, nitrogen, carbon monoxide, sulfur compounds, hydrocarbons, and particulate matter affect equipment in different ways. A station can technically receive high-purity hydrogen and still lose quality through poor storage practices, seal degradation, or inadequate purge procedures.

Why trace contaminants matter at 35 MPa and 70 MPa

At 35 MPa and especially 70 MPa refueling pressures, contaminants behave differently than they do in low-pressure industrial gas service. Moisture can condense in colder points of the system, especially near pre-cooling components operating around -20°C to -40°C. This can promote icing, measurement instability, or damage to seals and actuators. Fine particulates can also accelerate wear in valves and regulator seats where tolerances are tight.

For fuel cell vehicle applications, contamination risk extends beyond the station itself. Even low-level impurities can contribute to downstream fuel cell performance issues. Operators do not need to diagnose stack chemistry in daily work, but they do need to understand one operational fact: if dispensing hydrogen is outside accepted purity expectations, the station may remain mechanically functional while still creating compliance and liability exposure.

The difference between specification purity and delivered purity

One common mistake is assuming supplier certificate purity is identical to dispenser purity. Between tube trailer unloading, on-site generation, buffer storage, booster compression, and final dispensing, gas quality can change. Delivered purity should therefore be treated as a chain-of-custody issue with at least 4 checkpoints: incoming supply, post-compression, storage bank condition, and dispenser-side verification during scheduled testing intervals.

• Incoming hydrogen from electrolysis, trailer, or pipeline source
• Compression stage where oil, wear particles, or moisture ingress may occur
• Storage and cascade banks where residual gases or material compatibility issues emerge
• Dispenser and nozzle interface where final quality assurance matters most

The following table shows how typical contaminants affect station performance, component life, and operator response priorities.

The key conclusion is that hydrogen gas purity (99.999%) only protects fueling performance when operators manage contaminant control as a system discipline. A single weak point, especially in compression or storage, can erase the quality advantage of a clean upstream source.

Where Purity Problems Start in Real Hydrogen Stations

Most off-spec events do not begin at the dispenser. They begin earlier, often during gas transfer, startup, maintenance restart, or component aging. In stations serving buses, trucks, or passenger vehicles, repeated pressure cycling creates cumulative stress on fittings, seals, and filter elements. After 5,000 to 20,000 operating cycles, small deterioration can become a measurable gas quality issue even if no major failure is visible.

High-risk points in the fueling chain

1. Supply source transition

Stations receiving hydrogen from different production routes, such as PEM electrolysis, alkaline electrolysis, delivered gaseous hydrogen, or liquid hydrogen vaporization, may see variation in baseline purity and moisture profile. Changing supplier or switching between backup and primary supply without a verification routine is a frequent operational blind spot.

2. Compression and booster stages

Compression is one of the most sensitive points in purity management. Whether a station uses diaphragm, ionic liquid, or other compression architectures, operators should monitor lubricant isolation, seal condition, temperature excursions, and maintenance intervals. A compressor can maintain discharge pressure while still introducing contamination that reduces final hydrogen gas purity (99.999%) consistency.

3. Storage bank turnover and dead-leg zones

Cascade storage banks can retain residual gas, moisture, or particles in low-flow sections if piping design and purge practice are not optimized. This becomes more relevant in stations with uneven demand, such as fleets refueling in 2 concentrated windows per day and remaining idle for 8 to 12 hours between cycles.

4. Maintenance intervention and restart

Every intervention that opens the process line creates contamination risk. Filter replacement, valve service, transmitter calibration, and hose changes should be followed by documented purge, leak check, and quality verification steps. Purity losses often appear after maintenance, not because the part was poor, but because restart discipline was weak.

Operators can reduce most purity-related incidents by using a structured inspection matrix rather than relying on fault alarms alone.

1. Verify source gas certificate and batch traceability
2. Check dryer status, dew point trend, and drain condition
3. Review compressor maintenance logs and separator condition
4. Confirm storage bank purge history and isolation integrity
5. Inspect dispenser filters, nozzle cleanliness, and fill anomalies

A 5-step workflow like this can be completed daily in abbreviated form and weekly in full detail. That approach is often more effective than waiting for quarterly gas testing to reveal a problem already affecting fills.

How Operators Should Evaluate and Maintain Hydrogen Purity Control

Maintaining hydrogen gas purity (99.999%) requires more than installing one high-grade filter. It calls for layered control across hardware, procedures, and verification. In practice, operators should evaluate purity control under 4 dimensions: source quality, contamination barriers, monitoring frequency, and maintenance discipline. Weakness in any one of these areas can compromise the full fueling chain.

Core equipment and procedural controls

The first line of defense is proper component selection. Materials must be compatible with dry hydrogen service, pressure cycling, and expected temperature range. Filters should be rated for the expected particle load and service pressure. Dryers, separators, valves, seals, and instrument lines should be selected as a coordinated package, not as isolated parts sourced only by lowest purchase cost.

The second line of defense is procedure. Operators need standard steps for startup, shutdown, venting, purging, and changeover between storage banks. Even a well-engineered station can drift from performance expectations if these procedures are undocumented or inconsistently applied across shifts.

The table below outlines a practical evaluation framework for operators and technical buyers responsible for hydrogen fueling assets.

This framework supports both operations and procurement. If a station supplier cannot explain how purity is protected through compression, storage, pre-cooling, and dispensing, the operator may inherit long-term service issues even if initial commissioning looks acceptable.

Standards alignment and documentation discipline

In hydrogen infrastructure, standards such as ISO 19880, ASME B31.12, and SAE J2601 shape the broader operating environment for safety, fueling protocols, and pressure system design. Operators do not need to become standards authors, but they should know how station procedures map to these frameworks. Documentation should cover at least 3 areas: gas quality verification, maintenance traceability, and deviation response.

For example, when a fill event aborts repeatedly over a 24-hour period, the response should not stop at resetting alarms. The operator should review gas temperature, pressure profile, filter differential indicators, recent maintenance, and source gas history. A documented response path reduces downtime and helps preserve compliance evidence.

Common Misunderstandings, Operator Risks, and Practical Recommendations

Hydrogen gas purity (99.999%) is often discussed as if it were only a supplier responsibility. In real fueling applications, that view is incomplete. The station operator controls a large part of the risk after hydrogen enters the site. Poor purging, delayed maintenance, mixed-material retrofits, and undocumented temporary repairs can all degrade actual delivered purity.

Frequent misconceptions in the field

• If the incoming hydrogen certificate is compliant, the dispenser output must also be compliant.
• A pressure-stable station is automatically a purity-stable station.
• Filter replacement alone is enough to solve recurring gas quality problems.
• Purity testing can be postponed if there are no visible fueling interruptions.

Each of these assumptions can lead to avoidable asset stress and longer downtime. A station may continue operating while hidden contamination gradually affects nozzles, regulators, seals, and customer confidence. In fleet environments, even a 2% to 5% increase in failed or delayed fills can disrupt daily dispatch schedules.

Practical recommendations for operators and site managers

Build a site-specific purity control plan

The plan should define sampling points, alarm review triggers, purge procedures, maintenance hold points, and escalation criteria. A simple one-page checklist can be more effective than a long manual that no shift uses. For many stations, monthly formal review plus daily abbreviated checks is a workable starting model.

Link purity control to preventive maintenance

Preventive maintenance intervals should not be based only on calendar days. They should also reflect operating hours, compression cycles, and fill volume. A site serving 80 to 120 fills per day will stress components very differently from a demonstration station with 10 fills per day.

Use supplier discussions to improve controllability

When evaluating equipment or service partners, ask for clear answers on contamination pathways, sampling methods, recommended inspection intervals, spare parts strategy, and restart procedures after intervention. These questions often reveal more operational value than headline throughput or compressor nameplate alone.

As hydrogen mobility and zero-carbon infrastructure scale further into 2026 and beyond, the stations that perform best will not simply be the ones with the highest pressure or fastest nominal fill. They will be the ones that preserve hydrogen gas purity (99.999%) consistently from source to nozzle, with disciplined operations, documented controls, and equipment selected for real service conditions.

For G-HEI stakeholders and site-level operators alike, purity is a strategic operating variable tied to safety, material integrity, and long-term fueling economics. If you are reviewing a new hydrogen station, upgrading an existing 70 MPa system, or tightening maintenance procedures for better reliability, now is the right time to assess your purity control chain in detail. Contact us to discuss your application, obtain a tailored evaluation framework, or explore more hydrogen infrastructure solutions aligned with high-pressure fueling performance.
