IEC 61000 EMC for Power Electronics: Hidden Compliance Risks in Intelligent Dispenser Units

In intelligent dispenser units, IEC 61000 EMC for power electronics is often treated as a routine checklist, yet hidden compliance gaps can trigger functional instability, safety risks, and costly project delays. For quality control and safety managers, understanding how EMC interactions affect power modules, sensors, and communication systems is essential to maintaining reliable, standards-aligned hydrogen infrastructure.

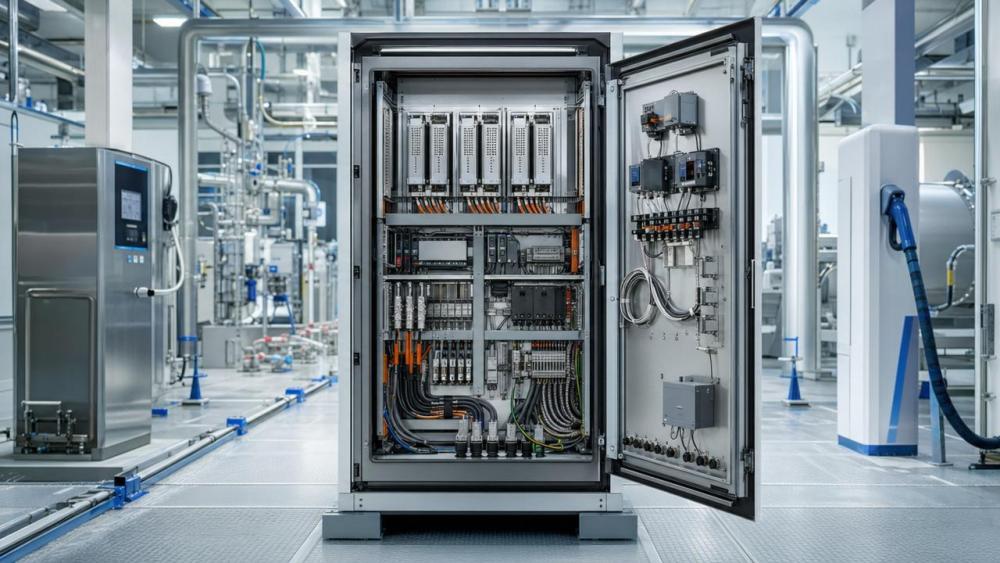

Why IEC 61000 EMC for Power Electronics Matters in Intelligent Dispenser Units

IEC 61000 EMC for power electronics refers to the electromagnetic compatibility framework used to verify whether electrical and electronic equipment can operate correctly in its intended environment without causing or suffering unacceptable electromagnetic disturbance. In hydrogen refueling dispenser units, this is not limited to a laboratory concern. It directly affects DC power conversion stages, metering electronics, valve control boards, safety interlocks, HMI panels, and communication interfaces linked to site control systems.

For quality control teams and safety managers, the key issue is that intelligent dispensers combine several noise-sensitive and noise-generating elements in a compact enclosure. A single unit may include switched-mode power supplies operating from tens of kHz up to several hundred kHz, industrial communication modules, grounding networks, sensor loops in the 4–20 mA range, and fast transient loads such as contactors or solenoids. When these subsystems are assessed in isolation, compliance may appear straightforward. When integrated, hidden EMC interactions often emerge.

In high-pressure hydrogen infrastructure, the consequences of poor EMC performance extend beyond nuisance resets. A temporary communication loss of 100 ms to 500 ms, a false pressure signal deviation, or an unexpected controller restart can interrupt fueling logic, create misleading fault states, or delay protective action. This is why IEC 61000 EMC for power electronics should be interpreted as an operational reliability discipline, not just a pass-fail certification topic.

What makes dispenser EMC different from general industrial equipment

Unlike many static control cabinets, intelligent dispenser units sit at the intersection of power conversion, field instrumentation, safety shutdown logic, and user-facing digital systems. They may be installed outdoors, exposed to variable grounding quality, cable routing constraints, and long field runs between compressors, storage banks, and payment or supervisory systems. These factors create more coupling paths for radiated and conducted interference than in a conventional indoor panel.

The compliance challenge also grows because modern hydrogen stations are becoming data-rich. Ethernet, CAN, RS-485, wireless maintenance modules, and remote diagnostics can coexist in one dispenser architecture. Each added interface increases susceptibility pathways, especially when shield termination, bonding resistance, and reference potential management are inconsistent over cable lengths of 5 m to 30 m.

For organizations responsible for sovereign-scale decarbonization assets, such as those benchmarked across G-HEI focus areas, these details matter at system level. If a dispenser repeatedly trips or loses signal integrity due to hidden EMC weaknesses, the issue affects uptime, public safety confidence, and the bankability of zero-carbon refueling infrastructure.

Typical EMC sources inside a dispenser

• DC/DC and AC/DC converters with switching frequencies commonly between 20 kHz and 500 kHz.
• Motor drives, compressor interface relays, and solenoid valves generating fast transients.
• Long sensor and communication cables acting as antennas for common-mode noise.
• Poor bonding between door, frame, panel, and shield termination points.
• Mixed routing of high-current lines and low-level analog signals in shared cable trays.

These sources do not always produce immediate functional failure during factory acceptance. In many cases, the hidden risk appears only after on-site integration, especially when site earthing impedance, cabinet proximity, and cable lengths differ from the test setup used during development.

The Hidden Compliance Risks Behind a “Passed” EMC Checklist

One of the most common misunderstandings is assuming that passing a subset of IEC 61000 tests guarantees field robustness. In practice, IEC 61000 EMC for power electronics must be aligned with the actual installation architecture, the functional criticality of each subsystem, and the interaction between power and signal domains. A compliant subassembly does not automatically produce a compliant dispenser once integrated with valves, metering devices, displays, and communication gateways.

Quality managers often see this problem during late-stage verification: individual modules have test reports, yet the assembled dispenser experiences intermittent faults under electrostatic discharge, electrical fast transients, surge events, or radiated immunity stress. The gap usually comes from interface conditions not represented in module-level testing, such as shared grounds, common harnesses, or cabinet resonance effects across 80 MHz to 1 GHz.

Safety managers should pay particular attention to faults that do not look like EMC at first glance. Examples include pressure reading drift of 1% to 3%, delayed valve actuation, unstable HMI screens, frozen transaction logs, or unexplained watchdog resets. These can be misdiagnosed as software bugs or sensor defects when the root cause is electromagnetic disturbance entering through power ports or I/O lines.

Common hidden gaps in integrated dispenser projects

The table below summarizes frequent compliance blind spots found in intelligent dispenser assemblies and why they deserve early attention from QC and safety teams.

The practical lesson is that IEC 61000 EMC for power electronics should be assessed at both component and system levels. Documentation from suppliers remains important, but it must be cross-checked against actual installation topology, enclosure design, and the functional safety relevance of each signal path.

Signals most often affected before a total failure occurs

1. Low-level analog pressure or temperature channels.
2. Pulse or encoder lines linked to metering accuracy.
3. Serial communication loops between dispenser and supervisory PLC.
4. HMI control boards sharing power rails with noisy switching devices.
5. Emergency-stop status and interlock feedback loops.

These vulnerable paths deserve prioritized review because they can degrade functionality gradually. Detecting the issue at the drift or latency stage is usually far less expensive than waiting for full operational failure after site energization.

How IEC 61000 EMC for Power Electronics Connects to Hydrogen Infrastructure Reliability

In hydrogen refueling environments above 35 MPa and especially in 70 MPa class systems, electrical reliability supports safety, throughput, and user trust. Intelligent dispenser units are not isolated retail devices; they are part of an infrastructure chain that includes storage, compression, cooling, sequencing, and fueling protocols. EMC weakness in the dispenser can therefore propagate into station-level disturbances, aborted fills, and maintenance escalation.

Within the broader zero-carbon ecosystem addressed by G-HEI, the importance of IEC 61000 EMC for power electronics rises because hydrogen assets increasingly combine advanced materials, digital control, and distributed energy interfaces. Electrolyzer plants, cryogenic logistics nodes, and hydrogen-ready turbine facilities all depend on control stability. Dispenser EMC is one visible endpoint where technical discipline becomes directly measurable in uptime and public-facing performance.

For asset owners and quality departments, the business value is clear. Better EMC control reduces nuisance service calls, lowers repeat validation costs, and shortens the gap between FAT and site acceptance. Even a modest reduction in commissioning rework, such as avoiding one extra 7-day troubleshooting cycle, can materially improve project schedules when multiple stations are being deployed in parallel.

Where EMC risk concentrates in the dispenser architecture

The following overview helps teams map high-risk areas by function rather than by department. This is useful because EMC issues often fall between electrical design, controls engineering, and field installation responsibilities.

This classification shows why EMC cannot be delegated only to one supplier. In integrated hydrogen infrastructure, the power, controls, instrumentation, and enclosure teams all influence the final performance margin. That is especially true when deployment volumes grow from a single station to regional networks of 10, 20, or more sites.

Operational value for target stakeholders

• Quality control personnel gain clearer acceptance criteria beyond generic pass/fail reports.
• Safety managers can identify which interference events might compromise interlocks or alarm credibility.
• Project leaders reduce late-stage redesign caused by overlooked cable, shielding, or grounding decisions.
• Investors and infrastructure owners benefit from more predictable commissioning and lower lifecycle uncertainty.

In short, IEC 61000 EMC for power electronics supports not only formal compliance but also the operational maturity expected in strategic hydrogen assets.

Practical Evaluation Priorities for QC and Safety Managers

A practical EMC review should begin before final assembly, not after field complaints. In dispenser projects, the highest value comes from identifying interference paths early: source, coupling route, and victim circuit. When teams wait until full-site energization, root-cause analysis becomes slower because multiple variables change at once, including cable routing, bonding quality, and external network behavior.

For IEC 61000 EMC for power electronics, a useful internal benchmark is to assess the system in three stages: design review, integration verification, and site confirmation. Each stage should have specific evidence requirements. For example, during design review, teams can verify filter placement and grounding topology; during integration, they can test representative cable harnesses and transient behavior; during site confirmation, they can validate actual installation conditions over the first 24 to 72 operating hours.

Another priority is defining functional acceptance criteria during disturbances. It is not enough to state that the unit should “continue working.” Teams should decide whether temporary display flicker is acceptable, whether communication retry within 1 second is acceptable, and whether any pressure reading deviation beyond a specified range requires a fail-safe response. These decisions turn EMC from a generic compliance topic into a controllable engineering requirement.

A focused review checklist

Design and assembly checks

• Confirm physical separation between high-current switching circuits and analog or communication lines, ideally with routing discipline maintained over every 1 m to 5 m harness section.
• Verify that cable shields terminate according to the signal type and enclosure strategy, rather than by ad hoc field practice.
• Review bonding continuity across panel doors, gland plates, DIN rails, and frame structures.
• Check whether surge and transient protection are coordinated with power entry points and exposed field interfaces.
• Ensure that digital grounds, protective earth, and analog references are intentionally managed, not accidentally merged.

Verification and documentation checks

• Request test evidence for the integrated assembly, not only for purchased modules.
• Map each critical function to the relevant disturbance type, such as ESD, EFT, surge, or radiated immunity.
• Record any temporary malfunction observed during tests, even if automatic recovery occurs within a few seconds.
• Compare the laboratory cable configuration with the actual site arrangement and note any deviations.
• Maintain a revision history when filters, firmware, grounding, or harness layouts change.

This review approach helps prevent a familiar scenario: formal compliance paperwork is complete, but field behavior remains unstable because the most sensitive installation details were never validated under realistic conditions.

Implementation Advice for Standards-Aligned Hydrogen Projects

For organizations building or upgrading hydrogen refueling assets, the best implementation strategy is to treat IEC 61000 EMC for power electronics as part of overall design governance. It should sit alongside pressure integrity, functional safety logic, fueling protocol compliance, and materials compatibility. When EMC is introduced only at the certification stage, teams often discover problems that require mechanical changes, wiring rework, or enclosure modifications that are more expensive than the original electrical fix.

A balanced project plan usually allocates EMC attention at four moments: concept definition, detailed design, pre-compliance review, and final validation. Even simple pre-compliance checks can reveal major issues before the formal test window. In many industrial programs, identifying one shielding or grounding defect before final testing can save 1 to 3 redesign iterations, each of which may cost several days across engineering, assembly, and retest coordination.

Hydrogen infrastructure owners should also consider supplier alignment. If the dispenser integrator, power module supplier, communication vendor, and site installer use different assumptions about earthing, cable shields, or cabinet interfaces, hidden risks persist. Clear technical interfaces reduce ambiguity and support more reliable station expansion across multiple locations.
