What Determines the Cost of Hydrogen Dispenser Units for a Station?

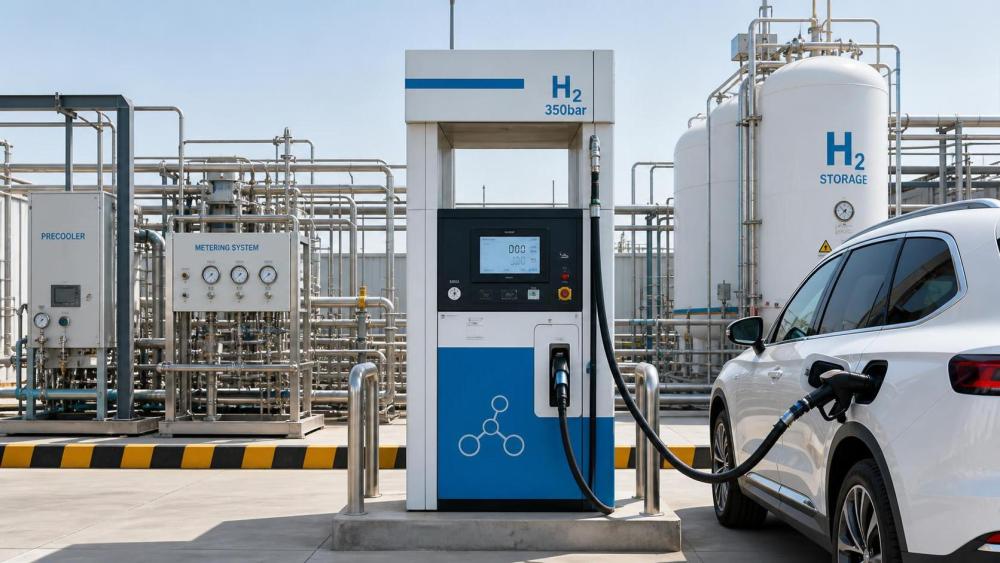

For a hydrogen refueling station, the dispenser is the equipment most visible to the driver, but its cost is shaped by decisions made across the entire station design. A quotation for Hydrogen dispenser units may appear to cover a cabinet, hose, nozzle, display, controls, and safety devices. In practice, it also reflects the pressure architecture upstream, the fueling protocol, local approval requirements, the intended vehicle mix, the required throughput, and the supplier’s ability to support a high-pressure asset over its operating life.

This is why a low initial equipment price is not automatically a low-cost choice. A dispenser that cannot reliably communicate with the station control system, achieve the required fueling performance, or obtain acceptance in the target market can create expensive redesign work after the purchase order is issued. Procurement teams need to evaluate the dispenser as part of the refueling system, not as an isolated forecourt item.

For stations serving passenger fuel-cell vehicles, fleets, buses, or mixed-duty applications, the central question is not simply “What does a dispenser cost?” It is: what capability, compliance burden, and operational risk are included in that cost?

Pressure rating and fueling duty set the technical baseline

The first major cost driver is the pressure class the dispenser must support. Hydrogen stations may be configured around 35 MPa, 70 MPa, or more specialized duty requirements. A 70 MPa dispensing application demands a different level of component selection, system validation, sealing performance, and safety engineering than a lower-pressure configuration. It must manage hydrogen at very high pressure while maintaining controlled fueling conditions at the vehicle interface.

The vehicle mix matters just as much. A passenger-car station may prioritize 70 MPa fills and user-friendly transaction speed. A bus or heavy-duty fleet may require different flow characteristics, nozzle arrangements, fueling windows, and physical layout. Some sites need more than one fueling position or pressure class. A dual-hose or multi-product configuration can improve station usability, but it is not simply one cabinet with extra hardware. It may add metering paths, valves, control logic, interfaces, and inspection requirements.

Throughput is often misunderstood during early budgeting. The dispenser itself does not create hydrogen capacity; compression, storage, pre-cooling, and controls upstream determine what can be delivered repeatedly. Yet the dispenser must be selected for the anticipated flow and duty cycle. Specifying a unit around occasional demonstration fueling, then expecting it to handle sustained fleet operations, is a familiar route to premature operational constraints.

Protocol compliance is not an optional add-on

Hydrogen filling is a controlled process rather than a simple transfer of compressed gas. For 70 MPa light-duty vehicle fueling, SAE J2601 is a key reference for fueling protocols. The dispenser and station controls need to work together to manage pressure, temperature, communication, and termination conditions in a manner appropriate to the selected fueling method. The commercial consequence is straightforward: the more sophisticated the protocol implementation and validation expectations, the more engineering and testing may be embedded in the supplied solution.

ISO 19880 is also highly relevant to station design and safety expectations, while piping and related infrastructure may need to be assessed against applicable frameworks such as ASME B31.12. These references do not turn into a single universal procurement checklist; legal and technical requirements vary by jurisdiction and authority having jurisdiction. However, they make clear why price comparisons based on exterior appearance or basic component lists are unreliable.

A serious bid review should identify exactly what the supplier is offering: a dispenser designed to be integrated into a compliant station, a fully tested station subsystem, or equipment for which the buyer and EPC contractor retain substantial responsibility for protocol integration and acceptance documentation. Those are very different commercial positions.

Cooling, metering, and the components that are easy to underestimate

Pre-cooling is one of the clearest examples of a cost that cannot be judged at the dispenser door alone. Rapid high-pressure hydrogen fueling can generate temperature effects that must be managed within the overall station design. Depending on the architecture, cooling equipment may sit upstream rather than inside the dispenser enclosure. Even so, the dispenser must be compatible with the cooled hydrogen delivery arrangement, instrument signals, controls, and insulation or piping interface used by the station.

Metering is another consequential line item. Where hydrogen is sold by mass, measurement accuracy, traceability, calibration arrangements, and the rules governing commercial transactions need early attention. A flow meter selected only on nominal range may not satisfy the applicable legal-metrology or customer settlement requirements. Buyers should establish whether the quotation includes the meter, calibration documentation, verification support, communications, and any required interface to payment or station-management systems.

Then there are the components that rarely feature in a headline quotation but strongly influence availability: breakaway couplings, hoses, nozzles, filters, pressure-control devices, solenoid valves, sensors, emergency-stop circuits, vent routing interfaces, and communication hardware. Each component must tolerate a demanding hydrogen environment. Selection is influenced by pressure cycling, temperature, material compatibility, leakage management, and service accessibility. Replacing an unsuitable component after commissioning is much more costly than qualifying it during design.

Materials and safety architecture affect both price and lifetime risk

Hydrogen places unusual demands on materials, joints, and seals, especially in high-pressure service. Procurement specifications should not reduce this issue to a generic statement that materials must be “hydrogen compatible.” The supplier should clarify the materials used in pressure-containing parts, the intended pressure and temperature envelope, the approach to seal selection, and the evidence supporting component suitability for the proposed duty.

Safety architecture also changes the delivered cost. A dispenser may incorporate gas detection, pressure and temperature monitoring, emergency shutdown functions, controlled venting interfaces, breakaway protection, electrical classification measures, and secure control logic. The exact allocation of these functions between dispenser, compressor skid, storage package, station PLC, and site safety system differs by design. What matters is that the allocation is explicit. Gaps between packages are a common source of late engineering changes.

The enclosure itself should not be treated as merely cosmetic. Outdoor exposure, salt air, heat, dust, vandalism risk, vehicle impact protection, accessibility, and local electrical requirements can alter enclosure construction and installed accessories. A standard enclosure might be suitable for one location and unsuitable for another without either option being inherently defective.

Integration work is often the hidden cost in a dispenser purchase

A dispenser has to communicate and physically connect with the rest of the station. That means confirming high-pressure piping interfaces, hydraulic and pneumatic boundaries where applicable, electrical supply, grounding, communications protocols, emergency shutdown logic, data collection, remote monitoring, and the station control philosophy. Interface work becomes especially important where equipment comes from multiple suppliers.

A less expensive dispenser can lose its advantage if the EPC contractor must create custom control integration, modify pipework, source missing safety hardware, or repeat site acceptance tests. Conversely, a higher-priced package may include factory testing, documentation, standard interfaces, commissioning support, and a defined responsibility boundary. Procurement should compare the total scope, not only the equipment subtotal.

This is particularly relevant where hydrogen supply evolves over time. A station initially connected to delivered compressed hydrogen may later be linked to on-site electrolysis, larger storage, or a different logistics model. The dispenser may remain in place, but its interface requirements can change. Planning for realistic expansion is sensible; paying for every imaginable future configuration on day one is not. The right decision depends on the site’s credible development path.

What should be compared in supplier quotations?

A disciplined comparison matrix prevents the usual “like-for-like” illusion. Ask suppliers to state assumptions rather than bury them in exclusions. The following items deserve a direct response in every technical and commercial offer:

• Designed pressure class, vehicle applications, number of hoses, and intended daily operating profile.
• Applicable fueling protocol, control-system scope, and responsibility for integration with the station master controller.
• Metering configuration, calibration or verification scope, and suitability for commercial sale where required.
• Included safety functions, hazardous-area assumptions, detection interfaces, emergency shutdown arrangement, and venting boundary.
• Materials and component traceability for pressure-containing assemblies, including limits of supplied documentation.
• Factory acceptance testing, site commissioning, training, spare parts, warranty conditions, and remote diagnostic capability.
• Exclusions for civil works, canopy integration, bollards, payment systems, electrical works, network connections, and local approvals.

Lead time should also be broken down. A supplier may quote the fabrication period but exclude the time required for design review, procurement of specialized components, factory acceptance testing, transport preparation, site integration, and authority inspection. For a station project, “available ex works” and “ready to fuel vehicles” are not remotely the same milestone.

Lifecycle cost matters more than the cabinet price

Hydrogen dispenser units should be evaluated over their operational life. Availability is affected by service intervals, availability of critical spares, supplier response capability, software support, calibration needs, and the practicality of field replacement for wear components. The cost of a failed nozzle, hose, valve, sensor, or communications module is not limited to the replacement part. It can include downtime, technician travel, station access controls, retesting, and missed fueling demand.

For fleet sites, unplanned downtime can be more disruptive than at a public station because vehicle dispatch schedules may depend on predictable fueling. That does not necessarily justify the most complex design. It does justify asking for a maintenance concept before award: recommended service activities, training requirements, diagnostic access, spare-parts strategy, expected responsibilities, and escalation paths for control faults.

A useful procurement practice is to separate capital cost, installation and integration cost, commissioning cost, planned maintenance exposure, and downtime risk. This does not create false precision; it makes assumptions visible. It also reveals whether a supplier’s lower price reflects an efficient design or merely a narrower scope.

Building a defensible specification

The most effective way to control cost is not aggressive price negotiation after quotations arrive. It is a clear design basis before the market is approached. Define the target vehicles, pressure classes, fueling demand, hydrogen supply and storage concept, operating environment, local codes, metering needs, digital interfaces, expansion assumptions, and ownership of commissioning responsibilities. Where any of these items remain uncertain, identify them as open decisions rather than allowing each bidder to make a different assumption.

This system-level view is central to the work benchmarked by the Global Hydrogen-Economy & Zero-Carbon Infrastructure (G-HEI). High-pressure refueling infrastructure cannot be separated from the upstream assets that feed it, whether those assets involve large-scale PEM or alkaline electrolysis, compressed storage, or cryogenic hydrogen logistics. Nor can procurement be separated from material integrity, safety assurance, and operating discipline. Standards such as ISO 19880, ASME B31.12, and SAE J2601 provide critical reference points, but the project team must translate them into a coherent station specification.

The best commercial outcome is usually a dispenser solution that is appropriately specified: neither stripped down below the needs of the site nor overengineered for an unlikely scenario. Before selecting a supplier, confirm the functional boundaries, acceptance criteria, documentation deliverables, and lifecycle support model in writing. That discipline gives procurement teams a more reliable basis for comparing Hydrogen dispenser units—and a much better chance of keeping the station’s real cost under control.
