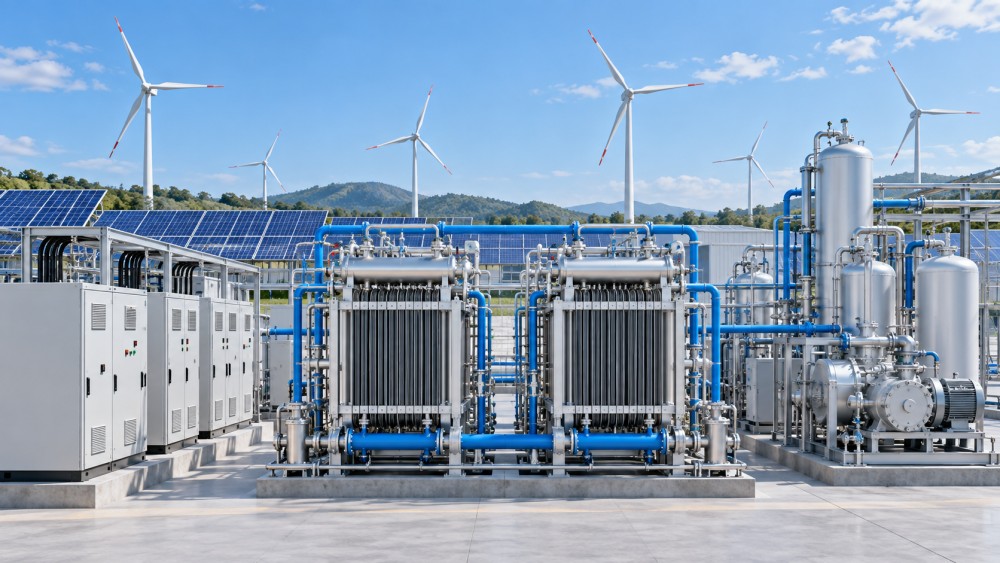

How electricity use determines green hydrogen systems efficiency

Electricity consumption is not merely an operating-cost input in green hydrogen production; it is the variable that connects electrolyzer performance, plant availability, renewable integration, hydrogen cost, and carbon intensity. A system with a strong stack efficiency figure can still underperform at plant level if its rectifier losses, water treatment load, compression duty, cooling demand, or operating profile are poorly accounted for.

The central evaluation question is therefore not “How efficient is the electrolyzer?” in isolation. It is: how many kilowatt-hours of electricity are required at the defined system boundary to deliver one kilogram of hydrogen at the required pressure, purity, and availability? Without a consistent answer to that question, comparisons between green hydrogen systems efficiency claims are unreliable.

Electricity use must be tied to a defined measurement boundary

Hydrogen projects often report specific energy consumption in kWh/kg H₂, but the number has little meaning unless the measurement boundary is explicit. The same plant can produce several legitimate values depending on where electricity is measured and what downstream equipment is included.

At the narrowest boundary, stack energy consumption measures the DC power delivered to the electrolyzer stack relative to the hydrogen produced by that stack. This figure is useful for assessing electrochemical performance, but it excludes conversion and balance-of-plant losses.

At a wider electrolyzer-system boundary, the electricity figure should include AC/DC power conversion, water purification, electrolyte circulation where applicable, cooling, control systems, gas drying, hydrogen purification, and oxygen handling equipment required for normal operation. This is generally the more useful basis for comparing packaged PEM and alkaline electrolyzer systems.

At the plant-delivery boundary, electricity consumption also includes compression, storage transfer, export pumping, or liquefaction where these are part of the project scope. A hydrogen molecule produced at a stack outlet is not technically equivalent to hydrogen delivered at 30 bar, 350 bar, 700 bar, pipeline pressure, or cryogenic liquid condition. Compression and conditioning can materially change the project-level energy balance.

A reported value should also state whether it is based on the lower heating value (LHV) or higher heating value (HHV) of hydrogen. Hydrogen’s LHV excludes the recoverable heat from water condensation after combustion, while HHV includes it. Neither convention is inherently preferable, but mixing them produces misleading efficiency comparisons. An HHV-based efficiency percentage will appear lower than an LHV-based percentage for the same physical system.

The most defensible specification identifies the reference basis, electrical measurement point, hydrogen flow measurement point, outlet pressure, gas purity, ambient conditions, operating load, and whether the result is a guaranteed value, a factory acceptance value, or a modeled annual average.

The electrochemical reason electricity demand changes

Electrolysis requires electrical energy to split water into hydrogen and oxygen. The reversible thermodynamic voltage establishes the minimum energy requirement under specified conditions, but operating equipment requires a higher cell voltage because real systems experience activation losses, ohmic resistance, mass-transport limitations, and auxiliary energy demand.

At a practical level, a small increase in cell voltage can have a significant effect on specific electricity consumption because hydrogen production is linked to current through Faraday’s law. If voltage rises while current efficiency remains unchanged, more electrical energy is consumed for each unit of hydrogen produced. Stack voltage is therefore a primary indicator, but it is not a complete efficiency metric.

Faradaic efficiency also matters. It expresses how effectively electrical charge becomes the intended hydrogen product rather than being lost through crossover or side reactions. Under normal design conditions, modern electrolyzers aim for high Faradaic efficiency, yet gas crossover constraints can become more important at low load, elevated pressure differential, or degraded operating conditions. The resulting limitation may not initially appear as a large kWh/kg penalty; it may instead restrict the permissible operating range or require operational intervention.

Temperature affects both electrochemical behavior and balance-of-plant requirements. Higher operating temperatures can reduce certain electrochemical losses, but they introduce material, sealing, thermal-management, and durability considerations. The technically relevant question is not whether a system uses a higher temperature, but whether its full operating envelope preserves safe gas separation, acceptable degradation, and stable energy consumption over the intended duty cycle.

Rated efficiency is not annual electricity performance

Datasheets commonly present efficiency at a rated operating point. Grid-connected or renewable-coupled plants rarely remain at that point continuously. Annual electricity use is shaped by the load-duration curve, start-stop frequency, standby consumption, ramping requirements, curtailment strategy, and minimum stable load.

This distinction is particularly important where an electrolyzer follows variable wind or solar generation. A system may operate efficiently near nominal load but produce less favorable annual kWh/kg results if it spends substantial time at part load while fixed auxiliary loads continue to consume electricity. Conversely, operating at a lower current density can reduce stack voltage and improve instantaneous electrochemical efficiency, although it reduces hydrogen output per installed megawatt. The plant-level optimum is therefore a trade-off between energy consumption, utilization of capital equipment, and electricity availability.

PEM and alkaline technologies respond differently to these conditions. PEM systems are commonly selected where rapid response, compact footprint, and close coupling to variable power are central requirements. Their performance depends on the design of the stack, catalyst loading, membrane condition, power electronics, and operating-pressure configuration. Alkaline systems have a long industrial operating history and can offer strong performance in stable, high-utilization applications, but dynamic operation must be evaluated against the specific system’s permitted load range, gas-purity controls, thermal behavior, and cycling limits.

Neither technology can be judged solely by a single nominal kWh/kg figure. A valid comparison requires identical assumptions for annual operating hours, load profile, inlet-water quality, hydrogen delivery pressure, ambient temperature range, planned maintenance, and degradation allowance.

Power quality affects both performance and asset condition

The electricity source influences an electrolyzer before the energy reaches the stack. Power conversion equipment must manage voltage variation, harmonic distortion, transient events, reactive-power requirements, and grid-fault behavior. These issues are often treated as an interconnection problem rather than an efficiency problem, but they can affect availability, control stability, and component stress.

Electrolyzer stacks operate on DC power, while renewable plants and grids supply AC power. Rectifiers convert AC to controlled DC, introducing conversion losses that belong in a system-level energy assessment. At megawatt scale, even a modest conversion loss becomes material over annual operating hours. More importantly, the rectifier and control architecture determine how effectively the electrolyzer can ride through disturbances, maintain current control, and avoid unnecessary trips.

Frequent interruptions have an energy consequence beyond the electricity not consumed during downtime. Restart procedures may require heating, circulation, gas purging, pressure stabilization, and a period of suboptimal operation. For systems that rely on continuous gas-quality control, cycling may also narrow the practical operating envelope. The relevant engineering metric is therefore not only ramp rate in percent per second, but the complete response sequence: ramping capability, minimum load, warm and cold start behavior, trip recovery, and hydrogen quality during transient operation.

Where a project is connected to both a renewable generator and the grid, the electrical architecture should distinguish among physical power flow, contractual renewable attributes, and operational dispatch. A project can receive low-carbon electricity under a contractual arrangement while physically drawing power from a regional grid; whether that hydrogen qualifies as “green” depends on the applicable certification or regulatory methodology, not on the electrolyzer alone.

Renewable sourcing determines whether efficient hydrogen is actually low-carbon

Low electricity consumption reduces the emissions associated with each kilogram of hydrogen, but it does not independently establish renewable origin. Lifecycle emissions depend on the carbon intensity of electricity used across operating hours, as well as upstream impacts from equipment, construction, water treatment, and any downstream compression or transport.

For projects making renewable or low-carbon hydrogen claims, electricity procurement should be examined at the same temporal resolution used by the relevant accounting framework. Annual matching of renewable certificates may produce a different emissions result from hourly matching between electrolyzer operation and renewable generation. The technical implications are substantial: tighter matching can reduce reliance on high-carbon grid periods, but it can also lower electrolyzer utilization unless supported by oversized renewable capacity, storage, flexible dispatch, or a sufficiently low-carbon grid.

Additionality and geographic correlation are similarly important concepts in some hydrogen certification systems. They address whether the electricity supply represents new clean generation and whether it is credibly connected to the zone serving the electrolyzer. These are accounting and system-planning issues, but they directly affect operational dispatch and the credibility of lifecycle carbon-intensity calculations.

Technical evaluations should avoid treating a renewable power purchase agreement as a substitute for hourly operating data. The useful evidence is a time-series model showing generation, grid imports and exports, curtailment, storage behavior where present, electrolyzer load, and the emissions methodology applied to each interval.

Auxiliary loads are where optimistic comparisons often fail

Water purification is usually a relatively small electricity load compared with electrolysis, but it is essential to stable operation. Feedwater quality affects membrane, electrode, separator, and catalyst integrity. A system consuming little stack energy but requiring frequent intervention because of inadequate water-treatment design is not a high-performing asset.

Thermal management deserves similar attention. Heat rejection requirements rise with electrical losses, and cooling loads vary with ambient conditions. Supplier figures based on controlled reference conditions may not represent a hot climate, restricted cooling-water site, or enclosed installation. The design review should identify the assumed cooling medium, inlet temperature, seasonal derating method, and electrical demand of pumps, fans, chillers, or cooling towers.

Hydrogen purification and drying must be assessed against the end-use specification. ISO 14687 provides hydrogen fuel-quality specifications for relevant applications, while station and fueling-system interfaces may involve standards such as ISO 19880 and SAE J2601. These standards should not be used as generic efficiency benchmarks; their relevance depends on whether the hydrogen will be used in mobility refueling, industrial processing, pipeline injection, power generation, or another application.

Compression is particularly sensitive to delivery pressure and flow variability. A project delivering hydrogen to a nearby low-pressure process has a different electricity profile from one feeding high-pressure storage or a 70 MPa refueling chain. Compression should be separately metered and reported rather than embedded in an undifferentiated “plant efficiency” figure.

Degradation changes the electricity budget over the asset life

Electrolyzer performance does not remain fixed. Stack degradation generally raises the voltage required to sustain a given current, increasing electricity use per kilogram of hydrogen unless operating conditions are adjusted. The degradation trajectory depends on technology, materials, current density, temperature, water quality, cycling profile, pressure regime, and maintenance practice.

A technical comparison should therefore request an energy-performance curve over time rather than only beginning-of-life values. It should clarify whether the guaranteed specific energy consumption applies at commissioning, at a stated operating hour, or throughout a defined service interval. It should also identify expected stack replacement conditions and the criteria used to determine end of useful stack life.

Annual energy models should include degradation explicitly. Omitting it can understate both electricity demand and the renewable capacity required to sustain a contracted hydrogen output. The effect becomes more important where electricity supply is tightly matched to production commitments or where carbon-intensity thresholds leave limited margin.

Standards support safe and comparable evaluation, but they do not replace a performance model

ISO 22734 addresses safety requirements for hydrogen generators using water electrolysis and is a central reference for electrolyzer equipment safety. Depending on the project configuration, applicable requirements may also arise from electrical installation rules, pressure-equipment regulations, hazardous-area classification, functional safety requirements, grid codes, and piping standards such as ASME B31.12 for hydrogen piping.

Compliance with a safety standard does not establish a particular kWh/kg outcome, and an efficiency guarantee does not establish complete project compliance. These need to be assessed as connected but separate evidence streams. A credible technical package links process design, electrical single-line diagrams, control philosophy, hazardous-area documentation, pressure-system design, hydrogen-quality requirements, and performance guarantees under the same defined operating conditions.

The most useful acceptance-testing approach measures electricity and hydrogen at agreed boundaries with calibrated instrumentation, documents operating state and ambient conditions, and distinguishes net production from recirculation or purge flows. For variable-power projects, a steady-state factory test cannot substitute for site validation under the intended dispatch profile.

A defensible electricity-use review

The practical objective is to turn an attractive efficiency statement into an auditable plant model. That requires a consistent set of inputs: AC energy at the point of connection; DC energy to stacks where available; auxiliary consumption by subsystem; hydrogen mass flow; outlet pressure; purity; water use; load profile; availability assumptions; and degradation over the evaluation period.

When these inputs are aligned, electricity use becomes a decision tool rather than a headline number. It reveals whether a proposed system is efficient at the boundary that matters, compatible with the available power source, capable of meeting hydrogen specifications under dynamic operation, and supportable within the project’s carbon-intensity framework. In green hydrogen, the quality, timing, and measurement of electricity are inseparable from the quality of the hydrogen asset itself.
